Carbon Offroad CW-XD10ORA Carbon Scout Pro - 10000lb Winch V3 - ORANGE
SKU:CW-XD10ORA
$1,099.00

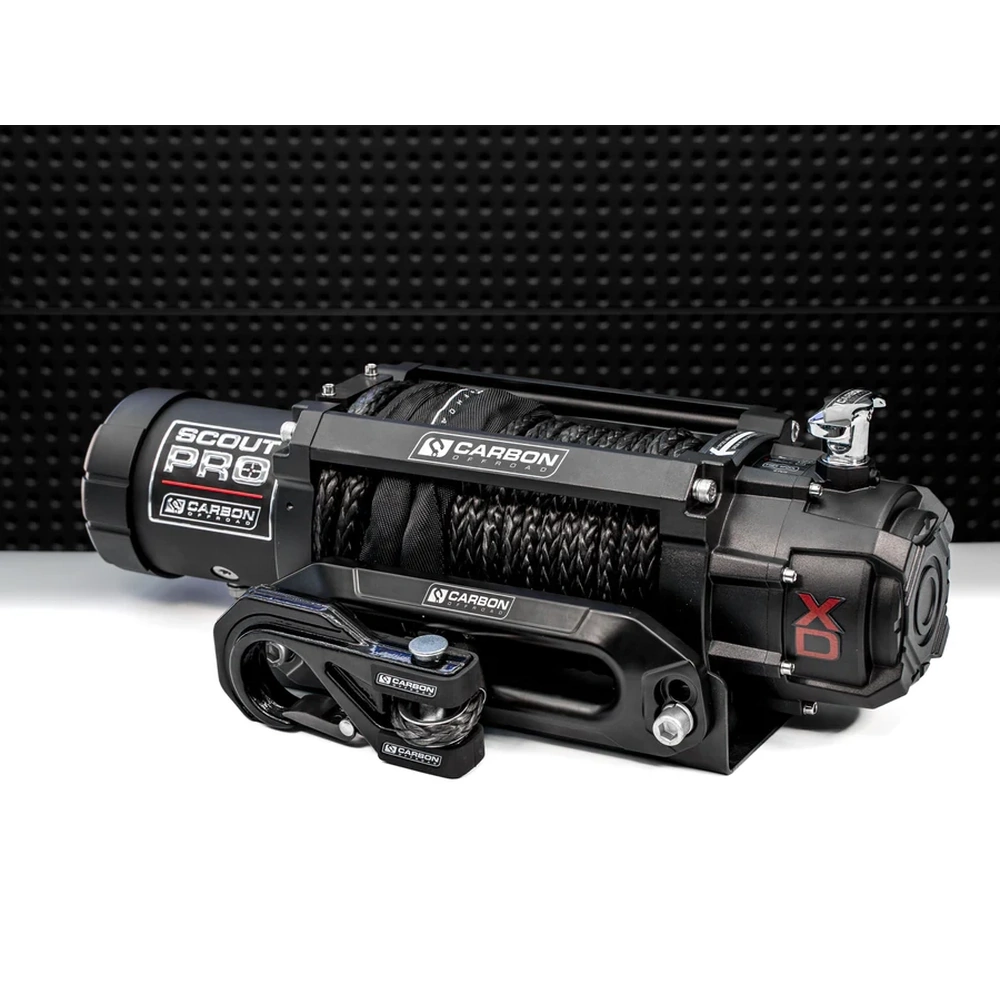

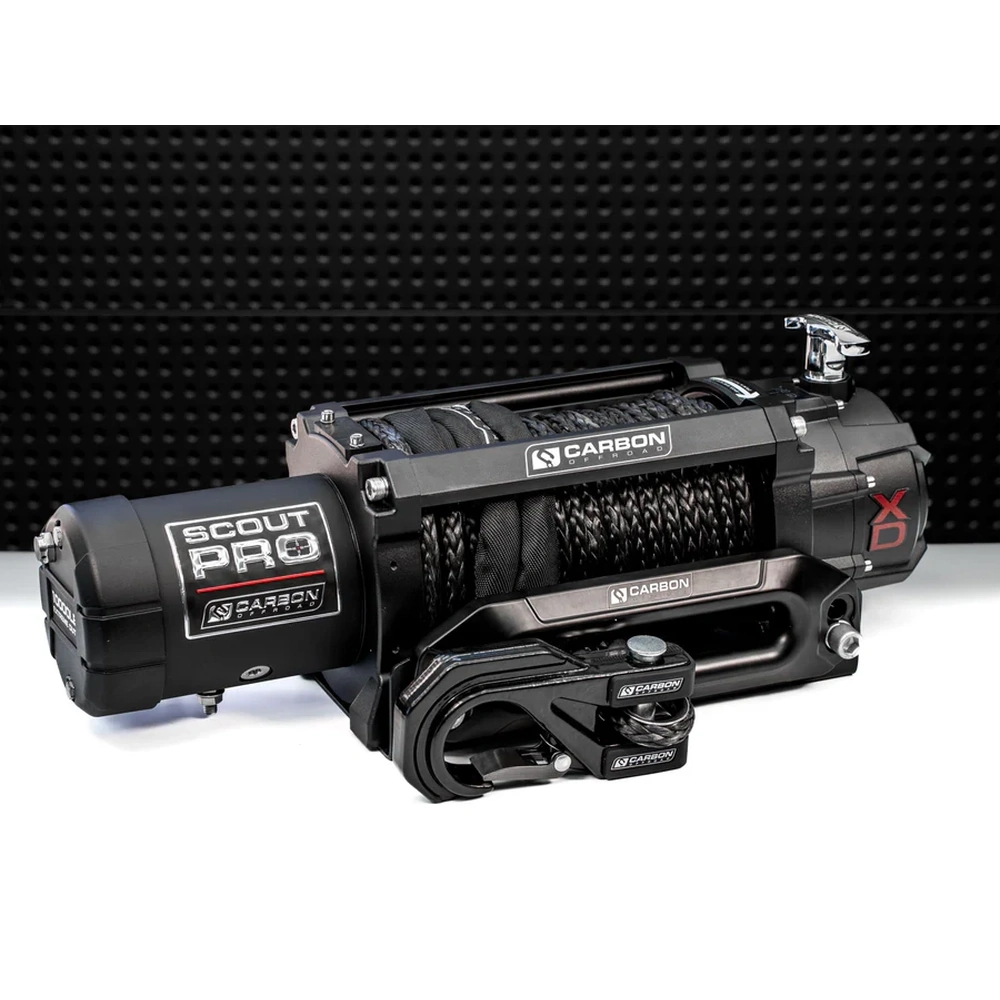

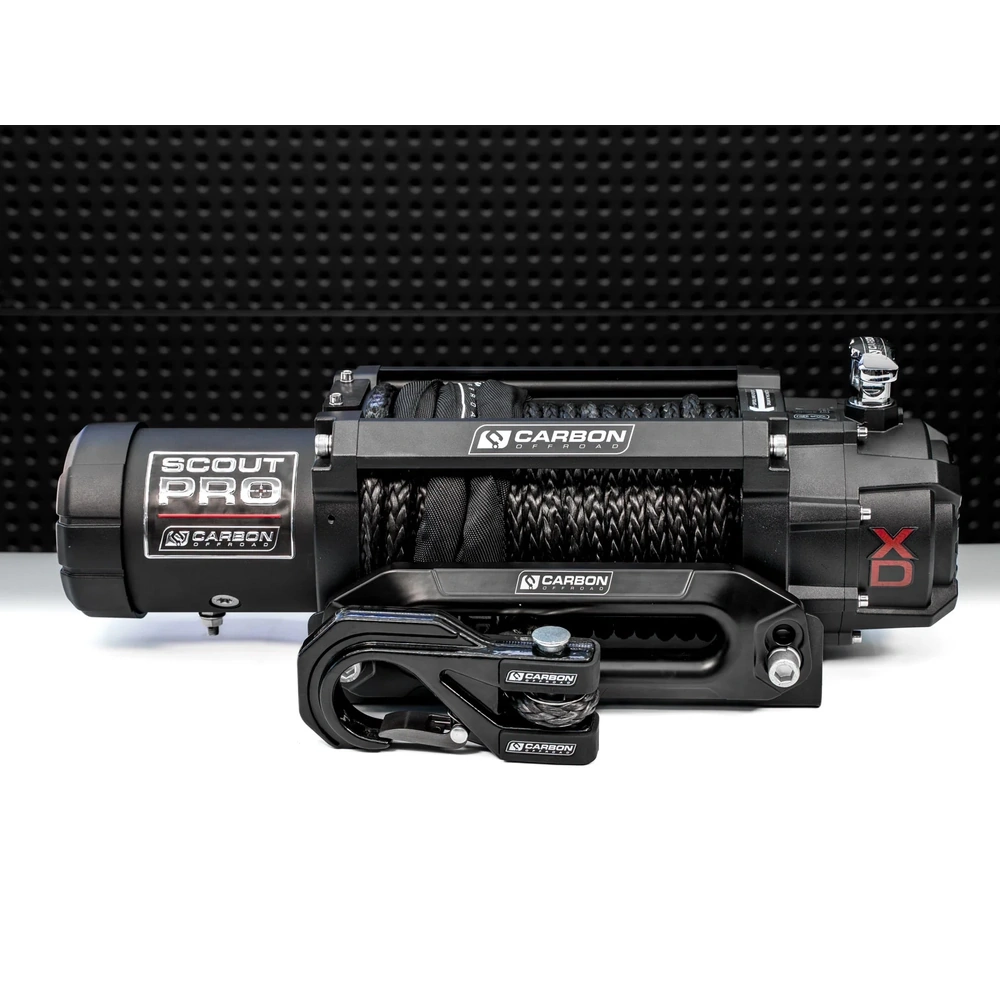

Carbon XD10 Winch – A compact, 10,000 lb-rated winch designed for frequent, heavy-duty offroad use. Features oversized gearsets for strength, premium accessories like the Mega-Pro Rope Thimble and Fairlead, and a rugged build to keep your vehicle within spec and your warranty intact.
Techincal Features
- Part number: CW-XD10
- Rated line pull: 10000 lbs, (4536kg) single-line
- Motor: 12V DC 6 HP series wound motor (24V option available)
- Remote Control: Wired with 3.7m lead
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 180:1
- Rotating Ring Gear

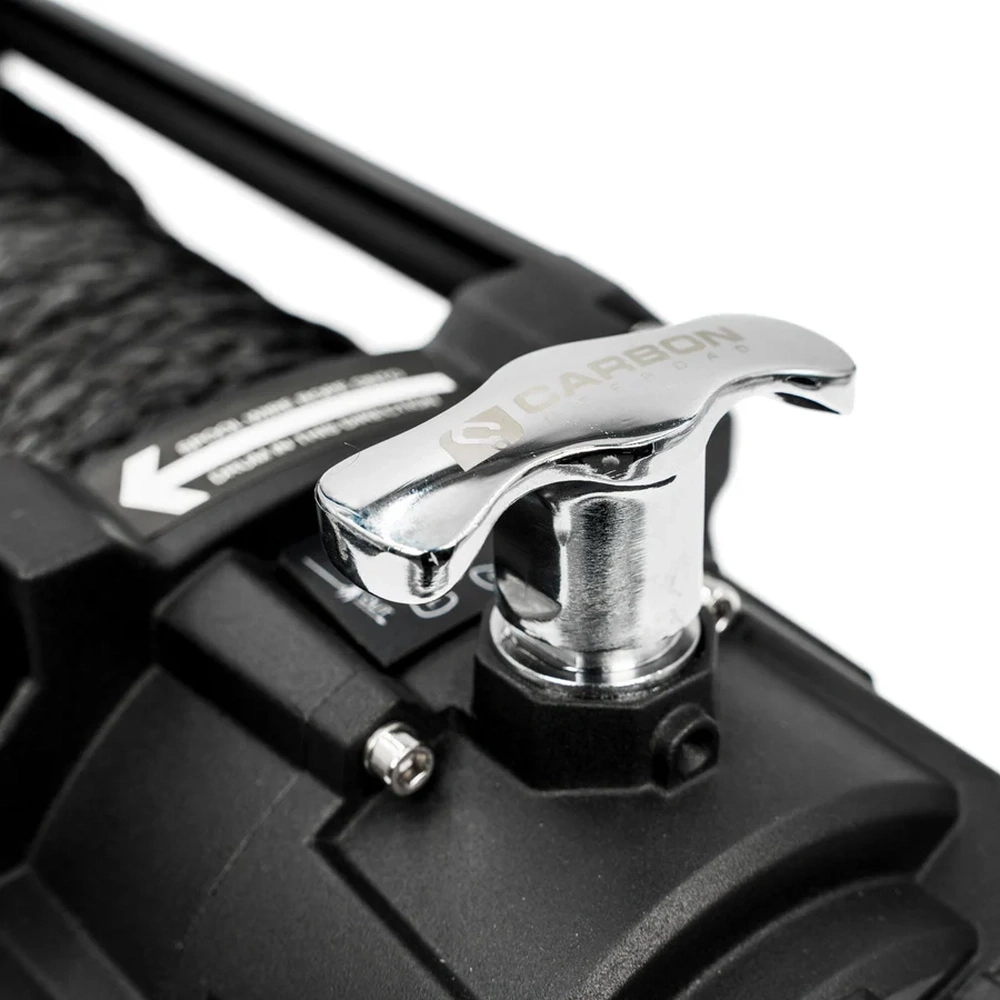

- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty

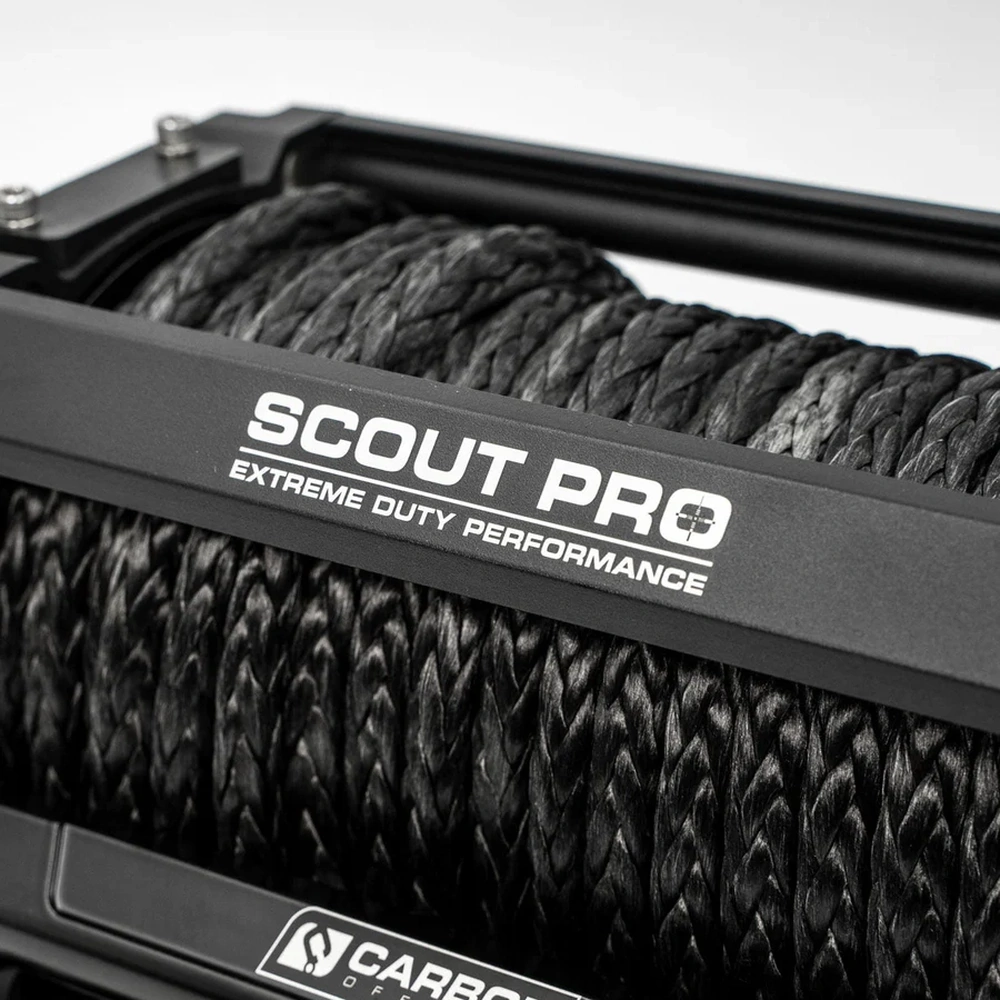

- Synthetic Rope: 24m x 10mm diameter
- Drum Diameter/Length: 63mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")
- Packing Dimensions (L x W x H): 580 x 200 x 220mm
- Winch weight with synthetic rope attached: 19.0kg

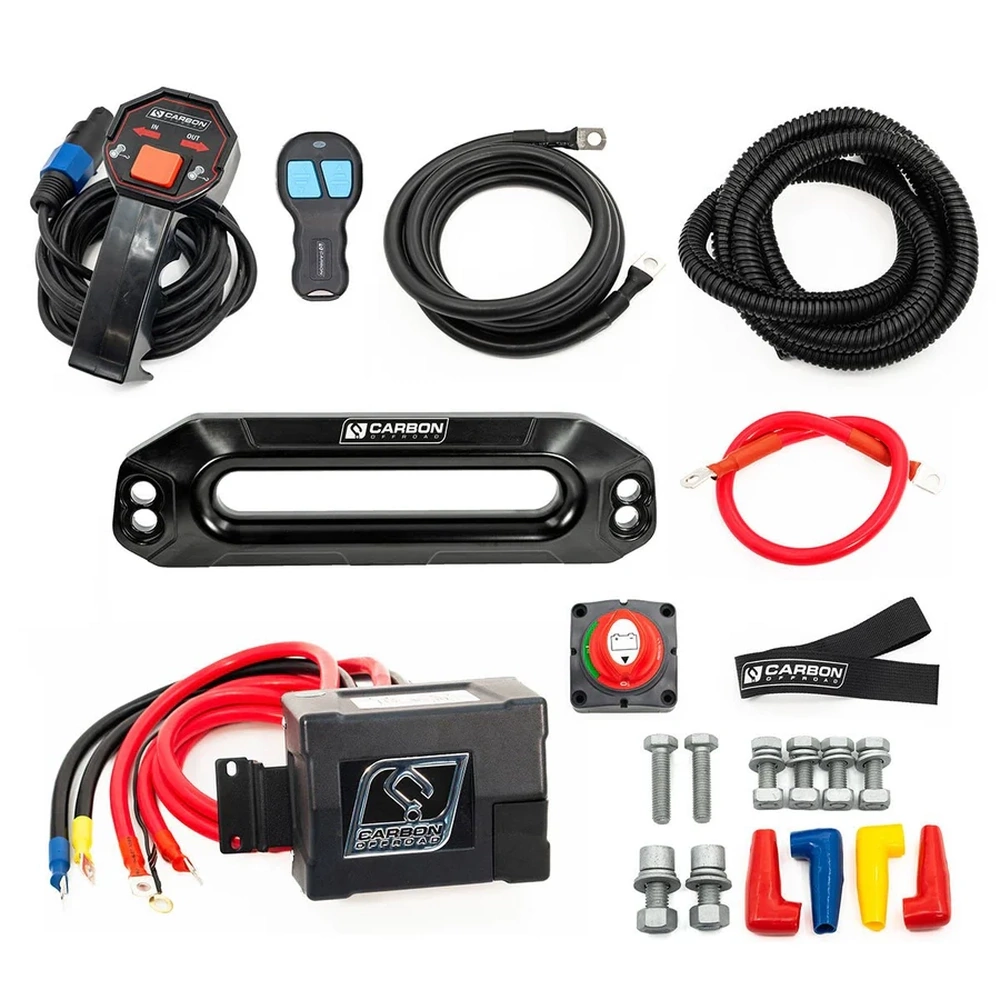

- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7kg
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 31.8(10.6) | 60 | 1/10000(4540) |
| 4000(1814) | 10.8(3.8) | 190 | 2/8200(3720) |
| 6000(2722) | 8.5(3.2) | 250 | 3/6840(3103) |
| 8000(3630) | 6.2(2.6) | 4/5820(2640) | 78.7(24.0) |
| 10000(4540) | 4.6(2.1) | 370 | - |
| SKU | CW-XD10ORA |
| Brand | CARBON OFFROAD |
