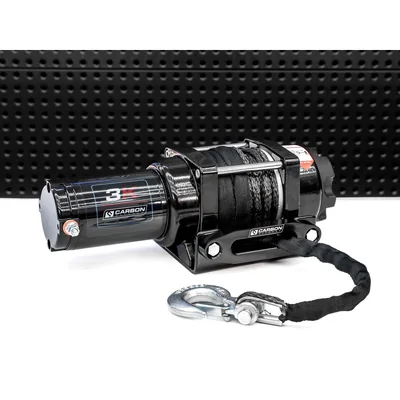

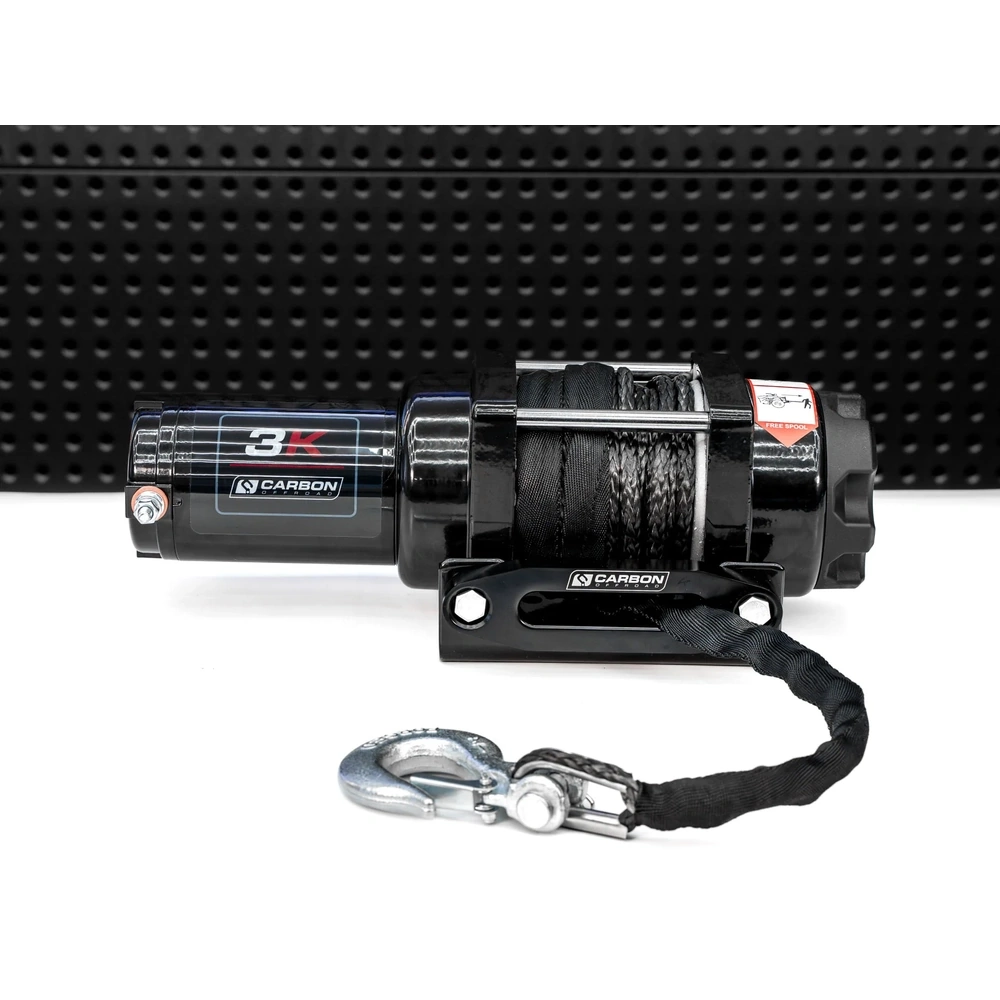

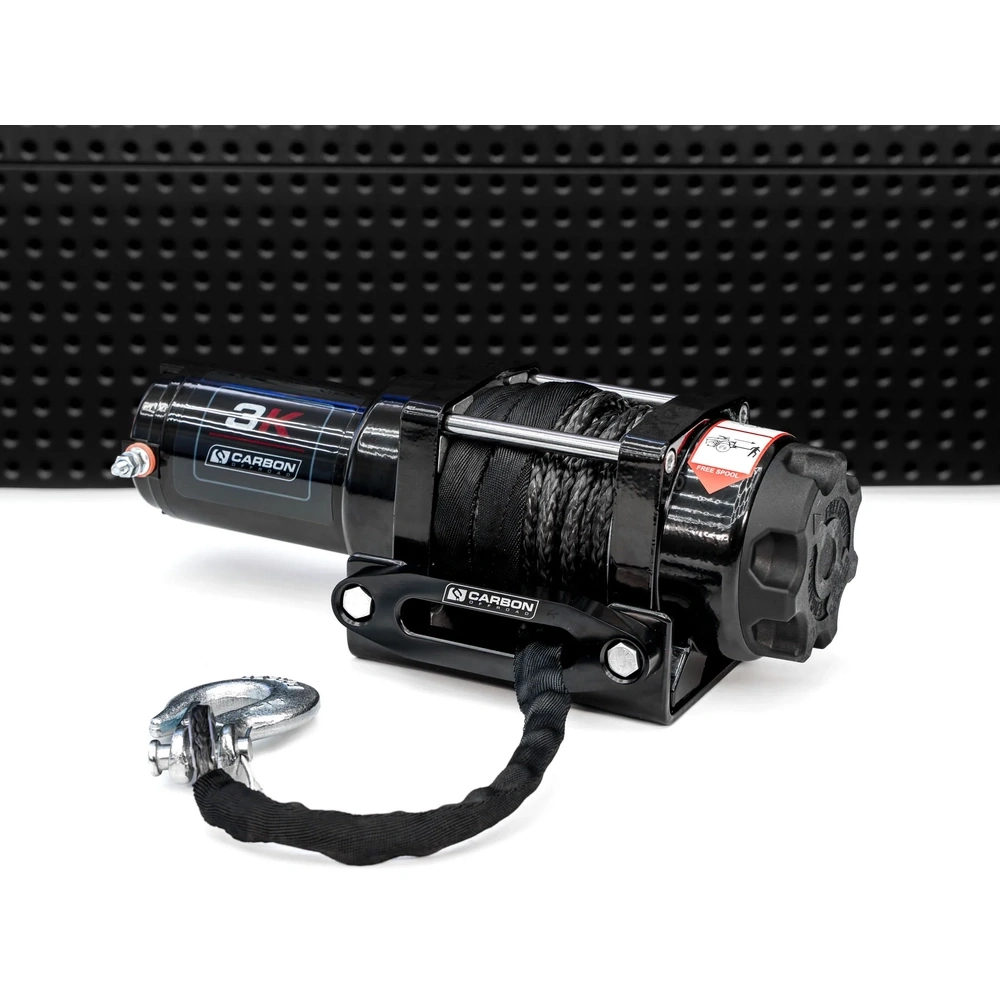

Carbon Offroad CW-3U Carbon 3.0k 3000lb ATV/Trailer Winch

Carbon CW-3U 3000lb Light-Duty Trailer & Utility Winch

The Carbon CW-3U 3.0K 3000lb Winch delivers exceptional value, combining reliability and premium quality in a compact design. Built for light-duty applications with a 3,000 lb (1360 kg) capacity, this winch is engineered to handle a variety of towing and utility tasks effortlessly.

Designed with convenience in mind, it features both a handheld remote and a wireless remote control, allowing seamless operation of the power-in/power-out functions. Enhanced with tie rods for added stability, the CW-3U ensures durability and performance when you need it most.

Key Features & Specifications:

• Rated Line Pull: 3,000 lbs (1360 kg), single-line
• Motor: 12V DC, 1.5 HP Permanent Magnet Motor
• Remote Controls:
  • Wired remote with 12 ft (3.7m) lead
  • Wireless remote included
• Geartrain: Single-stage planetary
• Gear Ratio: 153:1
• Clutch (Free-Spooling): Split ring gear
• Brake System: Self-locking gear train (rated load holding)
• Drum Dimensions: 1.26” diameter × 2.87” length (32mm × 73mm)
• Synthetic Rope: 43 ft, 3/16” diameter (13m, 4.8mm)
• Fairlead: ATV Fairlead
• Mounting Bolt Pattern: 3.0” × 4.87” (76mm × 124mm)
• Winch Dimensions: 12.2” × 5.0” × 5.0” (310mm × 127mm × 127mm)
• Packing Dimensions: 15.7” × 7.9” × 8.7” (400mm × 200mm × 220mm)
• Shipping Weight: 22 lbs (10 kg)
• Fitted Weight: 19.8lb (9kg)
• Warranty: 1 year

The Carbon CW-3U is an excellent choice for small trailers, ATVs, and light-duty applications, offering smooth operation, powerful performance, and reliability in a compact package.

Upgrade your towing experience with the Carbon CW-3U Winch today!

Speed & Performance Breakdown

12V DC Performance Specs
