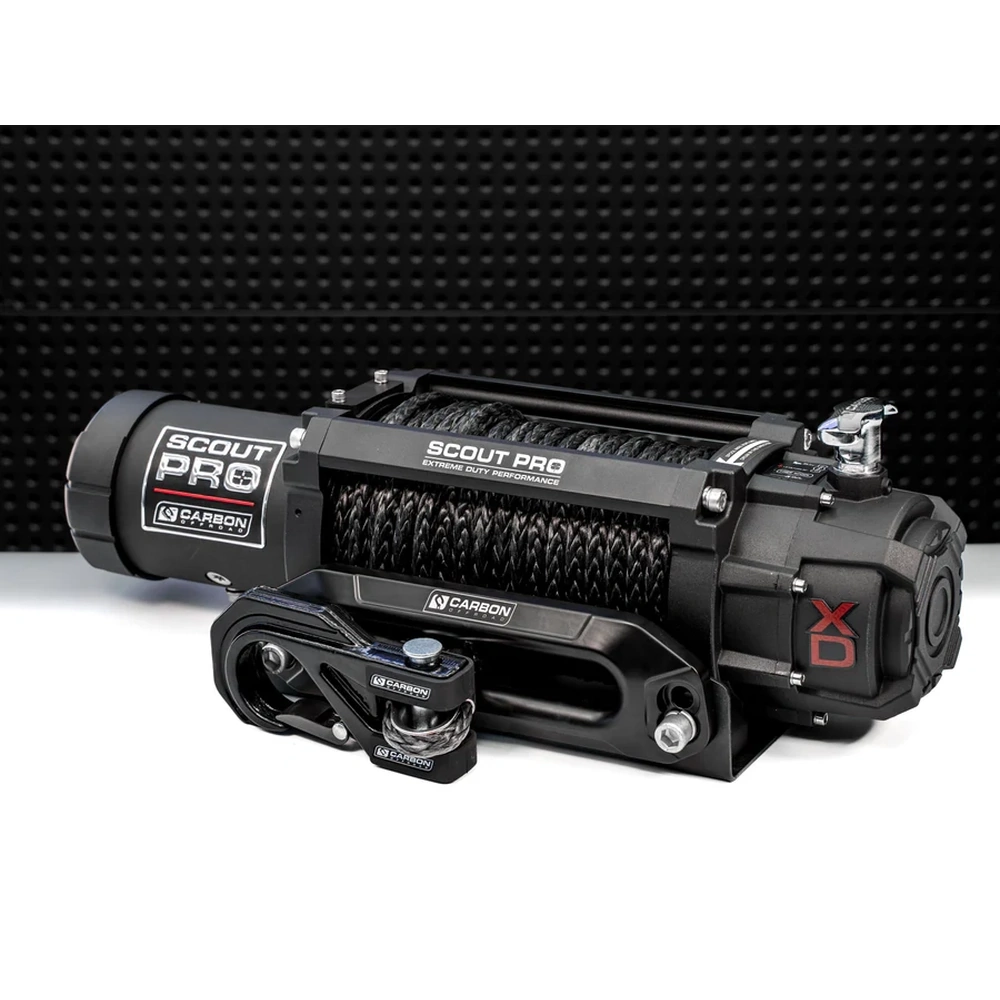

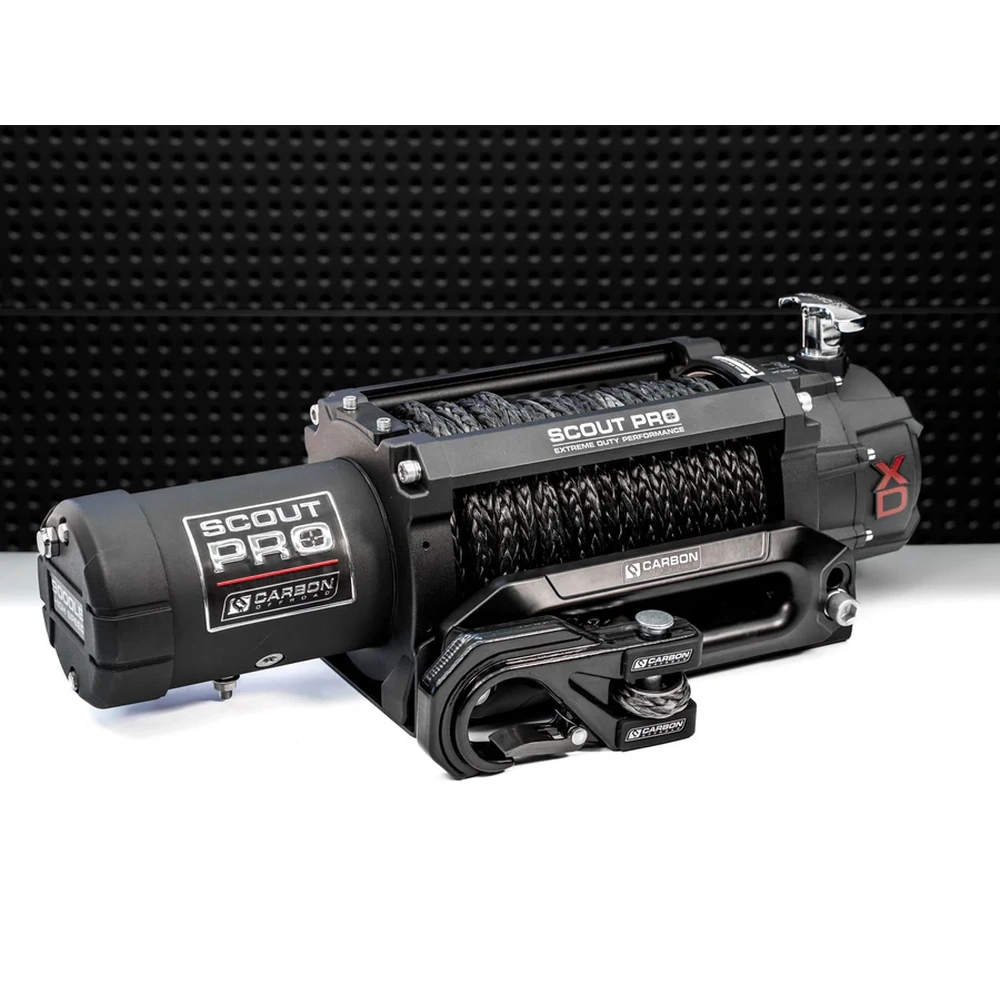

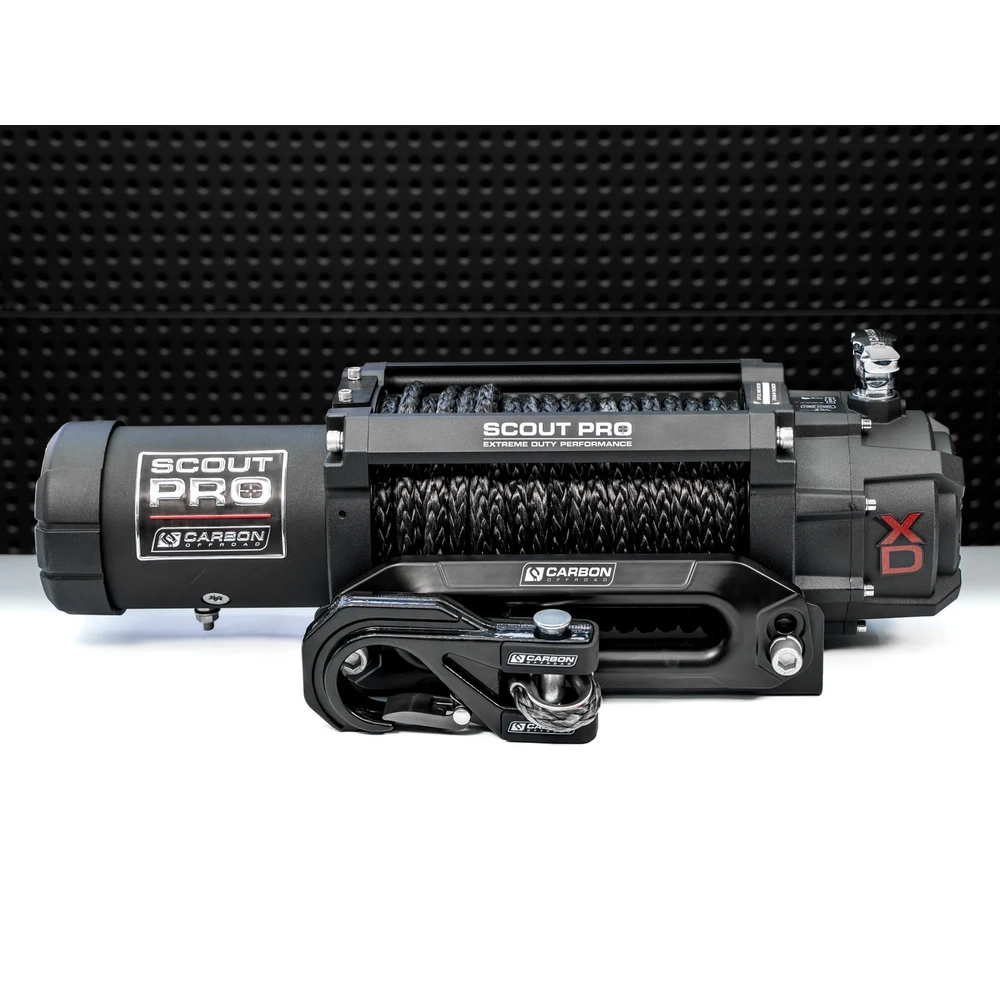

Carbon Offroad CW-XD9V3 Carbon Scout Pro - 9000lb Winch V3

SKU:CW-XD9V3

$1,249.00


Calculate Shipping

Carbon Offroad Scout Pro 9000lb Winch – Extreme Duty Performance Series – Built for heavy-duty offroad use, featuring a 7.0 HP motor, 104:1 performance gearbox, and 10 mm UHMWPE synthetic rope. Includes MegaPro premium fairlead, rope thimble, and high-capacity solenoid. Designed for larger 4×4 vehicles, offering reliable, high-performance winching straight out of the box.

Winch Specifications

  • Motor: 7.0HP High-Torque Motor
  • Gearbox: 104:1 Heavy Duty Performance Gearbox

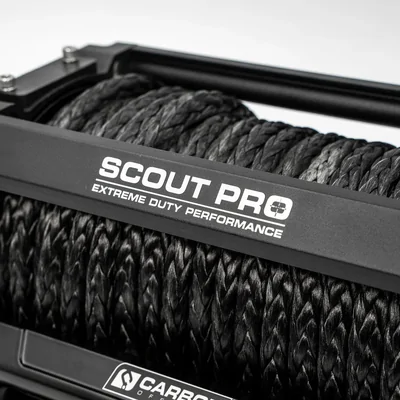

  • Rope: 10mm UHMWPE Synthetic Rope (Pre-stretched)
  • Breaking Strain: Rated at 9000kg minimum
  • Chassis: Carbon Offroad 2023 V3 Winch Chassis (shared with proven 12K winch)
  • Solenoid: Heavy Duty Upgraded Solenoid (rated 100 amps higher than CW-12K)

Speed & Performance Breakdown

12V DC Performance Specs
Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 62.3 (19) 80 1 / 9000 (4090)
2000 (910) 17.4 (5.3) 150 2 / 7625 (3460)
4000 (1810) 15.1 (4.6) 220 3 / 6460 (2930
6000 (2720) 13.4 (4.1) 280 4 / 5480 (2490)
8000 (3630) 11.5 (3.5) 350 -
9000 (4090) 10.5 (3.2) 380 -
SKU CW-XD9V3
Brand CARBON OFFROAD
