Carbon Offroad CW-XD20SIL Carbon Scout Pro - 20000lb Extreme Duty Truck Winch - SILVER
SKU:CW-XD20SIL
$1,999.00

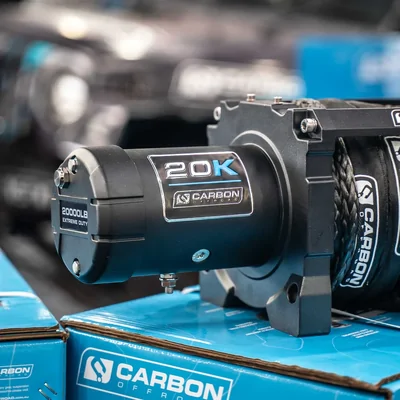

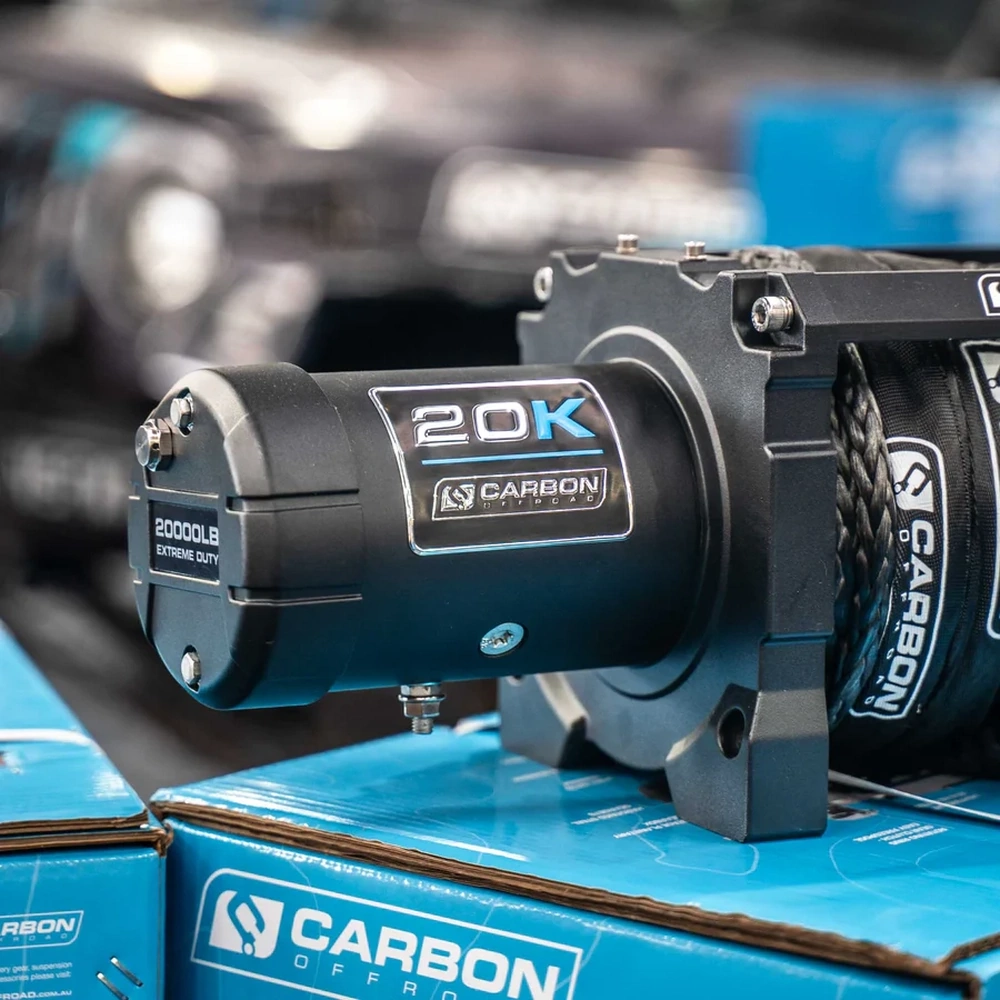

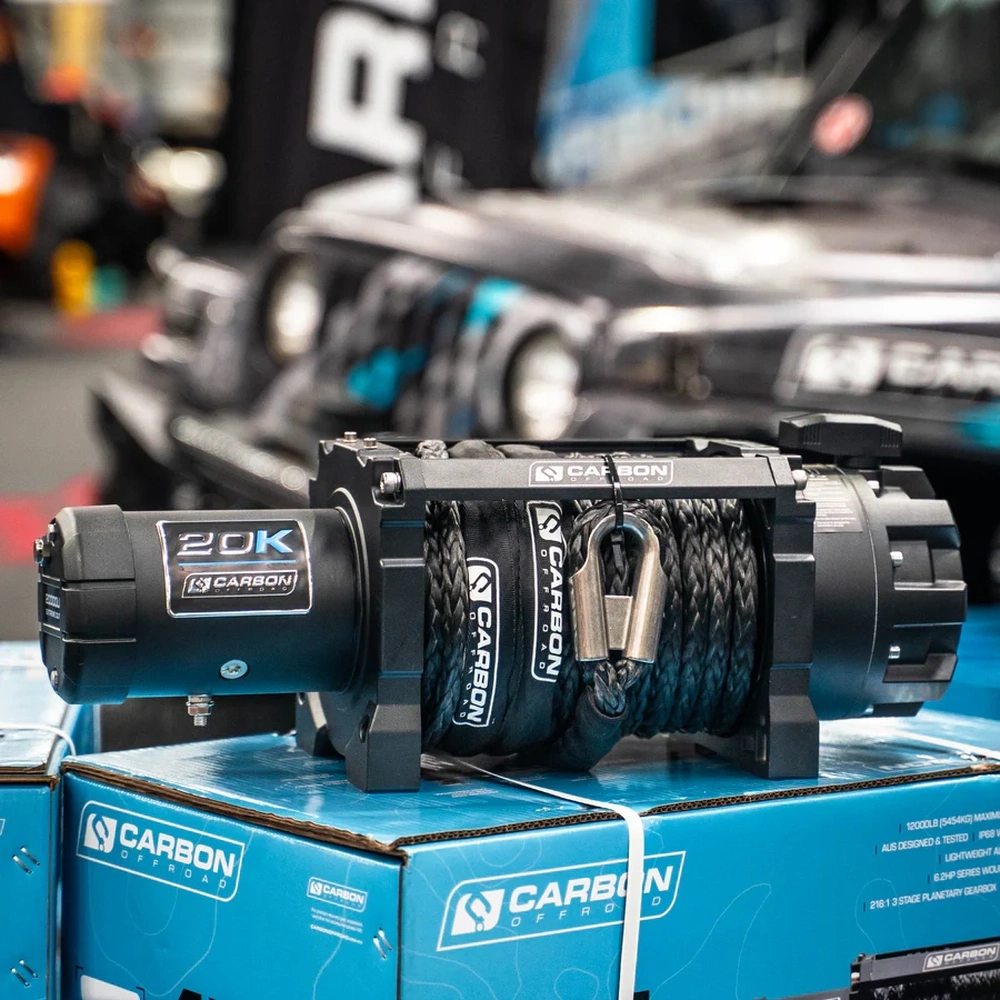

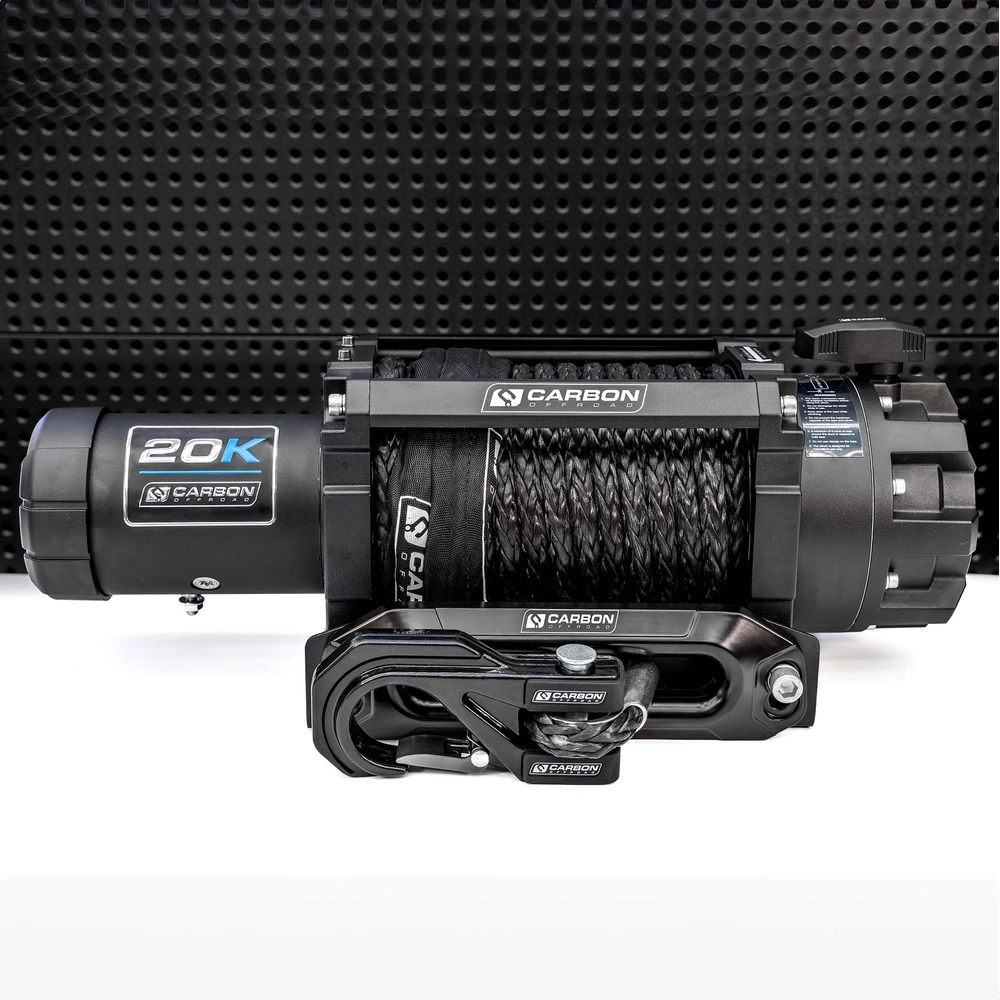

Carbon Offroad Scout Pro 20K Winch – A heavy-duty 37.2 kg truck winch delivering a massive 20,000 lb pull with a 7 HP motor, 3-stage planetary gearbox, automatic brake, and 600 A sealed solenoid. Supplied with wired and wireless remotes, it’s built tough for extreme offroad recovery.
Technical Features:
- Part number: CW-XD20
- Rated line pull: 20000 lbs, (9072kg) single-line

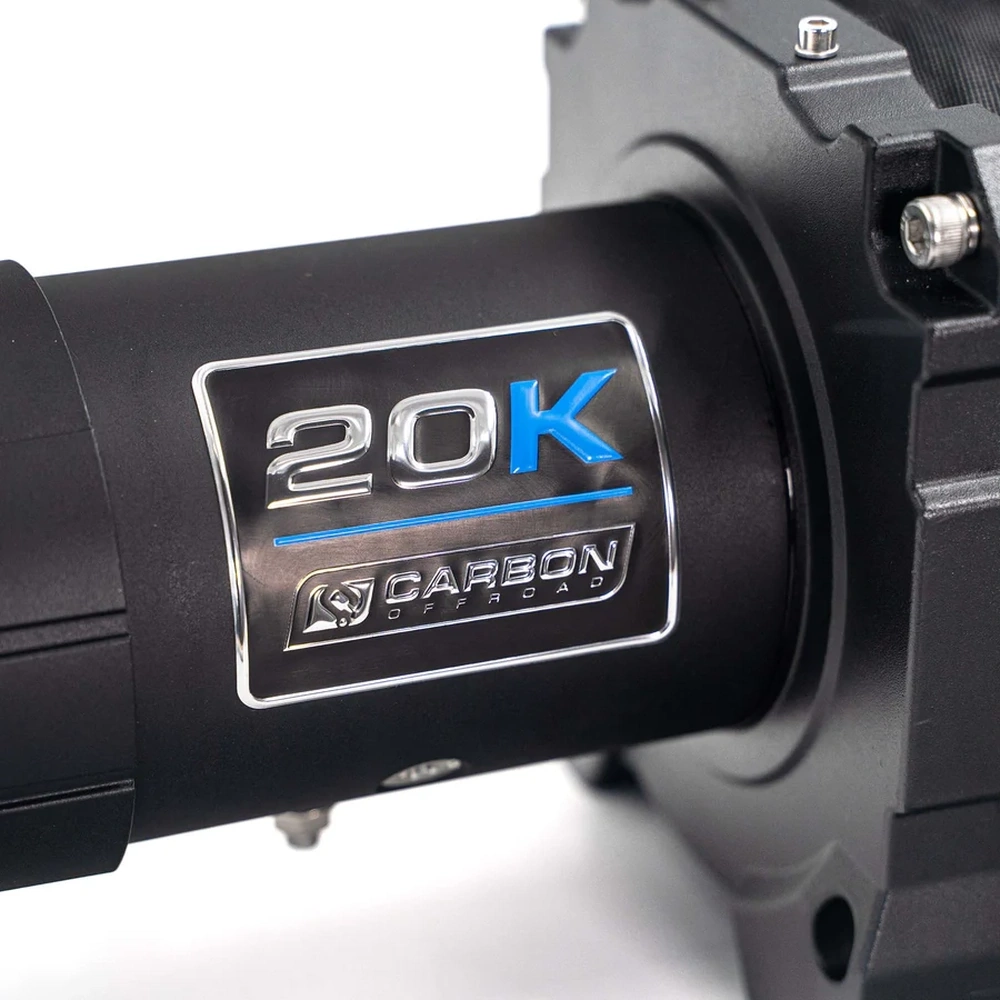

- Motor: 12V DC 7 HP series wound motor (24V option available)

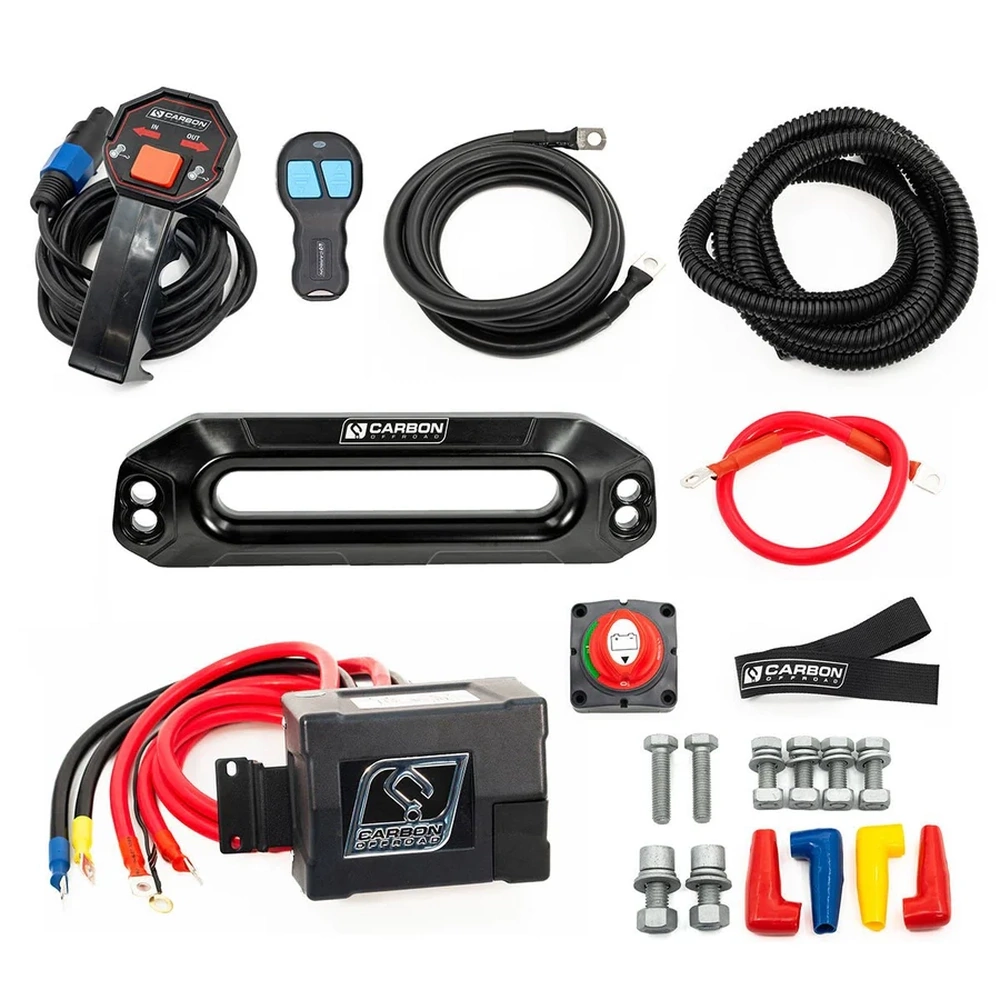

- Remote Control: Wired with 3.6m lead
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 354:1
- Rotating Ring Gear
- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty

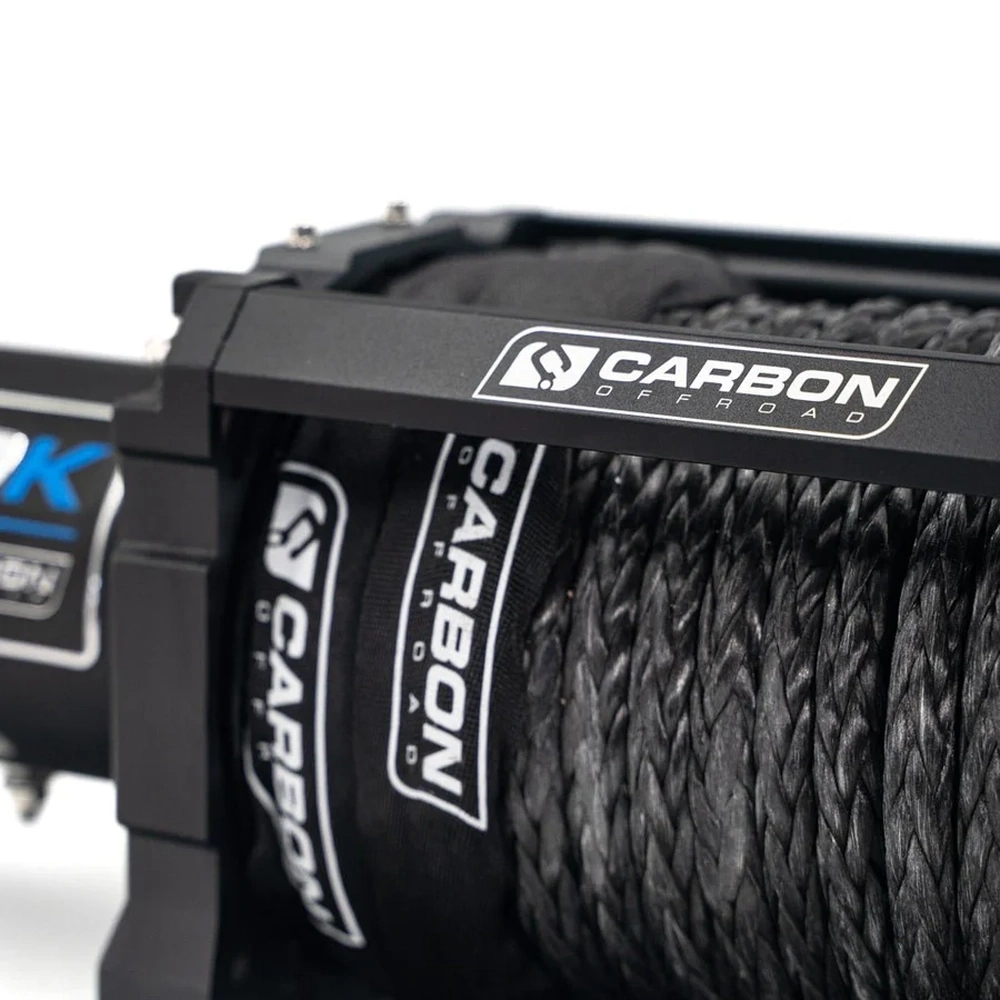

- Synthetic Rope: 25m x 13mm diameter
- Drum Diameter/Length: 88mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 579 x 192 x 224mm
- Packing Dimensions (L x W x H): 640 x 250 x 345mm
- Winch weight with synthetic rope attached: 30kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 13.8(4.2)26.2(8.0) | 70 | 1/20000(9072) |
| 4000(1814) | 10.8(3.3) | 145 | 2/16140(7321) |
| 8000(3629) | 8.5(2.6 | 230 | 3/13520(6133) |
| 12000(5443) | 6.2(1.9) | 310 | 4/11660(5289) |
| 16000(7257) | 4.6(1.4) | 390 | - |
| 20000(9072) | 3.3(1.0) | 460 | - |
| SKU | CW-XD20SIL |
| Brand | CARBON OFFROAD |
