Carbon Offroad CW-XD10BLK Carbon Scout Pro - 10000lb Winch V3 - BLACK

SKU:CW-XD10BLK

$1,099.00


Calculate Shipping

Got a bar rated to 10K? Stay within spec and retain your warranty with the Carbon XD10.

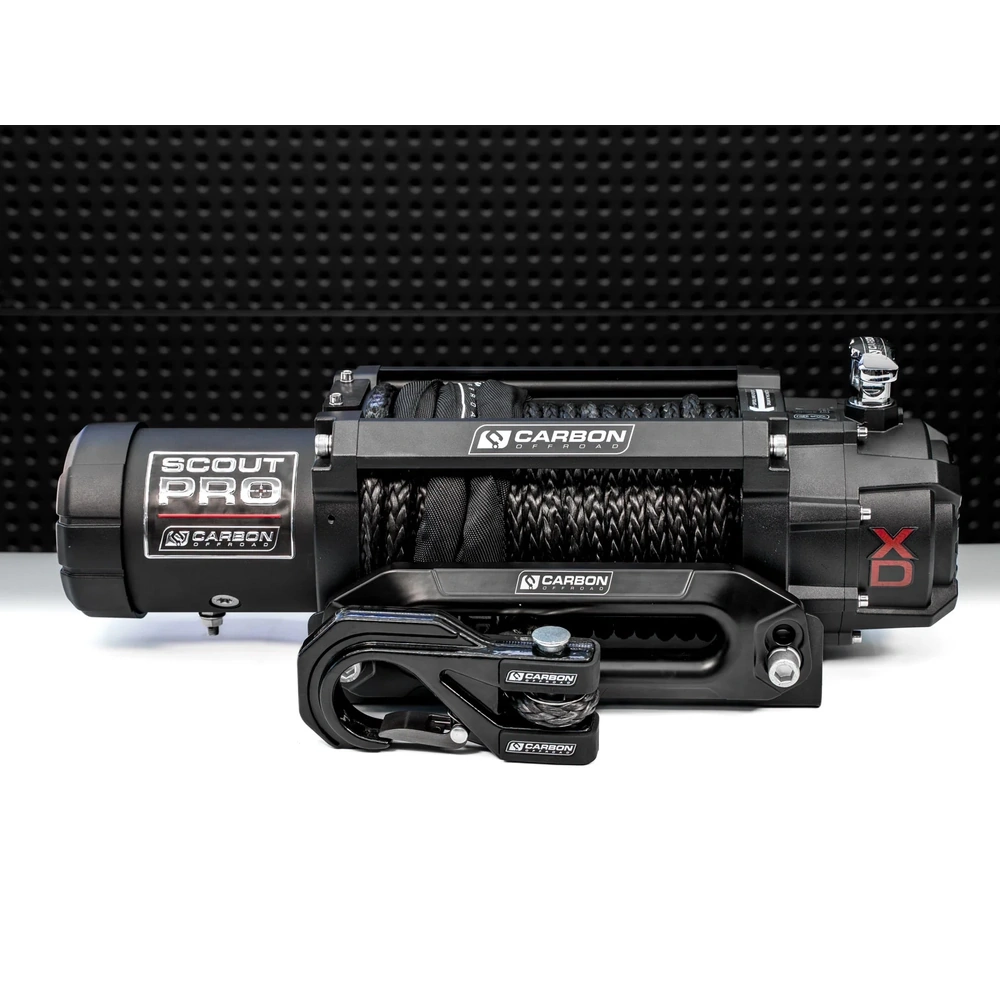

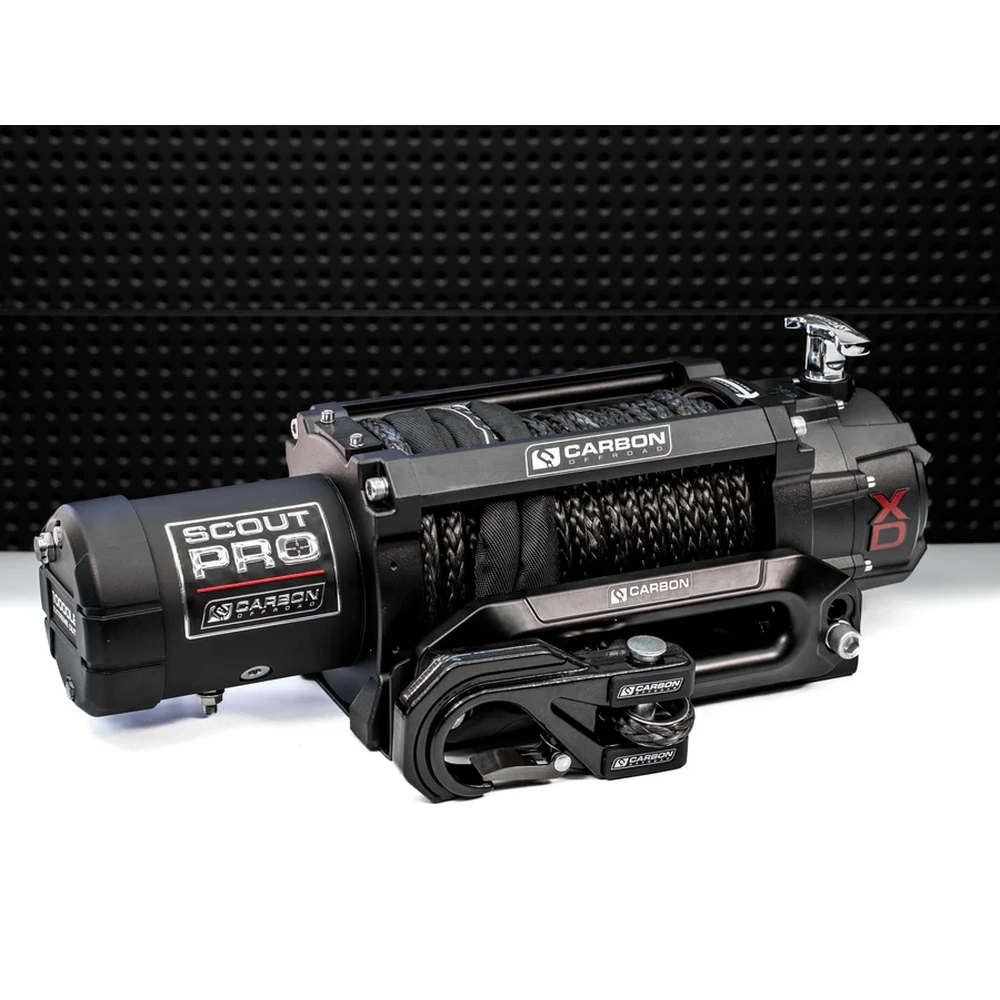

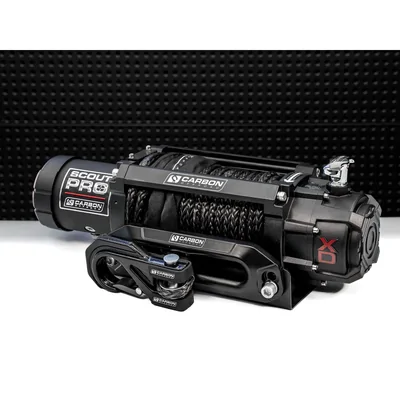

The Carbon Offroad Scout Pro XD10 is a 12V, 10,000 lb electric recovery winch built to handle regular offroad recovery work. Part of the Scout Pro Extreme Duty Performance Series, it suits heavier vehicles operating in harsh Australian conditions.

  • Part number: CW-XD10
  • Rated line pull: 10000 lbs, (4536kg) single-line
  • Motor: 12V DC 6 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.7m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 180:1
  • Rotating Ring Gear

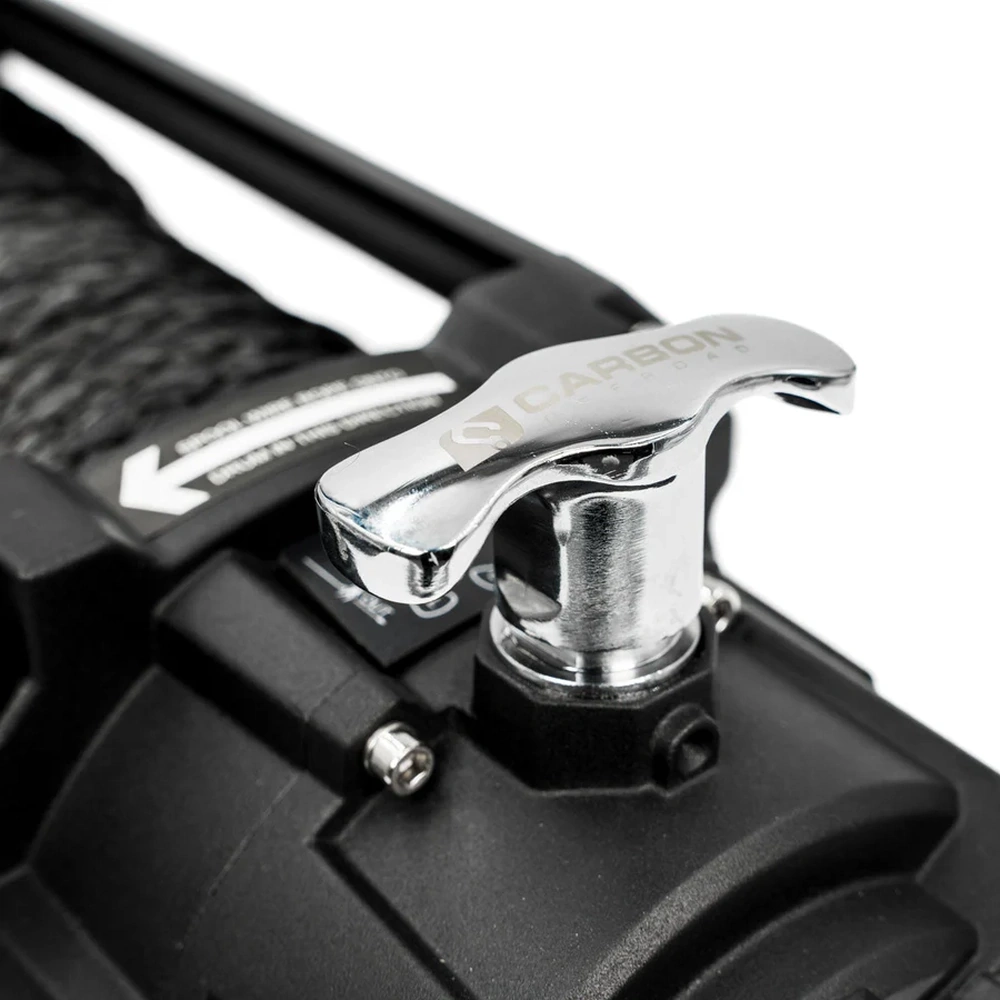

  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty

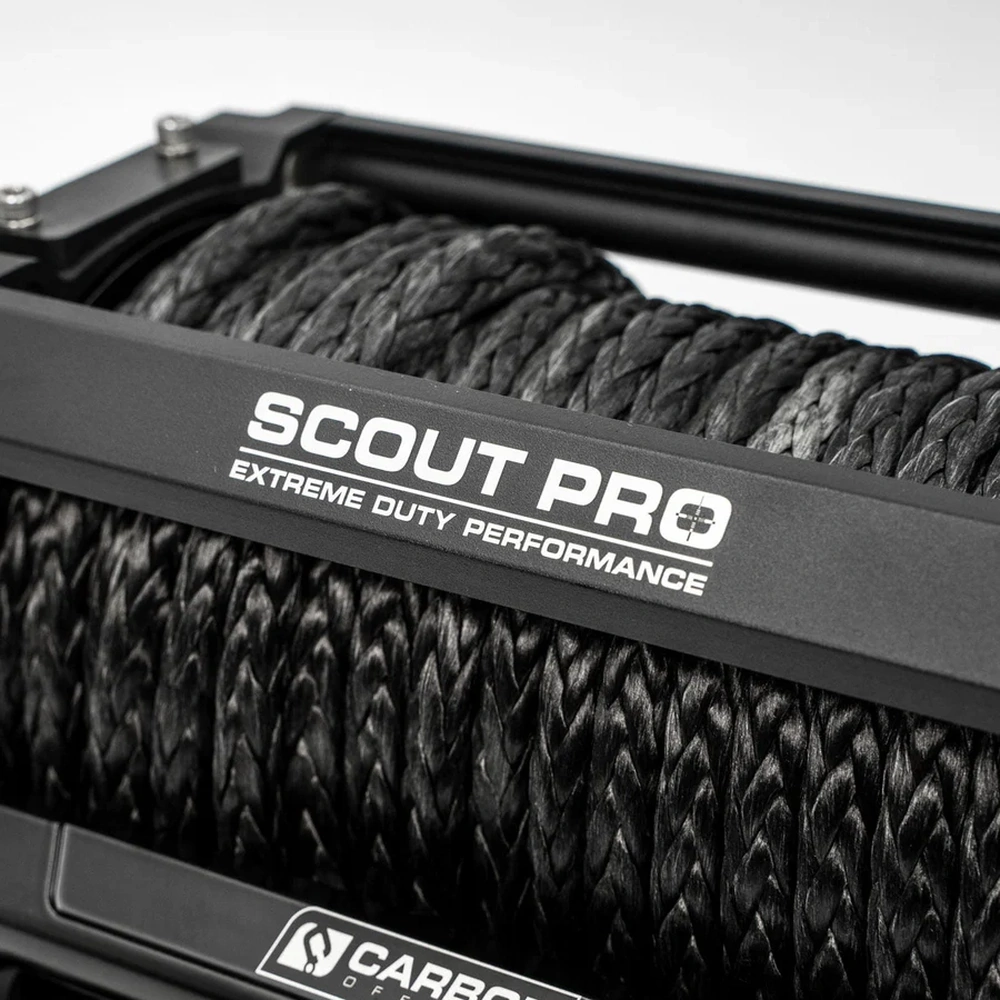

  • Synthetic Rope: 24m x 10mm diameter
  • Drum Diameter/Length: 63mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")
  • Packing Dimensions (L x W x H): 580 x 200 x 220mm
  • Winch weight with synthetic rope attached: 19.0kg

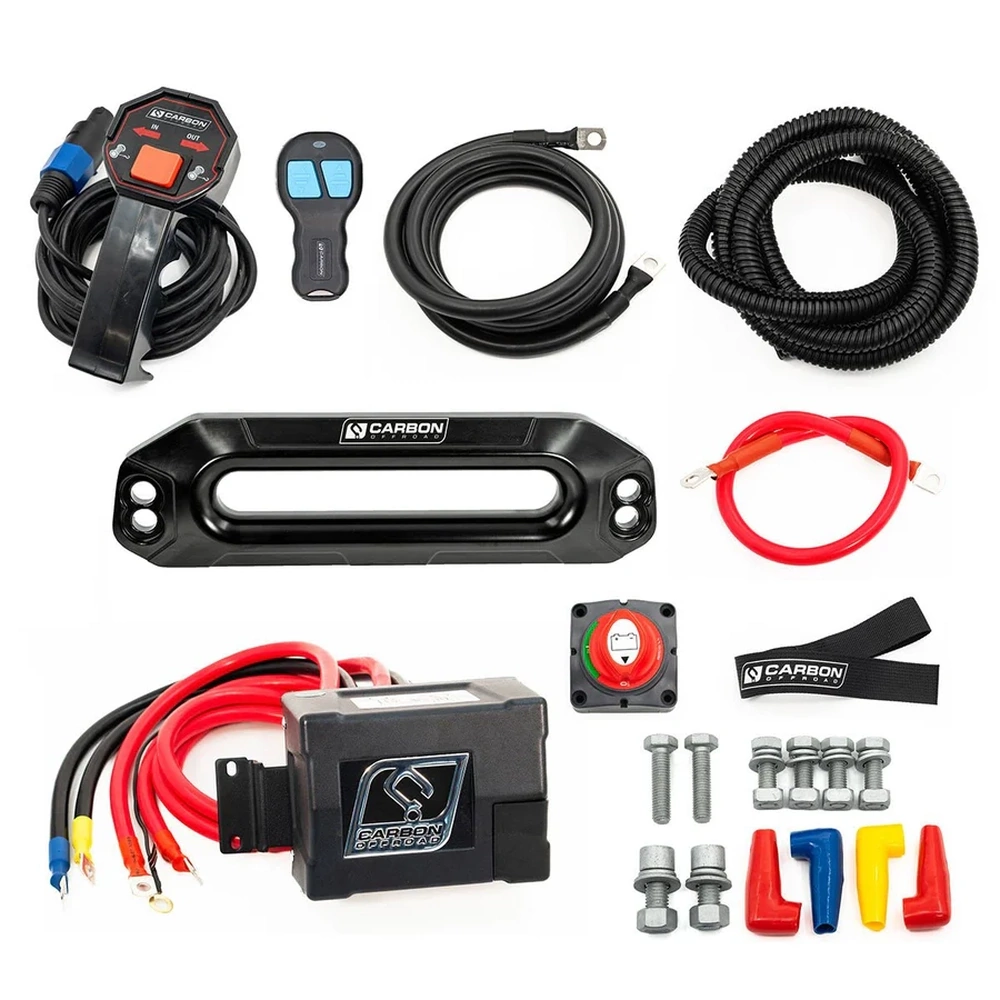

  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7kg

Speed & Performance Breakdown

12V DC Performance Specs

Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 31.8(10.6) 60 1/10000(4540)
4000(1814) 10.8(3.8) 190 2/8200(3720)
6000(2722) 8.5(3.2) 250 3/6840(3103)
8000(3630) 6.2(2.6) 4/5820(2640) 78.7(24.0)
10000(4540) 4.6(2.1) 370 -



SKU CW-XD10BLK
Brand CARBON OFFROAD
