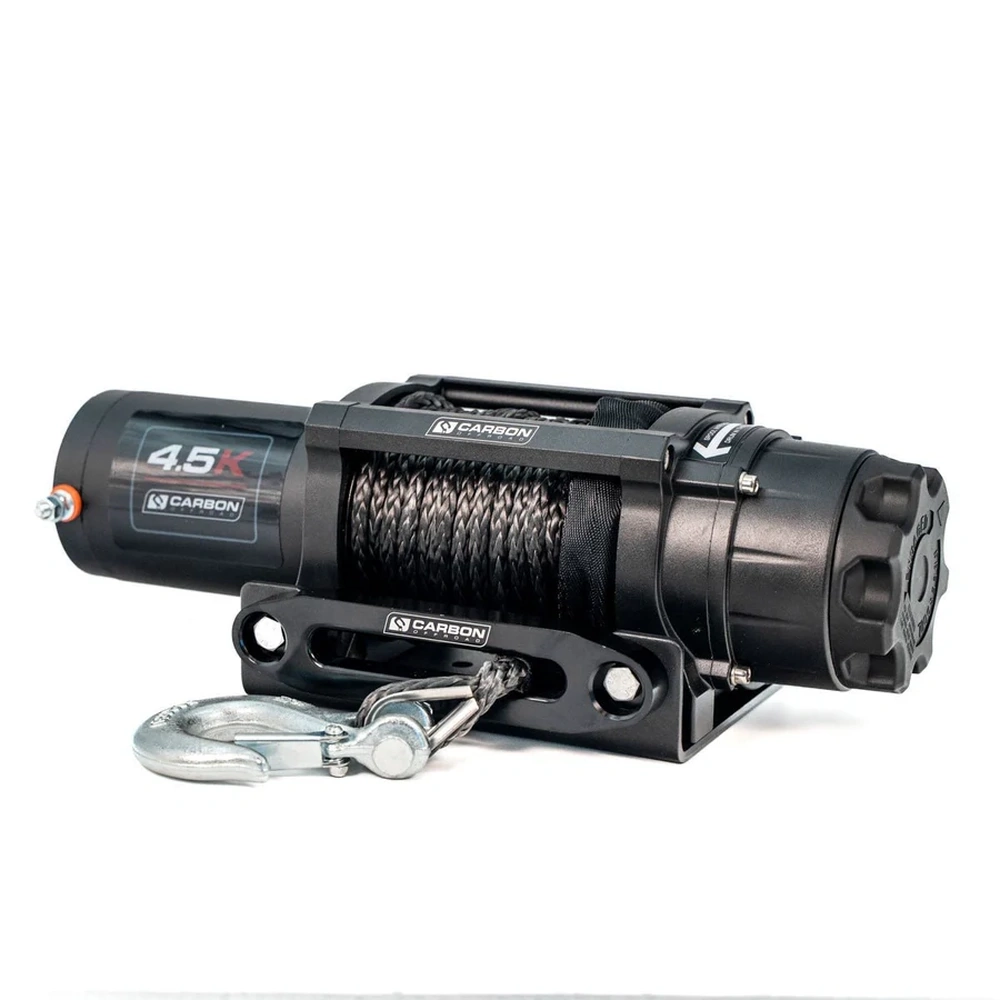

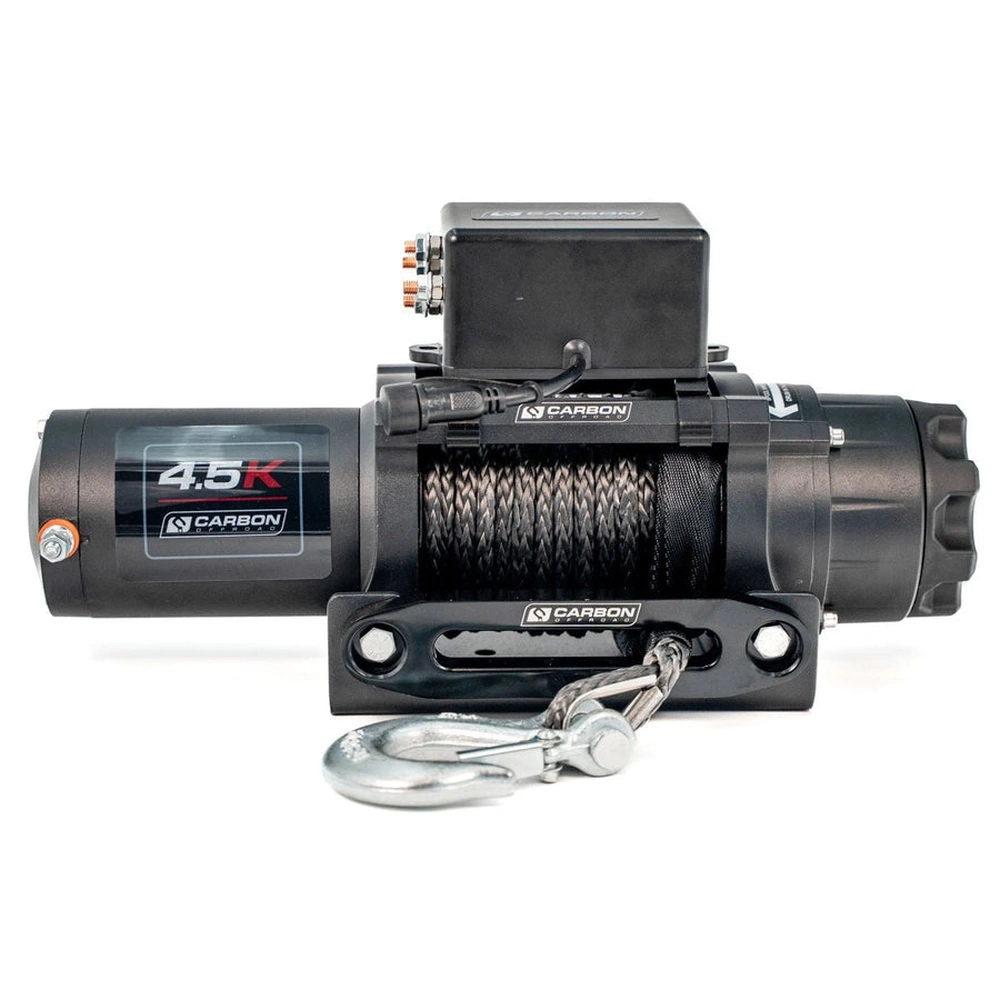

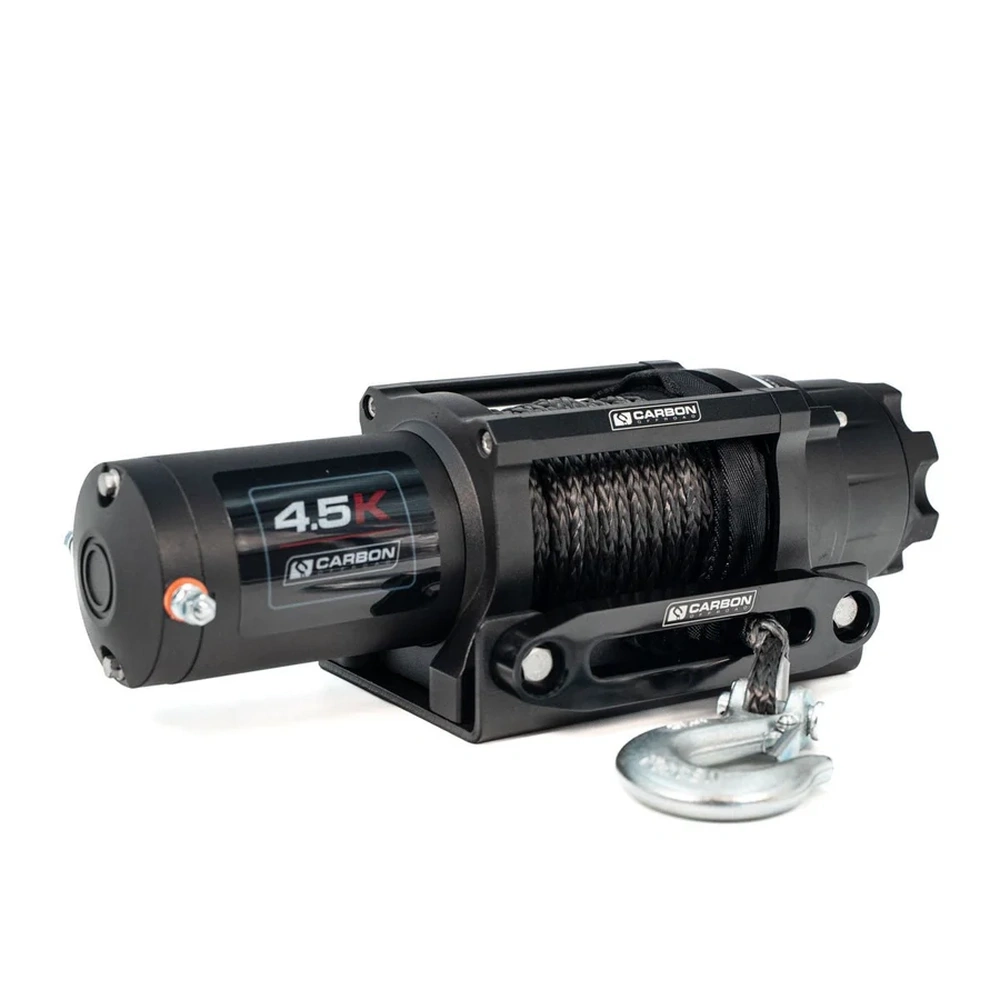

Carbon Offroad CW-45 Carbon 4.5k 4500lb ATV/Trailer Winch

SKU:CW-45

$499.00


Calculate Shipping

Carbon Offroad 4,500 lb ATV/UTV Winch – Compact, high-performance 12V winch with 3-stage planetary gearbox, synthetic rope, aluminium hawse fairlead, and wireless/handlebar controls. Ideal for trailers, ATVs, UTVs, and heavy-duty recovery.



Features

  • Rated Capacity: 4,500 lbs (2040 kg), single-line pull
  • Motor: 12V DC, 1.9 HP permanent magnet motor
  • Remote Control: Handlebar Mini-Rocker & Wireless Remote (included)
  • Geartrain: 3-Stage Planetary, 176:1 ratio
  • Brake System: Dynamic & Mechanical
  • Durability Enhancements: Tie bars for stability
  • Synthetic Rope: 43’ (13m) x 1/4” (6.35mm)
  • Fairlead: CNC billet alloy black anodised with laser etched logo

Speed & Performance Breakdown

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 20.4 (6.2) 31 Amps 1/4500 (2040)
1000 14.2 (4.3) 65 Amps 2/3750 (1700)
2000 10.9 (3.3) 96 Amps 3/3510 (1595)
3000 7.7 (2.4) 125 Amps 4/3300 (1500)
4500 4.9 (1.5) 175 Amps           -
SKU CW-45
Brand CARBON OFFROAD
