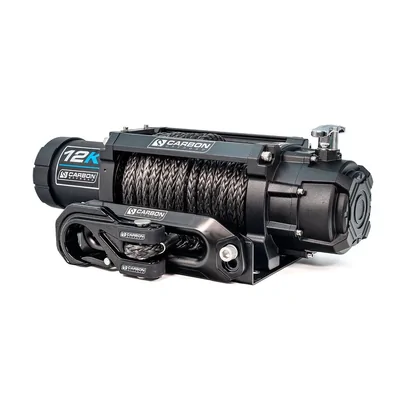

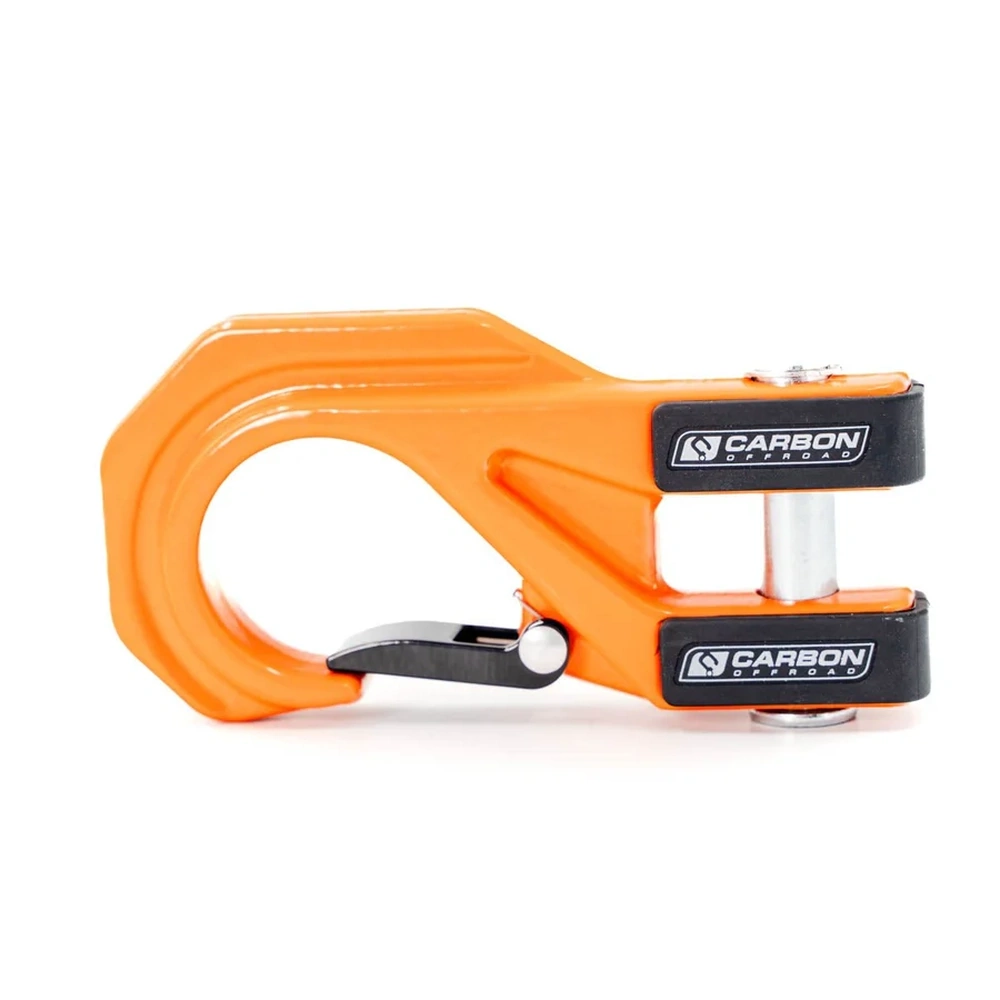

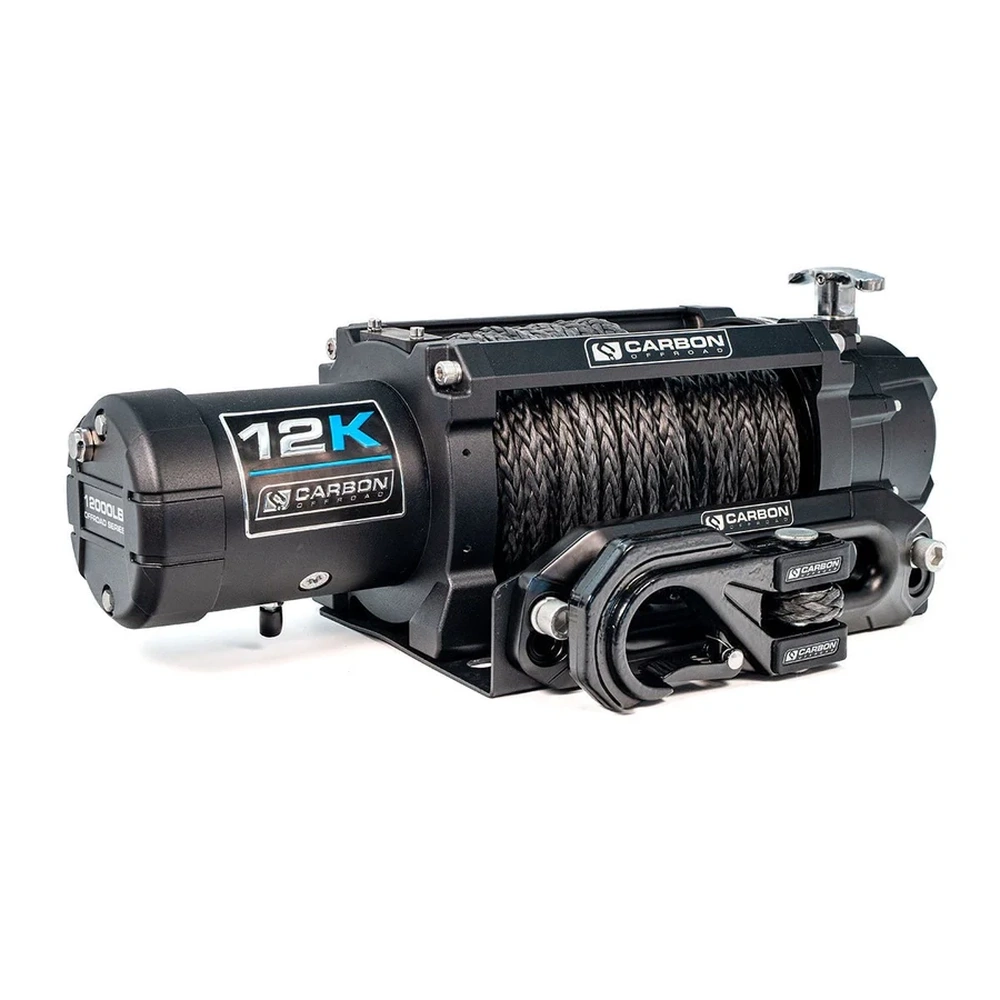

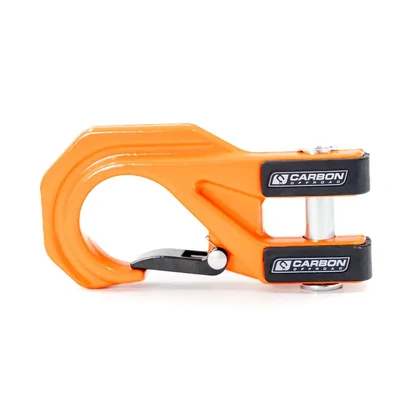

Carbon Offroad CW-12KV3XORA Carbon 12K - 12000lb Winch V3X with MegaPro Hook - ORANGE
SKU:CW-12KV3XORA
$1,099.00
The Carbon 12K is a lightweight, high-performance 12000lb winch designed to handle tough off-road conditions.
Techinical Features
- Part number: CW-12KV3X
- Rated line pull: 12000 lbs, (5450 kg) single-line
- Motor: 12V DC 6HP series wound motor (24V option available)

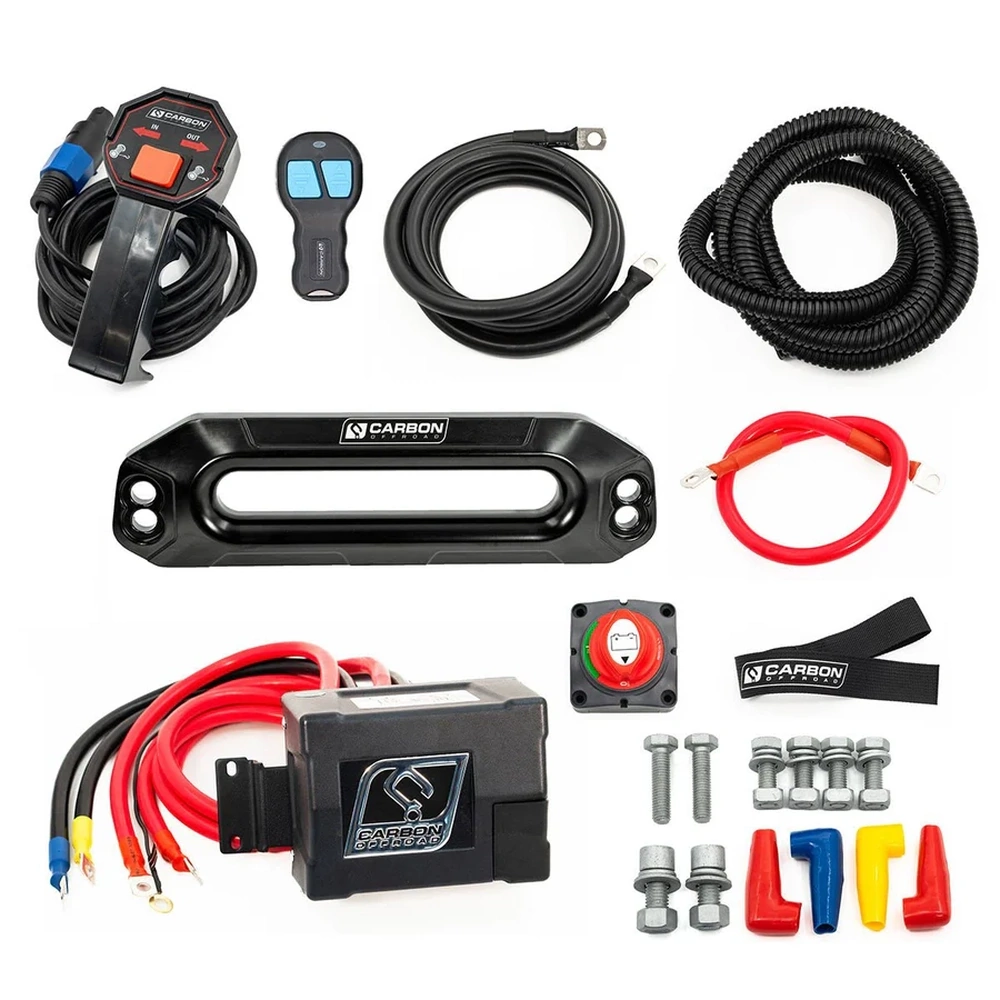

- Remote Control: Remote Switch, 12ft (3.7m) lead.
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary.
- Gear Ratio: 218:1

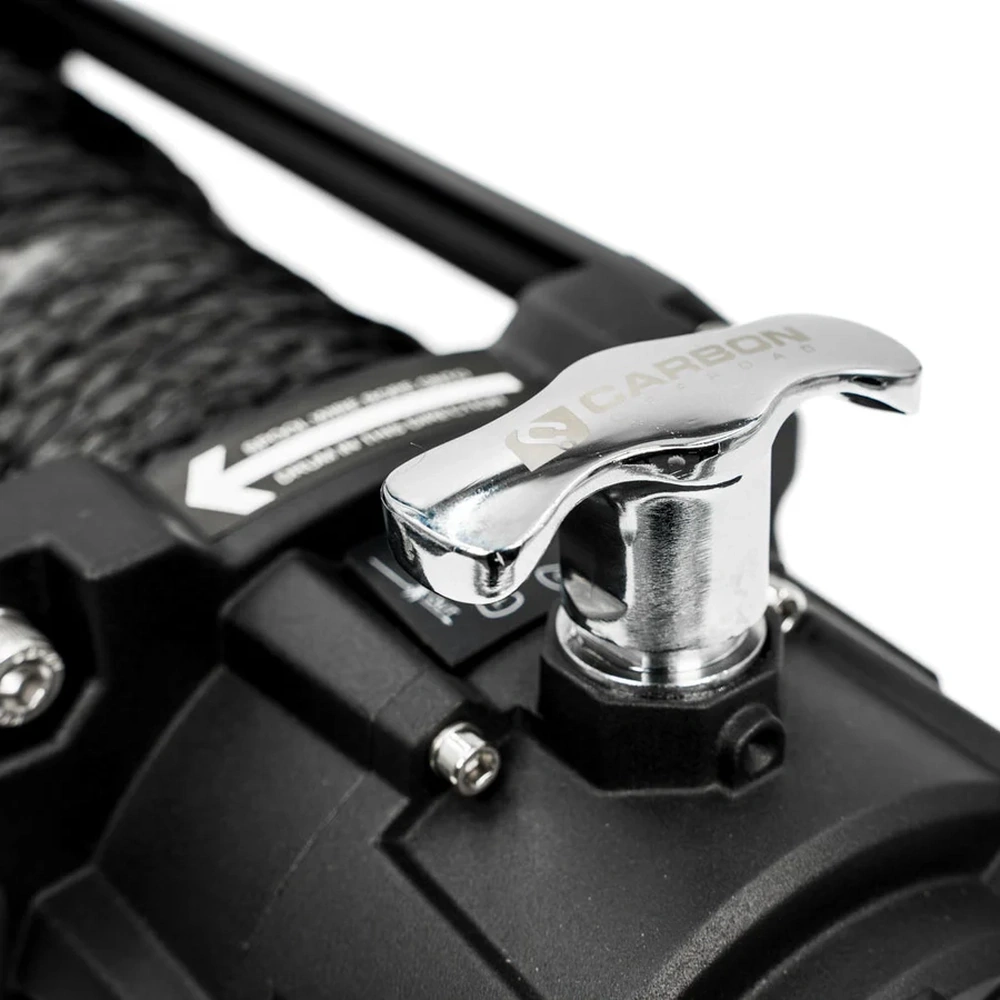

- Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in the motor housing end plate.
- Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
- Limited Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 10mm diameter
- Drum Diameter/Length: 63mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")
- Packing Dimensions (L x W x H): 580 x 200 x 220mm (22.8" x 7.9" x 8.7")
- Winch weight with synthetic rope attached: VERSION 3X - 19.7kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.65kg
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 43.3 (13.2) | 70 | 1/12000 (5450) |
| 2000 (910) | 11.5 (3.5) | 130 | 2/9800 (4450) |
| 4000 (1810) | 9.2 (2.8) | 170 | 3/8300 (3770) |
| 6000 (2720) | 7.9 (2.4) | 220 | 4/7200 (3270) |
| 8000 (3630) | 6.9 (2.1) | 265 | 5/6400 (2900) |
| 10000 (4540) | 5.6 (1.7) | 320 | 6/5800 (2650) |
| 12000 (5450) | 4.6 (1.4) | 390 | 7/5300 (2420) |
| SKU | CW-12KV3XORA |
| Brand | CARBON OFFROAD |
