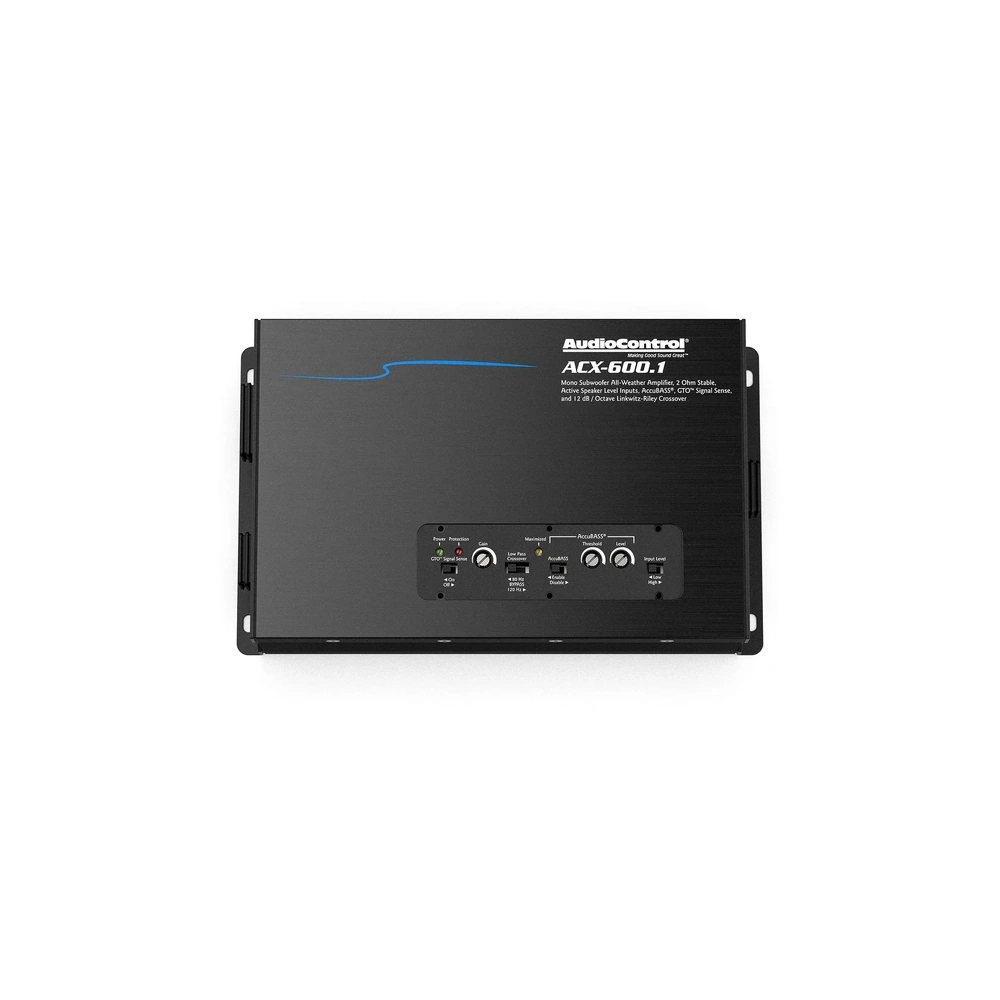

AudioControl ACX Series Mono Channel Amplifier

SKU:ACX-600.1

RRP $899.00
$809.00
SAVE $90.00 (10%)


Calculate Shipping

ALL WEATHER 1 CHANNEL AMPLIFIER

AudioControl’s ACX-600.1 all-weather monoblock amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.1 all-weather monoblock amplifier the perfect solution for your next adventure.

Features

  • 1 x 600 watts @ 2 ohms
  • 1 x 350 watts @ 4 ohms
  • IPX6 Rated
  • AccuBASS® bass management
  • GTOTM Signal Sense
  • High and low input modes
  • Linkwitz-Riley Crossover
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

Inputs

  • Preamp/Speaker Level Inputs: 2
  • Input Voltage Low: 500 mV – 6 Vrms
  • Input Voltage Range High: 1 Vrms – 12 Vrms

Outputs

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 350 W x 1 RMS
    • 2 Ω – 600 W x 1 RMS

Performance

  • Frequency Response: 26 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.05%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • IP Rating: IPX6

General

  • Recommended Fuse Rating: 60A

Weights & dimensions

  • Dimensions: 8.89″W x 5.31″D x 2.36″H
  • Weight: 4.45 lbs. (2.02 kg)

in the box: ACX-600.1, Manual, Warranty

Specifications

Manufacturer Part Number ACX-600.1
Rated Continuous (RMS) Power @ 14.4v 4 Ω – 350 W RMS x 1/ 2 Ω – 600 W RMS x 1
High level Input Voltage 12 V rms (120 Watts Per Channel)
Input Channels 2 Channel RCA + 2 Channel High Level
RCA Pre-Outs NONE
Remote Turn On Feature YES
Total Harmonic Distortion Rating < 0.05%
Crossover Frequency Selectable 80Hz / 120Hz / Bypass
Crossover Type Independent 12 dB Linkwitz-Riley Crossovers
Dimensions 9.0″W x 3.875″D x 2.25″H
SKU ACX-600.1
Barcode # 850038647209
Brand AUDIO CONTROL
