AUDIO CONTROL

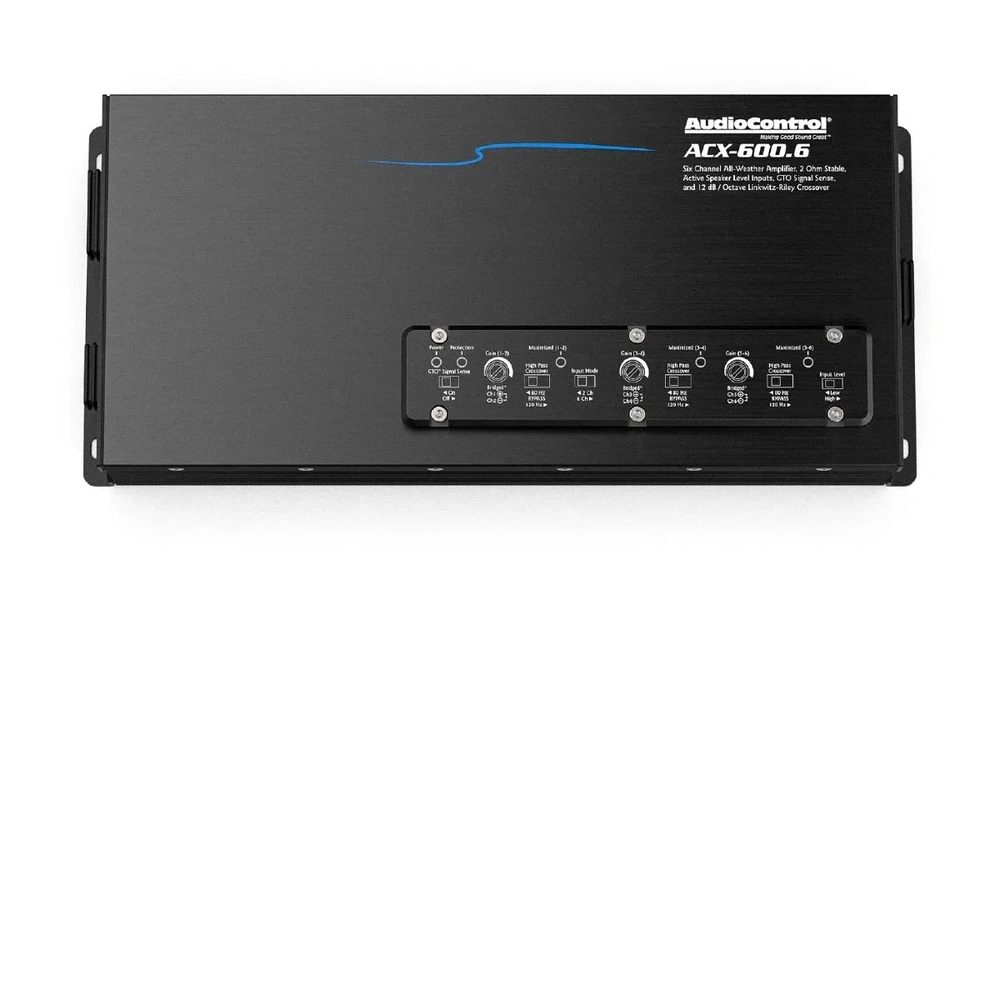

AudioControl ACX Series 6 Channel Amplifier

SKU:ACX-600.6

RRP $1,299.00
$1,169.00
SAVE $130.00 (10%)


Calculate Shipping

ALL WEATHER 6 CHANNEL AMPLIFIER

AudioControl’s ACX-600.6 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.6 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.6 all-weather amplifier the perfect solution for your next adventure.

Features

  • 6 x 50 watts @ 4 ohms
  • 6 x 100 watts @ 2 ohms
  • 3 x 200 watts @ 4 ohms, bridged mono
  • IPX6 Rated
  • GTOTM Signal Sense
  • High and low input modes
  • Linkwitz-Riley Crossover
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

Inputs

  • Preamp/Speaker Level Inputs: 2
  • Input Voltage Low: 500 mV – 6 Vrms
  • Input Voltage Range High: 1 Vrms – 12 Vrms

Outputs

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 50 W x 4
    • 2 Ω – 100 W x 6
    • Bridged 4 Ω – 200 W x 3

Performance

  • Frequency Response: 26 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.05%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • IP Rating: IPX6

General

  • Recommended Fuse Rating: 30A

Weights & dimensions

  • Dimensions: 11.97″W x 5.31″D x 2.36″H
  • Weight: 5.4 lbs. (2.45 kg)

in the box: ACX-600.6, Manual, Warranty

Specifications

Manufacturer Part Number ACX-600.6
Rated Continuous (RMS) Power @ 14.4v 4Ω – 50w x 6 RMS / 2Ω – 100w x 6 RMS / 4Ω – 200w x3 BRIDGED MONO
High level Input Voltage 12 V rms (120 Watts Per Channel)
Input Channels 6 Channel RCA/Speaker Level Input
RCA Pre-Outs NONE
Remote Turn On Feature YES
Total Harmonic Distortion Rating 0.20%
Crossover Frequency Selectable 80Hz / 120Hz / Bypass
Crossover Type Independent 12 dB Linkwitz-Riley Crossovers
Dimensions 11.97″W x 5.31″D x 2.36″H
SKU ACX-600.6
Barcode # 850038647186
Brand AUDIO CONTROL
