AUDIO CONTROL

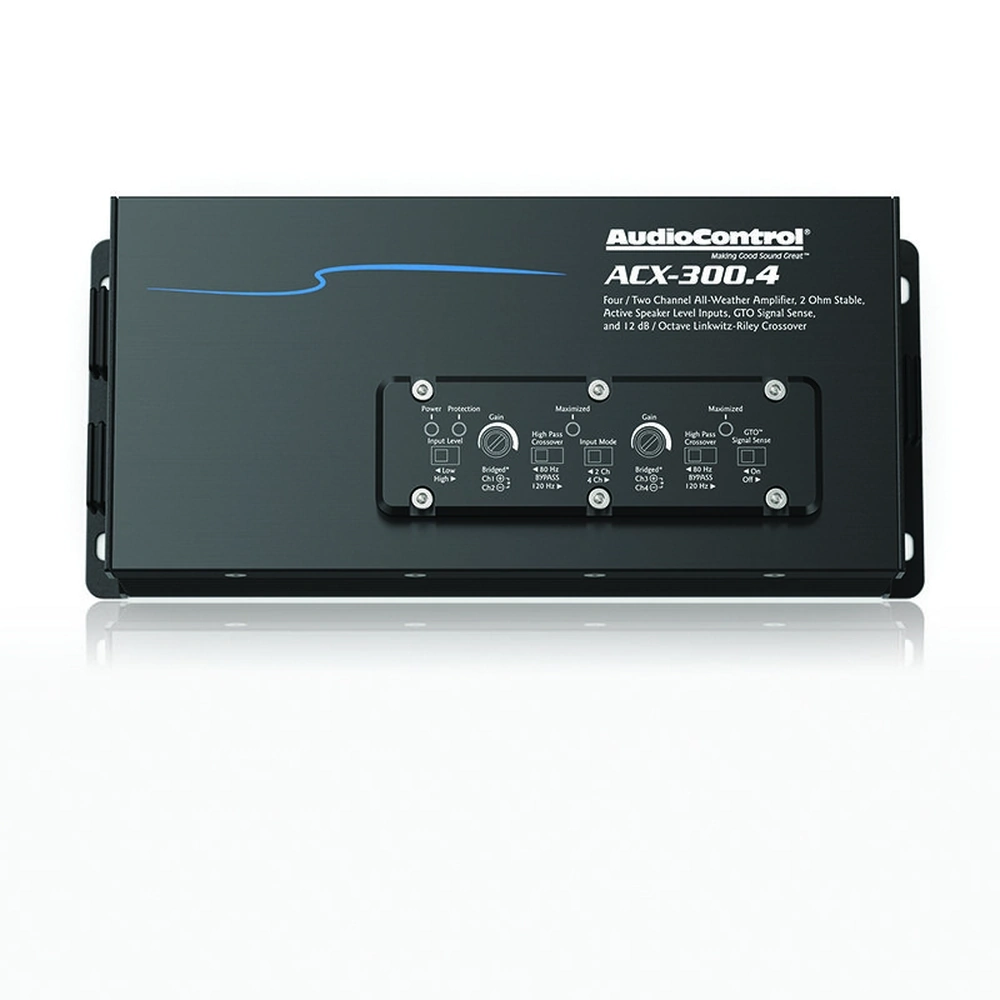

AudioControl ACX Series 4 Channel Amplifier

SKU:ACX-300.4

RRP $999.00
$899.00
SAVE $100.00 (10%)


Calculate Shipping

ALL WEATHER 4 CHANNEL AMPLIFIER

AudioControl’s ACX-300.4 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. for a two or four channel system, the ACX-300.4 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.4 all-weather amplifier the perfect solution for your next adventure.

Features

  • 4 x 75 watts @ 2 ohms
  • 4 x 50 watts @ 4 ohms
  • 150 watts @ 4 ohms bridged
  • IPX6 Rated
  • GTOTM Signal Sense
  • High and low input modes
  • 4 and 2 channel input modes
  • Linkwitz-Riley Crossover
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

Inputs

  • Preamp/Speaker Level Inputs: 4
  • Input Voltage Low: 500 mV – 6 Vrms
  • Input Voltage Range High: 1 Vrms – 12 Vrms

Outputs

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 50 W x 4 RMS
    • 2 Ω – 75 W x 4 RMS
    • Bridged 4 Ω – 150 W RMS

Performance

  • Frequency Response: 26 Hz – 22 kHz
  • Signal to Noise: 106 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.2%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • IP Rating: IPX6

General

  • Recommended Fuse Rating: 30A

Weights & dimensions

  • Dimensions: 9.0″W x 3.875″D x 2.25″H
  • Weight: 7.2 lbs. (3.3 kg)

in the box: ACX-300.4, Manual, Warranty

Specifications

Manufacturer Part Number ACX-300.4
Rated Continuous (RMS) Power @ 14.4v 4Ω – 50w x 4 RMS / 2Ω – 75w x 4 RMS / 4Ω – 150w BRIDGED
High level Input Voltage 12 V rms (120 Watts Per Channel)
Input Channels 4 Channel RCA + 4 Channel High Level
RCA Pre-Outs NONE
Remote Turn On Feature YES
Total Harmonic Distortion Rating 0.20%
Crossover Frequency Selectable 80Hz / 120Hz / Bypass
Crossover Type Independent 12 dB Linkwitz-Riley Crossovers
Dimensions 9.4″W x 3.0″D x 1.75″H
SKU ACX-300.4
Barcode # 851523007836
Brand AUDIO CONTROL
