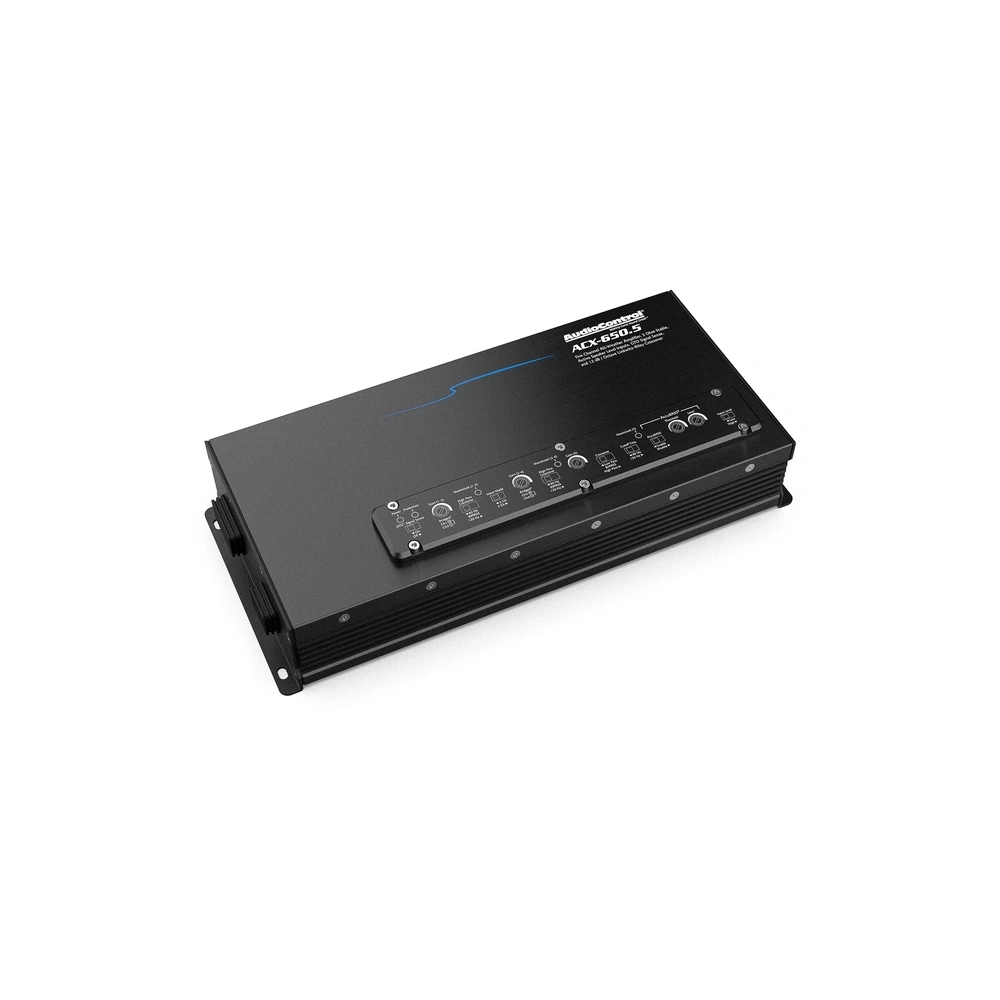

AudioControl ACX Series 5 Channel Amplifier

ALL WEATHER 5 CHANNEL AMPLIFIER

AudioControl’s ACX-600.5 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.5 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.5 all-weather amplifier the perfect solution for your next adventure.

Features

• 4 x 50 Watts @ 4 Ohms, 1 x 200 Watts @ 4 Ohms
• 4 x 75 Watts @ 2 Ohms, 1 x 350 Watts @ 2 Ohms
• 2 x 150 Watts @ 4 Ohms, Bridged Mono
• IPX6 Rated
• AccuBASS® bass management
• GTOTM Signal Sense
• High and low input modes
• Linkwitz-Riley Crossover
• Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

Inputs

• Preamp/Speaker Level Inputs: 2
• Input Voltage Low: 500 mV – 6 Vrms
• Input Voltage Range High: 1 Vrms – 12 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 50 W x 4 + 200 W x 1
  • 2 Ω – 75 W x 4 + 350 W x 1
  • Bridged 4 Ω – 150 W x 2

Performance

• Frequency Response: 26 Hz – 22 kHz
• Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
• THD+N: < 0.05%
• Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• IP Rating: IPX6

General

• Recommended Fuse Rating: 30A

Weights & dimensions

• Dimensions: 11.97″W x 5.31″D x 2.36″H
• Weight: 5.8 lbs. (2.63 kg)

in the box: ACX-600.5, Manual, Warranty

Specifications
