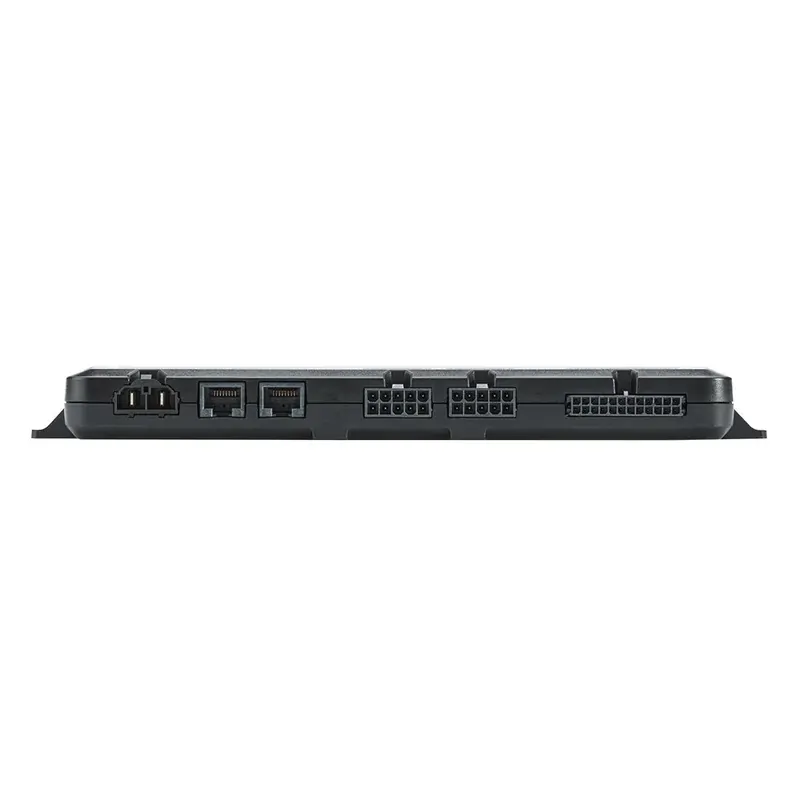

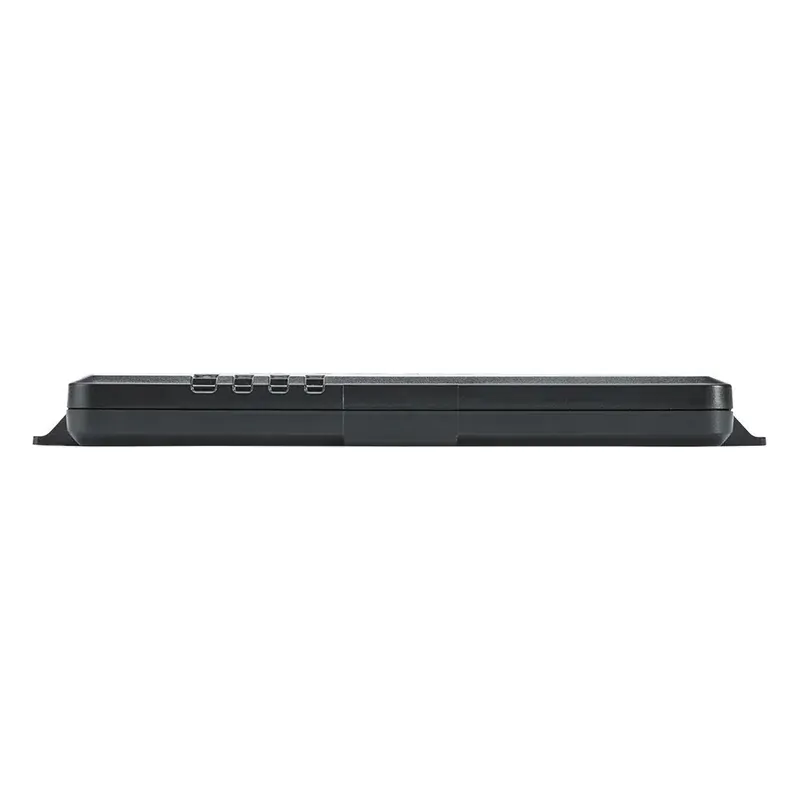

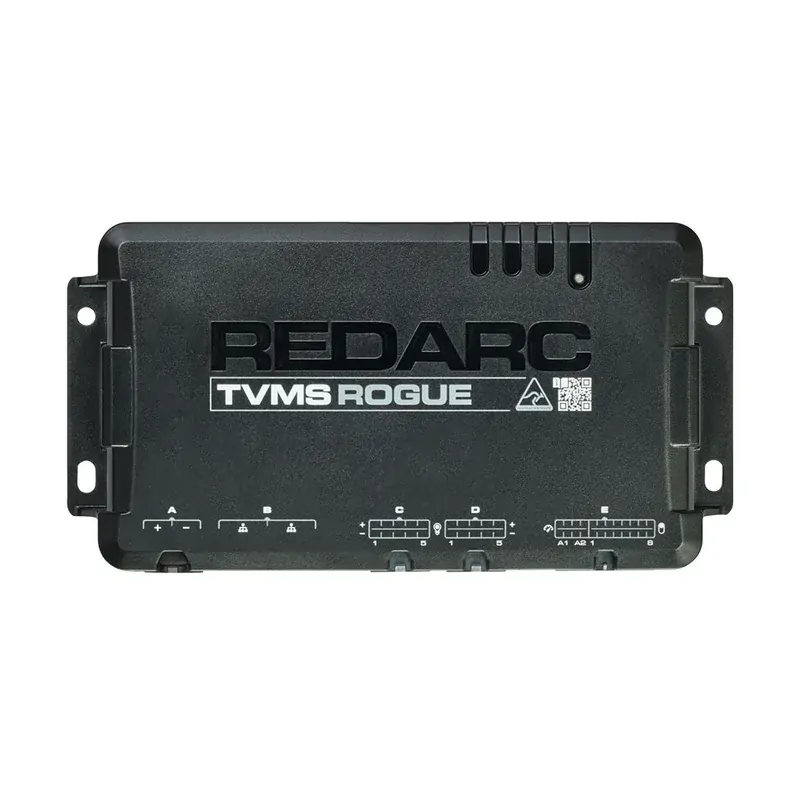

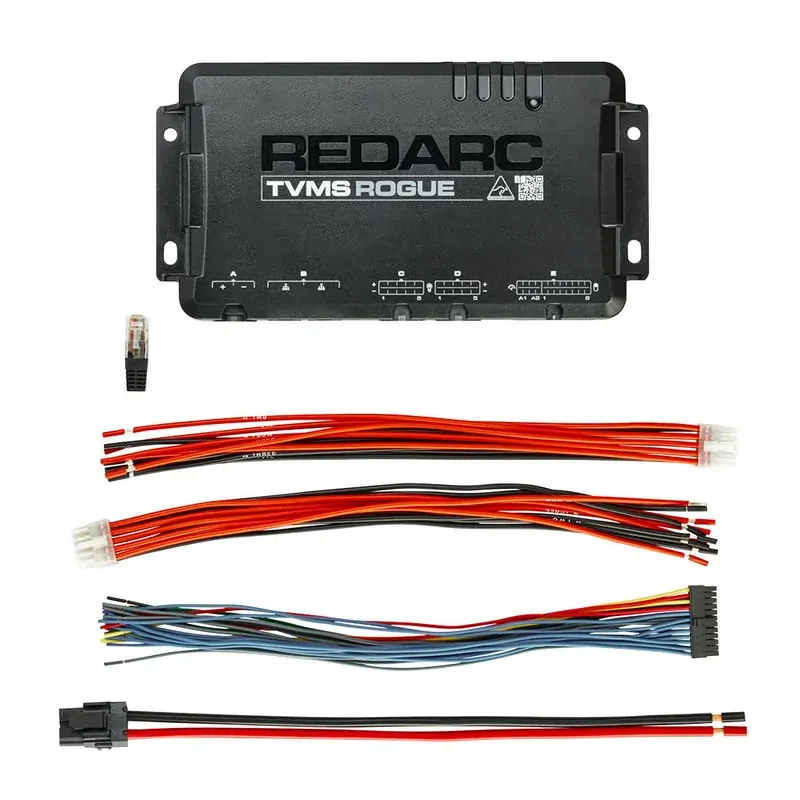

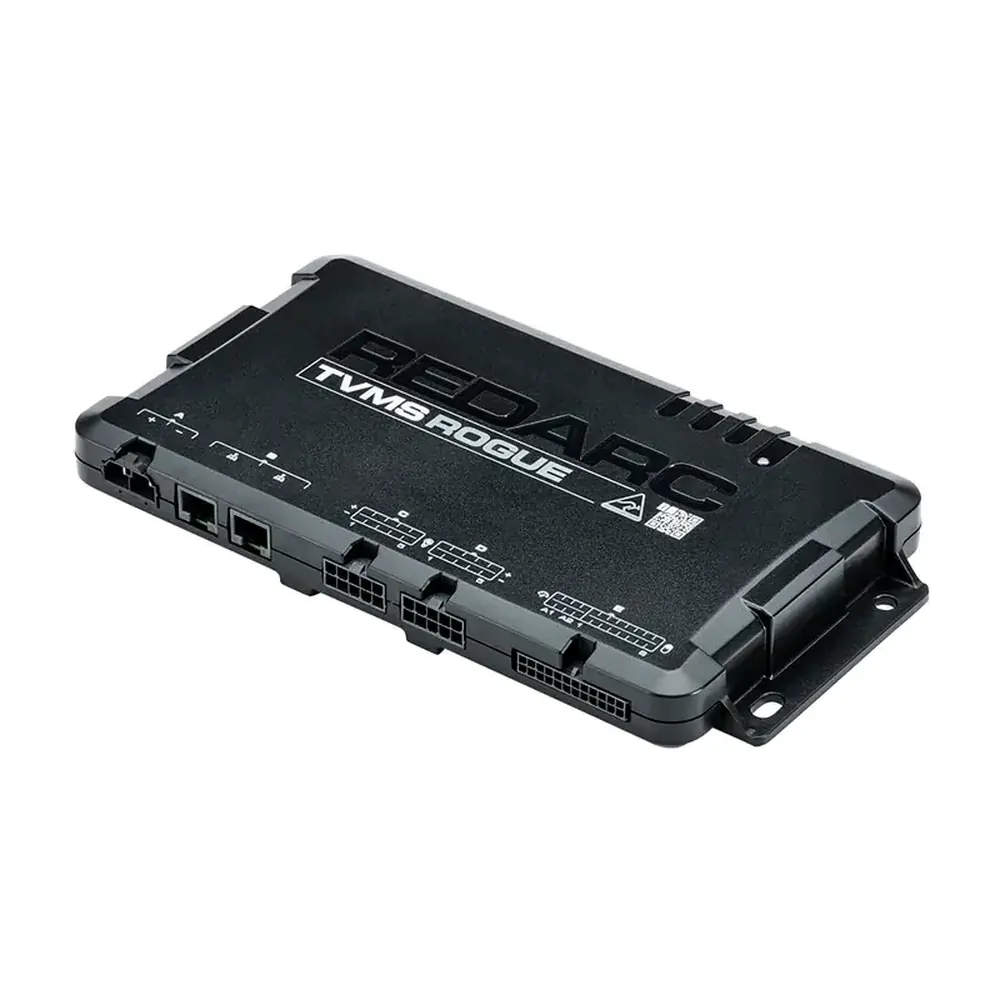

Redarc TVMS Rogue Control Module TVMS1240

TOTAL CONTROL AT YOUR FINGERTIPSRedVision by REDARC provides an unprecedented level of control and automation to your 4x4, caravan, camper, RV or work vehicle.

Control accessories such as lights, fridges, TVs and inverters via the physical screen or your Bluetooth connected mobile device.

At just 25mm thick and with in-built smart fuses, the TVMS Rogue offers a compact and flexible power control solution for caravan, camper and 4x4 applications.

MONITORWhen combined with the RedVision screen (sold separately) and Manager30 battery management system (sold separately), the TVMS Rogue provides real time and accurate state of charge, power input/output and ambient temperature information.

Two analogue tank level inputs offer accurate monitoring of multiple tanks and the Rogue is compatible with most common tank level sensors.

CONTROLThe TVMS Rogue allows complete control of multiple on-board devices including lights, fans, fridges, and pumps.

Each of its 10 output channels include dimming and the built-in switch inputs make the Rogue perfect for lighting circuits.

With the Rogue connecting to up to 8 physical switches, control is not just limited to the RedVision screen or app.

It enables lights to be controlled from each room of a caravan or for the addition of reed switches to trigger lights when opening a door for example.

AUTOMATIONSave time and energy by using RedVision to automate those mundane tasks.

With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.

For the complete RedVision solution, pair your TVMS Rogue with the Manager30 battery management system.

Find out more here.

FEATURES:10x 10A dimmable outputs8x inputs allow for use with physical switchesCompact sizeOn-board smart fusesStreamlined installation and configurationFully programmable*Accurate analogue tank level inputsACCESSORIESThe TVMS Rogue is compatible with a range of tank level sensors to ensure your peace of mind knowing how full or empty your tanks are.

Perfect for use in water, fuel or wastewater, REDARC's tank level sensors come in a range of lengths.

SCREEN COMPATIBILITYTVMS Rogue is compatible with DISP4300-RC models manufactured from January 2023 (serial numbers beginning with "23").

Displays manufactured from July 2022 to January 2023 are upgradeable (serial numbers "2207" to "2212").

APP COMPATIBILITYThe configurator app is only required for initial installation and set up.

The RedVision user app is available for both iOS and Android.
