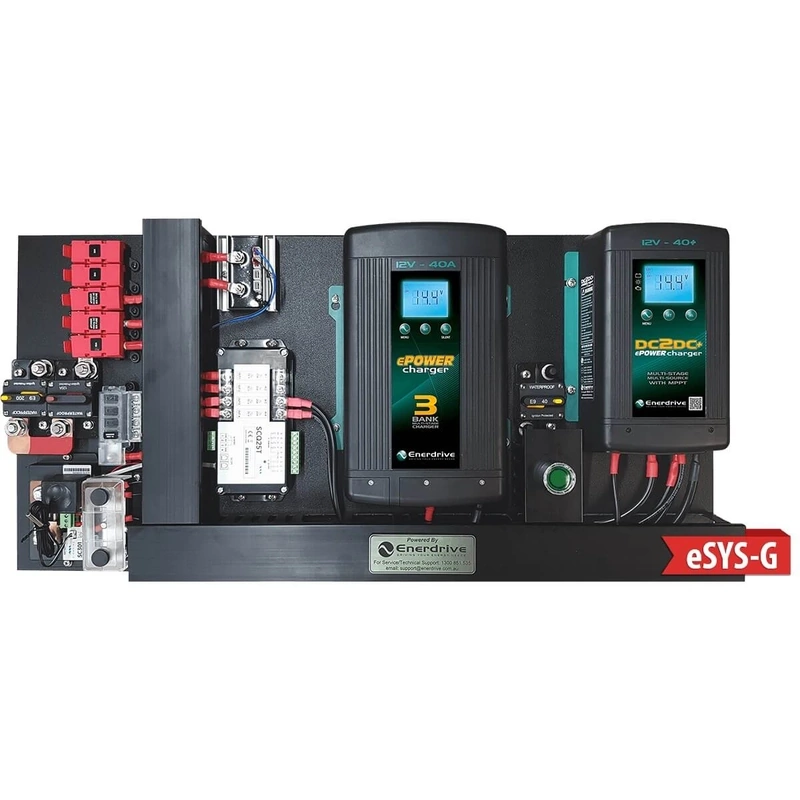

Enerdrive eSYSTEM 40/40 AC/DC, SIMARINE ESYS-G

Enerdrive’s range of preassembled eSYSTEM portable power systems kits are purpose built with caravans, camper trailers, 4WD canopies and commercial work vehicles in mind. With over 18 variants to choose from, Enerdrive have considered every angle and have a kit to suit just about any conceivable combination of needs.

Neatly laid out onto a 12mm backing plate, each kit is designed to allow you to make good use of spare spaces and dead voids. Thanks to their compact and well resolved form factors, the layouts and dimensions of which vary from kit to kit, you are sure to find an option to suit the unique confines of your recreational vehicle, camper or work truck/van.

Board dimensions: 790 x 380 x 111mm.

ePOWER DC2DC+ 12V 40A Battery Charger

Part Number : EN3DC40+

The Enerdrive ePOWER DC2DC+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.

During normal operation the ePOWER DC2DC+ Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.

ePOWER 12V 40A AC Battery Charger

Part Number : EN31240

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, "set and forget" charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.

Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.

Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.

Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).

Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks.

Simarine PICO Battery Monitor

Part Number : SI-PICO-3

SIMARINE PICO sets new standards for marine battery and tank monitors in fields of design, functionality, connectivity and ease of use. The IP67 casing of the main unit is CNC-milled from a single piece of high quality 6000 series anodized aluminium (corrosion-proof). The 3.5-inch IPS LCD display is optically bonded with Anti-Reflective Gorilla Glass. The unique Real Time Battery Health algorithm ensures very precise battery state of charge and health measurements.
