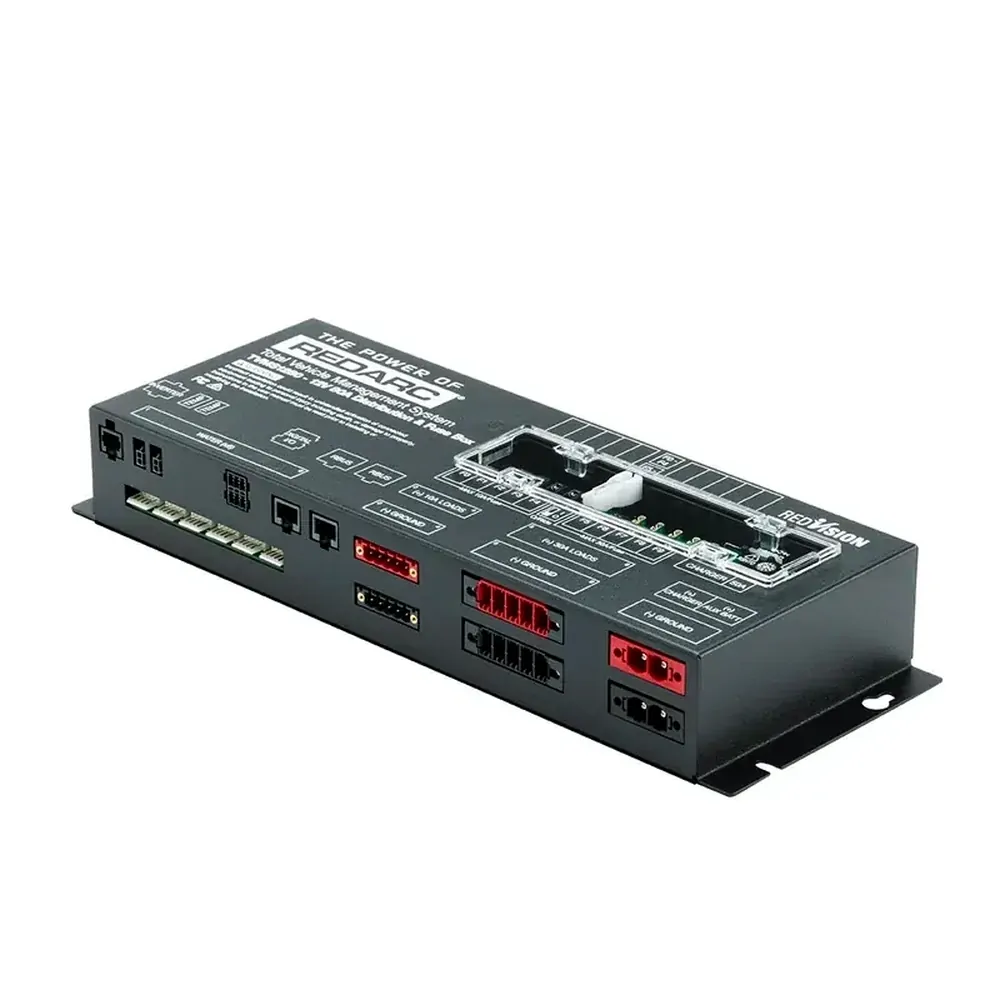

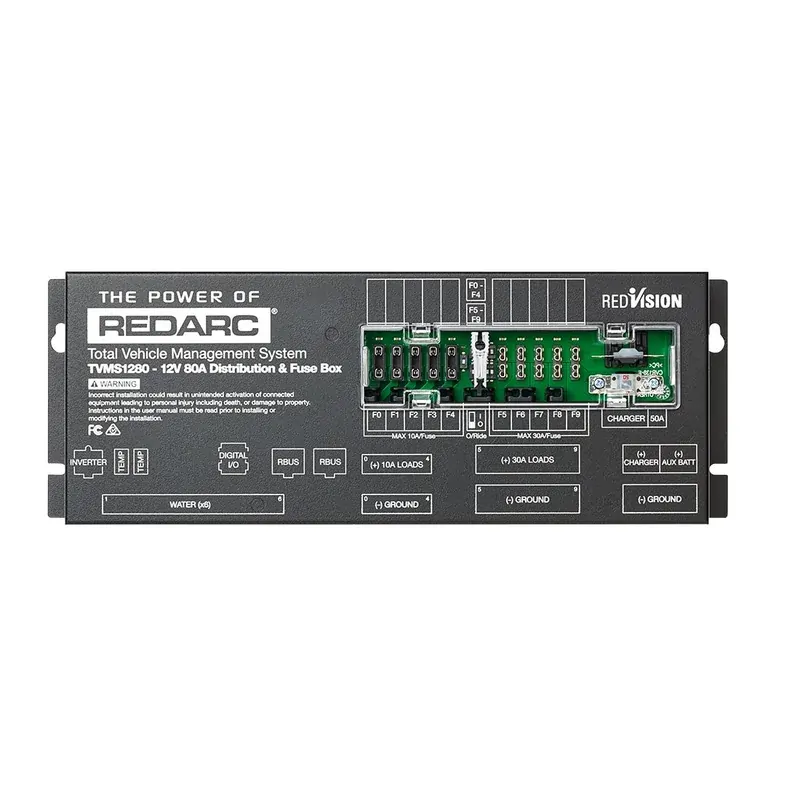

Redarc TVMS Prime Control Module TVMS1280-DBV2

This is an upgrade unit only, which requires an existing Manager30 and RedVision display unit in order to provide all functionality.

TOTAL CONTROL AT YOUR FINGERTIPSRedVision by REDARC provides an unprecedented level of control and automation to your 4x4, caravan, camper, RV or work vehicle.

Control accessories such as lights, fridges, TVs and inverters via the physical screen or your Bluetooth connected mobile device.

MONITORWhen combined with the RedVision screen and Manager30 battery management system (sold separately), the TVMS Prime provides real time and accurate state of charge, power input/output and ambient temperature information.

Six dedicated tank level sensor inputs and two ambient temperature inputs make the Prime RedVision System the all-seeing eye of your power set up.

CONTROLThe Prime RedVision system allows complete control of multiple on-board devices including lights, fans, fridges, inverters, and pumps.

Its 10 output channels include 5x 30A and 5x 10A channels, perfect for controlling a mix of low and high-powered devices.

With a max current of 80A, youll never be limited to how many devices you can run at once.

A dedicated inverter channel brings the total number of channels to 11.

Take control outside with the connected Bluetooth app or use the included RedVision display.

AUTOMATIONSave time and energy by using RedVision to automate those mundane tasks.

With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.

For the complete RedVision solution, pair your TVMS Rogue with the Manager30 battery management system.

Find out more here.

FEATURES:5x 30A outputs5x 10A outputs80A maximum current6x tank sensor inputs2x temp sensor inputs1x voltage sensor input1x dedicated inverter outputEasy accessible fusesFully programmableAs featured in CamperTrailer of the Year.Read the press release.A proud winner of aGood Design Australia Award for 2018.Announced as the 2019 Endeavour Award winning productDownload the RedVision product flyer here.*The RedVision system (TVMS1280) and RedVision/Manager30 Kits (TVMSKIT05) are compliant to Australian and New Zealand regulations only.

As a result, availability of the RedVision mobile applications outside of these regions are restricted accordingly.
