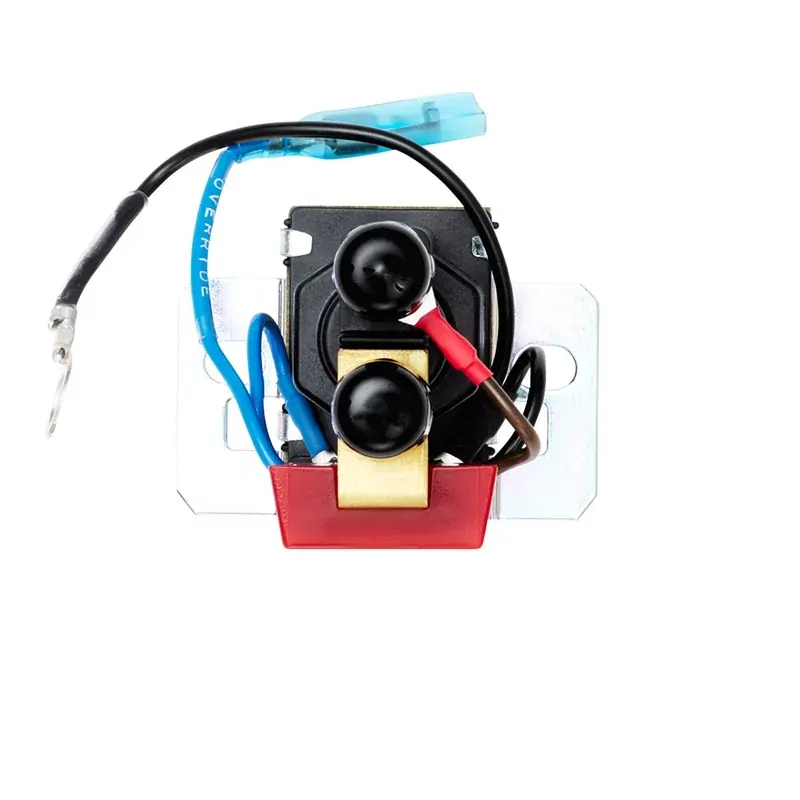

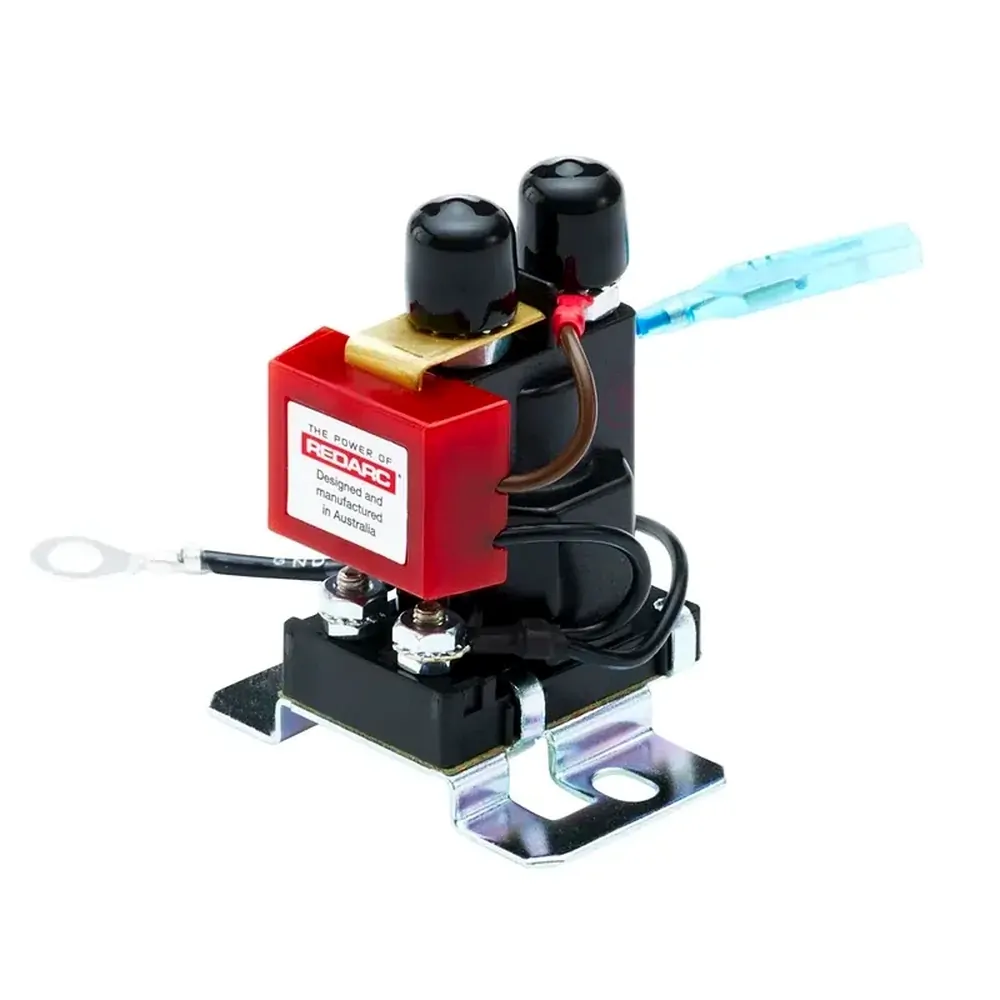

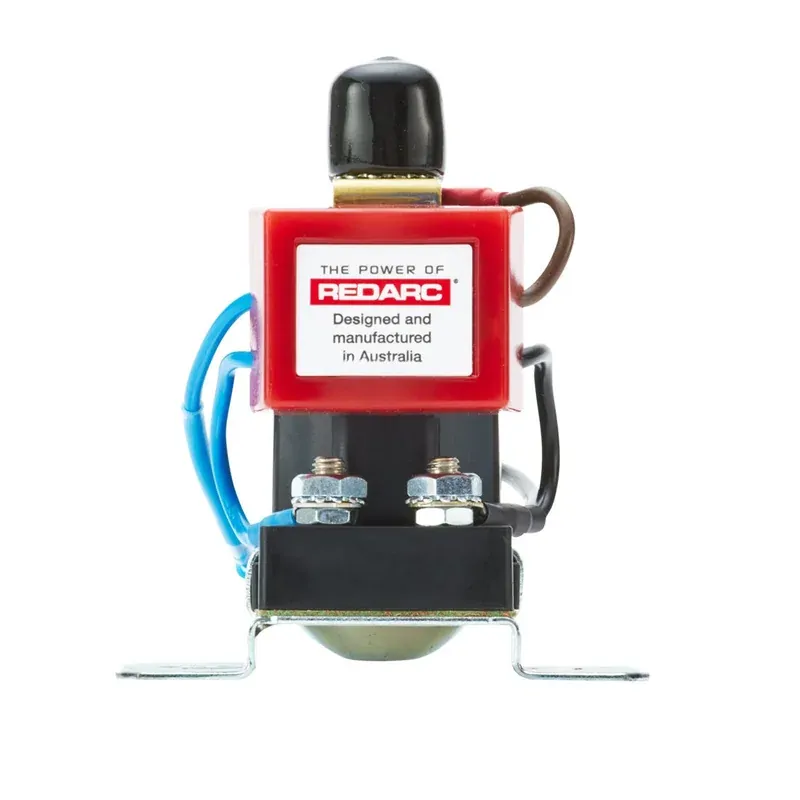

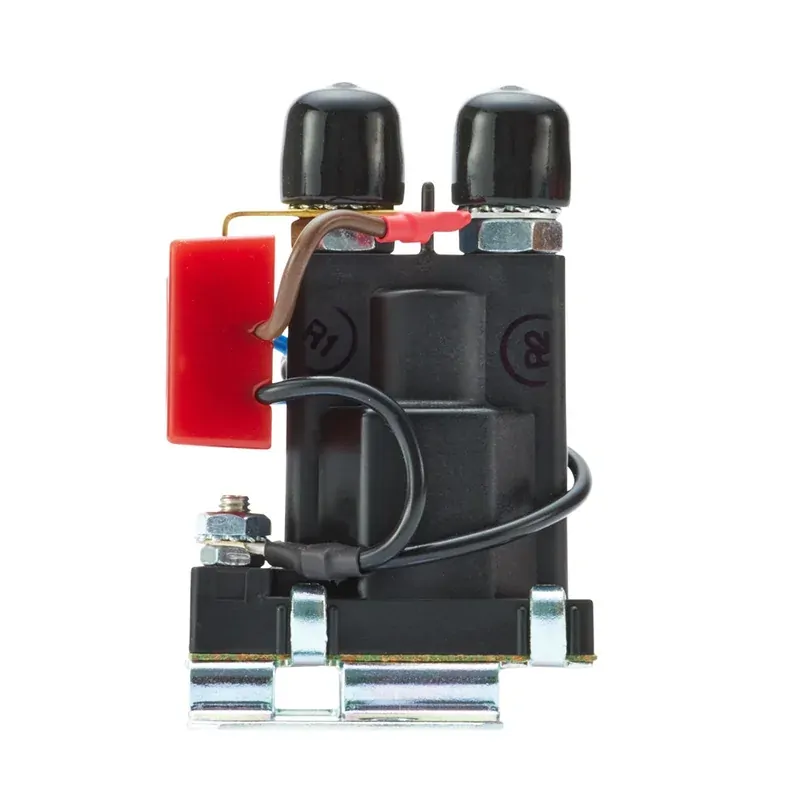

Redarc Smart Start Load Disconnect Isolator SBI12-LLD

SKU:SBI12-LLD

$232.00


Calculate Shipping

The SBI12-LLD is a microprocessor-controlled Load Disconnect Isolator.

The SBI12-LLD is designed for use in lithium battery applications (LiFePO4) as a system to protect the battery from being excessively discharged by auxiliary loads, enabling the auxiliary battery to remain above the level at which internal protection circuitry would activate.

Falling below this threshold would prevent many chargers from recharging the battery.

Put simply, once the auxiliary battery has been overly discharged, the Load Disconnect Isolator will turn off any connected loads.

Similarly, if the battery climbs back above a suitable level, the Load Disconnect Isolator will restore power to the connected loads.

Spike protection The SBI12-LLD Smart Start battery isolator incorporates a number of spike protection components specifically designed to reduce the risk of damaging the unit.

It is also designed to prevent any spikes generated by the solenoid coil from affecting vehicle equipment.

FeaturesOvermould designCompact in size and easy to installSilver contacts for longer life and suitable for marine applicationsPower saving technologyFault indicationFully surge protectedQuality fuse kits Installation of REDARC smart battery isolators should also see the use of quality fuse kits.

brandREDARC
Max. Inrush Current400A
Max. Continous Current100A
Turn On Voltage11V
Turn Off Voltage10.5V
Turn On Delay10 seconds
Turn Off Delay2 seconds
Standby Current<5mA
Operating Current<0.1A
Weight200 g
height70 mm
width75 mm
depth | length80 mm
Warranty2 Years
System Voltage12V
Output Voltage12V DC
Input Fuse Rating100A
Output Fuse Rating100A
SKU SBI12-LLD
Barcode # 9338628005598
Brand REDARC
