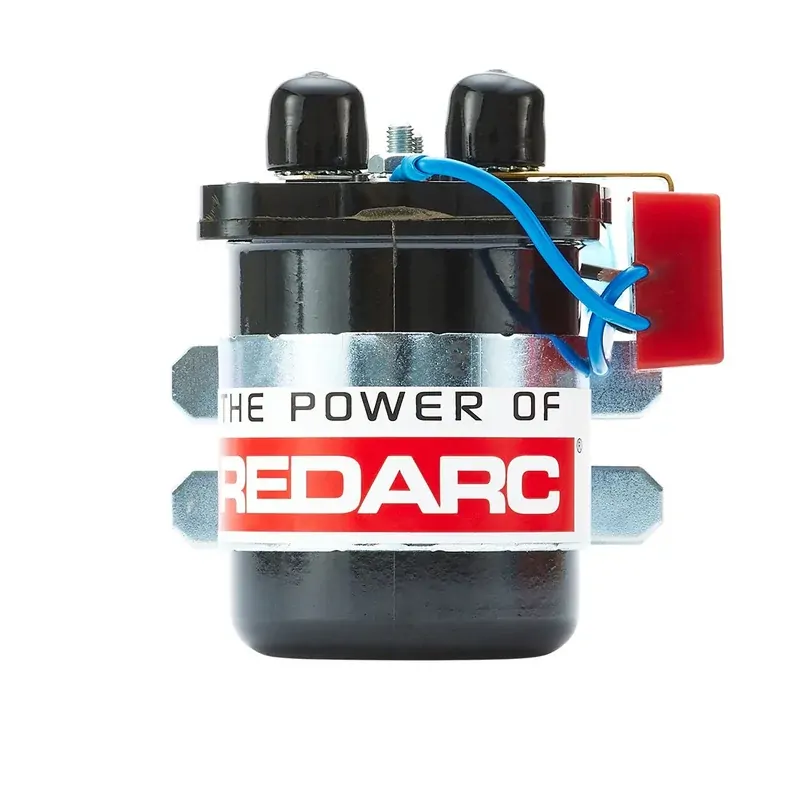

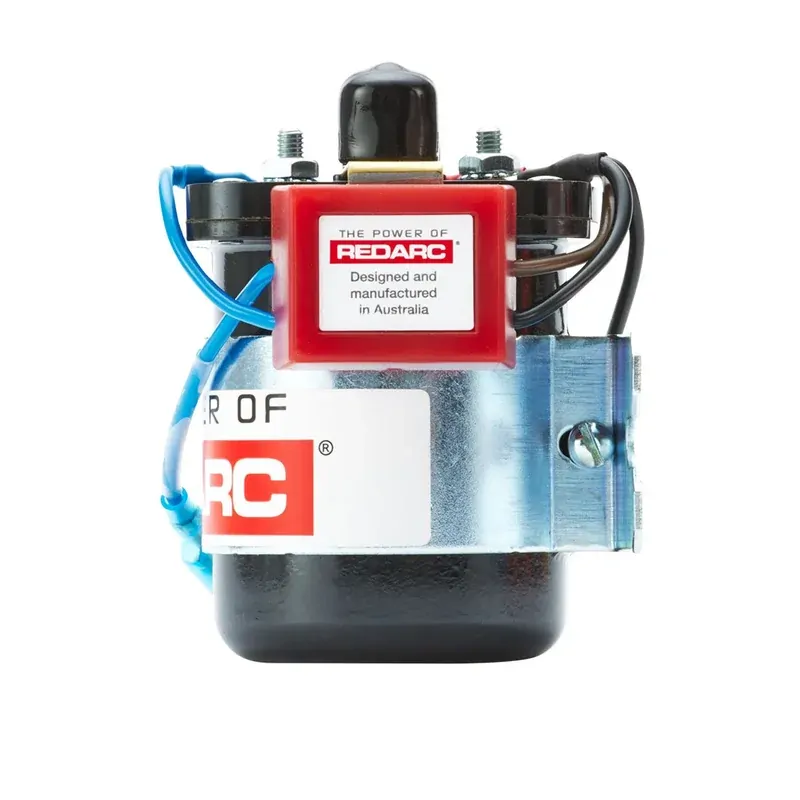

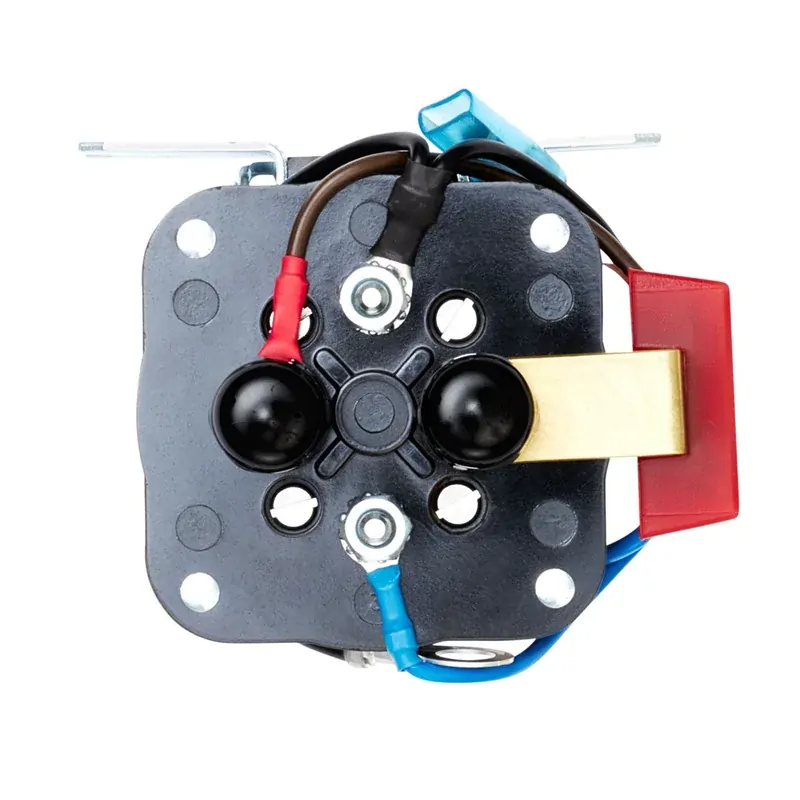

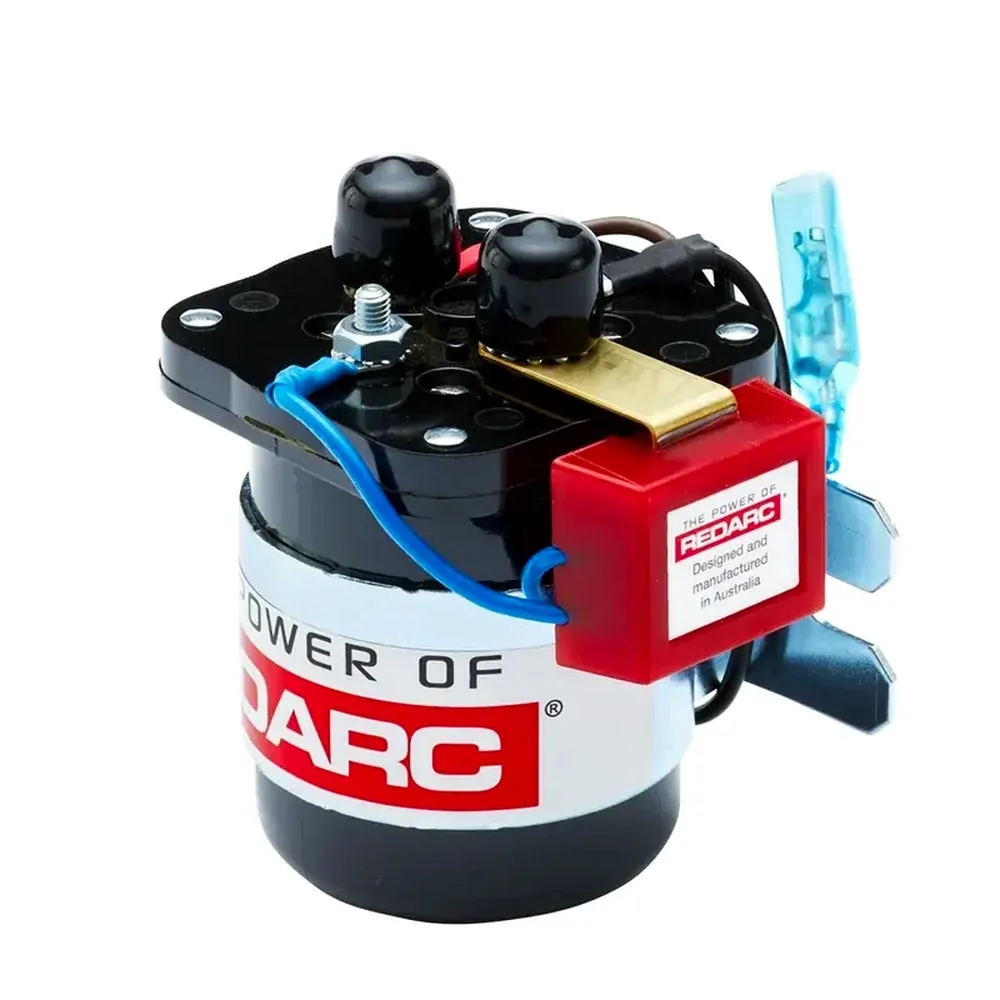

Redarc Dual Sensing Smart Start Battery Isolator 24V 200A SBI224D

The REDARC Smart Start SBI224D is a battery isolator used to isolate the start and auxiliary batteries in dual battery systems.

It is designed to protect the start battery from excessive discharge in a dual battery system.

The SBI224D provides 24 volt DC incorporating 200A of continuous ratings.

The 200A battery isolator is designed for heavy-duty operations.

Dual SensingThe dual sensing model allows charging both ways where the auxiliary battery may also be charged by an external source such as Solar panels or an external AC battery charger.

The SBI224D will allow the start battery to be topped up and charged by the auxiliary battery when the auxiliary battery reaches 26.4 volts when its being charged by the external source.

Power Saving TechnologyThe Smart Start SBI224D is a microprocessor controlled battery isolator and incorporates electronic components that prevent the solenoid from generating high voltage transients.

It is better than a diode battery isolator due to the voltage drop associated with diode type isolation.

It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

Used primarily in commercial vehicles, the Smart Start SBI is a safe way to charge auxiliary batteries and should often be installed with a high quality fuse kit.

FeaturesOvermould designCompact in size and easy to installSilver contacts for longer life and suitable for marine applicationsPower saving technologyFault indicationFully surge protectedNot sure what dual battery system is best for your vehicle?

Let Shaun Whale explain more.
