Redarc Smart Start Battery Isolator & Wiring Kit 12V SBI12KIT

SKU:SBI12KIT

$453.00


Calculate Shipping

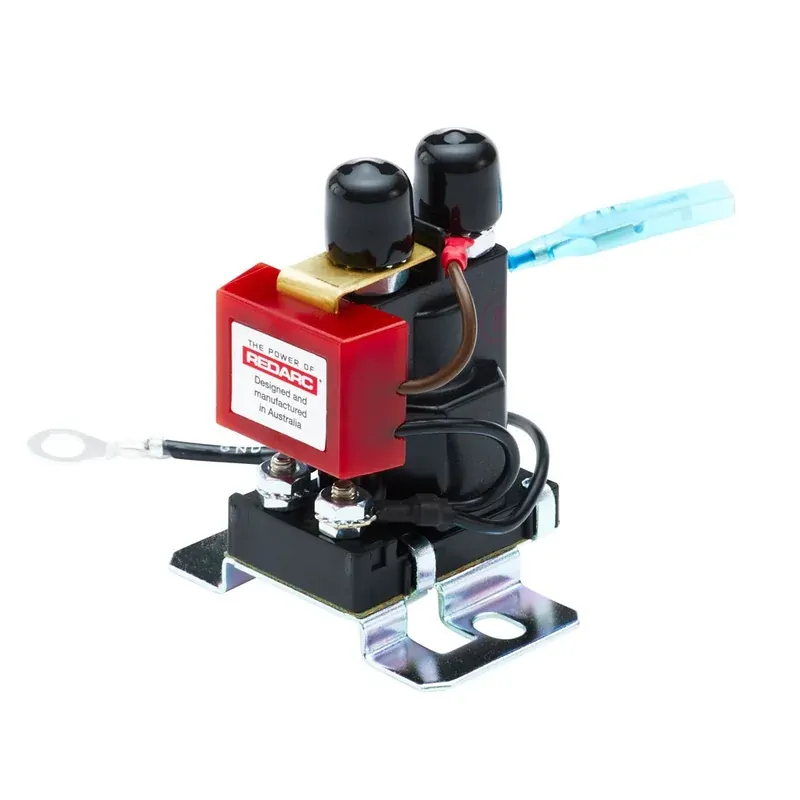

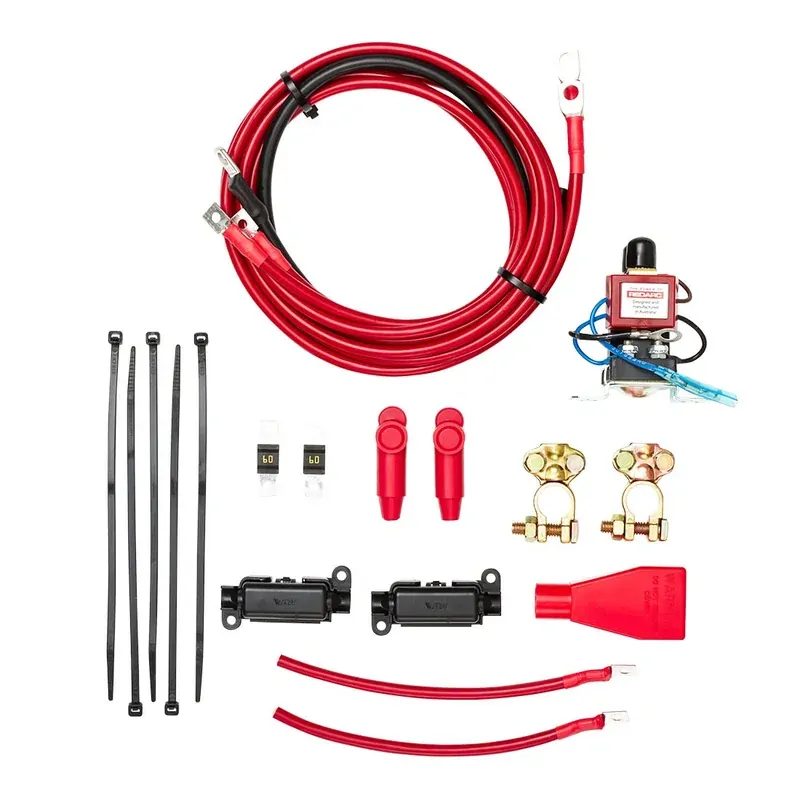

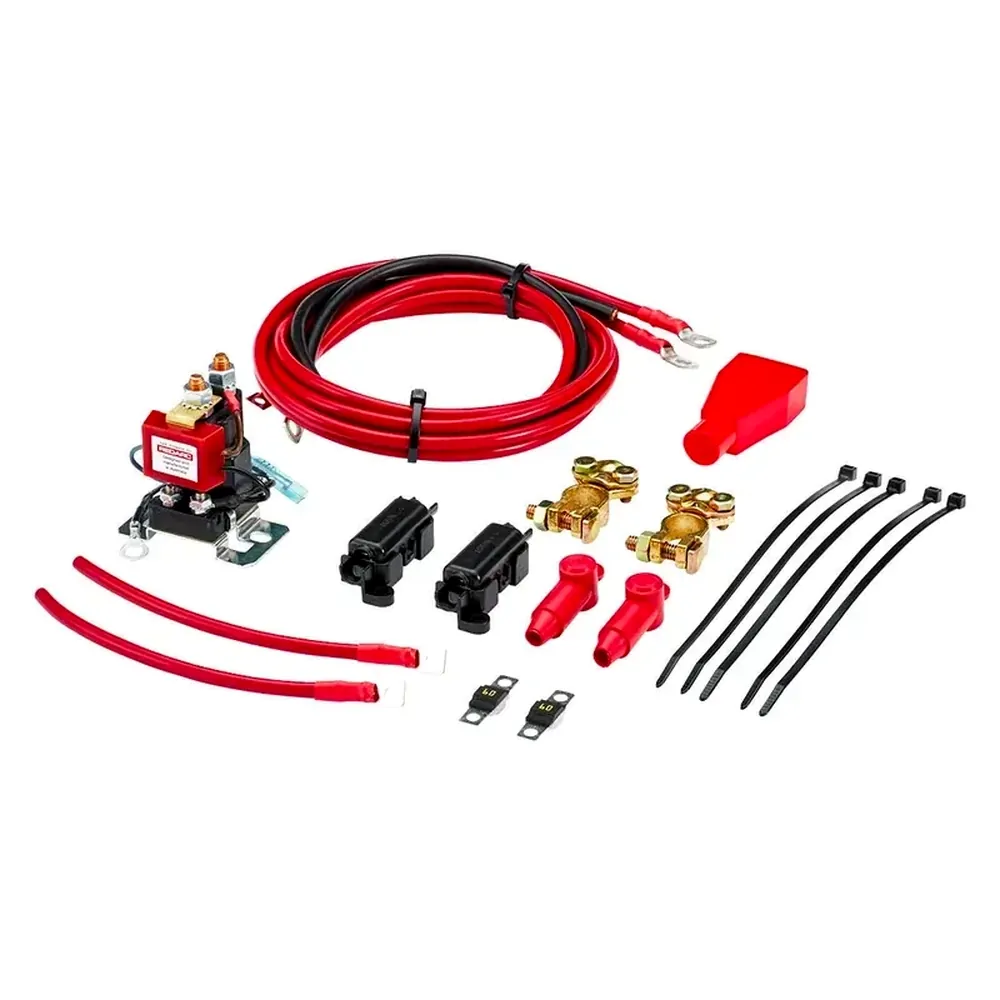

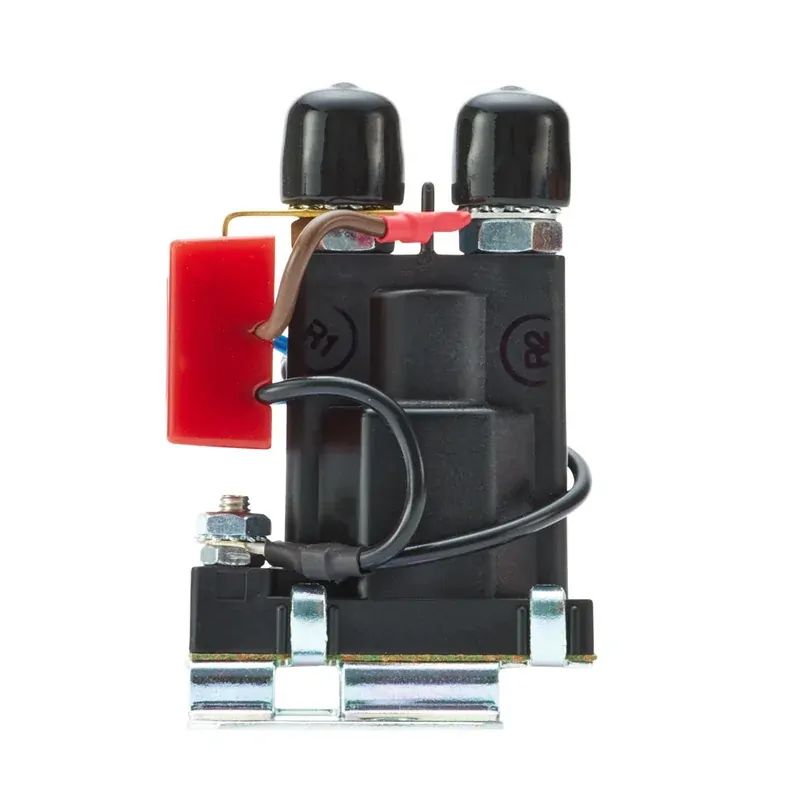

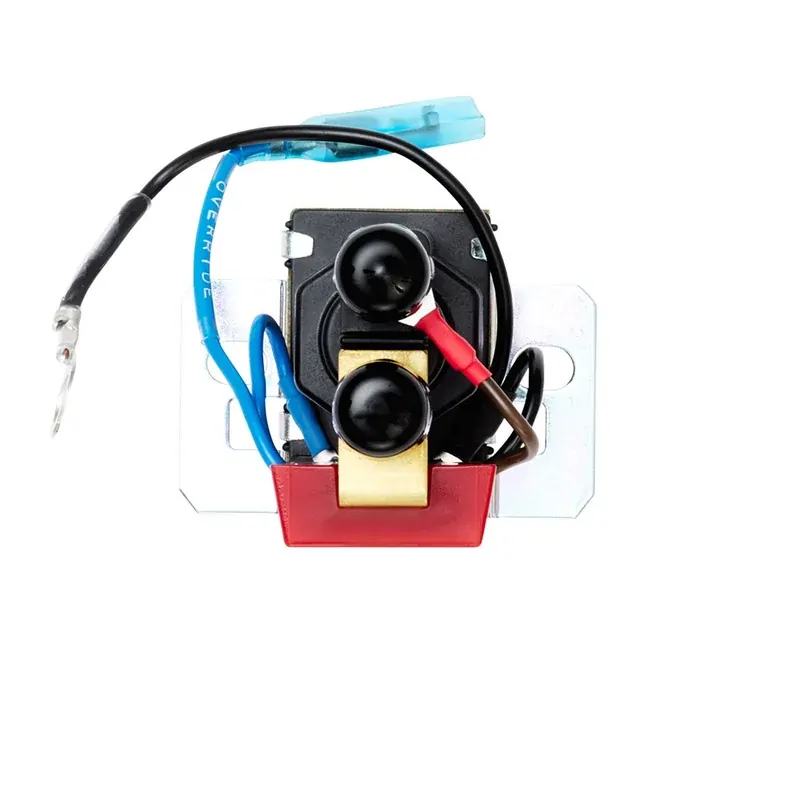

The Smart Start Dual Battery Isolator and Wiring Kit (part number SBI12KIT) comes with everything required to install your Smart Start Dual Battery Isolator including the Smart Start itself.

Perfectly suited to the DIYer, the SBI12KIT requires no crimping or soldering, its just plug and play.

The SBI12KIT features high quality MTA 60 amp fuses and fuse holders with the corresponding ring terminals already attached to the wires.

FeaturesPrevents your secondary battery draining your main batterySignificantly extends battery life saving you moneyCan be used in automotive and marine applicationsSuitable for harsh environmentsEasy to install complete kitFull instruction bookletNot sure what dual battery system is best for your vehicle?

Let Shaun Whale explain more.

brandREDARC
Max. Inrush Current400A
Max. Continous Current100A
Turn On Voltage13.2V
Turn Off Voltage12.7V
Turn On Delay5 seconds
Turn Off Delay10 seconds
Standby Current<5mA
Weight200 g (SBI only)
height70 mm
width75 mm
depth | length80 mm
Warranty2 Years
System Voltage12V
Output Voltage12V DC
Input Fuse Rating100A
Output Fuse Rating100A
SKU SBI12KIT
Barcode # 9338628002566
Brand REDARC
