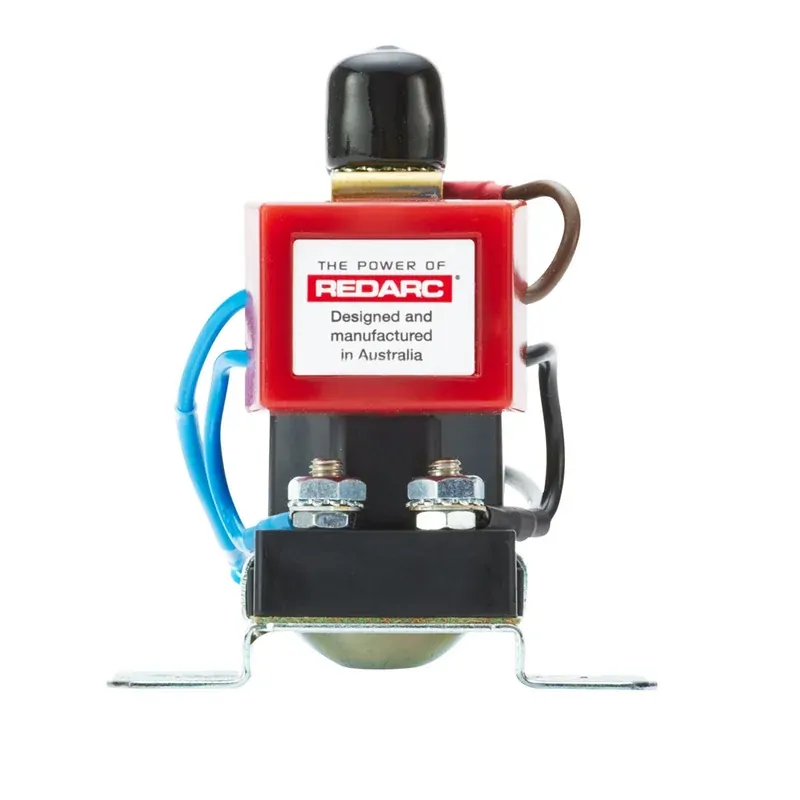

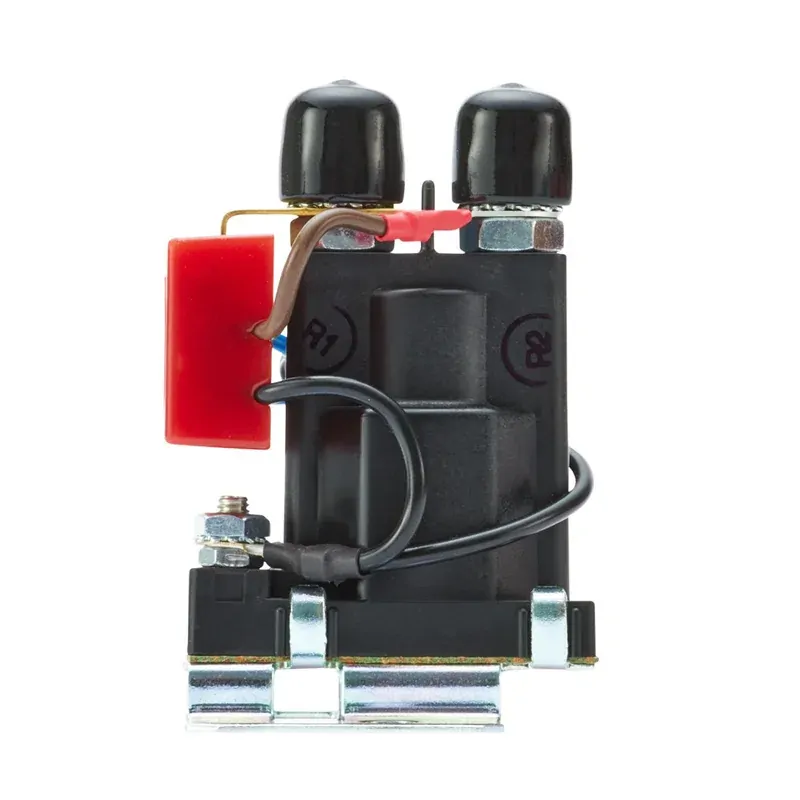

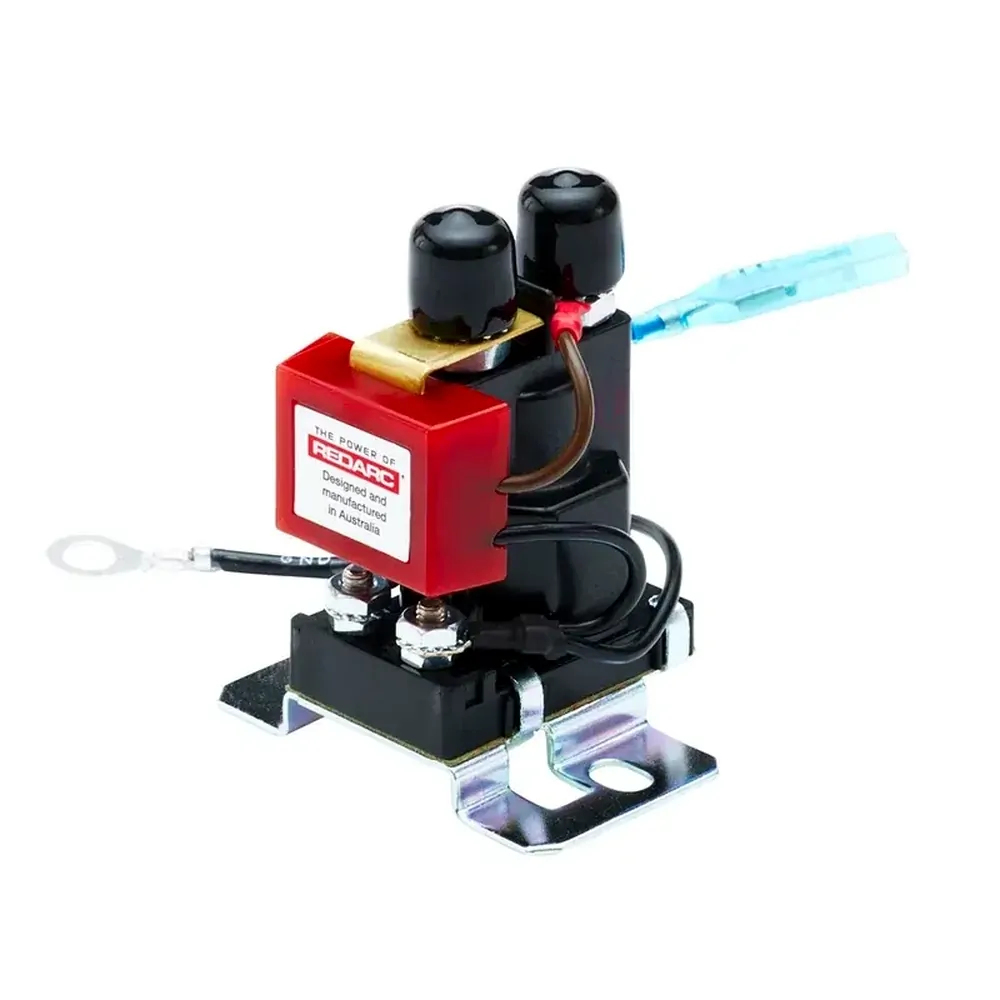

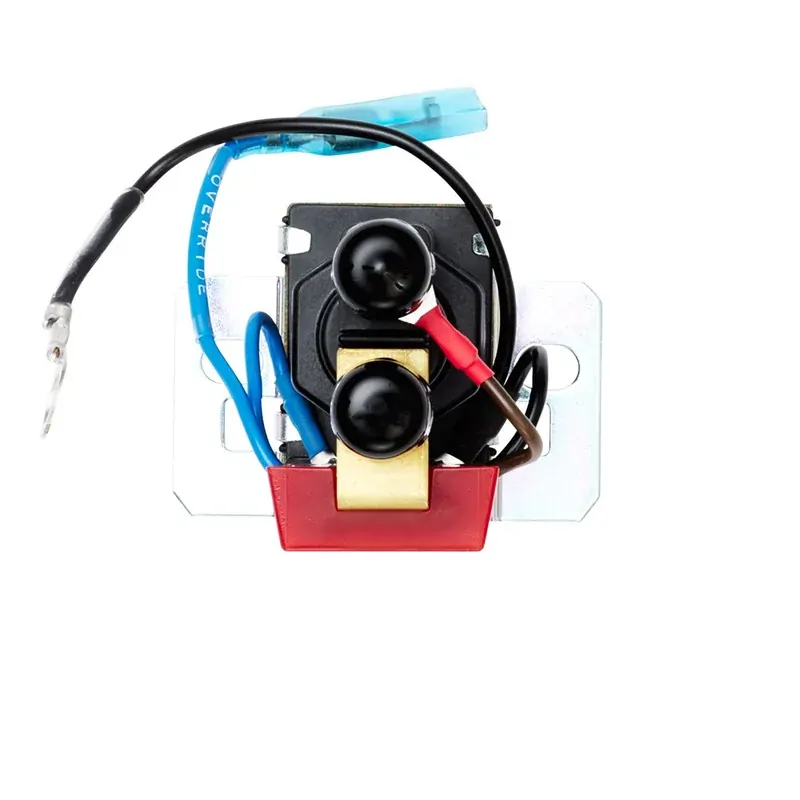

Redarc BMS Load Disconnect Isolator SBI12-BLD

SKU:SBI12-BLD

$231.00


Calculate Shipping

The SBI12-BLD is used in conjunction with a REDARC Manager30 BMS to protect the auxiliary battery from excessive discharge.

Specifically designed for use as the load disconnect solenoid controlled by the BMS, the black (earth wire) should be connected to the load pin of the BMS.

The BMS sets the turn on and turn off points through its settings and switches this black wire (earth when loads should be on, no earth when loads should be off), and there is additional voltage thresholds monitored by the Smart Start SBI12-BLD to ensure reliable solenoid engagement.

Voltage spike protectionThe SBI12-BLD smart start battery isolator incorporates a number of spike protection components specifically designed to reduce the risk of damaging the unit, and is designed to prevent any spikes generated by the solenoid coil from affecting vehicle equipment.

FeaturesOvermould designCompact in size and easy to installSilver contacts for longer life and suitable for marine applicationsPower saving technologyFault indicationFully surge protectedQuality fuse kitsInstallation of REDARC smart battery isolators should also see the use of quality fuse kits.

Not sure what dual battery system is best for your vehicle?

Let Shaun Whale explain more.

brandREDARC
Max. Inrush Current400A
Max. Continous Current100A
Turn On Voltage10.2V
Turn Off Voltage10V
Turn On Delay5 seconds
Turn Off Delay10 seconds
Standby Current<5mA
Operating Current<0.1A
Weight200 g
height70 mm
width75 mm
depth | length80 mm
Warranty2 Years
System Voltage12V
Output Voltage12V DC
Input Fuse Rating100A
Output Fuse Rating100A
SKU SBI12-BLD
Barcode # 9338628005604
Brand REDARC
