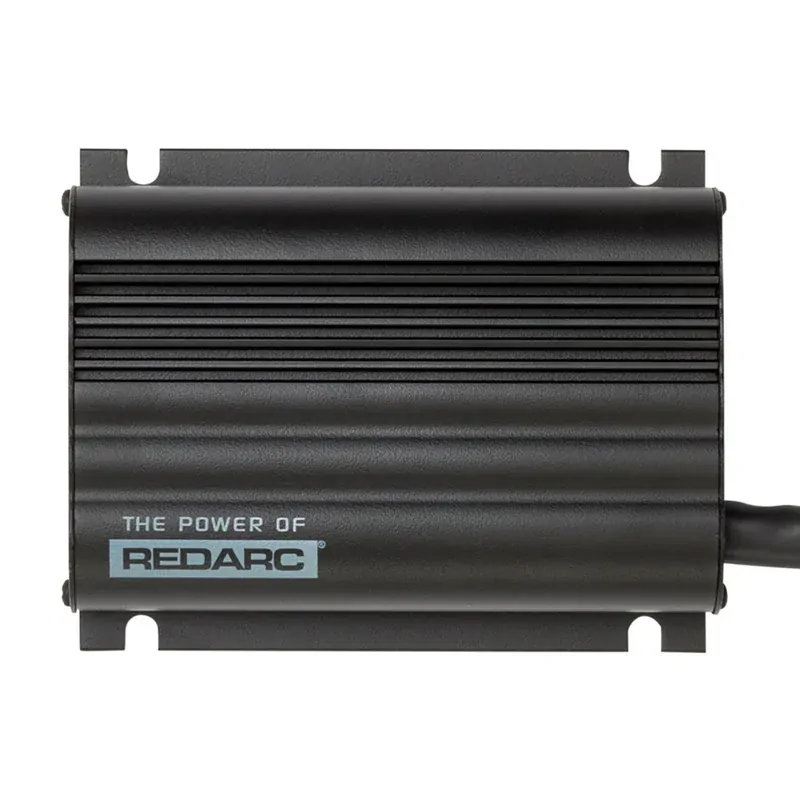

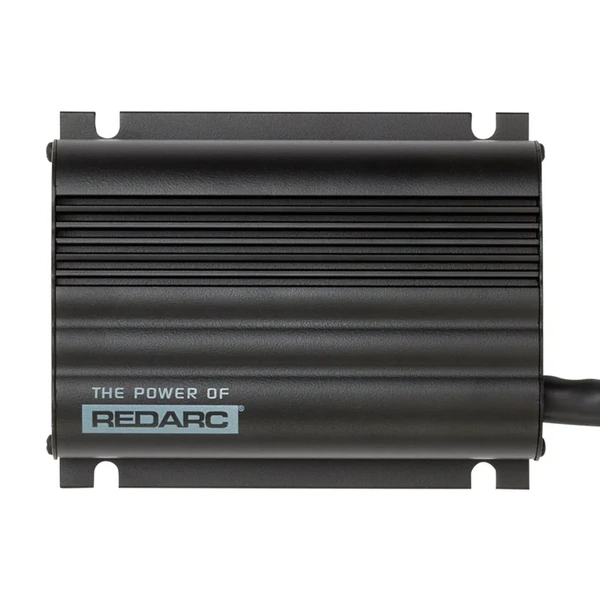

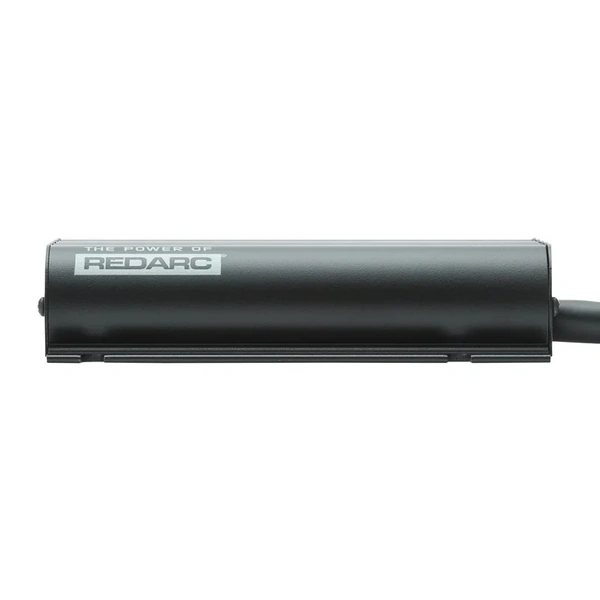

Redarc 24V 20A Low Voltage Under Bonnet DC Battery Charger BCDC2420-LV

The BCDC2420-LV is a 24 Volt 20 Amp low voltage In-vehicle DC Charger featuring technology designed to charge all major lead acid batteries to a proven 100%.* Its suitable for vehicles fitted with an ECU-controlled variable voltage alternator and is fully potted making it ideal for high heat, dust and vibration commonly experienced in under bonnet installations.

*large capacity battery banks may require a few cycles to fully charge.

Three stage charging profileThe REDARC BCDC2420-LV Low Voltage battery charger is a three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC.

It is designed to charge AGM, gel, VRLA and standard lead acid automotive 24V battery systems to an optimal level with chemistry specific battery charging algorithms.

Perfect for trucking and heavy vehicle applicationsThe BCDC2420-LV features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

DC to DC battery with in-built MPPT solar regulatorThe BCDC2420-LV features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries.

The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

FeaturesMulti Stage DC to DC Battery ChargerMPPT Solar RegulatorStart Battery IsolatorFully sealedNo fan for super quiet operationCharges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
