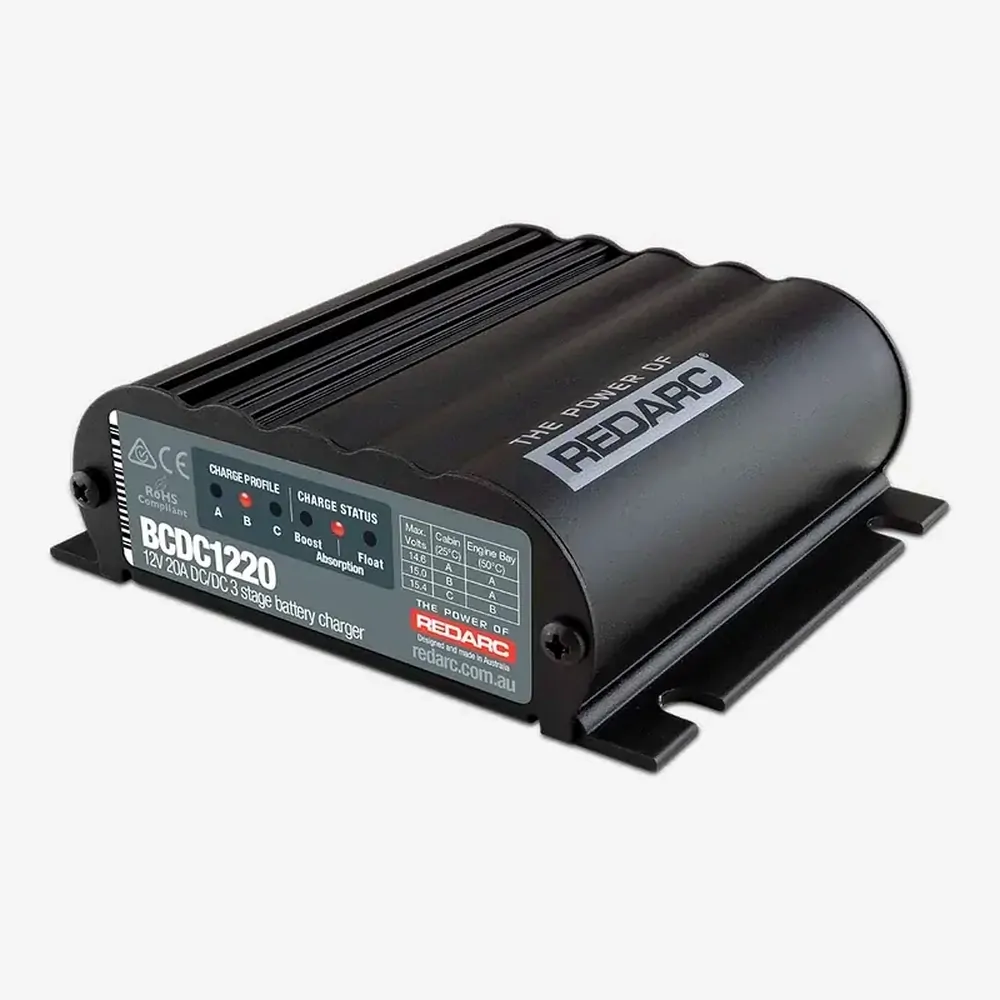

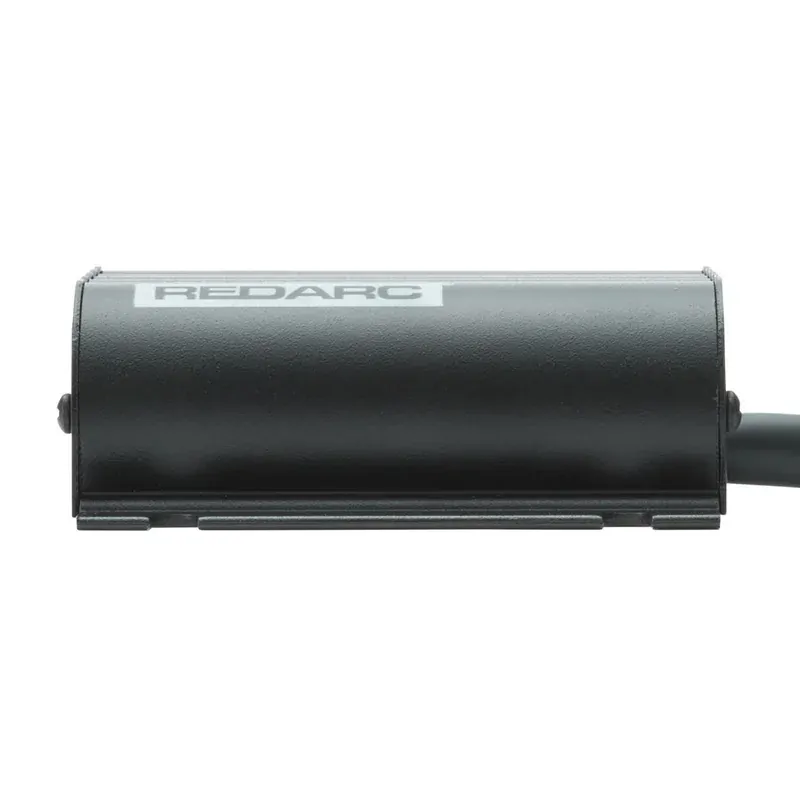

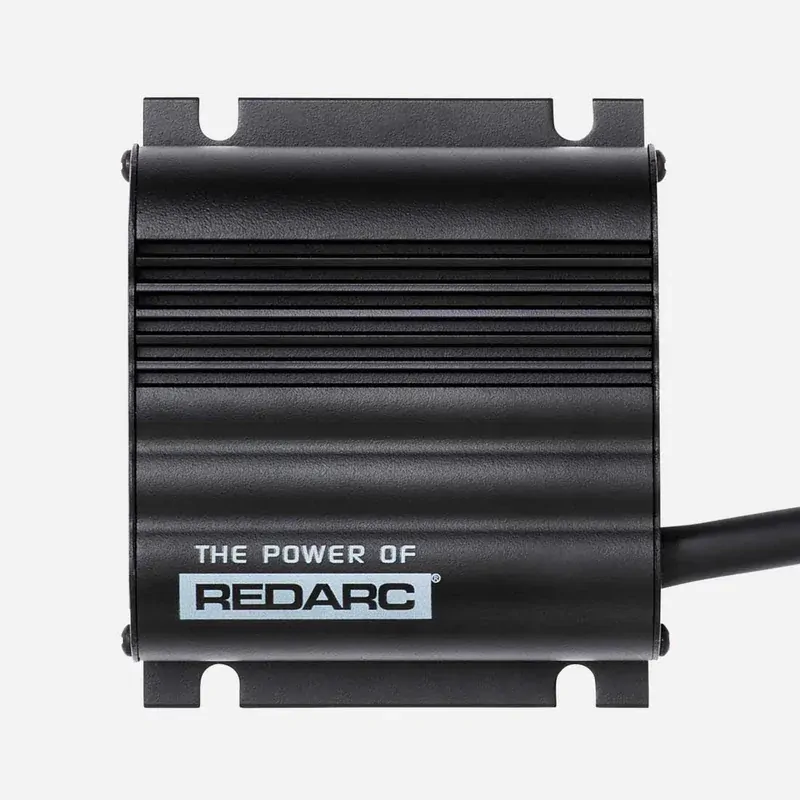

Redarc 20A Under Bonnet DC Battery Charger BCDC1220
SKU:BCDC1220
The REDARC BCDC1220 is a 12 Volt 20 Amp under bonnet DC to DC battery charger designed to keep your battery charged whilst driving.
Featuring multi stage battery charging, the system charges your auxiliary battery from your vehicle to a proven 100%.**large capacity battery banks may require a few cycles to fully charge.
The BCDC charger will work from a wide operating range (9 32V) giving the option of charging from both 12V and 24V vehicle systems, and is potted and rugged making it perfect for under bonnet installations.
By providing a unique charging profile to each specific battery type, the smart charger is able to achieve and maintain 100% charge for your auxiliary battery.
You can charge your auxiliary battery no matter what your battery is.
Proven and TestedCompact in size, easy to install and fully sealed - water, dust and vibration are no match for the in-vehicle DC DC charger.
It can handle the roughest tracks in outback Australia and even deep water crossings at Cape York.
The BCDC DC to DC battery charger is suitable for installation in harsh environments or marine applications.
With an ever increasing number of electrical accessories and devices being used when travelling around Australia, along with more complex vehicle electrical systems than seen in years gone by, having the right DC battery charger has never been more important.
Designed, built and tested in Australia for our unique conditions, the BCDC in-vehicle DC to DC charger wont let you down.
FeaturesMulti Stage DC to DC Battery ChargerStart Battery IsolatorFully sealedNo fan for super quiet operationCharges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteriesMounting BracketsIn addition to the use of quality fuse kits, REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range.
The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow, ensuring optimal performance.
They have been designed to fit existing mounting points in the vehicle.
| Warranty | 2 Years |
| brand | REDARC |
| Battery Chemistry | AGM, Gel, Standard Lead Acid, Calcium, Not suitable for Lithium (LiFePO4) |
| Power Type - AC DC | DC TO DC |
| Nominal Output Power | 148W (12V vehicle) / 294W (24V vehicle) |
| Input Fuse Rating | 16A to 23A (Not supplied) |
| Suitable For 12V Systems | Yes |
| Suitable For 24V Systems | Yes |
| MPPT Solar Regulator | No |
| Cabin/ Canopy Install | Yes |
| No Load Current | <100mA |
| Trailer Install | Yes |
| Engine Bay Install | Yes |
| Max. Charging Voltage | 15.3V |
| Output Fuse Rating | 31A (Not supplied) |
| Operating Temperature | -20C to 80C |
| Output Voltage | 12V DC |
| Max. Rated Output Current | 11A (12V vehicle) / 20A (24V vehicle) |
| Input Voltage | 9 - 32V |
| Standby Current | <5mA |
| Connector Type | Bare wire |
| Weight | 450 g |
| width | 120 mm |
| height | 37 mm |
| depth | length | 100 mm |
| SKU | BCDC1220 |
| Barcode # | 9338628002542 |
| Brand | REDARC |
