Nissan X-Trail T33 Alpine 6x9-Inch Front and 6.5-Inch Rear Speaker Upgrade Bundle 2022-Onwards

This is a custom front and rear speaker upgrade package tailored by Everything 4WD to suit the Nissan X-Trail T33 2022-Onwards.

Speaker Package Range: Alpine Speaker Upgrade

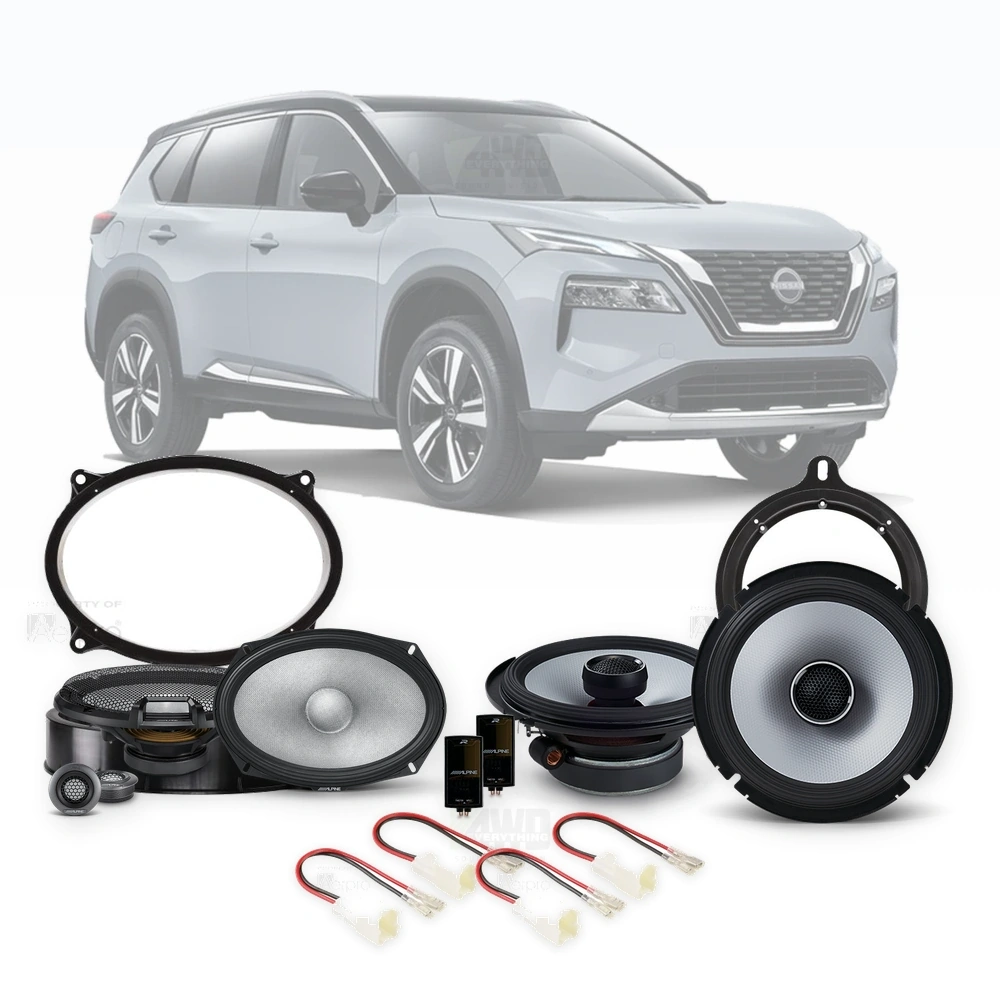

Package Includes:

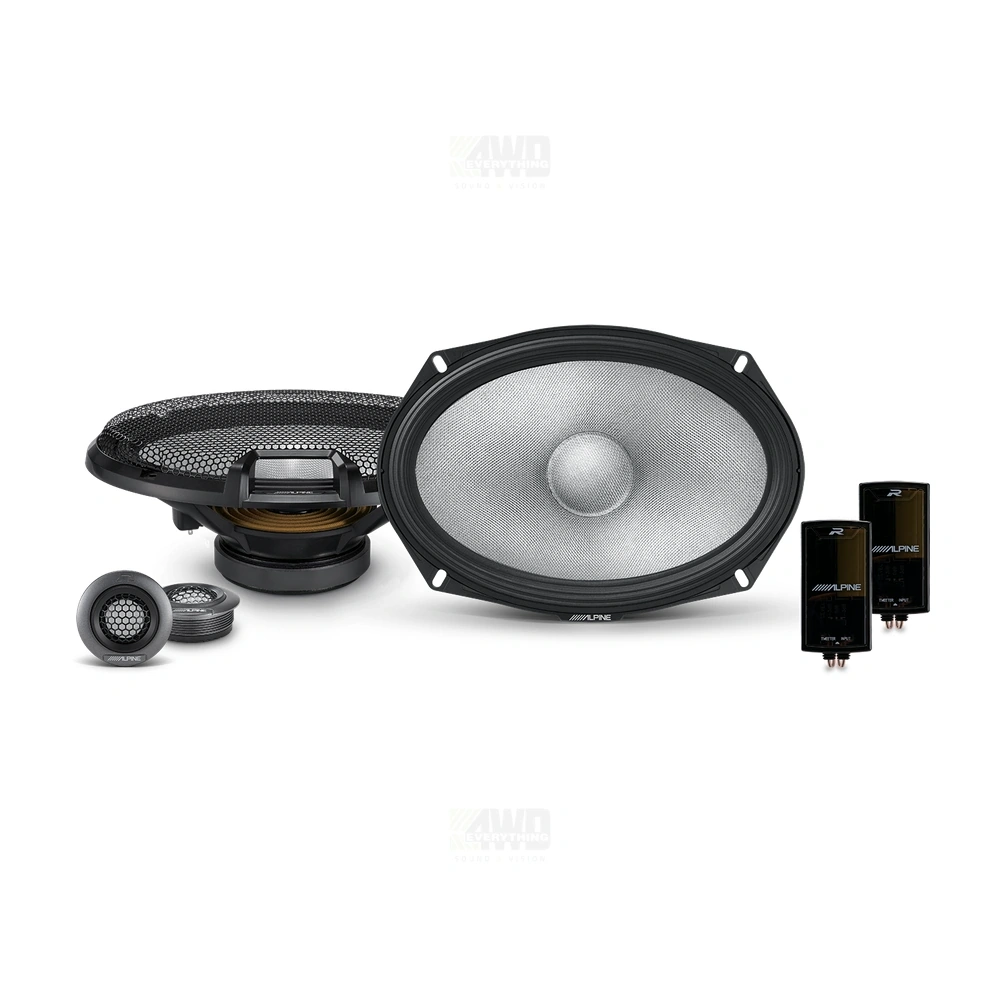

• Alpine R2-S69C - 6x9-Inch component speakers for the front
• Alpine S2-S65 - 6.5-Inch coaxial speakers for the rear
• Aerpro APS300 Speaker Spacer Pair (Front) - Speaker spacer to suit Nissan X-Trail T33
• Aerpro APS321 Speaker Spacer Pair (Rear) - Speaker spacer to suit Nissan X-Trail T33
• Aerpro APS38 OEM Speaker Adapter Pairs x 2 - Speaker plug adaptors to suit Nissan X-Trail T33

Alpine R2-S69C Specifications:

• Features 16 x 24cm (6x9) Door Woofer (2pcs) / 4.3cm Hard-Dome Tweeter (2pcs) Composite Baskets (Door Woofer) Magnesium Hard-Dome Tweeters (Flush-Mount / On-Dash Mounting Options) Glass-Fiber Reinforced Cone (Door Woofer) High-Pass X-Over Networks Included Speaker Grills
• 16 x 24cm (6x9) Door Woofer (2pcs) / 4.3cm Hard-Dome Tweeter (2pcs)
• Composite Baskets (Door Woofer)
• Magnesium Hard-Dome Tweeters (Flush-Mount / On-Dash Mounting Options)
• Glass-Fiber Reinforced Cone (Door Woofer)
• High-Pass X-Over Networks
• Included Speaker Grills
• Specifications Maximum Peak Power: 300 Watts Maximum RMS Power: 100 Watts Nominal Impedance: 4 Ohm Frequency Response: 60Hz-40kHz Sensitivity: 88dB SPL (1W @ 1m) Woofer Mounting Depth: 7.6cm Woofer Cutout Diameter: 14.9 x 22cm
• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts
• Nominal Impedance: 4 Ohm
• Frequency Response: 60Hz-40kHz
• Sensitivity: 88dB SPL (1W @ 1m)
• Woofer Mounting Depth: 7.6cm
• Woofer Cutout Diameter: 14.9 x 22cm

Alpine S2-S65 Specifications:

• Features Woofer 6.5 (165mm) Lightweight Glass Fiber Composite Component Speaker HAMR (High Amplitude Multi-Roll) Surround Large 35mm Voice Coil Magnet Material: Strontium Ferrite Grill sold separately: KTE-S65G Tweeter 1 Extended-Range Soft Dome Magnet Material: Ferrite Application Type: Fixed Tweeter Grill: Perforated Net Crossover Network Woofer: Copper Air-Coiled Wound Inductor Tweeter: High Grade Audio Poly Capacitor
• 6.5 (165mm) Lightweight Glass Fiber Composite Component Speaker
• HAMR (High Amplitude Multi-Roll) Surround
• Large 35mm Voice Coil
• Magnet Material: Strontium Ferrite
• Grill sold separately: KTE-S65G
• 1 Extended-Range Soft Dome
• Magnet Material: Ferrite
• Application Type: Fixed Tweeter
• Grill: Perforated Net
• Woofer: Copper Air-Coiled Wound Inductor
• Tweeter: High Grade Audio Poly Capacitor
• Specifications Power Handling Peak Power: 240 Watts RMS Power: 80 Watts (CTA-2031 Compliant) Dimensions Woofer Frame 165 mm Cutout Diameter: 129mm Mounting Depth: 57.7 mm Mounting Height: 19.5 mm Magnet: 90.0 mm Dimensions Tweeter Frame: 58mm Mounting Diameter: 51mm Mounting Depth: 17.6mm Height: 25.6 mm General Frequency Range: 55 Hz 40 kHz Impedance: 4 Ohms Sensitivity: 88 dB/W Recommended Amplification: up to 80W RMS per channel
• Peak Power: 240 Watts
• RMS Power: 80 Watts (CTA-2031 Compliant)
• Frame 165 mm
• Cutout Diameter: 129mm
• Mounting Depth: 57.7 mm
• Mounting Height: 19.5 mm
• Magnet: 90.0 mm
• Frame: 58mm
• Mounting Diameter: 51mm
• Mounting Depth: 17.6mm
• Height: 25.6 mm
• Frequency Range: 55 Hz 40 kHz
• Impedance: 4 Ohms
• Sensitivity: 88 dB/W
• Recommended Amplification: up to 80W RMS per channel

We recommend checking the speaker location in the vehicle before installation/purchase to ensure this product will suit your application.

Aerpro APS38 OEM Speaker Adapter:

The Aerpro APS38 Speaker Plug Adaptors suit various Nissan and Renault vehicles, converting the original speaker plugs into standard size aftermarket speaker terminals. The plug and play design enables speakers to be installed into the vehicle without the need to cut the original vehicle wiring loom, resulting in a simple yet professional installation that can be reversed at any time.

• HARNESS TYPE: SPEAKER ADAPTORS
• SOLD AS: PAIRS

Vehicle Fitment:

• Nissan X-Trail T33 2022-Onwards
• Front: 6x9-Inch
• Rear: 6.5-Inch
