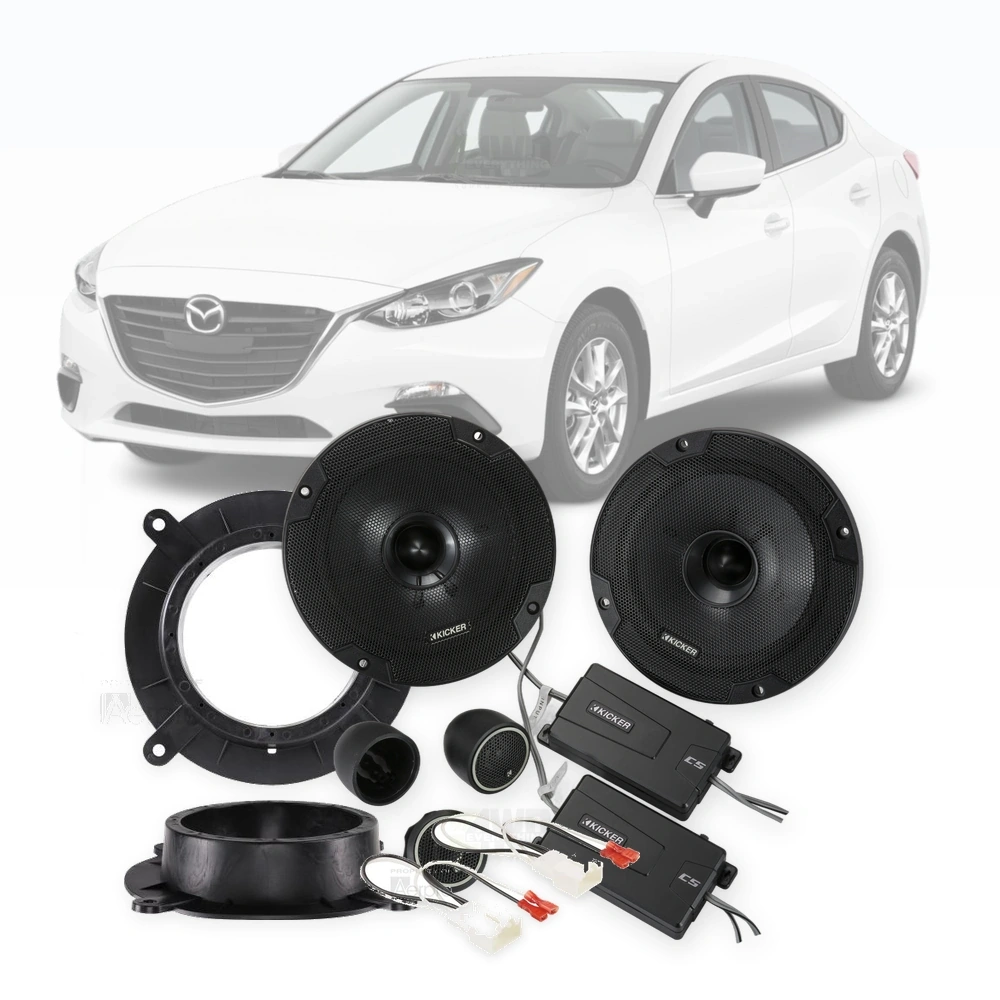

Mazda 3 Axela BM Kicker 6.5-Inch Front Speaker Upgrade Bundle 2013-2016

This is a custom front speaker upgrade package tailored by Everything 4WD to suit the Mazda 3 (Axela) 2013-2016 BM.

Speaker Package Range: Kicker CS Series

Package Includes:

• Kicker 46CSS654 - 6.5" (160mm) 100 Watts RMS Components - 6.5-Inch component speakers for the front

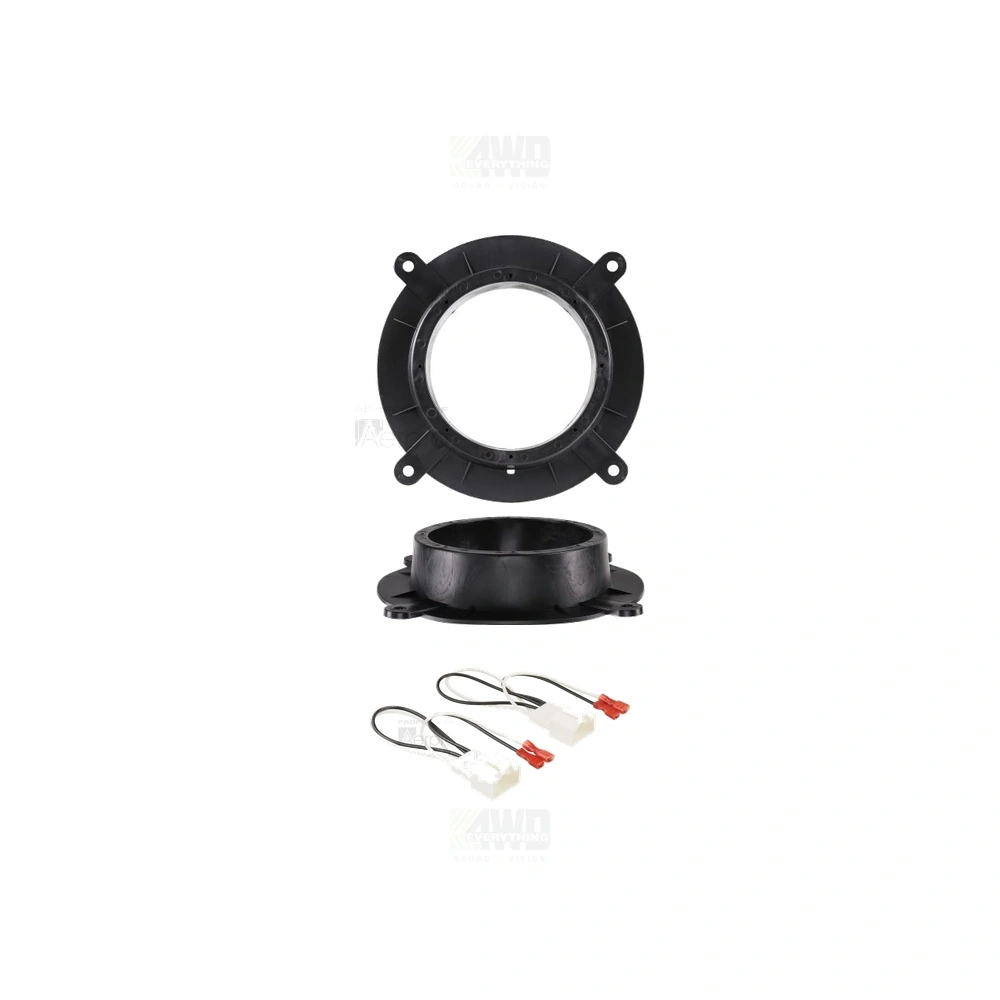

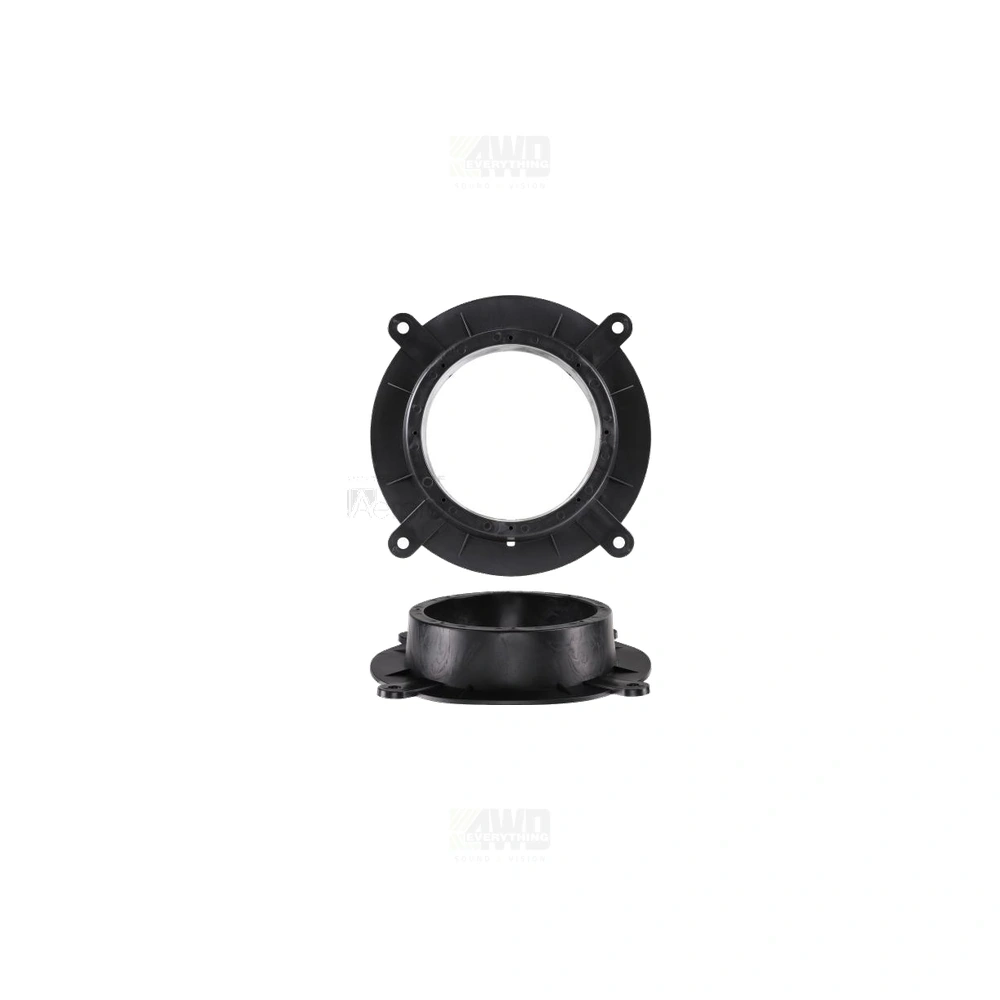

• Aerpro APS313 Speaker Spacer Pair (Front) - Speaker spacer to suit Mazda 3 (Axela) BM
• Aerpro APS21 OEM Speaker Adapter Pair - Speaker plug adaptors to suit Mazda 3 (Axela) BM

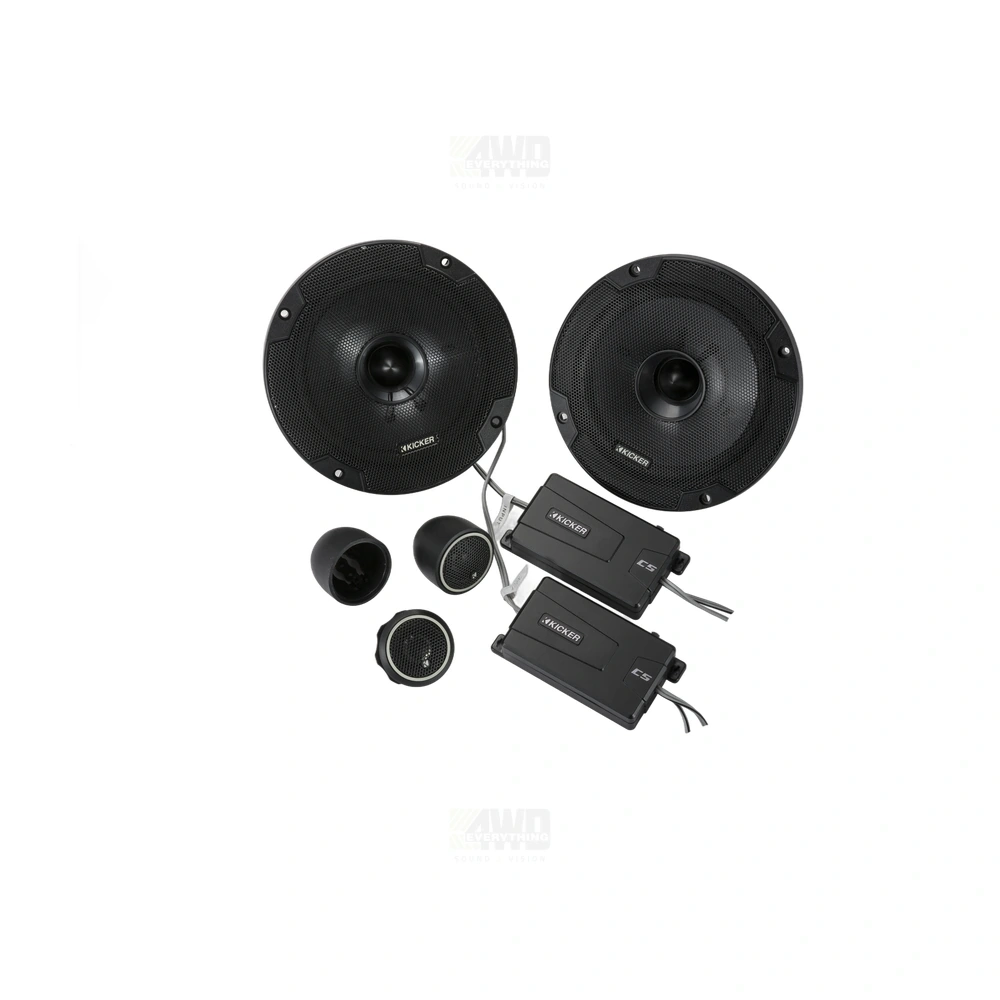

Kicker 46CSS654 - 6.5" (160mm) 100 Watts RMS Components Specifications:

The CS-Series 6-1/2-inch Component Speakers are an outstanding factory upgrade. Designed for easy installation in nearly any vehicle, CS-Series components include separate titanium tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality. The result is precise control with stunning musical realism. Use the flush, angled or surface-mount tweeter pods to perfect your imaging and get a sophisticated look! These CS-Series speakers work best with 100 watts of recommended power. See below for more details. Fits nearly every car made 12dB crossovers with a smaller footprint for easier installation Three-position tweeter switch for dialing in your highs EVCTM (Extended Voice Coil) technology help deliver remarkable bass response Titanium tweeter construction and neodymium magnets to reveal subtle details UV-treated poly-foam surround assists with precise linear excursion Phase plugs in the woofer cones eliminate any distortion Steel mesh grilles protect your drivers Three tweeter mounting options including flush, angled and surface pods

• Weight: 2.6 kg
• Dimensions: 370 x 260 x 83 mm
• Woofer Size | in [mm]: 6 1/2 [160]
• Tweeter Size | in [mm]: 3/4 [20]
• Dome Material: Titanium
• Peak Power | [watts]: 300
• Continuous Power | [watts RMS]: 100
• Effective Frequency Range | Hz: 35-21k
• Woofer Mounting Hole Diameter | in [mm]: 4 13/16 [123]
• Woofer Bottom Mount Depth | in [mm]: 1 11/16 [43]
• Flush Mounting Tweeter Hole Diameter | in [mm]: 1 9/16 [40]
• Flush Mount Tweeter Depth | in [mm]: 9/16 [14.5]
• High Pass | dB, at Frequency | Hz: 12, 4000
• Low Pass | dB, at Frequency | Hz: 12, 4000
• High Frequency Output Attenuation | dB: 0, 3, & 6
• Bolt-Thru Grilles: Yes

We recommend checking the speaker location in the vehicle before installation/purchase to ensure this product will suit your application.

Aerpro APS21 OEM Speaker Adapter:

The Aerpro APS21 Speaker Plug Adaptors suit various Ford and Mazda vehicles, converting the original speaker plugs into standard size aftermarket speaker terminals. The plug and play design enables speakers to be installed into the vehicle without the need to cut the original vehicle wiring loom, resulting in a simple yet professional installation that can be reversed at any time. The 4 pin plug is wired for coaxial aftermarket speakers and can also be cut for installing aftermarket component (splits) speakers.

• HARNESS TYPE: SPEAKER ADAPTORS
• SOLD AS: PAIRS
• NOTES:
  • The 4 pin plug is wired for coaxial aftermarket speakers and can also be cut for installing aftermarket component (splits) speakers.

Vehicle Fitment:

• Mazda 3 (Axela) 2013-2016 BM
• Front: 6.5-Inch
