The iTechworld 480Ah Lithium Caravan Kit Elite is the premium power solution for caravan adventures. Designed to meet the demands of everyday and off-grid caravan use, this bundle offers exceptional flexibility and high-performance components to keep you powered up wherever your journey takes you.

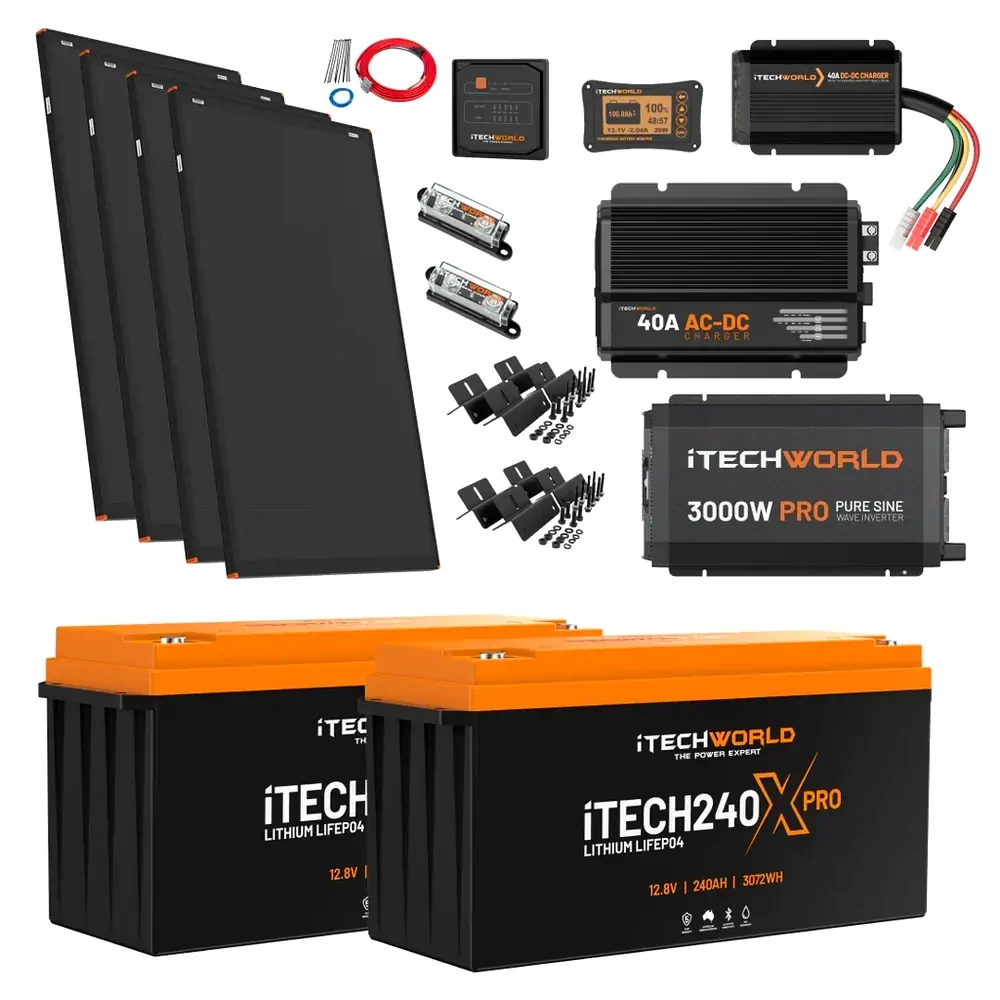

The 480Ah Lithium Caravan Kit includes essential components to form a complete power system:

2 x iTECH240X PRO (480Ah) - Embrace the convenience of two batteries that offers ample power while taking up minimal space, a seamless solution without any compromise in performance.
4 x 150w Solar Panels & Mounting Brackets
iTECHDCCD40 - 40 Amps Per Hour: For a straightforward and reliable charging option, our iTECHDCCD40 delivers a consistent 40 Amps Per Hour charge to your dual battery system. This option ensures efficient power delivery and keeps your batteries charged and ready for use.

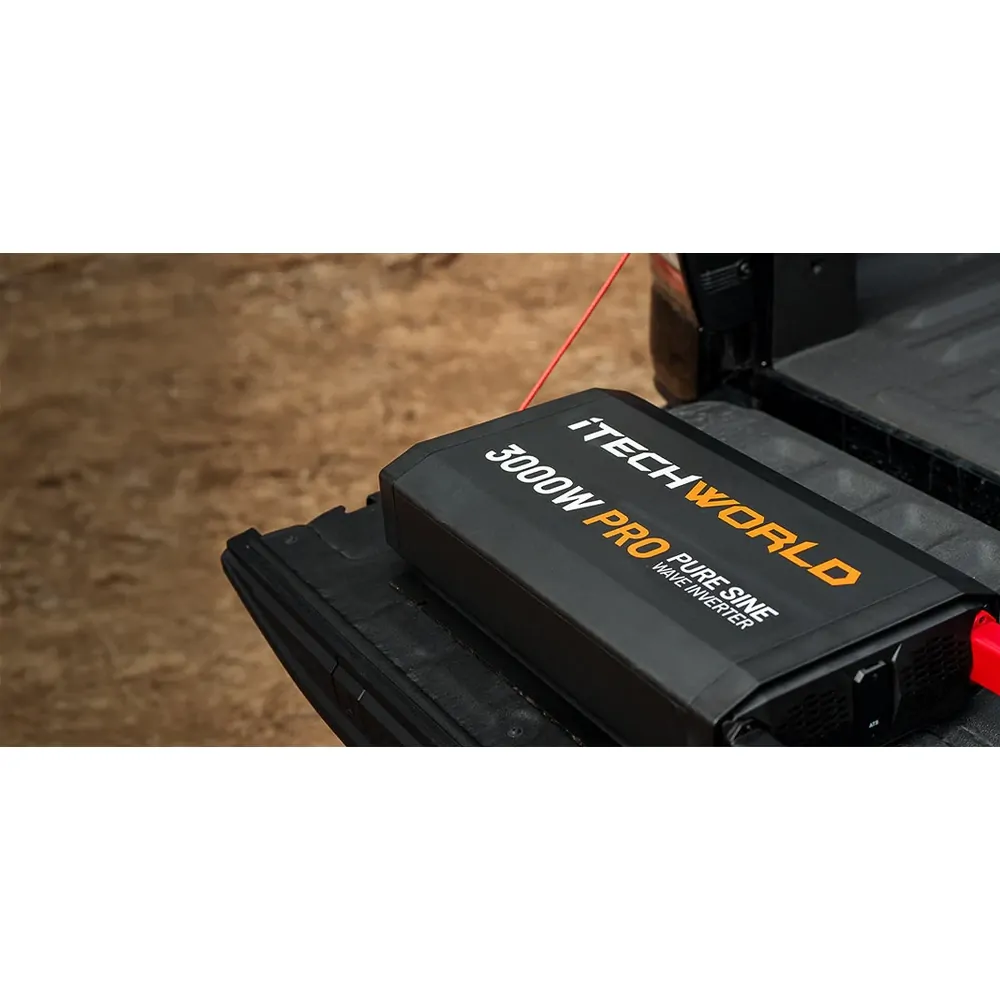

3000W Pure Sine Wave Inverter with ATS and RCD - Power 240V appliances like Caravan AC, thermo-mix, electric kettle, coffee machines, microwaves, toasters, and more with ease. The Automatic Transfer Switch (ATS) feature ensures a smooth transition between power sources. Safety is a top priority with the built-in Residual Current Device (RCD) functionality.
RC2 Remote Control - Take control of your power with the RC2 remote control, designed to complement the 2000W Pure Sine Wave Inverter with ATS and RCD. This user-friendly remote allows you to conveniently operate and monitor your inverter from a distance, providing seamless control over your 240V appliances.
450Amp Maxi Fuse - Safeguard your system with a high-quality fuse on the inverter's positive line.
iTECHBM500 Battery Monitor - Stay informed about your battery's performance with real-time data on amps, SOC (State of Charge), and voltage.

Equip your caravan with the Premium 480Ah Lithium Caravan Kit, the ultimate power solution designed to cater to all your needs. With a range of battery and charging options, solar compatibility, and top-tier components, you can stay self-sufficient and go on longer, uninterrupted trips. Trust in the reliability and performance of iTechworld power solutions as you conquer new terrains and create unforgettable memories. Let the 480Ah Lithium Caravan Kit be your dependable and versatile companion on every thrilling journey, no matter your adventure style.

Battery		iTECH240X PRO
Nominal voltage:	12.8V
C20 rating usable Amps:		240Ah
Short circuit protection:	Yes
Optimum temperature range:	5°C ~ 60°C
BMS operational temperature range:	-40°C ~ 80°C
Safety protection isolator:	80°C
Recommended charge current:		1-100A
Maximum charge current:		200A
Recommended charge voltage:	14.4V
BMS charge cutoff voltage:	15V
BMS low voltage cutoff:		8.5-9V
Continuous discharge:		250A
Peak discharge:		500A (5 seconds)
Series connection:	Up to 48V (4 x batteries)
Parallel connection:	Unlimited
Life cycles @ 100%:	5000+
Life cycles @ 50%:	10,000+
Dimensions (LxWxH):		485 x 170 x 239mm
Weight:		23.6kg
Terminals:	M8
Case material:	ABS

150W Solar Panels
Rated maximum power (Pm):	150W
Power tolerance:	±3%
Voltage at Pmax (Vmp):	18.28V
Current at Pmax (Imp):	8.207A
Open-circuit voltage (Voc):	22V
Short circuit current:	8A
Normal Operating Cell Temperature (NOCT):	45+2°C
Maximum system voltage:	1000VDC
Maximum series fuse rating:	15A
Operating temperature:	-40°C ~ 85°C
Dimensions (LxWxH):	1160 x 670 x 30mm
Weight:	9.32kg

iTECHDCDC40
Battery capacity:	80-800Ah
Vehicle input voltage:	9-32V
Solar input voltage:	10-32V
Maximum input current:	45A
Input fuse rating:	60A
Continuous output current:	Up to 40A
Output fuse rating:	60A
Minimum auxiliary battery charge start voltage	4V
Standby current:	<10mA
Battery type:	Standard lead-acid, Gel, AGM, Calcium & LiFePO4
Operating temperature:	-20°C ~ 80°C
IP rating:	IP67
Dimensions (LxWxH):	188 x 127 x 39mm
Weight:	950g
Output
Charge type:	3-Stage
Charging profile:	STD	Gel	AGM	Calcium	LiFePO4
Absorption (maximum output voltage):	14.4V	14.1V	14.7	15.3V	14.5V
Float voltage:	13.4V	13.5V	13.4V	13.6V
Input
Input:	On		Off
12V standard alternator:	>13.2V		<12.8V
24V standard alternator:	>26.2V		<25.6V
12V smart alternator (ignition cable connected):	>12V		<11.8V
24V smart alternator (ignition cable conencted):	>24V		<23.6V
Solar:	16V & 25W		10V

iTECHBC40
AC input voltage:	220-240V
AC input frequency:	50-60Hz
Maximum input current:	4.8A
Maximum input power:	700W
Continuous output current:	Up to 40A
Output fuse rating:	60A (2 x 30A)
Minimum auxiliary battery charge start voltage	0V
Standby current:	<2mA
Battery type:	Standard lead-acid, Gel, AGM, Calcium & LiFePO4
Operating temperature:	-20°C ~ 60°C
IP rating:	IP20
Dimensions	275 x 190 x 72mm
Weight:	2kg
Output
Charge type:	4-Stage
Charging profile:	STD	Gel	AGM	Calcium	LiFePO4
Bulk:	40A
Absorption:	14.4V	14.1V	14.7V	15.5V	14.4V
Float voltage:	13.4V	13.5V	13.4V	13.6V

3000W PRO inverter
Maximum continuous output:	3000W
Peak output:	6000W
Battery compatibility:	Standard lead-acid, AGM, Gel or LiFePO4
Input voltage range:	10.5-15.5V
Output plug rating:	15A
Output voltage & current:	240V - 50Hz
No load draw:	<1.6A
Efficiency:	90%
Output waveform:	Pure Sine Wave
Total Harmonic Distotion (THD):	<3%
IP rating:	IP22
Operating temperature:	-10°C ~ 50°C
Storage temperature:	-30°C ~ 70°C
Over voltage protection:	15.5±0.2V DC
Under voltage protection:	10.5±0.2V DC
Short circuit protection:	1 second
Dimensions (LxWxH):	514 x 289 x 105mm
AC transfer switch:	30ms
Remote terminal:	RJ12
Remote dimensions (LxWxH):	86 x 86 x 19mm
Safety certifications:	The iTechworld inverter range fully complies with AS/NZS 4763:2011 and IEC/EN 62368-1 including Australian deviations

Battery Monitor
Model:	iTECHBM500
Supply voltage:	10-100V
Battery capacity:	10-999Ah
Maximum measured current::	500A
Power consumption (screen off):	<2mA
Power consumption (screen brightness @ 10%):	<20mA
Power consumption (screen brightness @ 100%)	<60mA
Voltage accuracy:	±1%
Current accuracy:	±1%
Capacity accuracy:	±1%
Operating temperature:	-20°C ~ 80°C
Exterior bracket dimensions (LxWxH):	106 x 81 x 18mm
Mounting bracket dimensions (LxW):	95 x 70mm
Monitor backing dimensions (LxWxH):	80 x 59 x 16mm
IP rating:	IP20
