Enerdrive Pico Display Stand Alone Silver SI-PICO-2

SIMARINE's advanced battery monitor for most demanding users. For up to 6 battery banks, 6 additional battery voltages, 14 tank level and 20 consumer or power generation readings. Compatible with all SIMARINE shunts and modules.

Operating

Power source voltage range 6 - 35 V

Temperature range -20 - +70 °C

Power consumption at 12 V

Operating, WiFi On, 100% illumination 90 mA

Operating, WiFi Off, 70% illumination 35 mA

Operating, WiFi Off, 0% illumination 18 mA

Power Off, logger still active 5 mA

Resolution Current (A) ±0,01 A

Voltage (V) ±0,01 A

Amp hours (Ah) ±0,1 A

SOC - Stat of Charge ( 0 - 100%) ±0,01 A

Temperature ±0,1 °C / °F

Voltage inputs

Range 0 - 75 V

WIFI Radio Frequency Band 2,4 GHz

Dimensions (without connector) Standalone 89 x 84 x 10 mm

Panel 108,5 x 94 x 10 mm

Connectivity Up to Batteries 6

Shunts 24

Temperature sensors 10

Tank level sensors 14

Inclinometer sensors 2

Smartphone application 1

Logger Capacity

up to 3 month

SIMARINE PICO sets new standards for marine battery and tank monitors in ?elds of design, functionality, connectivity and ease of use.

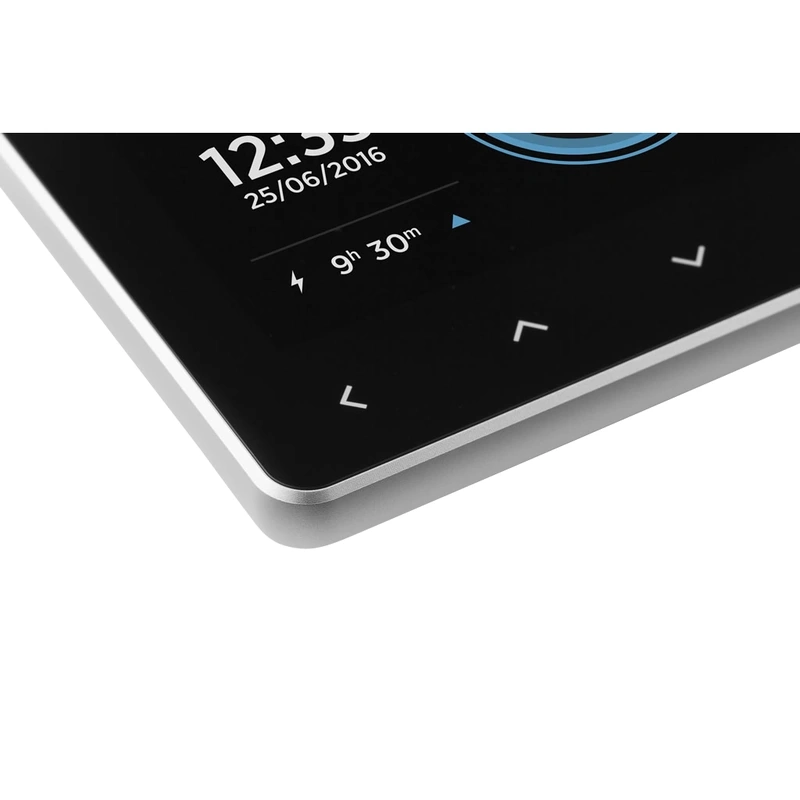

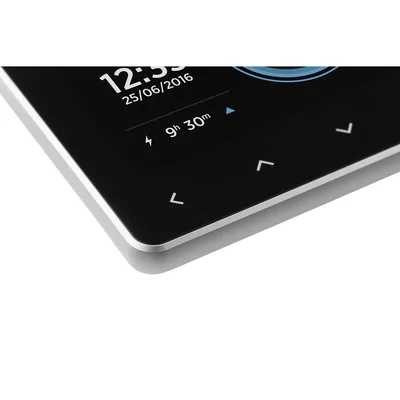

PICO's display unit is made of a sleek anodized aluminum casing and a thick Gorilla Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It's water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense touch buttons.

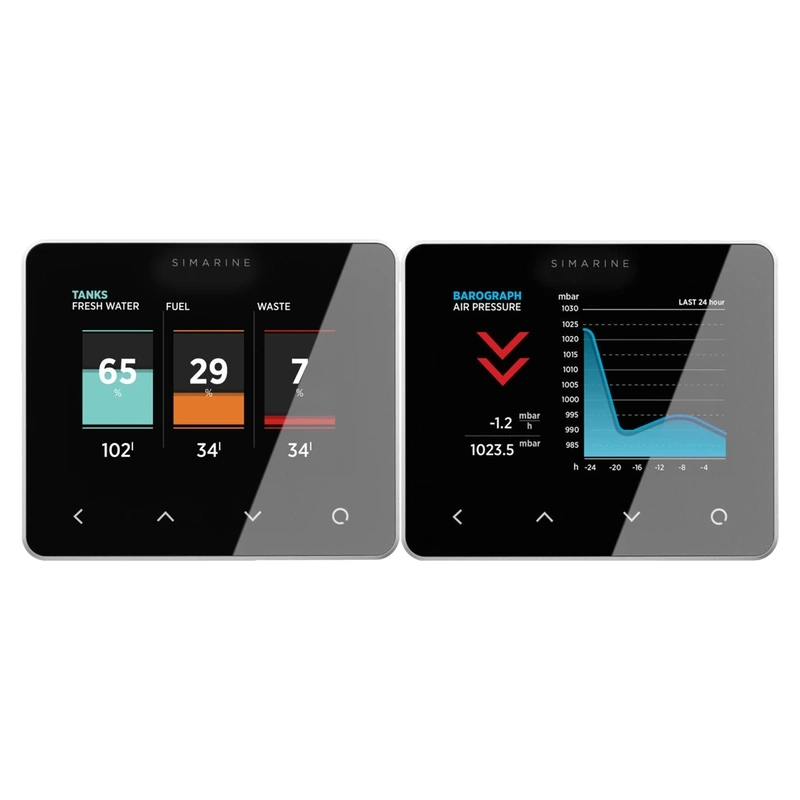

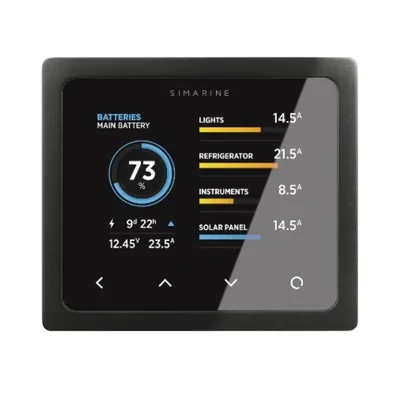

The Pico system provides you with a simple overview of all important details regarding your battery (voltage, current, amp hours, battery capacity in%, battery temperature) and also tank level and temperature indications.

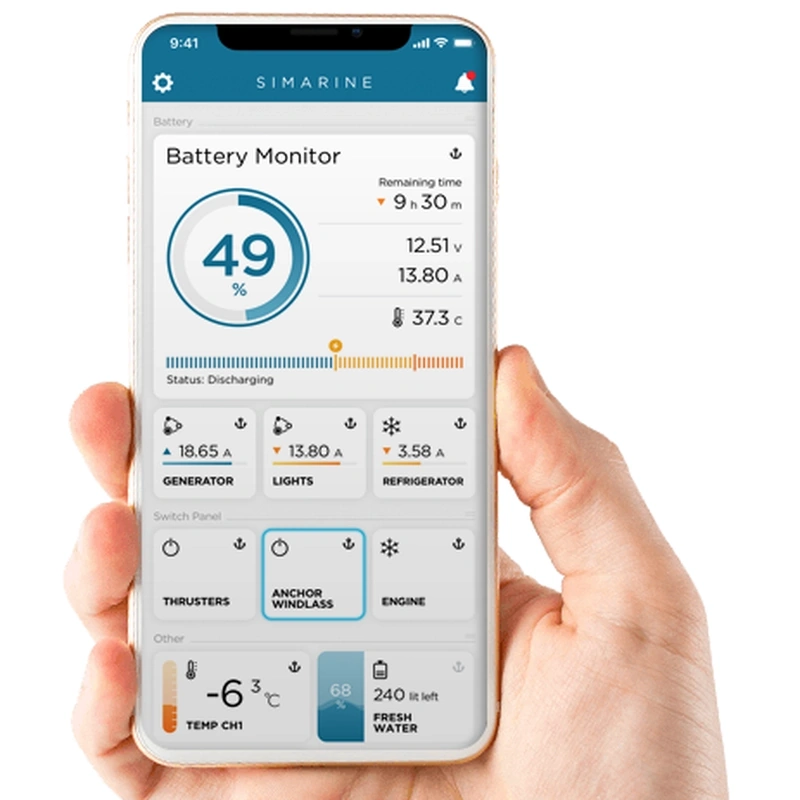

Free SIMARINE Android and iOS Apps:

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

Specifications:

Model Simarine Pico SI-PICO1 Standalone Black Bezel SI-PICO2 Standalone Silver Bezel SI-PICO3 Panel Mount Black Bezel SI-PICO4 Panel Mount Silver Bezel Power Source Voltage Range 6-35V Temperature Range -20 - +70°C Power Consumption at 12V Operating, WiFi On, 100% Illumination 90mA Operating, WiFi Off, 70% Illumination 35mA Operating, WiFi Off, 0% Illumination 18mA Power Off, logger still active 5mA Resolution Current (A) ±0.01A Voltage (V) ±0.01V Amp Hours (Ah) ±0.1Ah SOC - State of Charge (0-100%) ±0.01A Temperature ±0.1 °C/°F Voltage Inputs Range 0-75V WiFi Radio Frequency Band 2.4GHz Dimensions (without Connectors) Standalone 89 x 84 x 10mm Panel Mount 108.5 x 94 x 10mm Connectivity Up to Batteries 6 Shunts 24 Temperature Sensors 10 Tank Level Sensors 14 Inclinometer Sensors 2 Smartphone Applications 1 Logger Capacity Up to 3 Months
