As part of our esteemed 4WD System Collection, the iTechworld Slimline 4WD Kit offers cutting-edge components tailored to excel in tight spaces. Engineered for efficiency and reliability, this bundle ensures a seamless power experience for your canopy, van, 4WD, or any adventure vehicle.

Customise your power setup with a choice between two exceptional Lithium batteries:

1x iTECH200SS (200Ah) Lithium Battery: Backed by a 5-year warranty, this super slim powerhouse is perfect for compact installations. The iTECH100SS boasts a versatile design, delivering reliable power and more effective use of space.

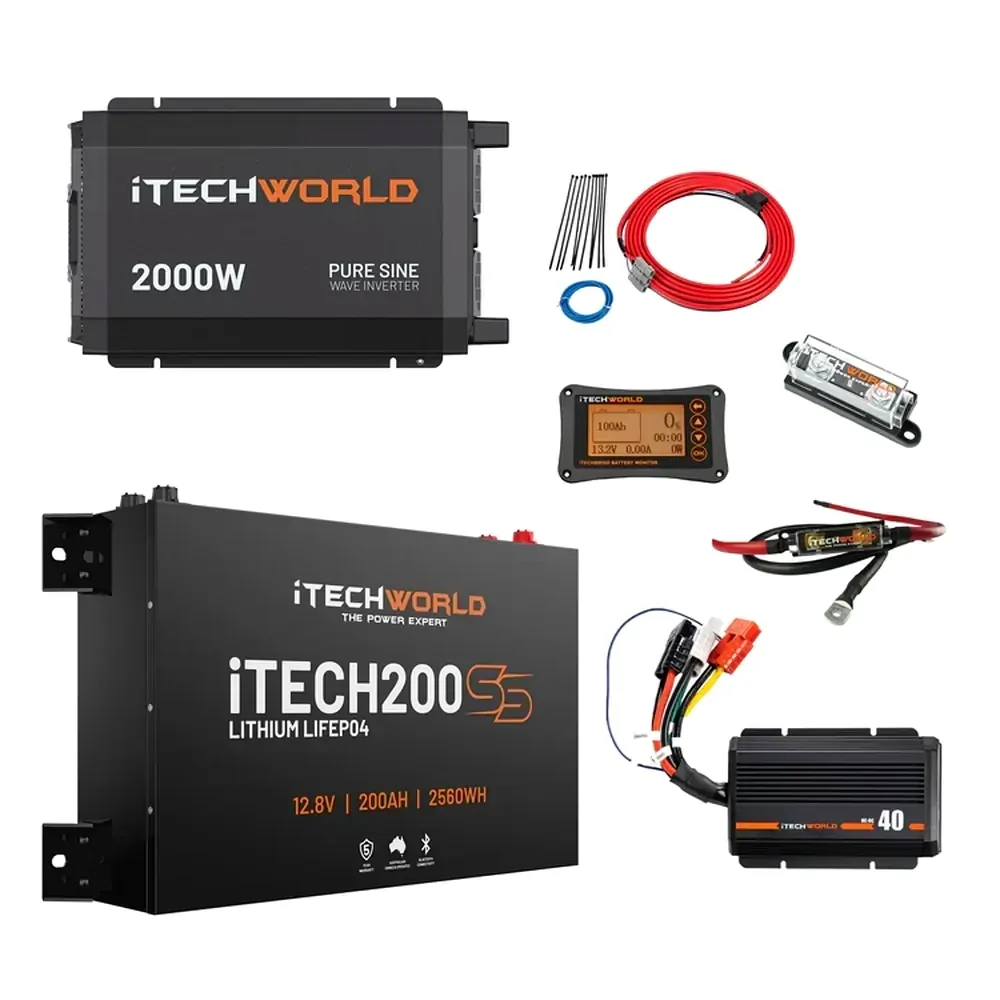

The Complete Lithium 4WD Kit includes essential components to form a complete power system:

Plug & Play DCDC Wiring Kit - Connect your cranking battery to the iTECHDCDC40 or the Control Hub with an integrated iTECHDCDC40 charger for seamless power management.
2000W Pure Sine Wave Inverter - Power 240V appliances like coffee machines, microwaves, toasters, and more with ease.
250Amp Maxi Fuse - Safeguard your system with a high-quality fuse on the inverter's positive line.
iTECHBM500 Battery Monitor - Stay informed about your battery's performance with real-time data on amps, SOC (State of Charge), and voltage.

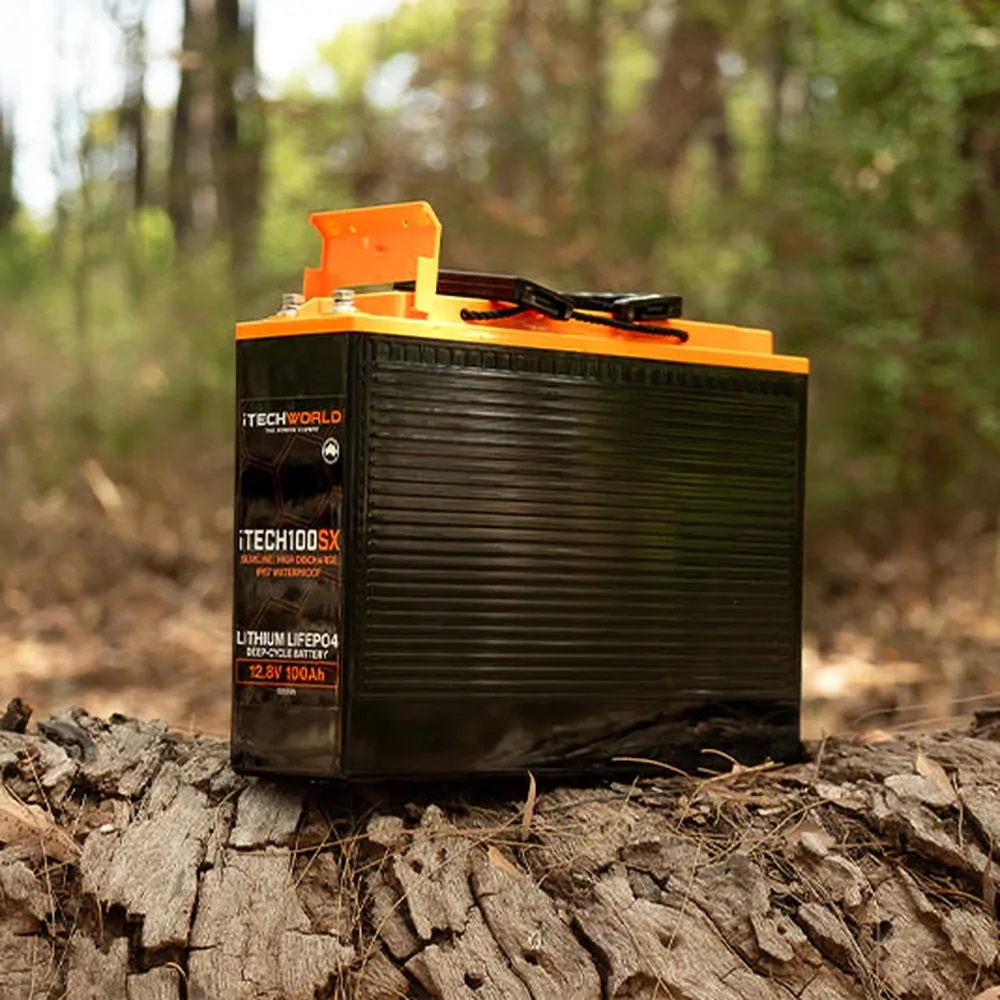

We have thought of everything with our Slimline Battery Kit, and when you select the iTECH100SX, we provide a battery tray. This sturdy tray keeps your battery secure, preventing unnecessary movement or damage during adventurous journeys.

For the iTECH200SS, we provide convenient mounting brackets pre-attached to the battery, simplifying the installation process and ensuring a steadfast connection in your setup.

Charging plays a pivotal role in every battery system, and at iTechworld, we understand the importance of providing a seamless power supply:

iTECHDCCD40 - 40 Amps Per Hour: For a straightforward and reliable charging option, our iTECHDCCD40 delivers a consistent 40 Amps Per Hour charge to your dual battery system. This option ensures efficient power delivery and keeps your batteries charged and ready for use.

The iTECHDCCD40 provides straightforward charging, you can count on iTechworld to provide reliable and efficient charging solutions for your power needs.

Stand out from the crowd with the iTechworld Slimline 4WD Kit. With its slimline construction and powerful lithium batteries, this bundle is designed to thrive in tight spaces. Experience unparalleled power and convenience, even in the most challenging installations.

Discover the freedom to roam, explore, and conquer with confidence. Choose innovation, choose iTechworld, and let the Slimline 4WD Kit be your ultimate power system.

Battery		iTECH200SS
Nominal voltage:	12.8V
C20 rating usable Amps:		200Ah
Short circuit protection:	Yes
Optimum temperature range:	5°C ~ 60°C
BMS operational temperature range:	-40°C ~ 80°C
Safety protection isolator:	80°C
Recommended charge current:		1-100A
Maximum charge current:		200A
Recommended charge voltage:	14.4V
BMS charge cutoff voltage:	15V
BMS low voltage cutoff:		8.5-9V
Continuous discharge:		250A
Peak discharge:		500A (5 seconds)
Series connection:	Up to 48V (4 x batteries)
Parallel connection:	Unlimited
Life cycles @ 100%:	5000+
Life cycles @ 50%:	10,000+
Dimensions (LxWxH):		580 x 327 x 126mm
Weight:		12.5kg
Terminals:	M8
Case material:	ABS

DCDC40 Charger
Battery capacity:	80-800Ah
Vehicle input voltage:	9-32V
Solar input voltage:	10-32V
Maximum input current:	45A
Input fuse rating:	60A
Continuous output current:	Up to 40A
Output fuse rating:	60A
Minimum auxiliary battery charge start voltage	4V
Standby current:	<10mA
Battery type:	Standard lead-acid, Gel, AGM, Calcium & LiFePO4
Operating temperature:	-20°C ~ 80°C
IP rating:	IP67
Dimensions (LxWxH):	188 x 127 x 39mm
Weight:	950g
Output
Charge type:	3-Stage
Charging profile:	STD	Gel	AGM	Calcium	LiFePO4
Absorption (maximum output voltage):	14.4V	14.1V	14.7	15.3V	14.5V
Float voltage:	13.4V	13.5V	13.4V	13.6V
Input
Input:	On		Off
12V standard alternator:	>13.2V		<12.8V
24V standard alternator:	>26.2V		<25.6V
12V smart alternator (ignition cable connected):	>12V		<11.8V
24V smart alternator (ignition cable conencted):	>24V		<23.6V
Solar:	16V & 25W		10V

2000W Inverter
Maximum continuous output:	2000W
Peak output:	4000W
Battery compatibility:	Standard lead-acid, AGM, Gel or LiFePO4
Input voltage range:	10.5-15.5V
Output plug rating:	10A
Output voltage & current:	240V - 50Hz
No load draw:	<1.3A
Efficiency:	89% ~ 92%
Output waveform:	Pure Sine Wave
Total Harmonic Distotion (THD):	<3%
IP rating:	IP22
Operating temperature:	-10°C ~ 50°C
Storage temperature:	-30°C ~ 70°C
Over voltage protection:	15.5±0.2V DC
Under voltage protection:	10.5±0.2V DC
Short circuit protection:	1 second
Dimensions (LxWxH):	440 x 265 x 97mm
Remote terminal:	RJ12
Remote dimensions (LxWxH):	86 x 86 x 19mm
Safety certifications:	The iTechworld inverter range fully complies with AS/NZS 4763:2011 and IEC/EN 62368-1 including Australian deviations

Battery Monitor
Model:	iTECHBM500
Supply voltage:	10-100V
Battery capacity:	10-999Ah
Maximum measured current::	500A
Power consumption (screen off):	<2mA
Power consumption (screen brightness @ 10%):	<20mA
Power consumption (screen brightness @ 100%)	<60mA
Voltage accuracy:	±1%
Current accuracy:	±1%
Capacity accuracy:	±1%
Operating temperature:	-20°C ~ 80°C
Exterior bracket dimensions (LxWxH):	106 x 81 x 18mm
Mounting bracket dimensions (LxW):	95 x 70mm
Monitor backing dimensions (LxWxH):	80 x 59 x 16mm
IP rating:	IP20
