iTechworld Complete Lithium 4WD/Caravan Kit 240 AH Dual Battery System
SKU:ITECH-LI-4WD-CARAVANKIT
$4,120.00

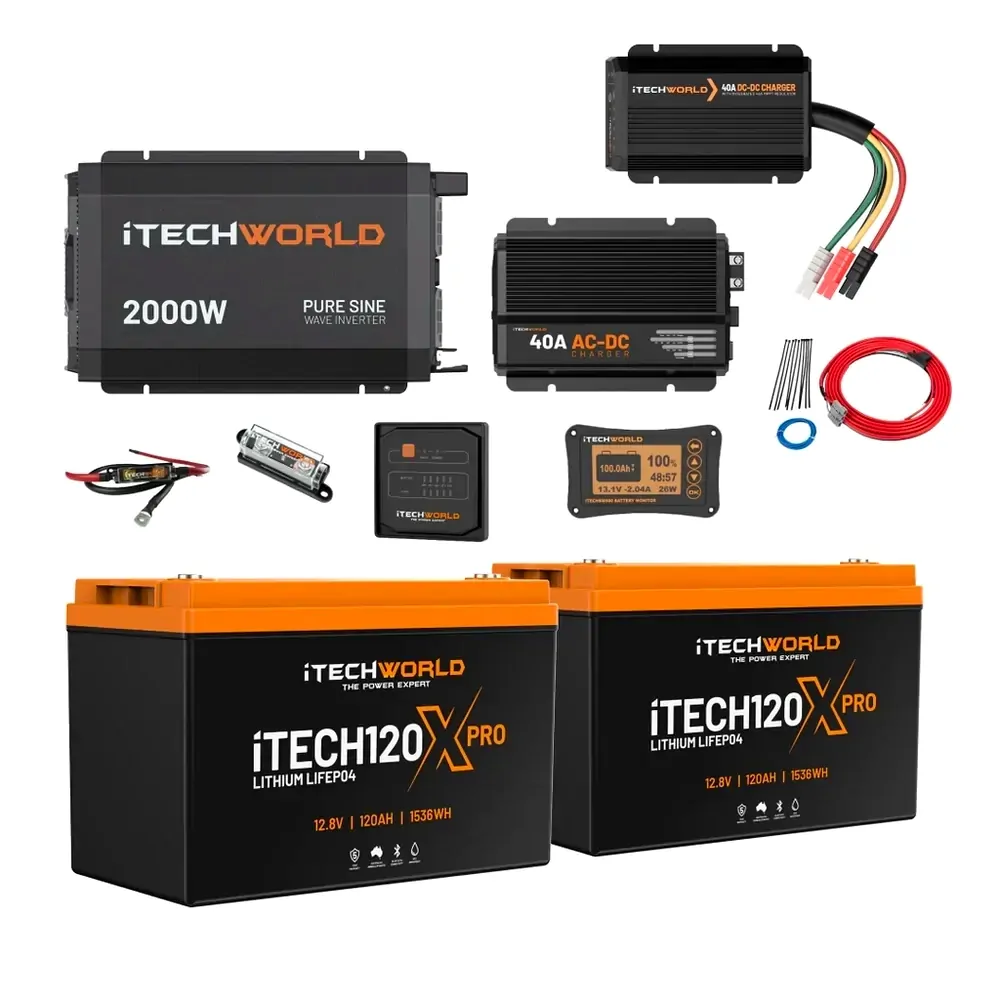

This Package Contents:

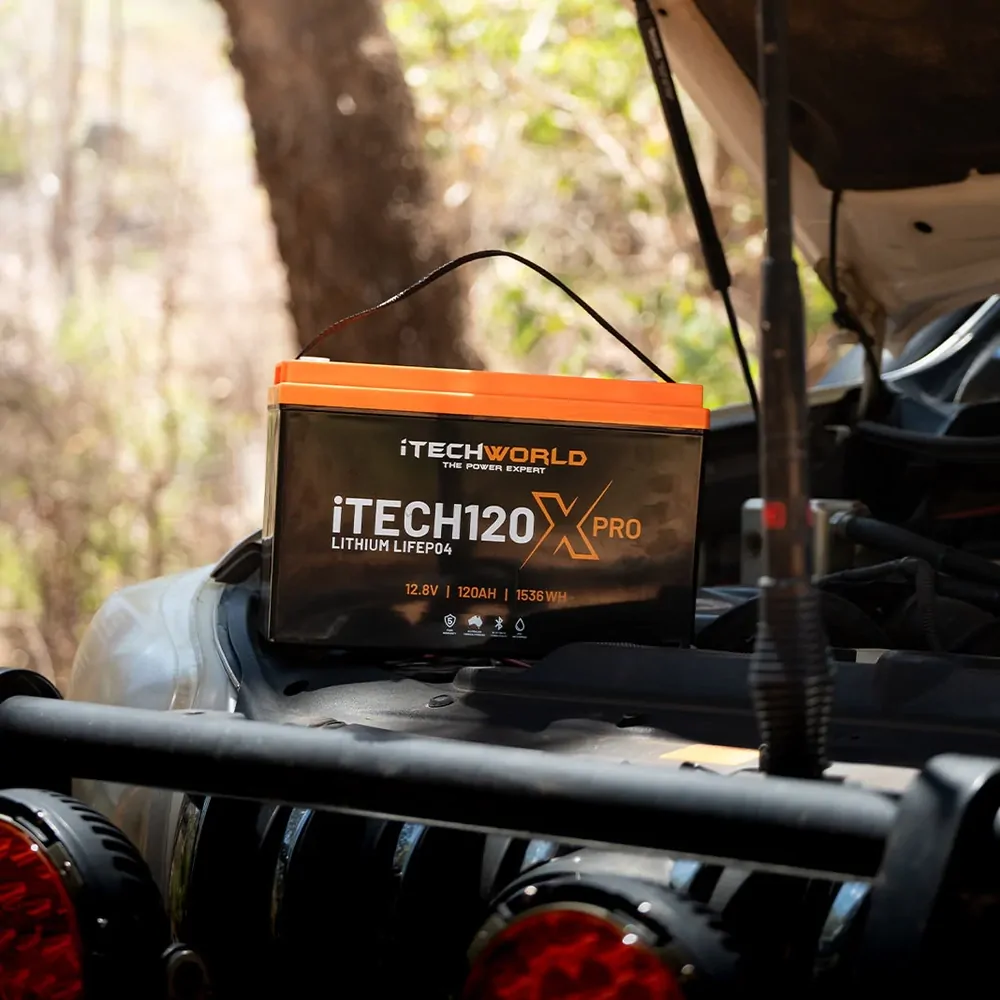

- 2x iTECH120X PRO Lithium Batteries
- 1x iTECHDCDC40 Battery Charger
- 1x iTECHBC40 Battery Charger
- 1x iTECHBM500 Battery Monitor with Shunt
- 1x iTechworld 2000W Pure Sine Wave Inverter
- 1x iTechworld 250A Maxi Fuse with Fuse Holder
- 1x iTechworld 60A Midi Fuse with Fuse Holder
- 1 x Intelligent On/Off Remote Control Inverter

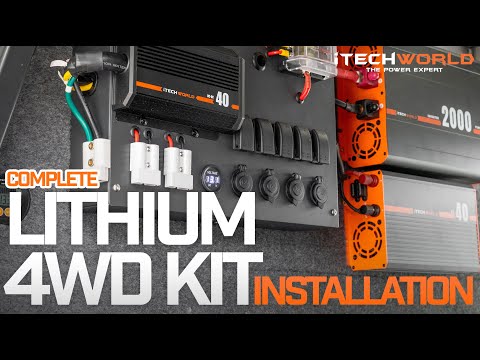

Click Below To Watch Youtube Video of Installation
| iTECH120X PRO | |
|---|---|
| Voltage: | 12V |
| Nominal voltage: | 12.8V |
| Short circuit protection: | Yes |
| Optimum temperature range: | 5°C ~ 60°C |
| BMS operational temperature range: | -40°C ~ 80°C |
| Safety protection isolator: | 80°C |
| Recommended charge voltage: | 14.4V |
| Recommended charge current: | 1-60A |
| BMS charge cutoff: | 15V |
| BMS low voltage cutoff: | 8.5-9V |
| Series connection: | Up to 48V (4 x batteries) |
| Parallel connection: | Unlimited |
| Life cycles @ 100% depth of discharge: | 5,000+ |
| Life cycles @ 50% depth of discharge: | 10,000+ |
| Terminal type: | M8 |
| Case material: | ABS |
| Dimensions (LxWxH): | 330 x 173 x 215mm (230 H including terminals) |
| Weight: | 12.5kg |
| DCDC40 Charger | |||||
|---|---|---|---|---|---|
| Battery capacity: | 80-800Ah | ||||
| Vehicle input voltage: | 9-32V | ||||
| Solar input voltage: | 10-32V | ||||
| Maximum input current: | 45A | ||||
| Input fuse rating: | 60A | ||||
| Continuous output current: | Up to 40A | ||||
| Output fuse rating: | 60A | ||||
| Minimum auxiliary battery charge start voltage | 4V | ||||
| Standby current: | <10mA | ||||
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 | ||||
| Operating temperature: | -20°C ~ 80°C | ||||
| IP rating: | IP67 | ||||
| Dimensions (LxWxH): | 188 x 127 x 39mm | ||||
| Weight: | 950g | ||||
| Output | |||||
| Charge type: | 3-Stage | ||||
| Charging profile: | STD | Gel | AGM | Calcium | LiFePO4 |
| Absorption (maximum output voltage): | 14.4V | 14.1V | 14.7 | 15.3V | 14.5V |
| Float voltage: | 13.4V | 13.5V | 13.4V | 13.6V | |
| Input | |||||
| Input: | On | Off | |||
| 12V standard alternator: | >13.2V | <12.8V | |||
| 24V standard alternator: | >26.2V | <25.6V | |||
| 12V smart alternator (ignition cable connected): | >12V | <11.8V | |||
| 24V smart alternator (ignition cable conencted): | >24V | <23.6V | |||
| Solar: | 16V & 25W | 10V | |||
| iTECHBC40 | |||||
|---|---|---|---|---|---|
| AC input voltage: | 220-240V | ||||
| AC input frequency: | 50-60Hz | ||||
| Maximum input current: | 4.8A | ||||
| Maximum input power: | 700W | ||||
| Continuous output current: | Up to 40A | ||||
| Output fuse rating: | 60A (2 x 30A) | ||||
| Minimum auxiliary battery charge start voltage | 0V | ||||
| Standby current: | <2mA | ||||
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 | ||||
| Operating temperature: | -20°C ~ 60°C | ||||
| IP rating: | IP20 | ||||
| Dimensions | 275 x 190 x 72mm | ||||
| Weight: | 2kg | ||||
| Output | |||||
| Charge type: | 4-Stage | ||||
| Charging profile: | STD | Gel | AGM | Calcium | LiFePO4 |
| Bulk: | 40A | ||||
| Absorption: | 14.4V | 14.1V | 14.7V | 15.5V | 14.4V |
| Float voltage: | 13.4V | 13.5V | 13.4V | 13.6V | |
| Battery Monitor | |
|---|---|
| Model: | iTECHBM500 |
| Supply voltage: | 10-100V |
| Battery capacity: | 10-999Ah |
| Maximum measured current:: | 500A |
| Power consumption (screen off): | <2mA |
| Power consumption (screen brightness @ 10%): | <20mA |
| Power consumption (screen brightness @ 100%) | <60mA |
| Voltage accuracy: | ±1% |
| Current accuracy: | ±1% |
| Capacity accuracy: | ±1% |
| Operating temperature: | -20°C ~ 80°C |
| Exterior bracket dimensions (LxWxH): | 106 x 81 x 18mm |
| Mounting bracket dimensions (LxW): | 95 x 70mm |
| Monitor backing dimensions (LxWxH): | 80 x 59 x 16mm |
| IP rating: | IP20 |
| 2000W Inverter | |
|---|---|
| Maximum continuous output: | 2000W |
| Peak output: | 4000W |
| Battery compatibility: | Standard lead-acid, AGM, Gel or LiFePO4 |
| Input voltage range: | 10.5-15.5V |
| Output plug rating: | 10A |
| Output voltage & current: | 240V - 50Hz |
| No load draw: | <1.3A |
| Efficiency: | 89% ~ 92% |
| Output waveform: | Pure Sine Wave |
| Total Harmonic Distotion (THD): | <3% |
| IP rating: | IP22 |
| Operating temperature: | -10°C ~ 50°C |
| Storage temperature: | -30°C ~ 70°C |
| Over voltage protection: | 15.5±0.2V DC |
| Under voltage protection: | 10.5±0.2V DC |
| Short circuit protection: | 1 second |
| Dimensions (LxWxH): | 440 x 265 x 97mm |
| Remote terminal: | RJ12 |
| Remote dimensions (LxWxH): | 86 x 86 x 19mm |
| Safety certifications: | The iTechworld inverter range fully complies with AS/NZS 4763:2011 and IEC/EN 62368-1 including Australian deviations |
| 00AWG inverter cable w/ 250A fuse | |
|---|---|
| Cable gauge: | 00AWG/70mm² |
| Cable length: | 1m |
| Fuse type: | 250A ANS |
| Terminals: | M8 |
| SKU | ITECH-LI-4WD-CARAVANKIT |
| Brand | ITECHWORLD |
