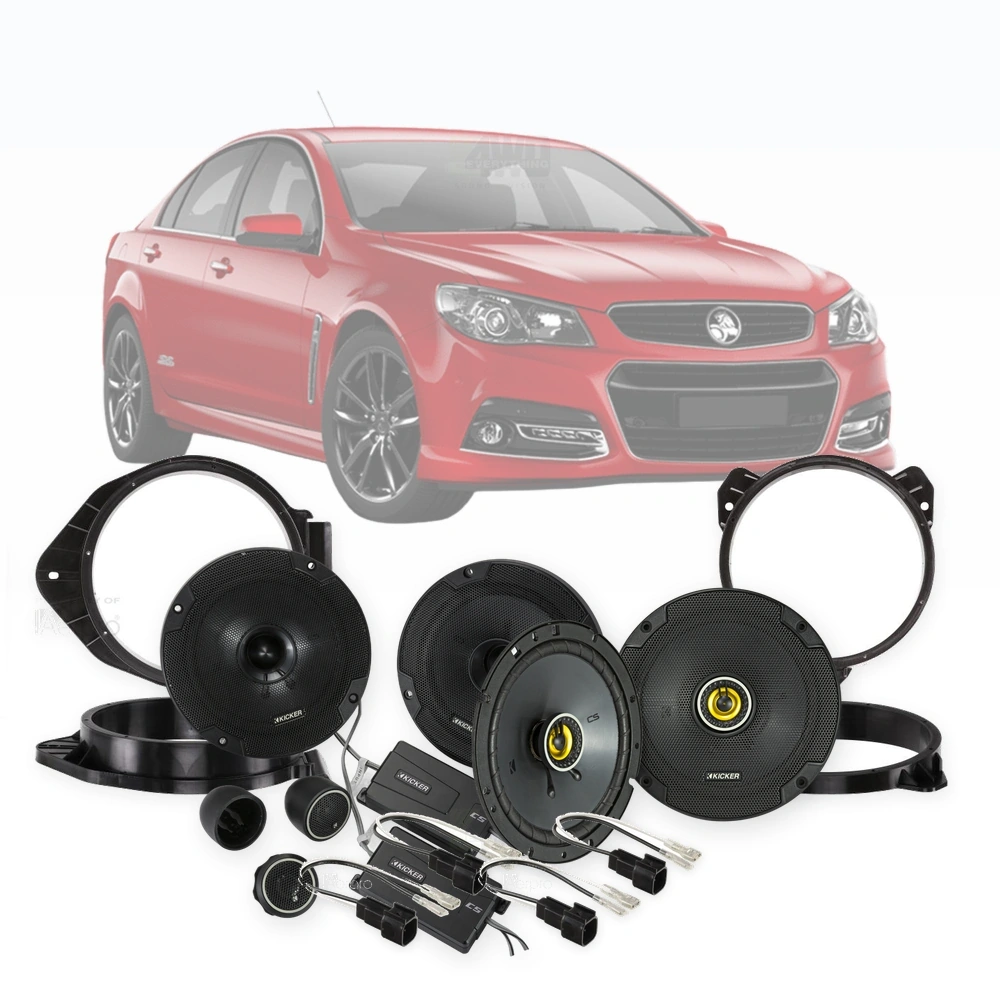

Holden Commodore VF Kicker 6.5-Inch Front and Rear Speaker Upgrade Bundle 2013-2017

This is a custom front and rear speaker upgrade package tailored by Everything 4WD to suit the Holden Commodore 2013-2017 VF.

Speaker Package Range: Kicker CS Series

Package Includes:

• Kicker 46CSS654 - 6.5" (160mm) 100 Watts RMS Components - 6.5-Inch component speakers for the front
• Kicker 46CSC654 - 6.5" (160mm) 100 Watts RMS 2-way - 6.5-Inch coaxial speakers for the rear

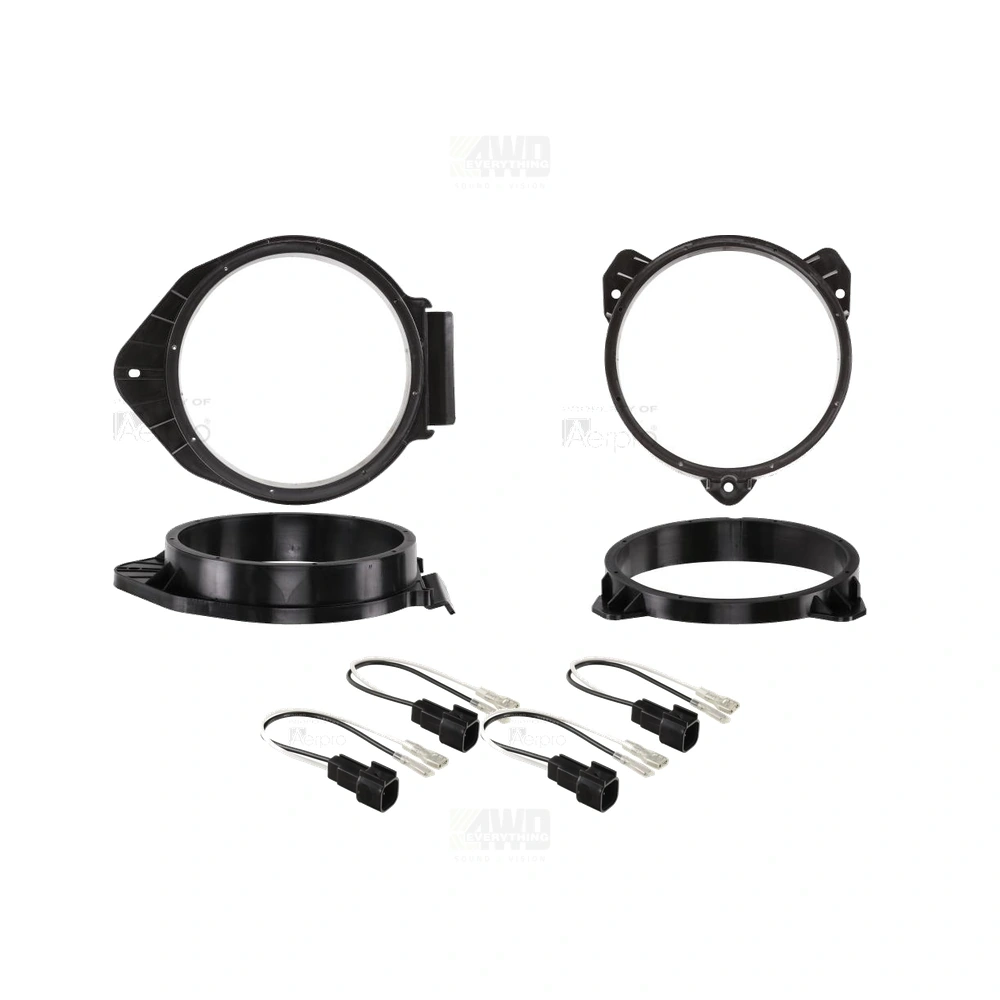

• Aerpro APS294F Speaker Spacer Pair (Front) - Speaker spacer to suit Holden Commodore VF
• Aerpro APS294R Speaker Spacer Pair (Rear) - Speaker spacer to suit Holden Commodore VF
• Aerpro APS22 OEM Speaker Adapter Pairs x 2 - Speaker plug adaptors to suit Holden Commodore VF

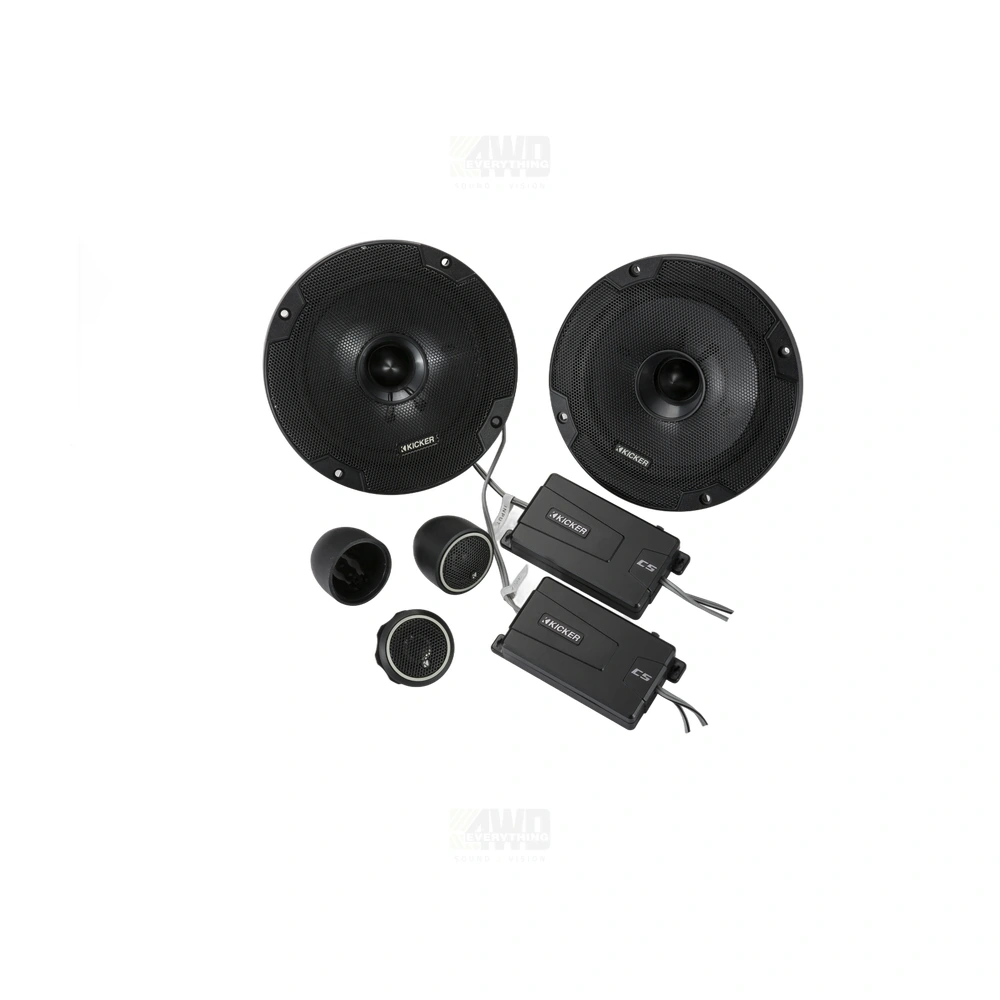

Kicker 46CSS654 - 6.5" (160mm) 100 Watts RMS Components Specifications:

The CS-Series 6-1/2-inch Component Speakers are an outstanding factory upgrade. Designed for easy installation in nearly any vehicle, CS-Series components include separate titanium tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality. The result is precise control with stunning musical realism. Use the flush, angled or surface-mount tweeter pods to perfect your imaging and get a sophisticated look! These CS-Series speakers work best with 100 watts of recommended power. See below for more details. Fits nearly every car made 12dB crossovers with a smaller footprint for easier installation Three-position tweeter switch for dialing in your highs EVCTM (Extended Voice Coil) technology help deliver remarkable bass response Titanium tweeter construction and neodymium magnets to reveal subtle details UV-treated poly-foam surround assists with precise linear excursion Phase plugs in the woofer cones eliminate any distortion Steel mesh grilles protect your drivers Three tweeter mounting options including flush, angled and surface pods

• Weight: 2.6 kg
• Dimensions: 370 x 260 x 83 mm
• Woofer Size | in [mm]: 6 1/2 [160]
• Tweeter Size | in [mm]: 3/4 [20]
• Dome Material: Titanium
• Peak Power | [watts]: 300
• Continuous Power | [watts RMS]: 100
• Effective Frequency Range | Hz: 35-21k
• Woofer Mounting Hole Diameter | in [mm]: 4 13/16 [123]
• Woofer Bottom Mount Depth | in [mm]: 1 11/16 [43]
• Flush Mounting Tweeter Hole Diameter | in [mm]: 1 9/16 [40]
• Flush Mount Tweeter Depth | in [mm]: 9/16 [14.5]
• High Pass | dB, at Frequency | Hz: 12, 4000
• Low Pass | dB, at Frequency | Hz: 12, 4000
• High Frequency Output Attenuation | dB: 0, 3, & 6
• Bolt-Thru Grilles: Yes

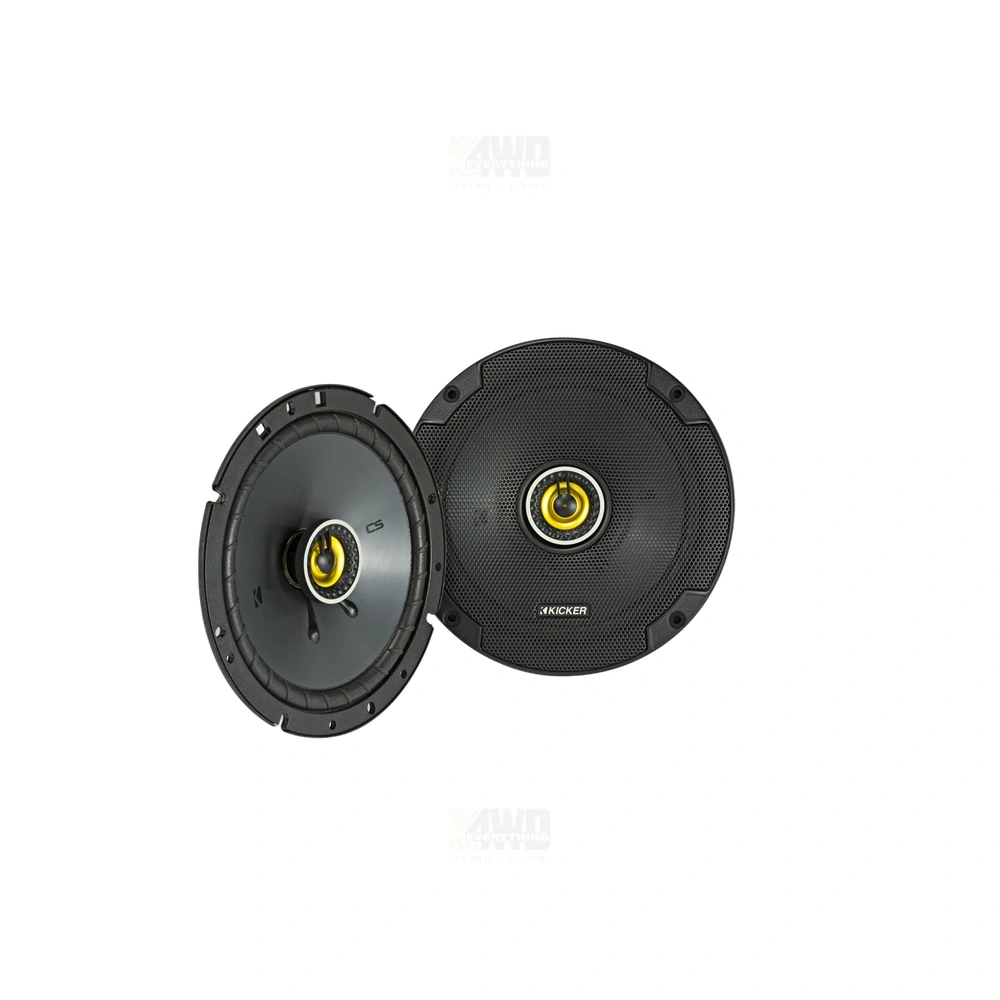

Kicker 46CSC654 - 6.5" (160mm) 100 Watts RMS 2-way Specifications:

CS-Series 6-1/2-inch Coaxial Speakers are the perfect way to upgrade your factory speakers. CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. The stamped-steel framework supports a rigid polypropylene cone with EVCTM (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles. These CS speakers work best with 100 watts of recommended power. See below for more details. Fits nearly every car made Zero-protrusion tweeters to fit nearly any factory depth Woofer EVCTM (Extended Voice Coil) tech assists with precise linear excursion UV-treated poly-foam surround resists heat or direct sunlight Large woofer magnet in a heavy-duty motor for ultra-clean bass PEI-tweeter construction provides superb clarity Neodymium tweeter magnets allow for increased volume in high frequencies Steel mesh grilles included for speaker protection

• Weight: 2 kg
• Dimensions: 184 x 365 x 83 mm
• Speaker Design: 2 way
• Woofer Size | in [mm]: 6 1/2 [160]
• Tweeter Size | in [mm]: 1/2 [13]
• DC Resistance | ohm: 3.3
• Peak Power | Watts: 300
• Continuous Power | Watts, RMS: 100
• Sensitivity [SPLo] | dB @ 1W, 1m: 90
• Effective Frequency Range | Hz: 40-20k
• Mounting Hole Diameter | in [mm]: 4 13/16 [123]
• Top Mount Depth | in [mm]: 3/8 [9]
• Bottom Mount Depth | in [mm]: 1 11/16 [43]
• Tweeter Protrusion | in [mm]: 0
• Grilles: Yes
• Tweeter Magnet Material: Neodymium
• Tweeter Dome Materia: PEI [polyether imide
• Tweeter Design: Balanced dome
• Woofer Cone Material: Polypropylene
• Woofer Surround Material: Polyester foam

We recommend checking the speaker location in the vehicle before installation/purchase to ensure this product will suit your application.

Aerpro APS22 OEM Speaker Adapter:

The Aerpro APS22 Speaker Plug Adaptors suit various Ford, Holden, Mazda and Opel vehicles, converting the original speaker plugs into standard size aftermarket speaker terminals. The plug and play design enables speakers to be installed into the vehicle without the need to cut the original vehicle wiring loom, resulting in a simple yet professional installation that can be reversed at any time.

• HARNESS TYPE: SPEAKER ADAPTORS
• SOLD AS: PAIRS

Vehicle Fitment:

• Holden Commodore 2013-2017 VF
• Front: 6.5-Inch
• Rear: 6.5-Inch
