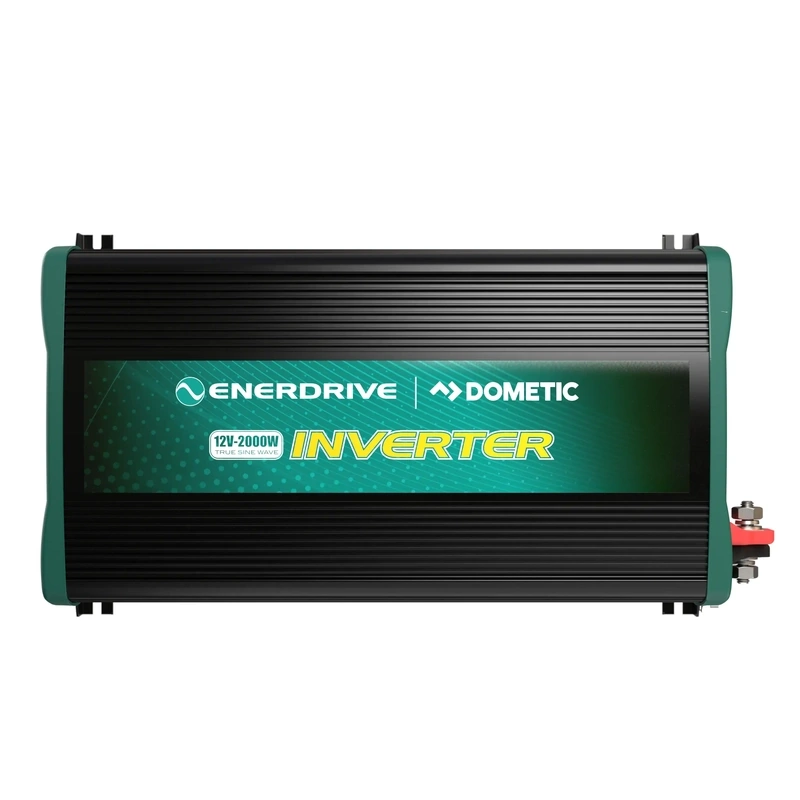

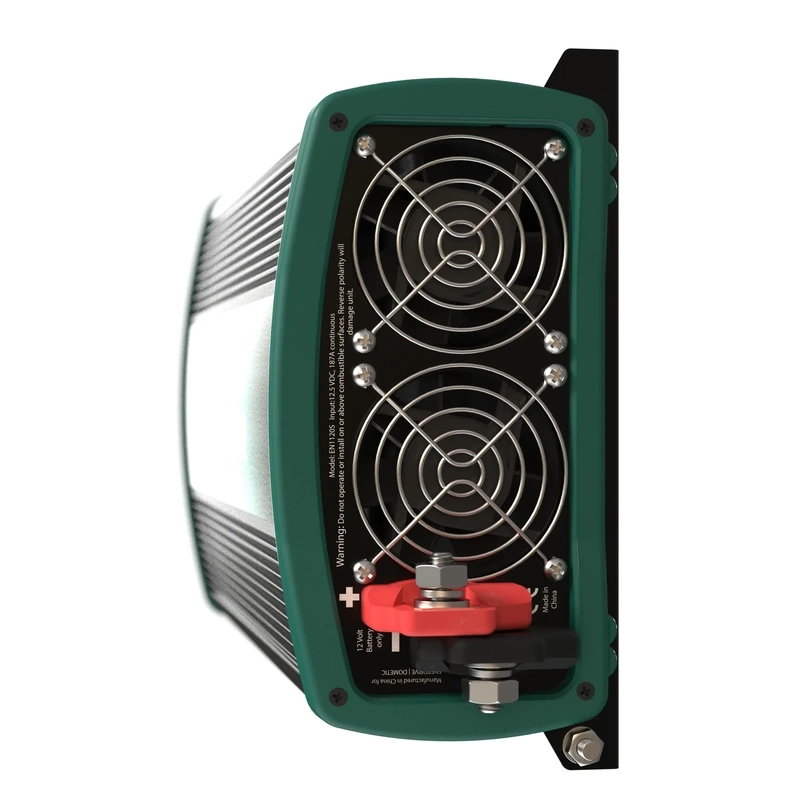

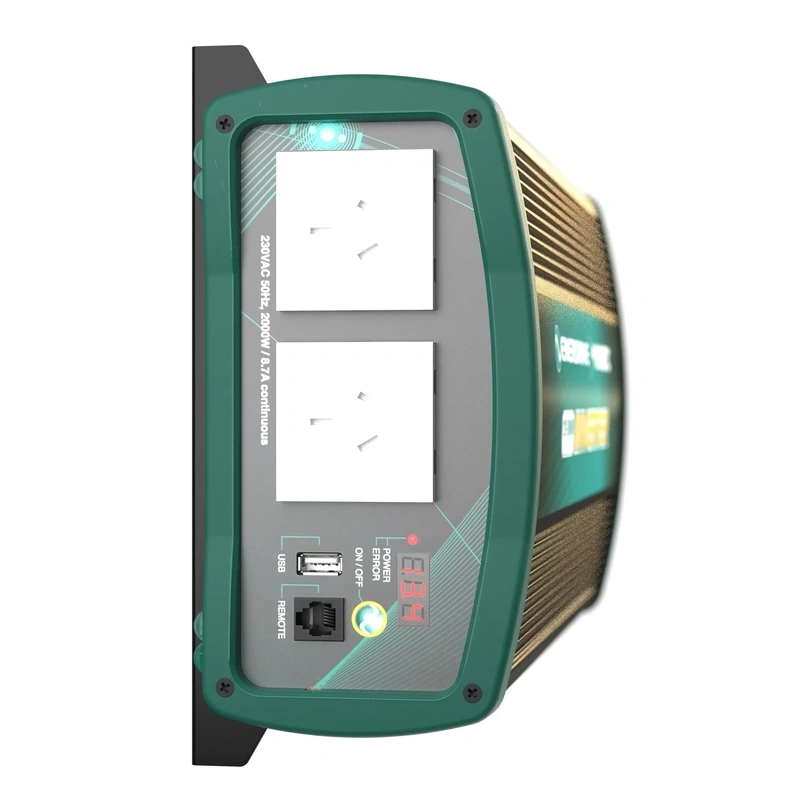

Enerdrive ePOWER 2000w/12v PSW Inverter EN1120S

With ePOWER's state of the art, easy to use design, this 2000W inverter will offer you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle.

The Enerdrive ePOWER 2000W Inverter can run many AC powered appliances when you need AC power anywhere. The 5V USB power can charge many USB powered devices.

Australian GPO Outlets

True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life

Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown

Automatic shutdown protects overload, over temperature and low/high battery conditions

High surge capacity for products that require more power to start (2 x constant)

High efficiency conversion of battery available power to AC power

Mounting brackets for permanent installation

Heavy duty DC battery stud connectors

Includes 5V USB port

6 Meter Remote On / Off Switch Included with both 1000W and 2000W Inverter Models

Specifications:

Model - Description ePOWER 400 ePOWER 1000 ePOWER 2000 Part Number EN1104S EN1110S EN1120S AC Output Power 400W 1000W 2000W AC Output Current 1.74A 4.3A 8.7A AC Surge Power (Peak) 800W 2000W 4000W AC Output Voltage 230 Vac / 50 Hz AC Output Waveform True Sinewave AC Output Socket 1 outlet 1 outlet 2 outlets Nominal DC Input Voltage 12.5 VDC No Load battery draw < 0.8 ADC < 1.2 ADC < 1.2 ADC DC Input Voltage operating range 10.5 - 15.5 VDC Under Voltage Alarm 11.2 VDC Under Voltage Shutdown 10.5 VDC Under Voltage Recovery 11.8 VDC Over Voltage Shutdown 15.5 VDC USB 5V, 1A 5V, 750 mA 5V, 750 mA Safety and Environmental Conformance All required Australian Standards Agency Markings RCM Operating Temperature 0°C to 40°C Storage Temperature -20°C to 60°C Relative Humidity 5-90% noncondensing Operating Altitude Up to 3000 meters above sea level Weights and Dimensions Weight 1.73Kg 2.9Kg 5.5Kg Dimensions (W x L x H) 177 x 200 x 90mm 177 x 325 x 90mm 230 x 416 x 110mm Warranty 2 Years

Load Consumption Estimate Run time Cordless Phone 5W 80 hrs Clock/Radio 8W 65 hrs Table Lamp 40W/60W 22 hrs/ 15 hrs Freezer (8.8 cu. ft.) 80W 12 hrs 20? LCD TV 100W 10.5 hrs Refrigerator (18 cu. ft.) 120W 8.3 hrs Microwave (mid-size) 1000W 44 min Coffee Maker 1200W 35 min Vacuum 1400W 28 min Note: Specifications subject to change without notice.

Above run time is an estimate based on using a 12V-240AH battery bank for reference (Depth of discharge to 50%). Actual run time may vary.

Accessories

Part No. Product Description EN1210C 35mm Battery Cable Connection Kit with In-Line Fuse & Holder. Suitable for Inverters up to 1200watts. EN1220C 70mm Battery Cable Connection Kit with In-Line Fuse & Holder. Suitable for Inverters up to 2500watts.
