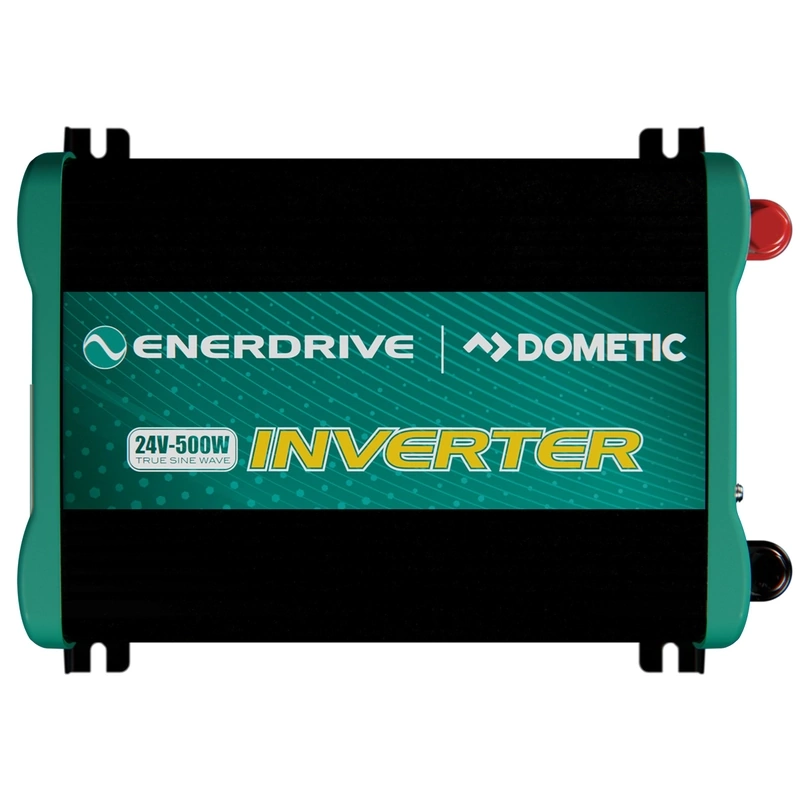

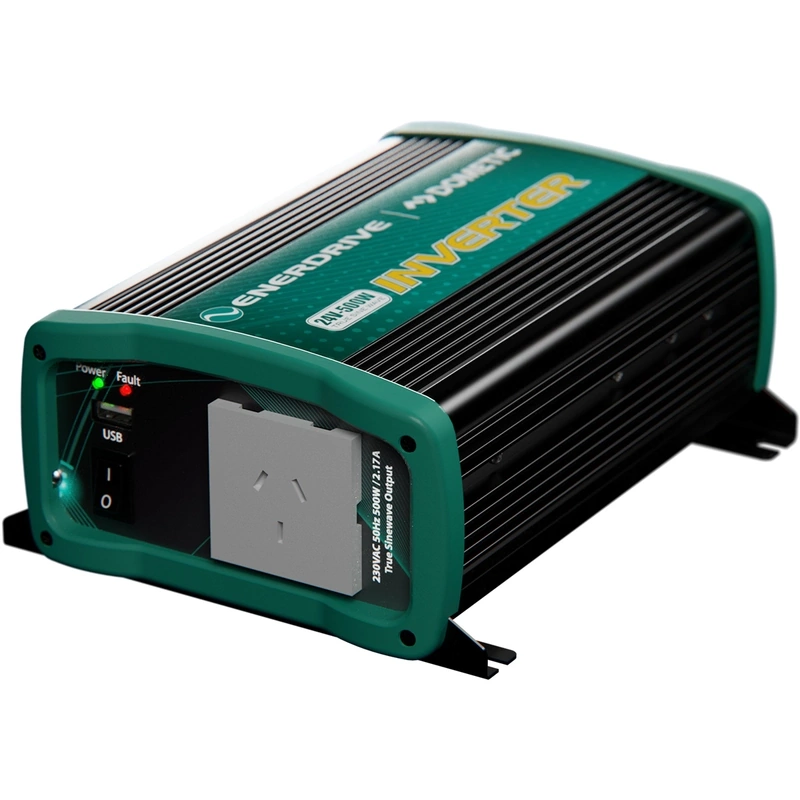

Enerdrive ePOWER 500w/24v PSW Inverter EN1105S-24

With ePOWER's state of the art, easy to use design, this 500W 24V inverter will offer you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle.

The Enerdrive ePOWER 500W Inverter can run many AC powered appliances when you need AC power anywhere.

Australian GPO Outlets

True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life

Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown

Automatic shutdown protects overload, over temperature and low/high battery conditions

High surge capacity for products that require more power to start (2 x constant)

High efficiency conversion of battery available power to AC power

Mounting brackets for permanent installation

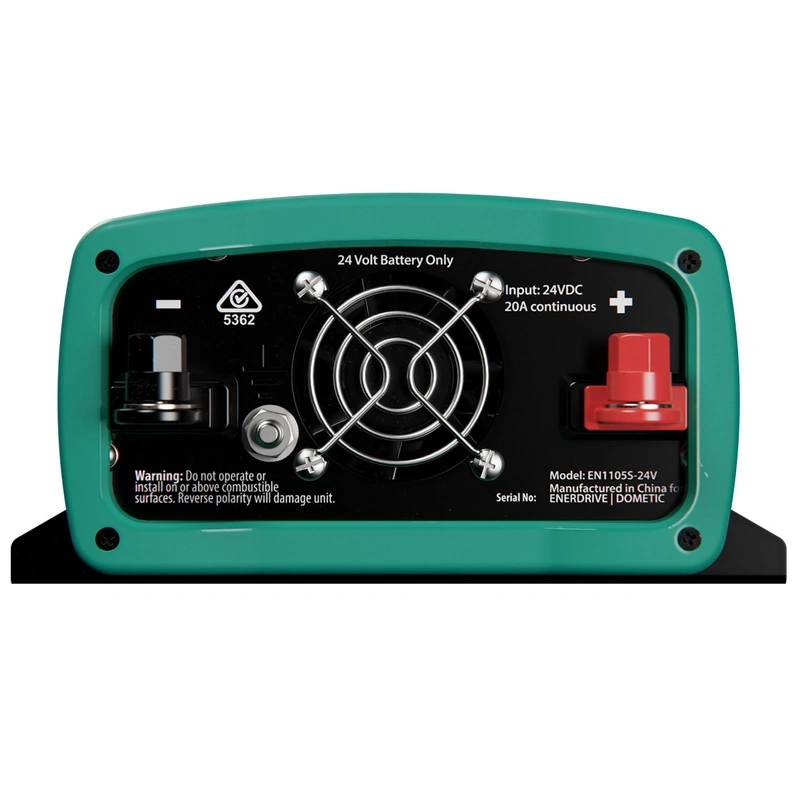

Heavy duty DC battery stud connectors

Includes 5V USB port

Specifications:

Model - Description ePOWER 500-24V Part Number EN1105S-24 AC Output Power 500W AC Output Current 2.17A AC Surge Power (Peak) 1000W AC Output Voltage 230 Vac / 50 Hz AC Output Waveform True Sinewave AC Output Socket 1 outlet Nominal DC Input Voltage 25 VDC No Load battery draw < 0.5 ADC DC Input Voltage operating range 21.0 - 31.0 VDC Under Voltage Alarm 22.4 VDC Under Voltage Shutdown 21.0 VDC Under Voltage Recovery 23.6 VDC Over Voltage Shutdown 31.0 VDC USB 5V, 2.1A Safety and Environmental Conformance All required Australian Standards Agency Markings RCM Operating Temperature 0°C to 40°C Storage Temperature -20°C to 60°C Relative Humidity 5-90% noncondensing Operating Altitude Up to 2000 meters above sea level Weights and Dimensions Weight 1.73Kg Dimensions (W x L x H) 175 x 312 x 87mm Warranty 2 Years

Load Consumption Estimate Run time Cordless Phone 5W 150 hrs Clock/Radio 8W 100 hrs Table Lamp 40W/60W 27 hrs/ 18 hrs Freezer (249 Litre) 80W 15 hrs 20? LCD TV 100W 11.5 hrs Refrigerator (18 cu. ft.) 120W 8.3 hrs Note: Specifications subject to change without notice.

Above run time is an estimate based on using a 24V-60AH battery bank for reference (Depth of discharge to 50%). Actual run time may vary.

Accessories

Part No. Product Description EN1210C 35mm Battery Cable Connection Kit with In-Line Fuse & Holder. Suitable for Inverters up to 1200watts. EN1220C 70mm Battery Cable Connection Kit with In-Line Fuse & Holder. Suitable for Inverters up to 2500watts.
