DNA Audio WBB404 M10 Dual 4-Post 400amp Busbar Block

Dual 4-Post M10 400amp Busbar block

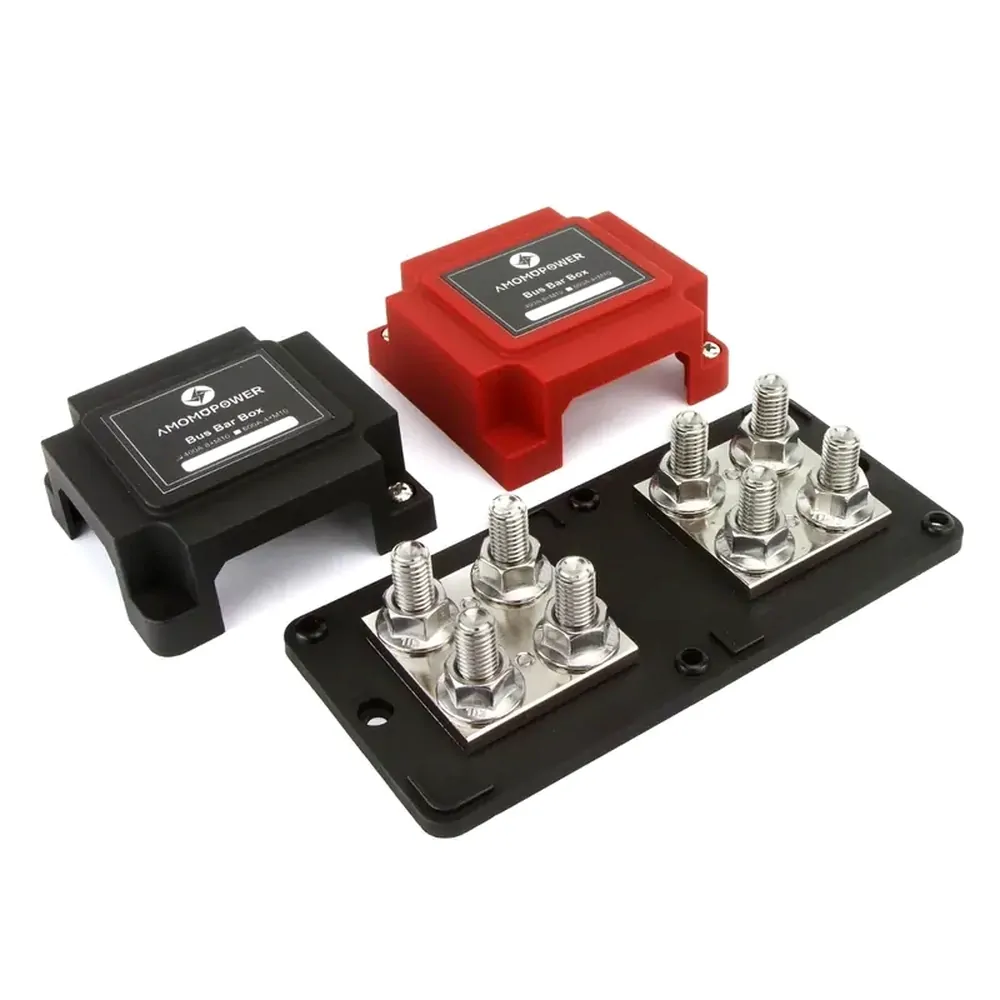

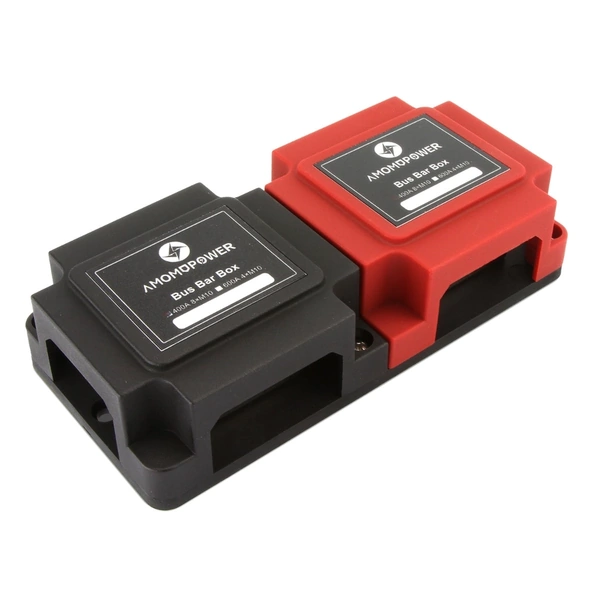

Heavy duty busbar box with 8x M10 terminals studs - 4 studs under the red cover and 4 under the black cover. Rated at 12-48V DC 400A maximum and great for multiple battery wiring configurations.

Features:
Suitable for 12-48V DC applications including: cars, trucks, boats, solar, RV's etc
The power distribution block is useful for customising vehicles or relocating batteries.
Ensures that your circuit wiring is neat and tidy which prevents the liklihood of electrical short circuits
The base of this block is made from nylon and reinforced glass fiber which ensures excellent mechanical strength and durability
The power distribution block is made of brass and nickel plated, which has good electrical conductive properties while remaining sturdy and rust-resistant
The block has a non-slip material on the bottom which increases installation stability and the blank write-on space on the top allows for easy labeling for each branch

Specifications:
Bus Material: Tin-Plated Copper, for maximum conductivity and security
Base Material: Glass Fiber and Reinforced Nylon
Max Voltage: 48V DC.
Max Continuous Rating: 400A
Number of Contacts: 8
Colour: Black and Red
Busbar Box Dimensions: 168 x 79 x 40mm
