AudioControl RTA and Multi-Test Tool Kit

REAL TIME ANALYZER AND MULTI-TEST TOOL KIT

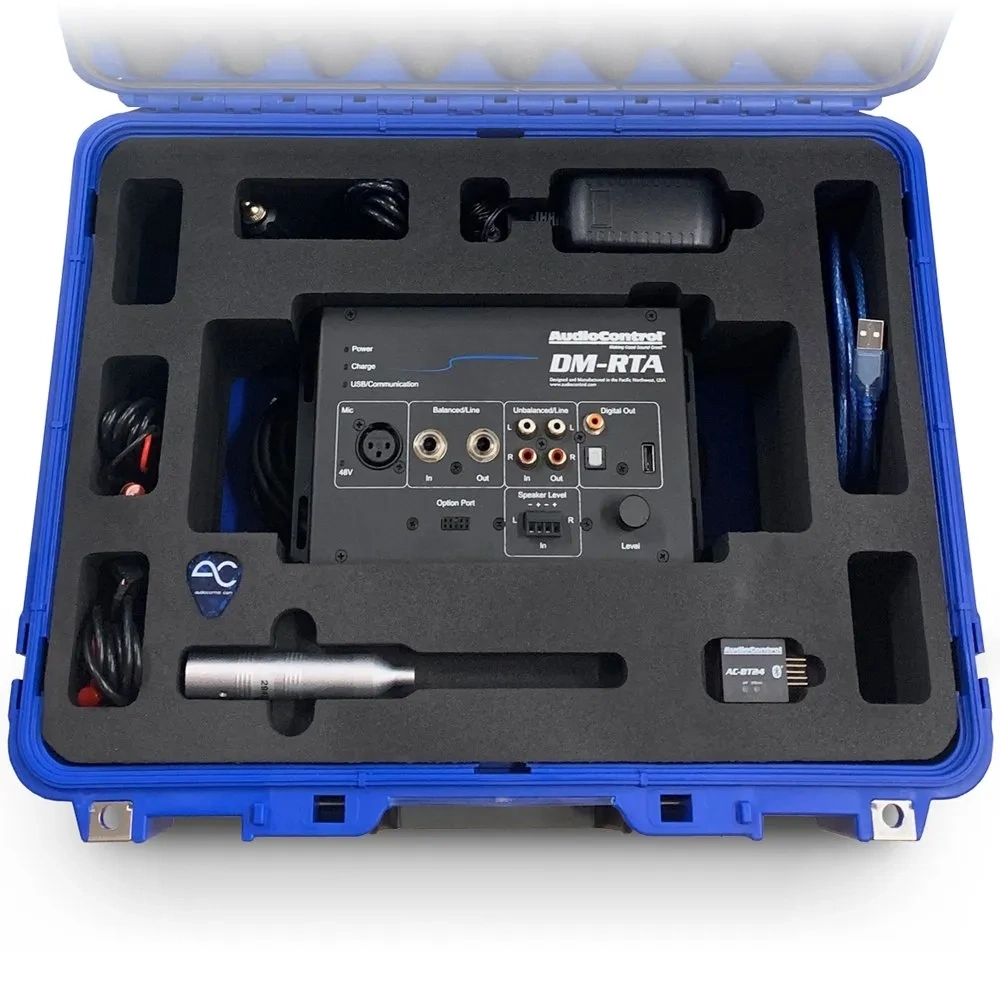

The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution. Nestled snuggly in the fetching blue hard case, you will find a DM-RTA, AC power supply, the CM-20 measurement microphone, all of the required interconnects, and custom test leads for line-level and speaker-level measurements. Included also is the AC-BT24 Bluetooth Streamer/Programmer, which allows you to connect to the DM-RTA using your tablet or phone.

INCLUDED IN KIT

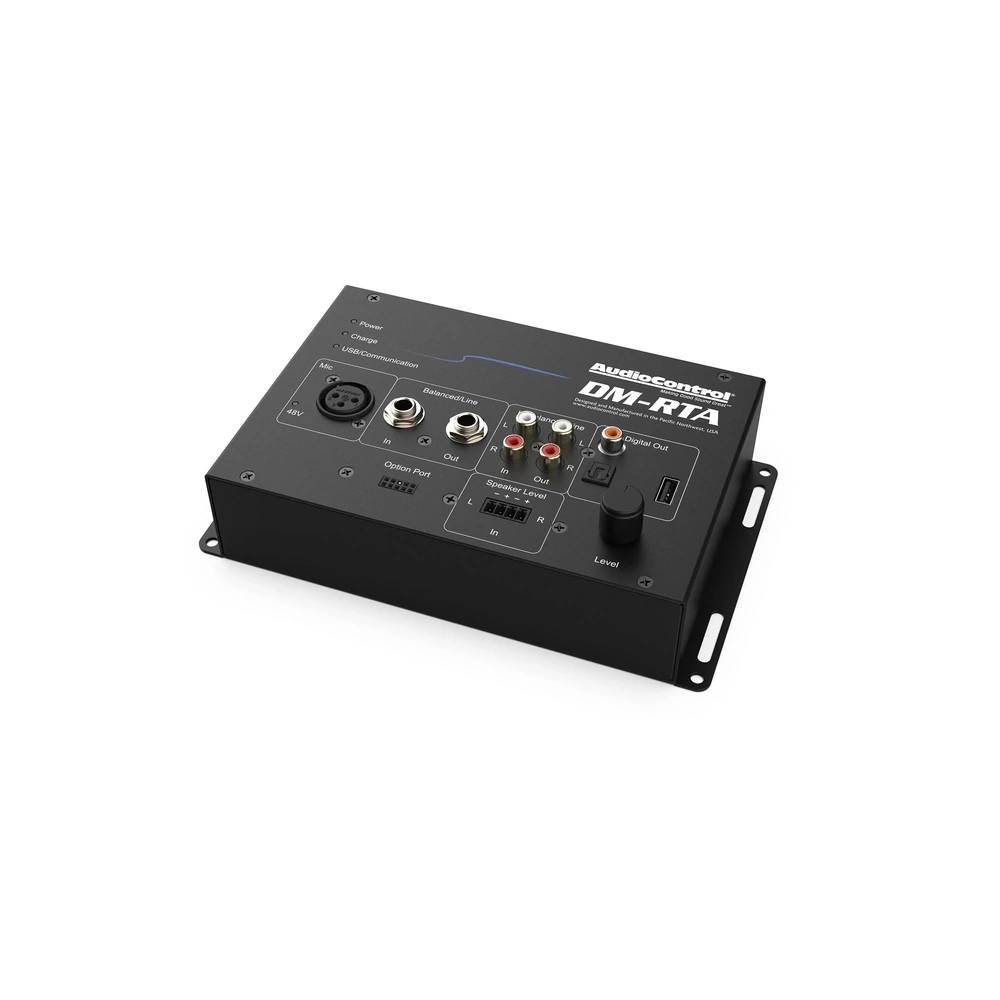

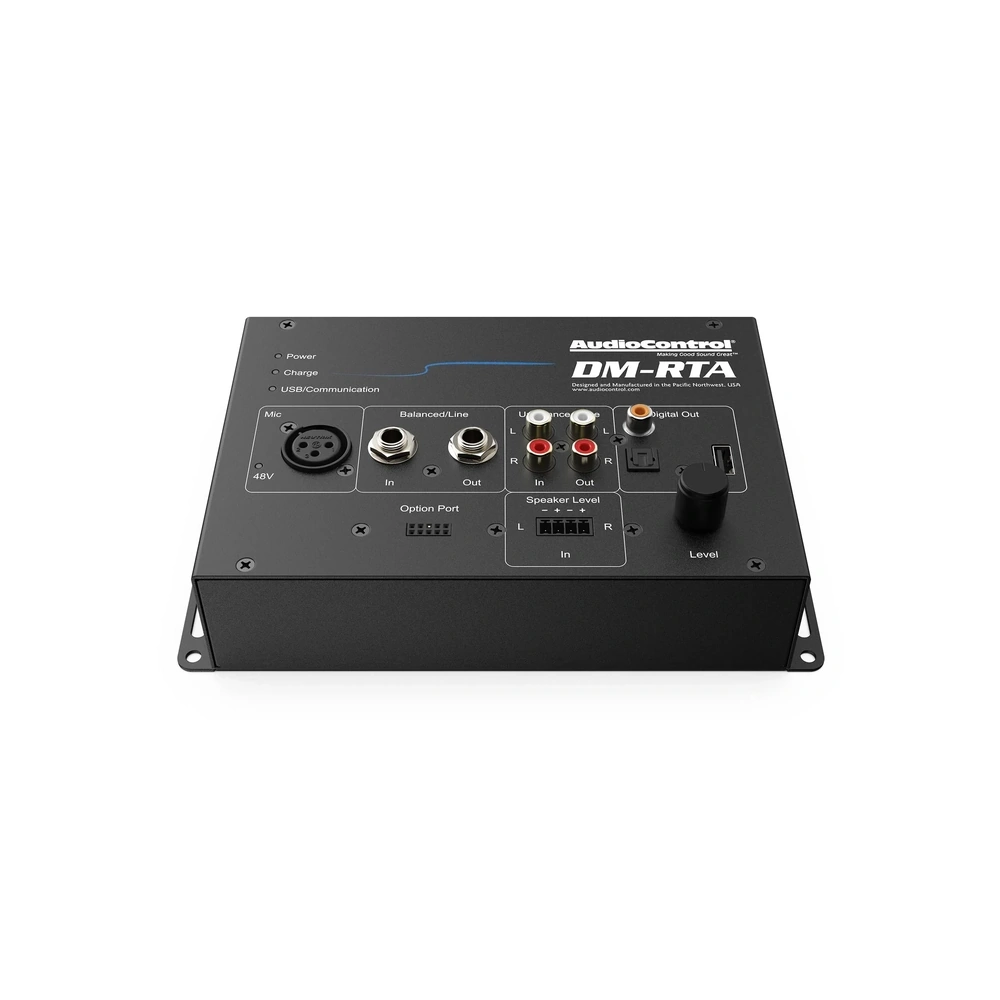

• • DM-RTA Real Time Analyzer
  • 110V AC power supply/charging adapter
  • USB A to B cable
  • USB A to A cable
  • AC-BT24 Bluetooth® Streamer & Programmer
  • CM-20 measurement microphone
  • XLR microphone cable
  • Speaker input to spring-loaded test leads cable
  • RCA input to spring-loaded test leads cable
  • AudioControl tuning pick (looks a lot like a guitar pick)

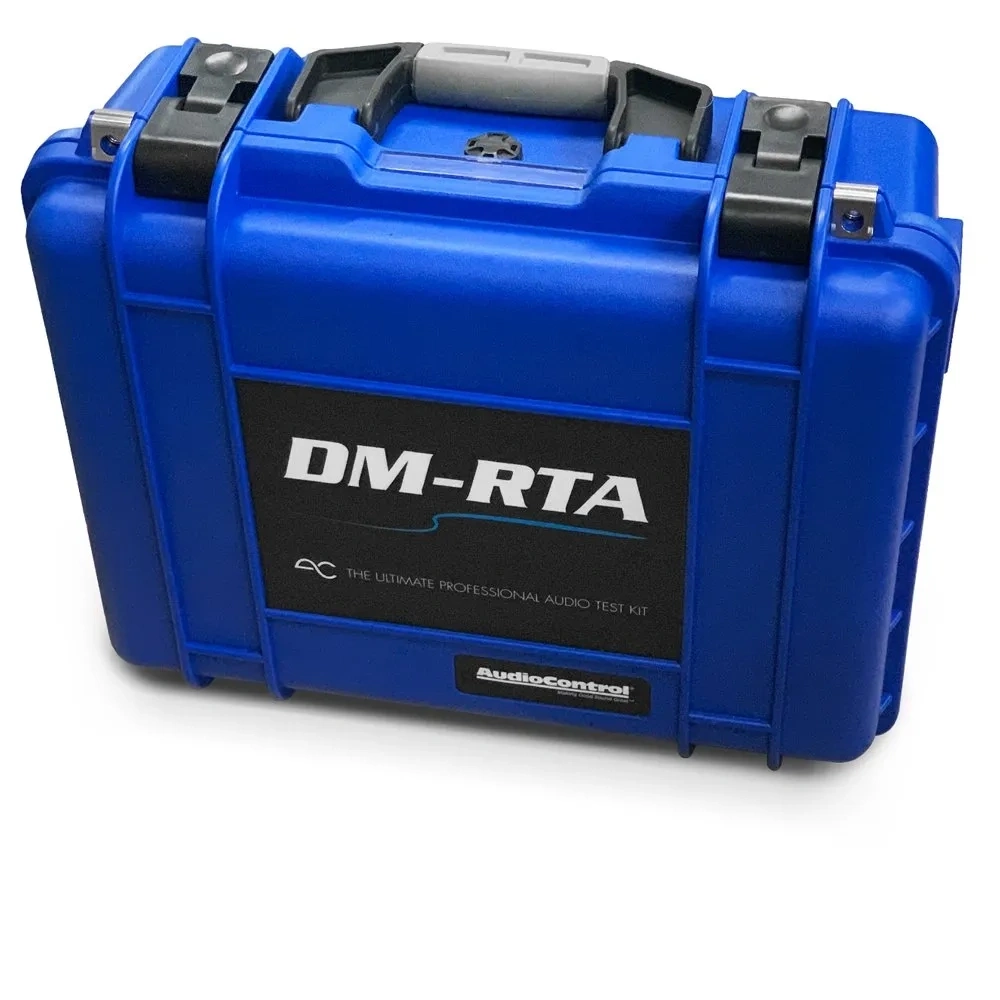

  • Blue hard case with laser-cut foam

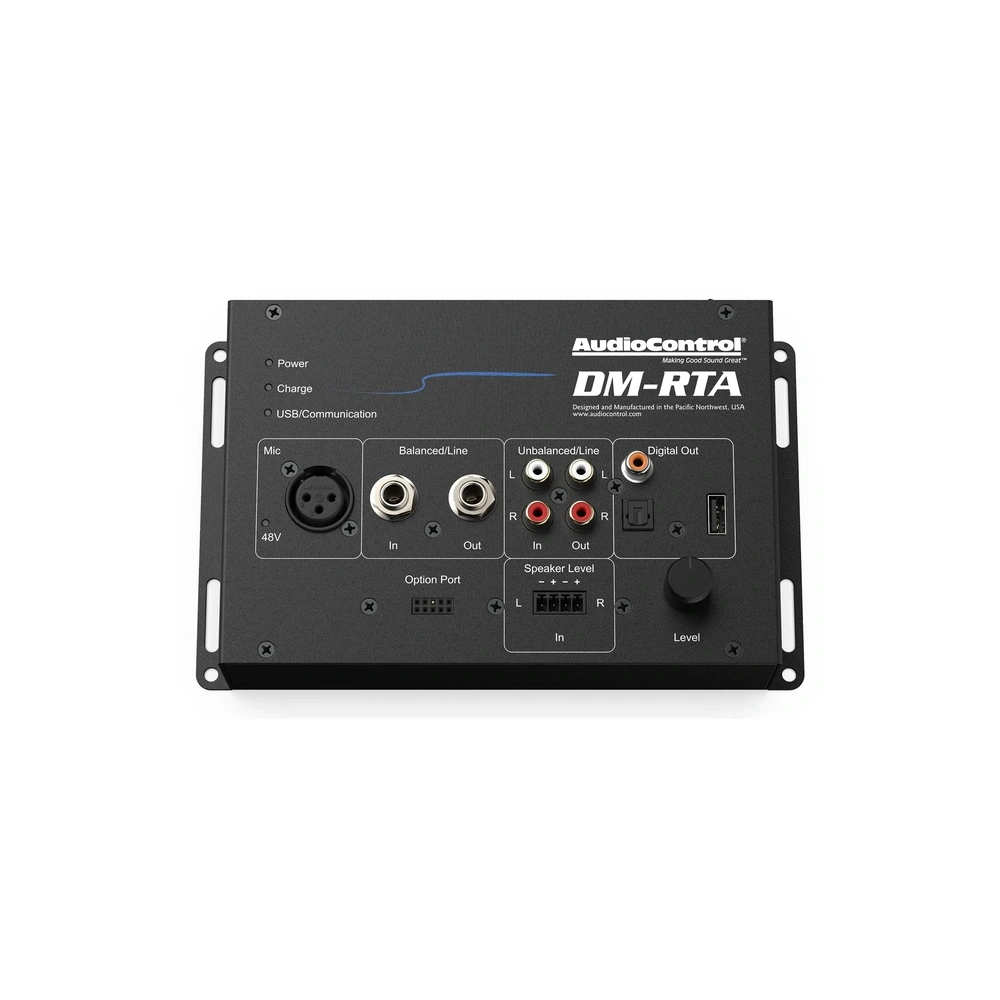

Inputs

• 1 x Balanced (Input Impedance 3.24kΩ)
• 1 x Unbalanced (Input Impedance 3.24kΩ)
• 1 x Microphone (Input Impedance 10kΩ)
• 1 x Speaker Level (Input Impedance 16.24kΩ)
• Max Low Level Input Voltage: 8 Vrms
• Max High Level Input Voltage: 40 Vrms

Outputs

• 1 x Balanced (Output Impedance: 51Ω)
• 1 x Unbalanced (Output Impedance: 51Ω)
• 1 x Coax Digital (Output Impedance: 75Ω)
• 1 x Toslink

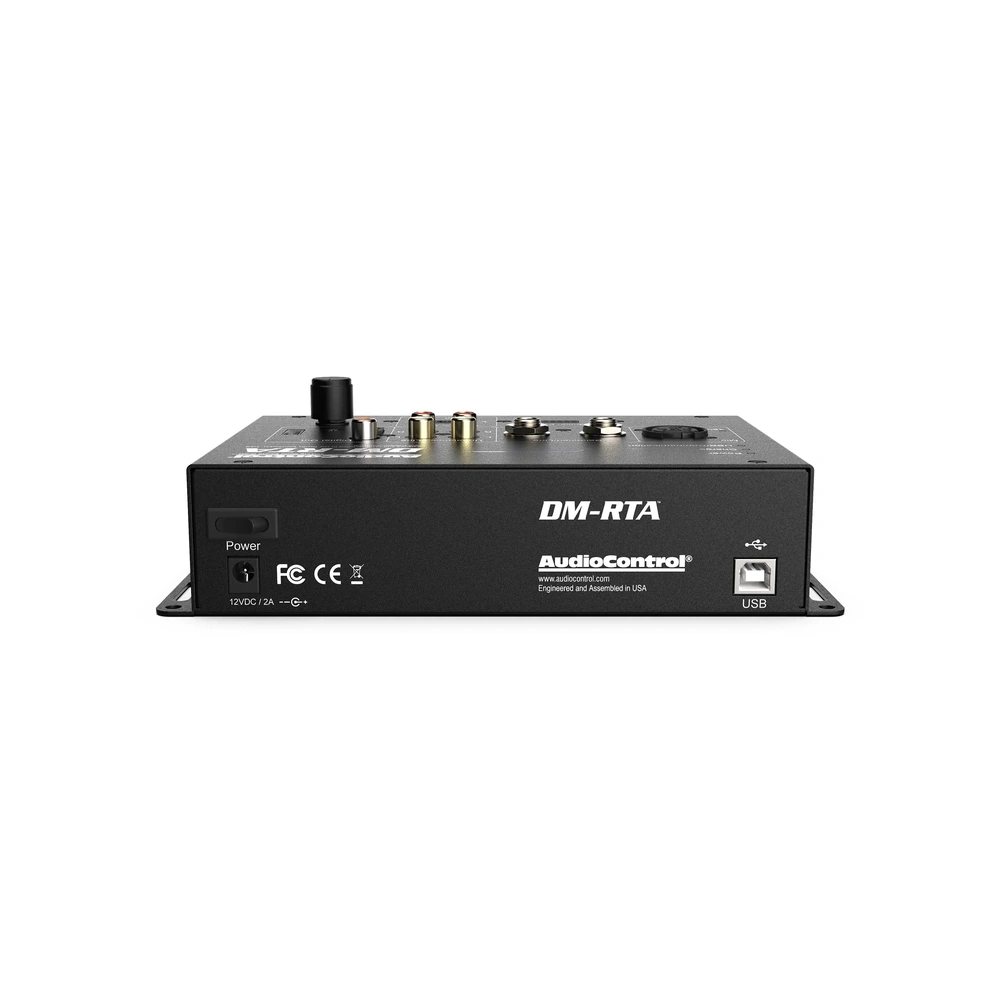

• 1 x USB
• Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

General

• Power Supply:
• Battery Life: ~5 Hours

Weights & dimensions

• Dimensions: 8”W x 4.8”D x 2.4”H
• Weight: 2.6lbs (1.2kg)

in the box: DM-RTA, USB Cable, Power Supply, Manual, Warranty

Bluetooth

• Version: 4.2
• aptX HD Compatible
• UART Interface

Output

• Dual Differential Class AB Output Stage

Bluetooth Performance

• Signal to Noise Ratio: 96 dB
• Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
• Operating Range: 10+ meters (depending on environment)

Microphone Performance

• Frequency Response: 20Hz – 20kHz, ±3 dB
• Max SPL: 105 dB SPL
• Connector: 3 pin XLR, pin 2 positive
