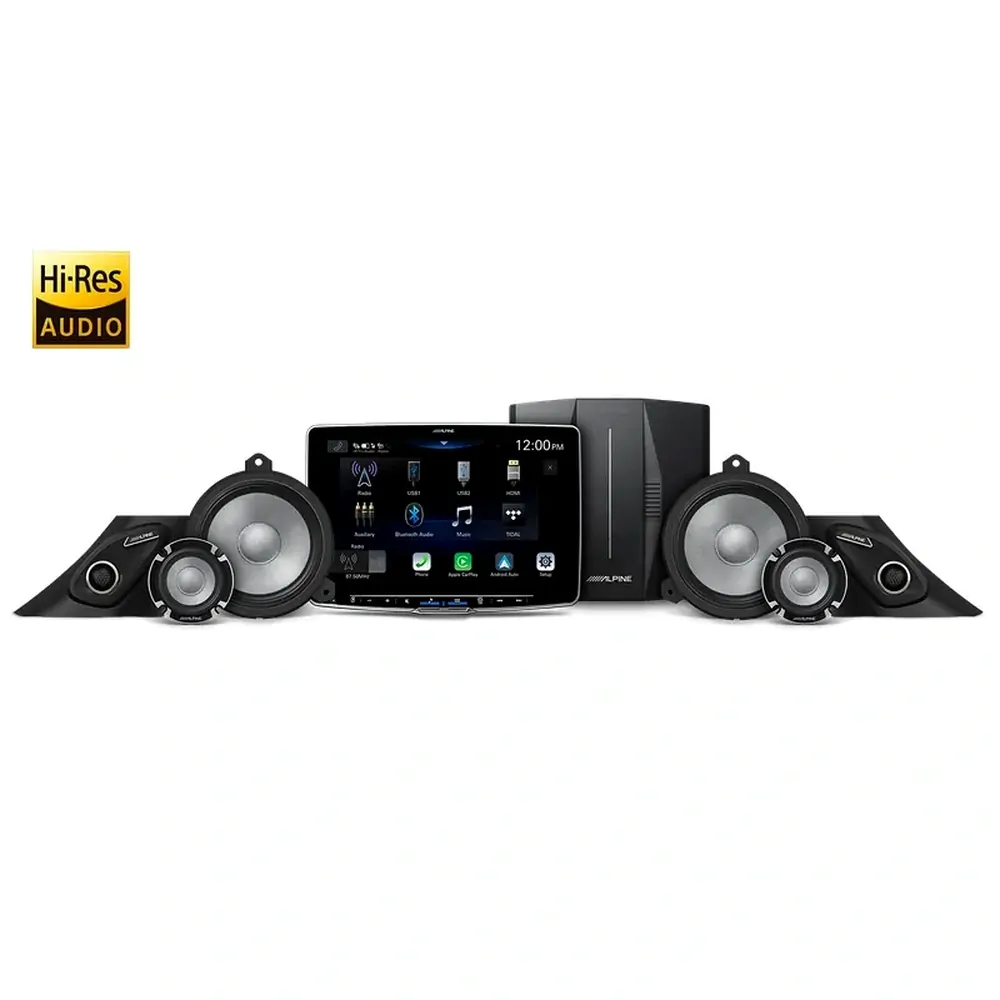

OPTIM™8 Ultimate Audio-Visual System with 11″ Halo Display for GR Yaris

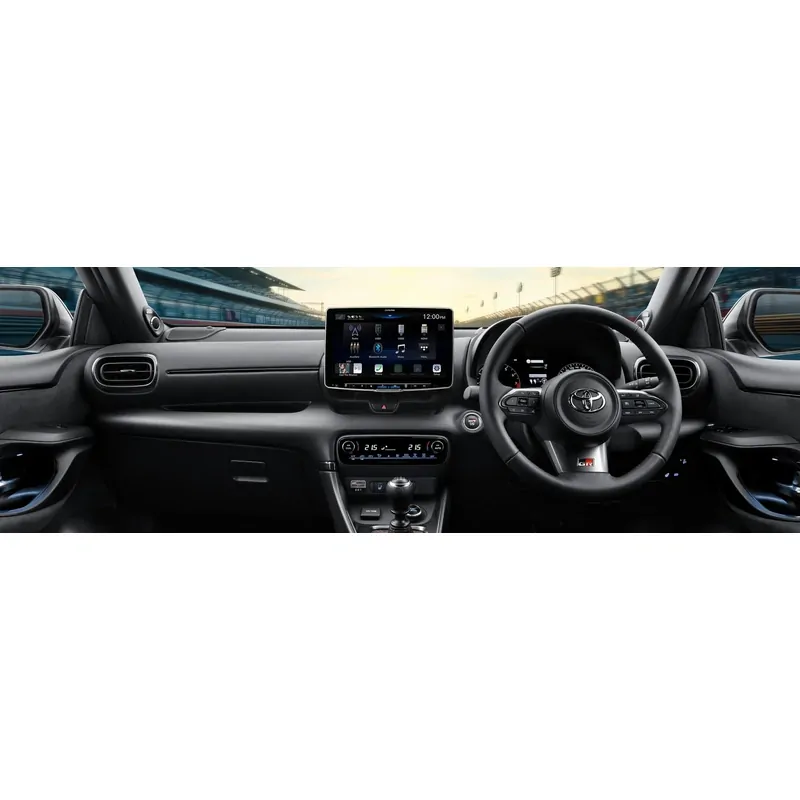

Alpine is proud to be the first to develop a complete audio-visual system designed specifically to suit the Toyota GR Yaris.

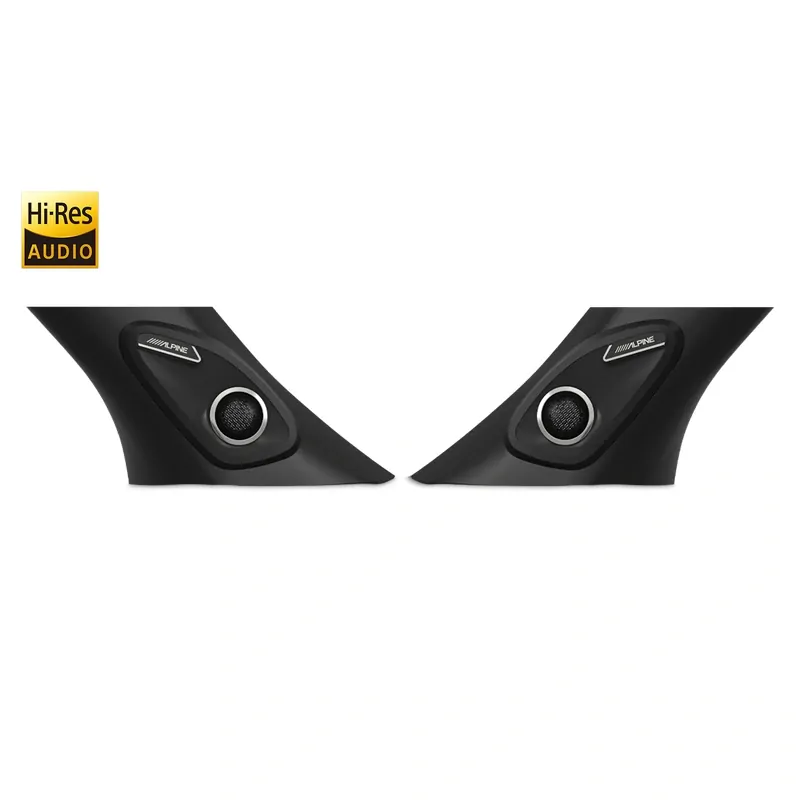

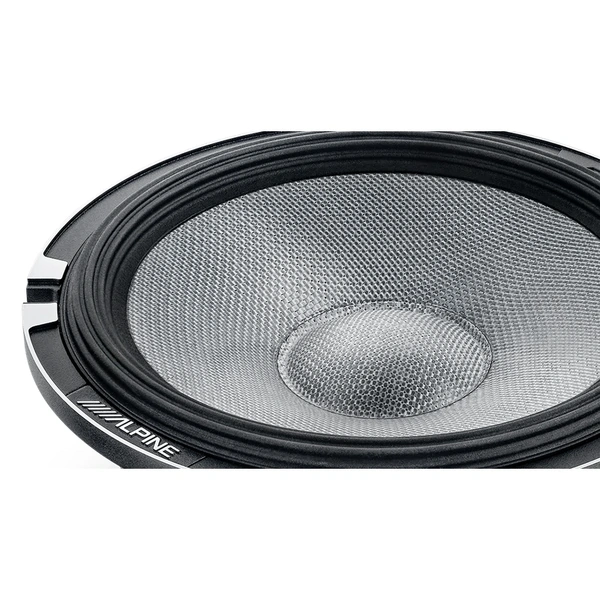

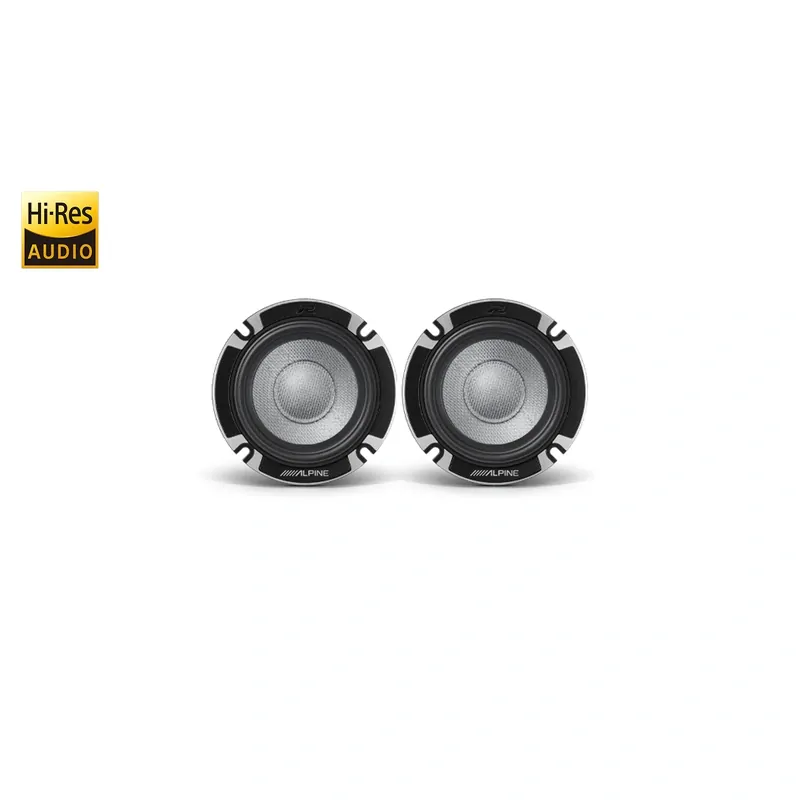

Our innovative audio system fits seamlessly within the GR Yaris, enhancing its performance with unparalleled audio clarity. The 3-way R2-Series Professional speaker setup, featuring woofers, mids, and tweeters utilises the OEM A-pillar tweeter housing with the addition of a premium chrome badge and tweeter ring. As for the woofers and mids, they are replaced within their factory speaker locations for the perfect integration & installation.

Coupled with our OPTIM8 or PXE-X800 DSP-Amplifier (optional), the system is driven with outstanding precision and authority, also providing ultimate user customisation options. This all-in-one system is truly a testament to Alpine’s engineering excellence, tailored for the ultimate driving experience in the GR Yaris.

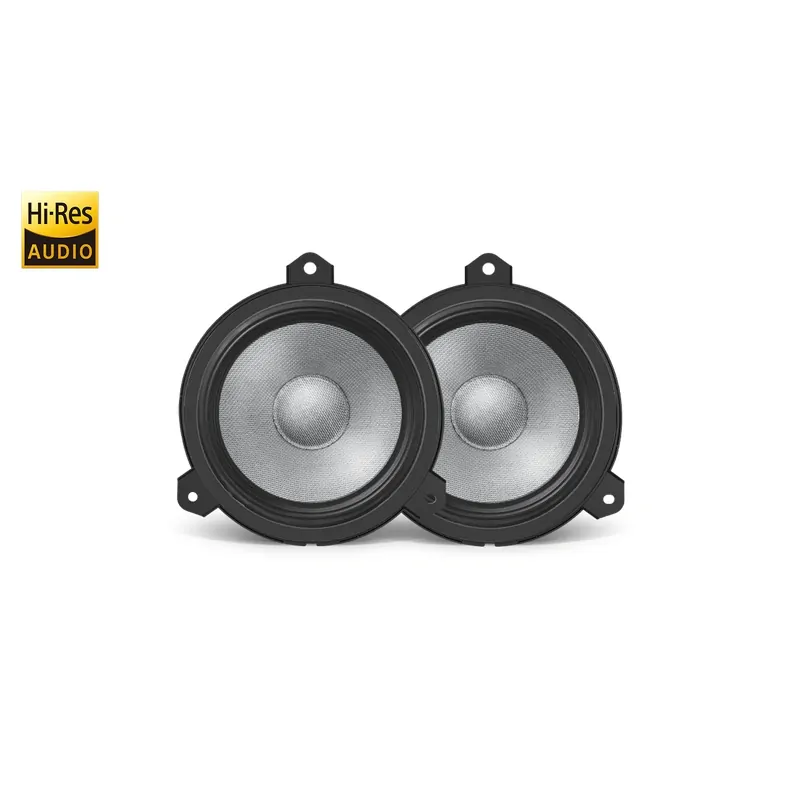

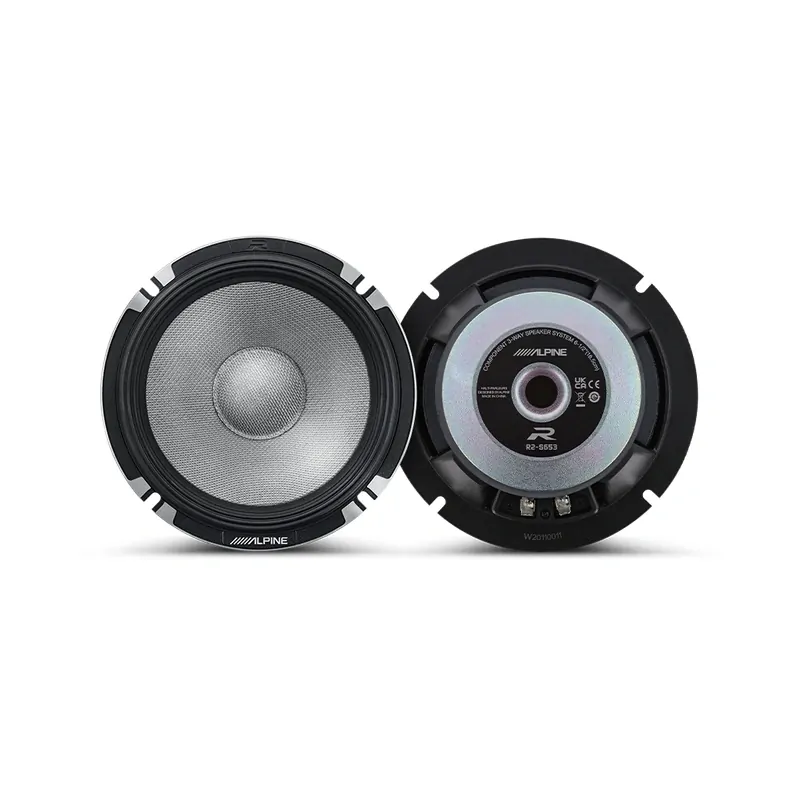

GRY20-R2653

Maximum Peak Power: 300 Watts
Maximum RMS Power: 100 Watts
Nominal Impedance: 4 Ohm
Frequency Response: 65Hz-40kHz
Sensitivity: 88dB SPL (1W @ 1m)
Woofer Mounting Depth: 6.3cm
Mid-Range Mounting Depth: 3.6cm
Woofer Cutout Diameter: 13.5cm
Mid-Range Cutout Diameter: 7.3cm

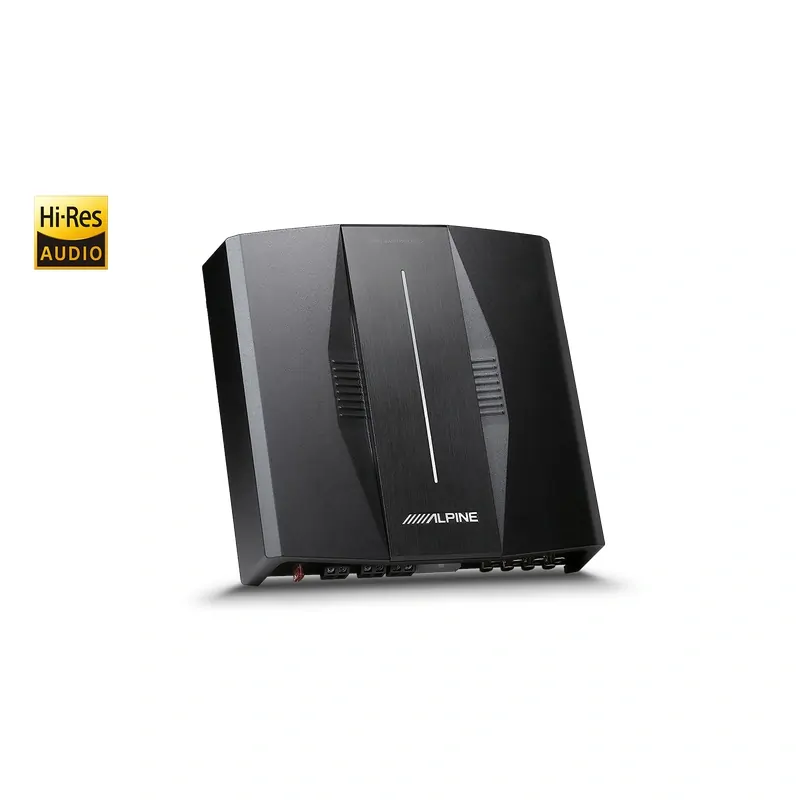

C80-GRY20

Output

Output Channels: 8 Channels

Power Ratings

Power Output (@4Ω 14.4V 10% THD)
- CH1-6: 50W, CH7-8: 150W
Power Output (@2Ω 14.4V 10% THD)
- CH1-6: 50W, CH7-8: 300W
RCA Output (@10kΩ 14.4V 0.1% THD)
- CH1-8: 4Vrms

THD+N

High level: 2Vrms into 4Ω: ≤0.1%
RCA: 2Vrms into 10kΩ: ≤0.06%

S/N Ratio

High level: 40k-AES17+A-weighted: ≥80dB
RCA: 40k-AES17+A-weighted: ≥95dB

Frequency Response

Frequency Response: 20Hz-40kHz (+/-3dB)

Input Voltage

High level: 26Vpp
RCA: 11Vpp

Output Voltage

High level: CH1-6: 40Vpp, CH7-8: 70Vpp
RCA: 4Vrms

Input Impedance

High level: >50kΩ
RCA: >50kΩ

System Sampling Rate

192kHz/32bit

Operating Voltage

9~16V

Operating Temperature

-20°C~+60°C

Back Up Current (12.6V)

≤3mA

REM Start Input

High level (H1-/H1+), ACC optional

REM Start Output

12V (0.2A)

Dimensions & Weight

(WxHxD): 220.5 x 54 x 225mm
Weight: 2.4kg

YARIS-GRY20-F511A

General

Power Requirement – 14.4V DC (11-16V allowable)
Operating Temperature – -20°C to +60°C
Power Output – 50W x 4
Maximum Current Consumption – 15A

Audio Output Level

Preout (Front, Rear): 4V/10k ohms (max.)
Preout (Subwoofer): 4V/10k ohms (max.)

Weight

2.3kg

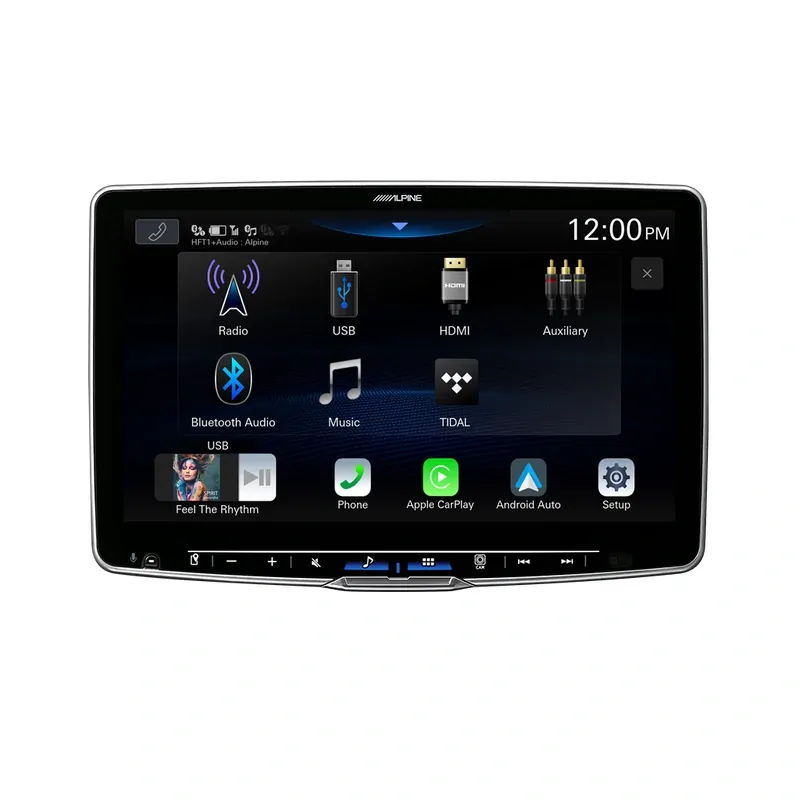

Screen

Screen Size: 11 inch Laminated WXGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Number of Picture Elements: 2,764,800 pixels (1280 x 720 x 3)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL

FM Tuner

Tuning Range – 87.5 -105MHz
Mono Usable Sensitivity – 8.1 dBf (0.7μV/75 ohms)
50dB Quieting Sensitivity – 12dBf (1.1μV/75 ohms)
Alternate Channel Selectivity – 80dB
Signal-to-Noise Ratio – 65dB
Stereo Seperation – 35dB

AM Tuner

Tuning Range – 531-1701 kHz
Usable Sensitivity – 25.1μV/28 dBf

DAB Tuner

Tuning Range – 174 – 240 MHz
Usable Sensitivity – -100dBm
Signal-to-Noise Ratio – 90dB

USB (1)

USB Requirements: USB 2.0
Max. Power Consumption: 2,400 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32, exFAT
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ′′.m4a′′ file
FLAC Decoding
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.005%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 95 dB
Channel Separation (at 1kHz): 90 dB
