Mazda BT-50 TF Focal 6x9-Inch Front and 6.5-Inch Rear Speaker Upgrade Bundle 2020-Onwards

This is a custom front and rear speaker upgrade package tailored by Everything 4WD to suit the Mazda BT-50 TF 2020-Onwards.

Speaker Package Range: Focal Speaker Upgrade

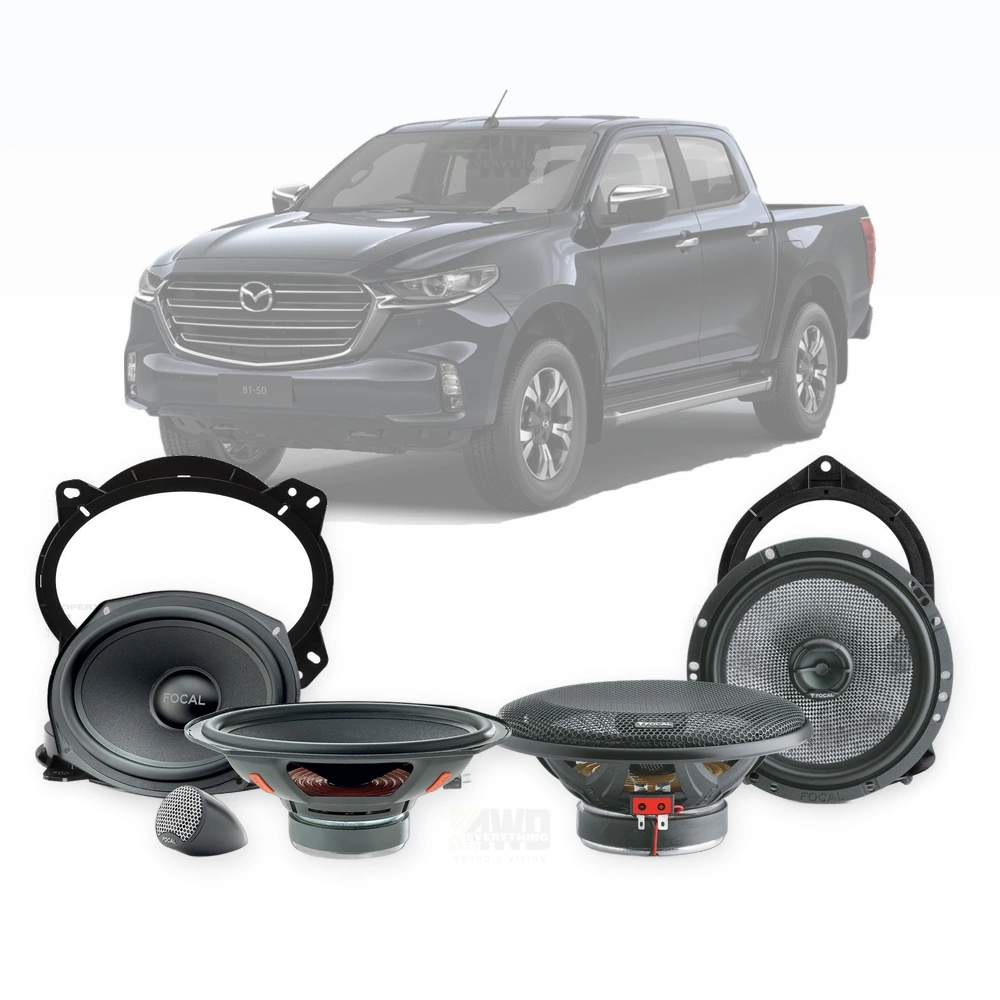

Package Includes:

• Focal ISU 690 - 6x9-Inch component speakers for the front
• Focal 165 AC - 6.5-Inch coaxial speakers for the rear

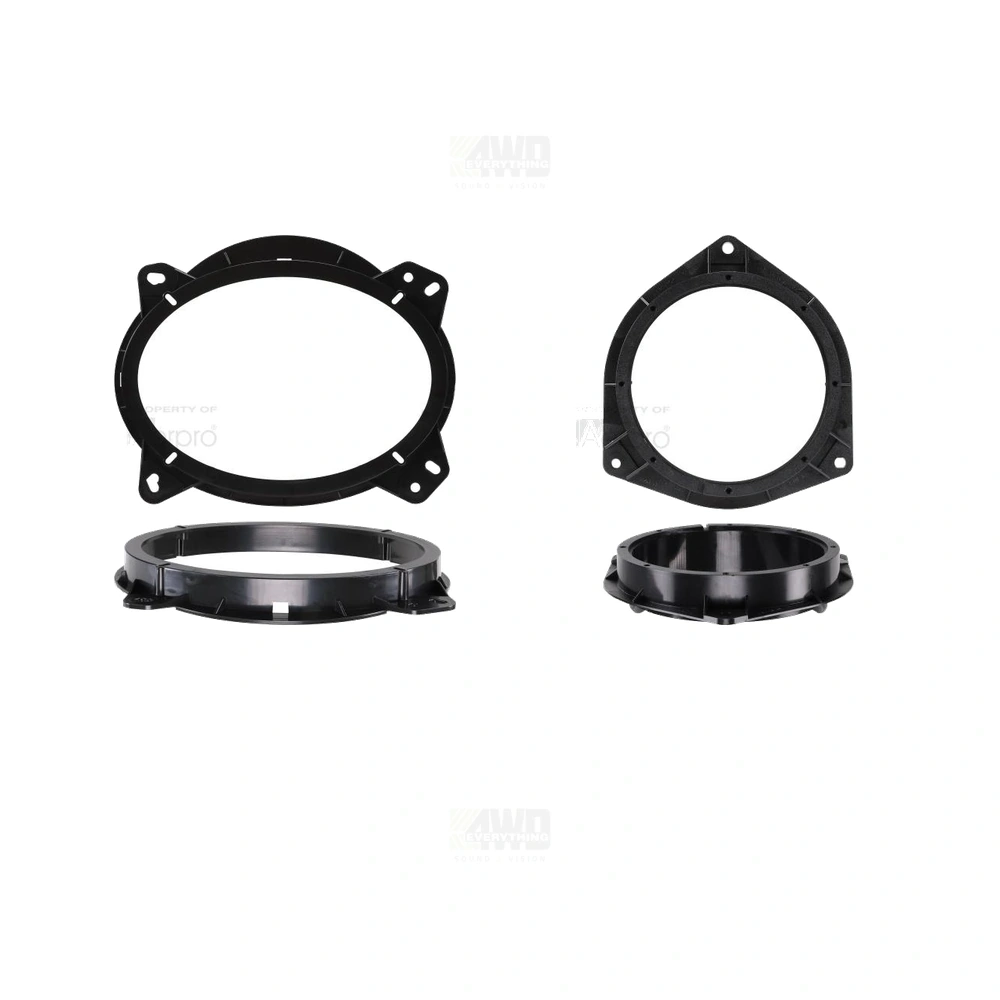

• Aerpro APS333 Speaker Spacer Pair (Front) - Speaker spacer to suit Mazda BT-50 TF
• Aerpro APS331 Speaker Spacer Pair (Rear) - Speaker spacer to suit Mazda BT-50 TF

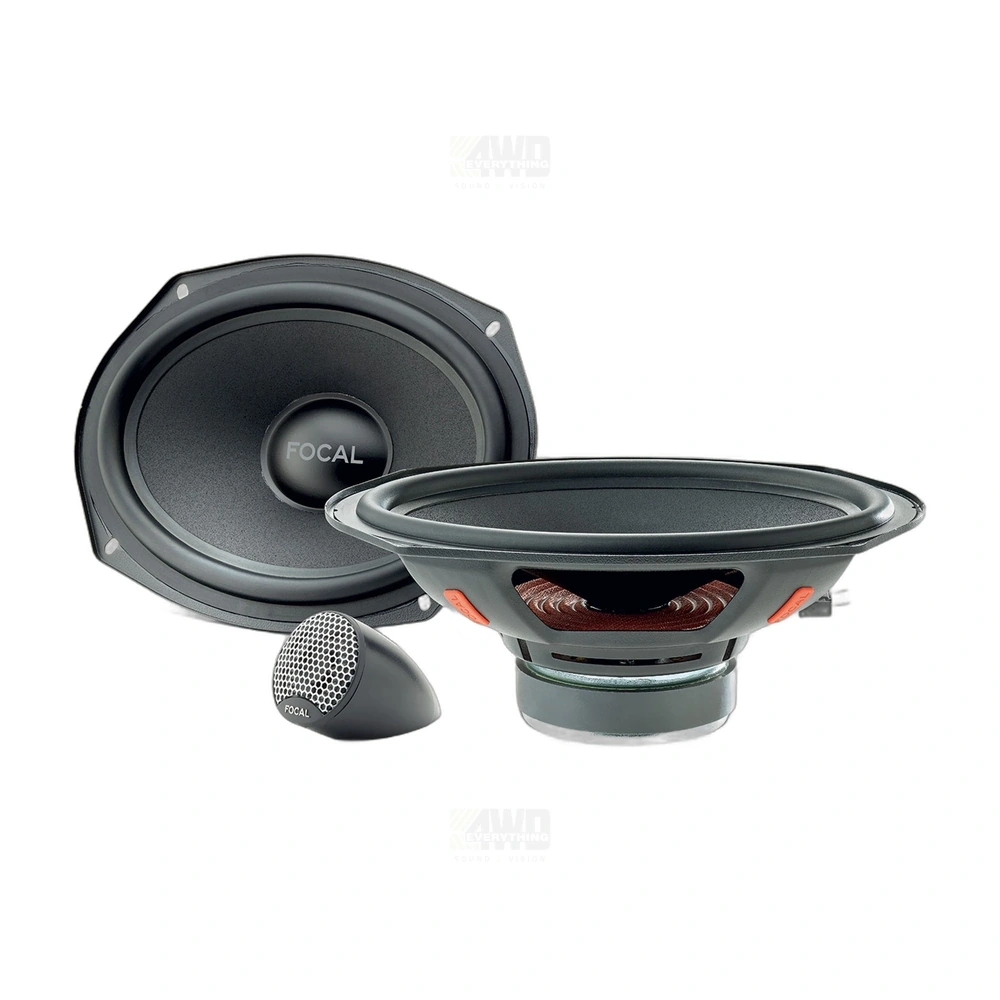

Focal ISU 690 Specifications:

Upgrade your factory audio with the Focal ISU 690. Featuring Polyglass cone, aluminium/magnesium tweeter, and shallow 83.5mm fitment for natural, dynamic Plug & Play sound.

• Designed in France
• 2-way component speaker kit (6x9 / 152x229mm)
• Polyglass cone for natural, balanced midrange and bass
• Aluminium/magnesium inverted dome tweeter for crisp, accurate highs
• +3dB treble adjustment (Flat/High) for custom tuning
• Shallow 83.5mm mounting depth ideal for OEM integration
• High sensitivity excellent with factory or aftermarket systems
• Integrated filters for simple, Plug & Play installation
• Butyl surround for durability and consistent performance
• Product type : 2 -way separate kit
• Membrane : Polyglass
• Tweeter : 164x235mm
• Filter : Integrated
• Frequency response (+/- 3dB) : 55Hz -21kHz
• Maximum power : 160 watts
• Motor : Ferrite
• Nominal Impedance : 4 Ohms
• Nominal power : 80 W RMS
• Sensitivity : 93.6 dB
• Suspension material : Butyl
• RMS power : 80 W RMS
• Product Depth : 82 mm
• Cut-Out diameter : 143 mm
• Weight : 1250 g

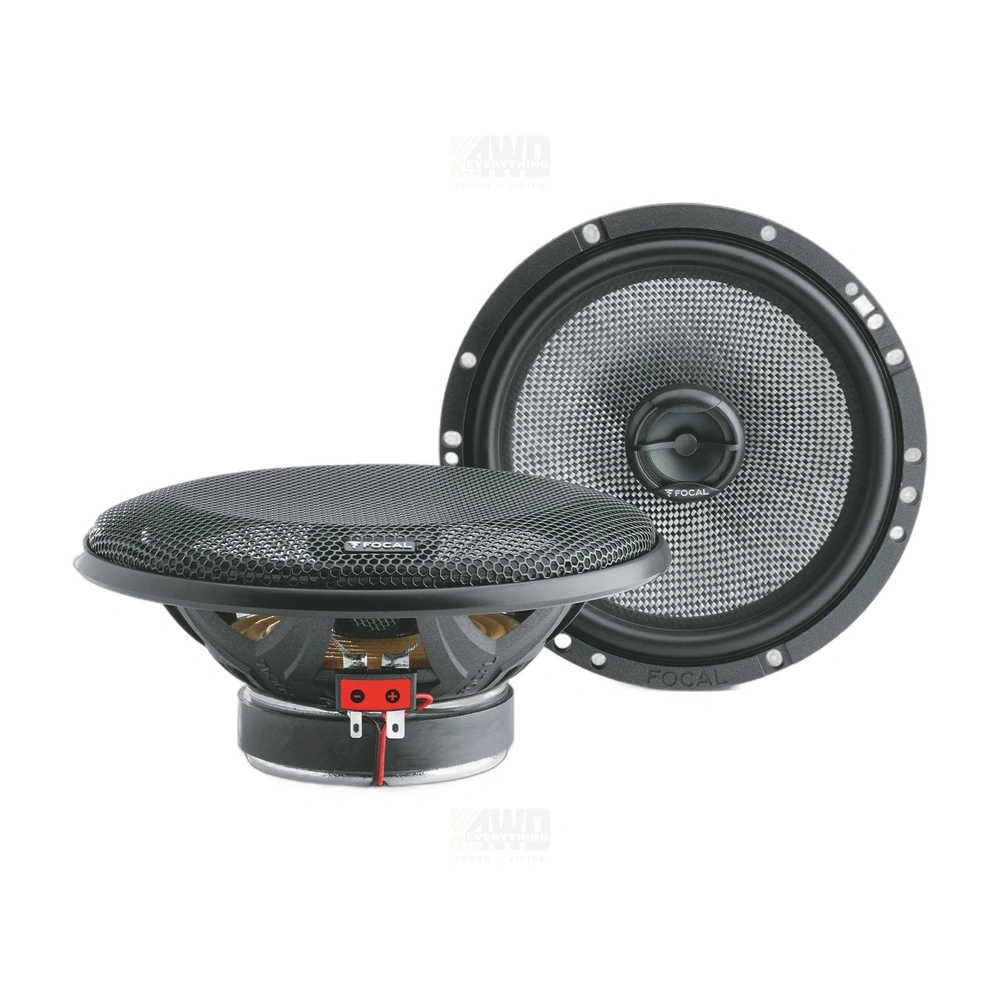

Focal 165 AC Specifications:

Upgrade your in-car sound with the Focal 165 AC. Featuring DFS cone, Mylar tweeter, and integrated crossover for dynamic, clear and powerful OEM-style performance.

• Designed and engineered in France
• 2-way coaxial kit (165mm / 6.5)
• DFS cone for rigidity, stability, and natural sound
• 25mm Kapton coil for high power handling
• Mylar inverted dome tweeter on swivel mount for adjustable soundstage
• Integrated 4.7kHz crossover for easy connection
• Rigid ABS frame with anti-resonant design
• High sensitivity compatible with OEM or aftermarket amplifiers
• Includes flat ABS/mesh grilles for seamless installation
• Product type : 2 -way coaxial kit
• Membrane : DFS
• Tweeter : 165 mm
• Filter : Integrated
• Frequency response (+/- 3dB) : 60Hz 20kHz
• Maximum power : 120 watts
• Maximum SPL (peak@1m) : 87.19 DECIBEL
• Motor : Ferrite
• Nominal Impedance : 4 Ohms
• Nominal power : 60 W RMS
• Sensivity : 91 dB
• Suspension material : Butyl
• RMS power : 60 W RMS
• Product Depth: 63 mm
• Cut-Out diameter : 165 mm
• Weight : 850 g

We recommend checking the speaker location in the vehicle before installation/purchase to ensure this product will suit your application.

Vehicle Fitment:

• Mazda BT-50 TF 2020-Onwards
• Front: 6x9-Inch
• Rear: 6.5-Inch
