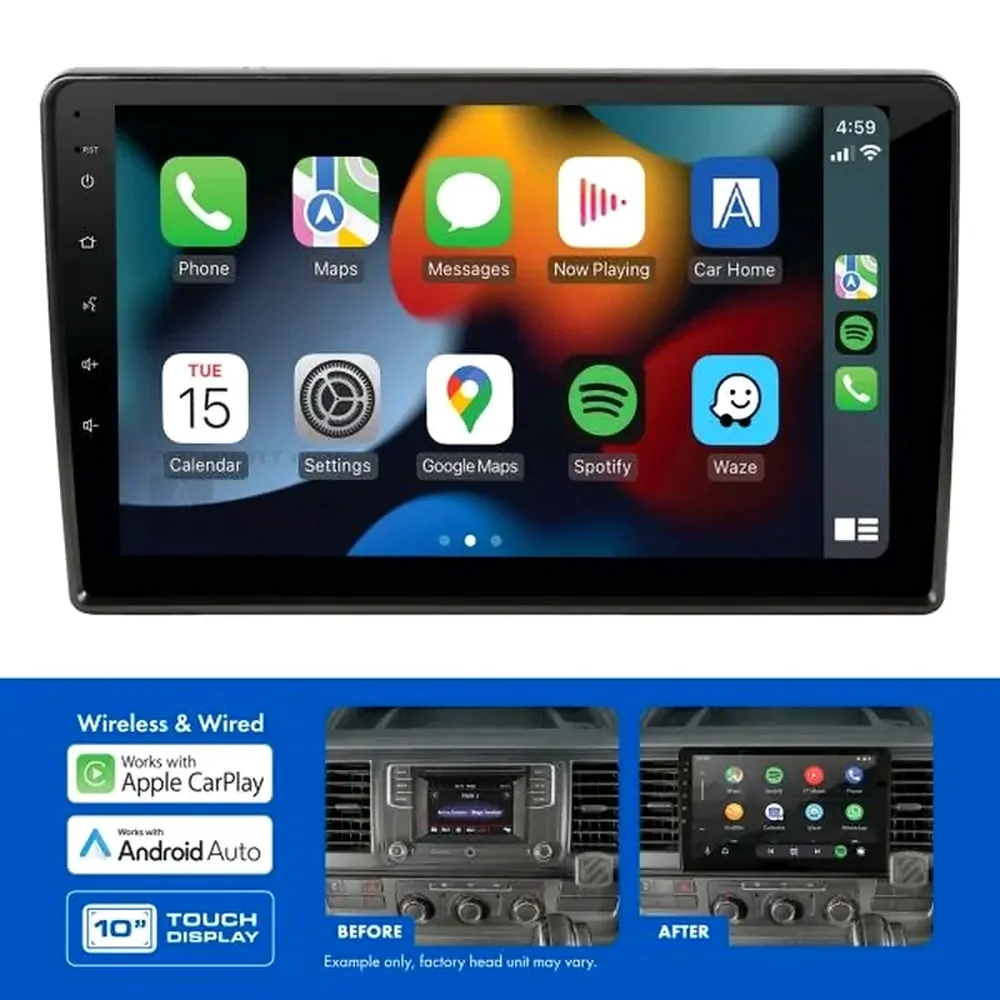

Aerpro AMVW5 10" Wireless Apple CarPlay Android Auto Head Unit fits VW Beetle/Tiguan 15-16 with factory MIB-PQ unit

The Aerpro AMVW5 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Beetle (2015- 2016) and Tiguan (2015-2016)* vehicles (with factory MIB-PQ unit). Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMVW5 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, factory amplified system, parking tones and access to the vehicle menu.

Hema Maps Ready

Experience seamless on-road and off-road navigation through the head unit display by adding the optional AerproAMHXD3On-Road / Off-Road Navigation Module (sold separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• This kit includes an Infodaptor Interface which allows vehicle information to be displayed & accessed on the aftermarket head unit, retains steering wheel controls, retains parking tones & amplified system. The Interface connects to the rear camera input on the aftermarket head unit and the output for this kit will be low resolution.
• Only suits vehicles with MIB-PQ unit from factory.
• (*) Due to the size of the head unit, please be aware in Tiguan (2015-2016) vehicles the kit partially covers hazard button.
• Ignition Stabiliser may be required for stop-start models (Aerpro APIGNSTB, not included).
• Camera retention adaptor required to retain factory camera (Aerpro APVVW03, not included).
• May need to remove fuse from factory Bluetooth module for phone button to work.
• This head unit is sold as a kit which includes:
  • AM10XMultimedia Receiver
  • Matte Black Facia Kit
  • Infodaptor Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor

Features:

• To suit Volkswagen Beetle (2015- 2016) and Tiguan (2015-2016)* vehicles (with factory MIB-PQ unit)
• Includes all the parts required to complete the installation
• Apple CarPlay & Android Auto (wireless / wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• Large 10" capacitive touchscreen display
• Steering wheel control, factory amplified system, access to the vehicle settings and parking tones retention
• Climate Control and Parking Visualisation on the aftermarket display (if equipped)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Reverse camera input (AHD 720P compatible) & rear A/V input
• 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

AMVW5 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Kit Inclusions:
  • AM10X Multimedia Receiver
  • Matte Black Facia Kit
  • Infodaptor Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: Yes (Aerpro APVVW03 required, not included).
  • AUX Input: N/A
  • USB Input: N/A
  • Parking Tones: Yes
  • Factory Amplifier: Yes
  • Vehicle Menu: Yes
  • Other: N/A

AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
  • Size: 10"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports
  • USB (Rear) Playback Formats: CPAA & Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (with 12V power supply to the camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included

Vehicles known to work with this product:

• Volkswagen Beetle 2012-
• Volkswagen Tiguan 2015-2016
