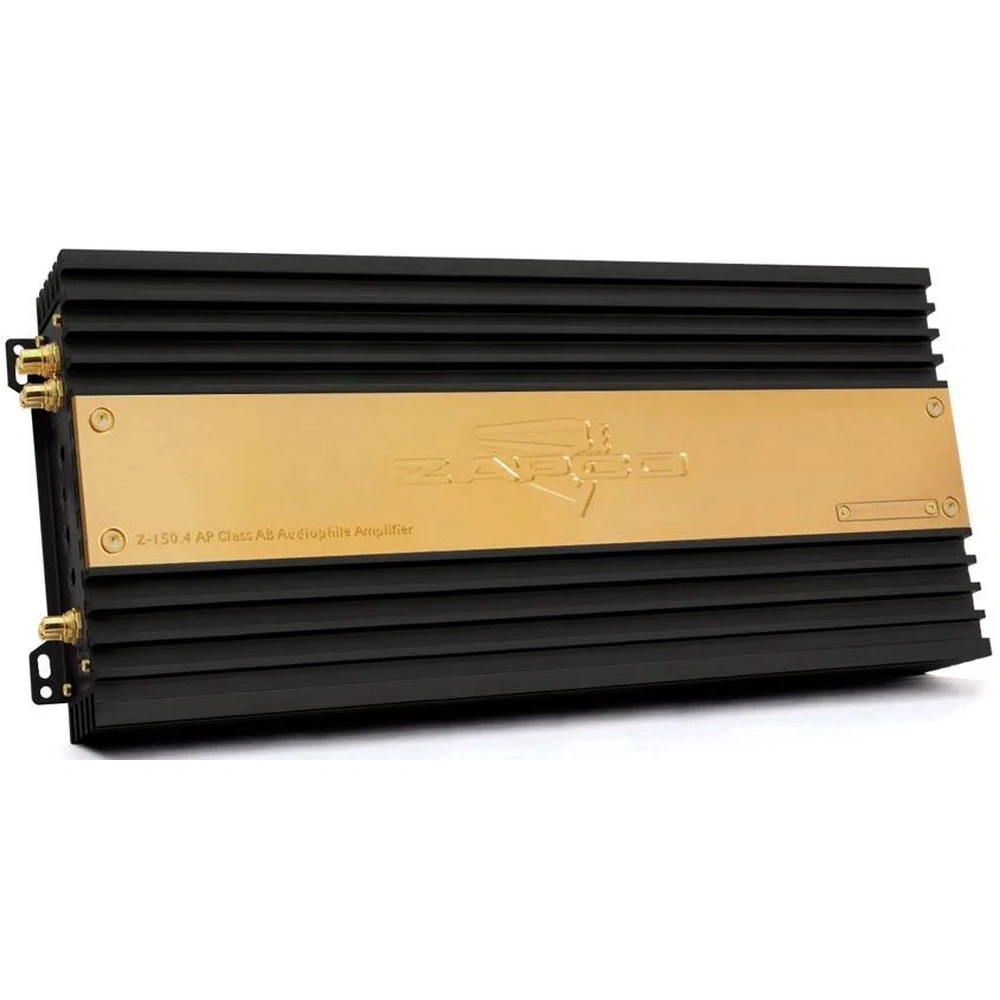

Zapco Z-150.4AP 4-Ch. Class AB Audiophile Amplifier

SKU:Z-150.4AP

RRP $2,099.00
$2,016.00
SAVE $83.00 (4%)


Calculate Shipping

Features and Functions

- 4-Channel, Class-AB, Competition Audiophile Amplifier
- Signal to noise ratio of over 110dB
- Coupled the output drivers
- Highest HFE (Gain) Sanken selected output devices
- Differential balanced input stage
- 0.1% resistors for lowest possible noise floor
- TI LME49720 (BJT) op-amps on the inputs
- TI LME49720 (BJT) op-amps in the signal path
- WIMA MKS2 series caps in the signal path
- Extremely low ESR caps throughout
- Proprietary patented RCA connectors

Technical Specifications

- Power @ 4?: 4 x 150 watts
- Power @ 2?: 4 x 275 watts
- Power @ 1?: 4 x 400 watts *
- Power @ 4? Bridged: 2 x 550 watts
- Power @ 2? Bridged: 2 x 800 watts *
- THD @ Rated Power < 1%
- Signal to Noise Ratio > 110dB
- Frequency Response 10Hz to 30,000Hz ±1dB
- Input Sensitivity 1v to 9v
- Net Dimensions (mm): 190(W) x 62(H) x 440(L)
- Overall Dimensions (mm): 190(W) x 62(H) x 468(L)

*AP amplifiers are stable at 1? and 2? Bridged only when used with music signal and with proper ventilation.
