Stinger SWI-HD02 ConnectPRO Head Unit Interface Kit fits Honda
SKU:SWI-HD02
Honda Suzuki Radio Replacement Interface
Make installation of your new aftermarket radio or infotainment system easy in select Suzuki and Honda vehicles with the Plug & Play ConnectPRO Audi radio replacement solution from Stinger Australia
The Radio Replacement Solution
There's nothing worse than loosing your steering wheel control buttons when updating to the latest technology.
The SWI-HD02 from ConnectPRO from Stinger Australia allows easy retention of steering wheel audio control buttons with your new aftermarket radio or infotainment system.
Keep your eyes on the road and less time fumbling for the radio with ConnectPRO.
The Solid Connection
Each ConnectPRO radio replacement solution includes a Plug and Play interface for a easy and solid connection to your existing vehicle harness.
No need to strip back wires or chop off connectors in your vehicle allowing re-installation of your factory radio if ever required.
Feature Packed
The ConnectPRO SWI-HD01 features:
- Retains factory fitted steering wheel audio buttons
Suitable for vehicles with
- 20PIN Honda / Suzuki Radio Connector
What Do You Get?

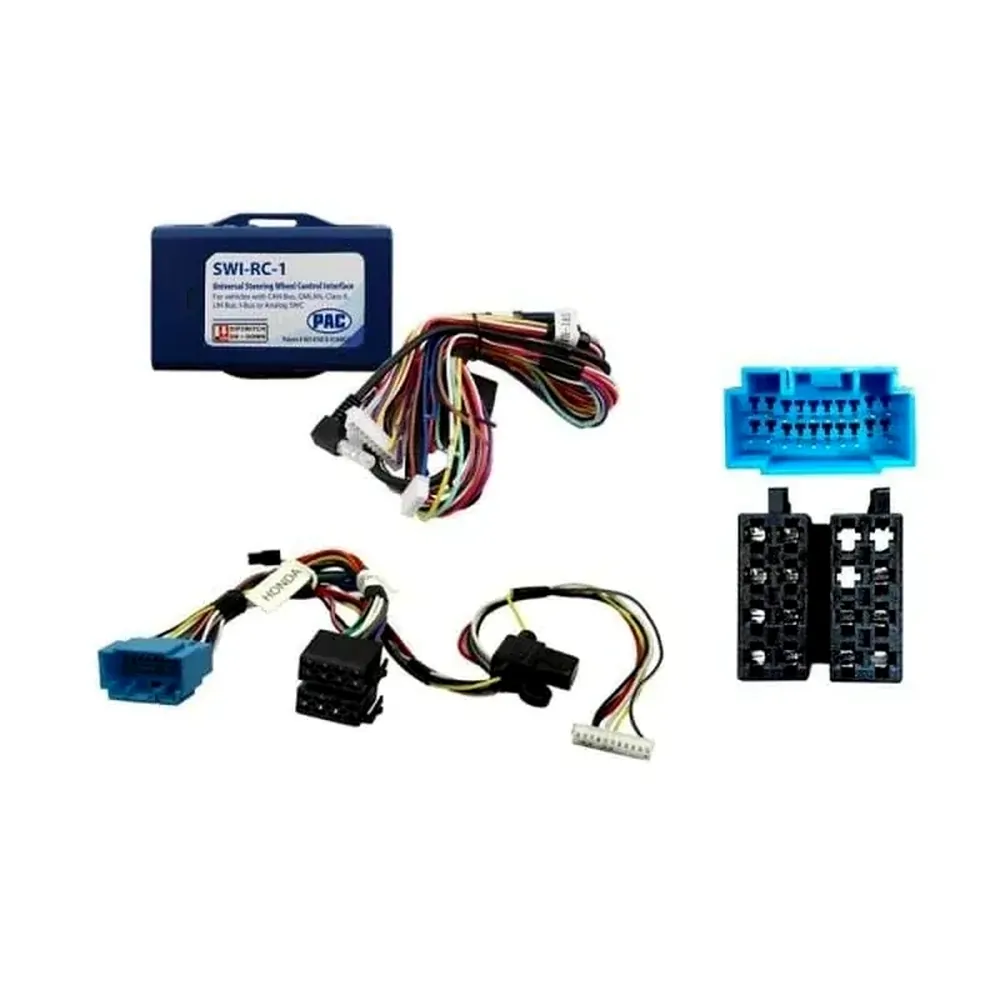

The ConnectPRO SWI-HD01 kit includes
- PAC SWI-RC-1 Interface (See more on the SWI-RC-1 here)
- 20 PIN Honda / Suzuki Vehicle Plug and Play Harness
- Bare wire SWI-RC-1 Harness
- Instruction Manual
Compatibility Notes
- Phone buttons cannot be retained in all vehicle models (if fitted)
- Designed for use with major branded head units including
Alpine, Clarion, Kenwood, JVC, Pioneer, Sony, Stinger plus more
Specifications:
| Plug & Play | YES - FACTORY CONNECTOR TO STANDARD ISO CONNECTOR |
|---|---|
| Manual Programming Feature | YES - SWC Button remapping via control button |
| Retain Factory Steering Wheel Audio Controls? | YES - Will retain Steering Wheel Audio Controls with Select Aftermarket Radios |
| Retain Factory Amplifier? | NO |
| Retain Parking Sensors? | NO - If vehicle OEM radio was generating the parking sensor tones. If parking sensors are not part of the factory radio, they should not be effected |
| Vehicle Plug Style | 20PIN HONDA / SUZUKI Style Connector |
Vehicle Fitment
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| Honda | Civic Hatch | 2001 - 2005 (7Th Gen) |
| Honda | Civic Sedan | 2001 - 2005 (7Th Gen) |
| Honda | Crv | 1997 - 2006 (Rd) |
| Honda | Prelude | 1997 - 2001 (5Th Gen (Bb5-Bb9)) |
| Suzuki | Grand Vitara | 2003 - 2005 (Sq625) |
| Suzuki | Grand Vitara | 2005 - 2014 (Jb) |
| Suzuki | Grand Vitara | 2015 - 2018 (Jb) |
| Suzuki | Kizashi | 2010 - 2014 (Fr) |
| Suzuki | Swift | 2006 - 2010 (Rs416) |
| Suzuki | Swift | 2011 - 2016 (Fz) |
| Suzuki | Swift | 2017 - 2020 (Az) |
| Suzuki | Sx4 (Incl S-Cross) | 2007 - 2011 (Gyb - Gyc) |
| SKU | SWI-HD02 |
| Barcode # | 9342270006520 |
| Brand | STINGER |
