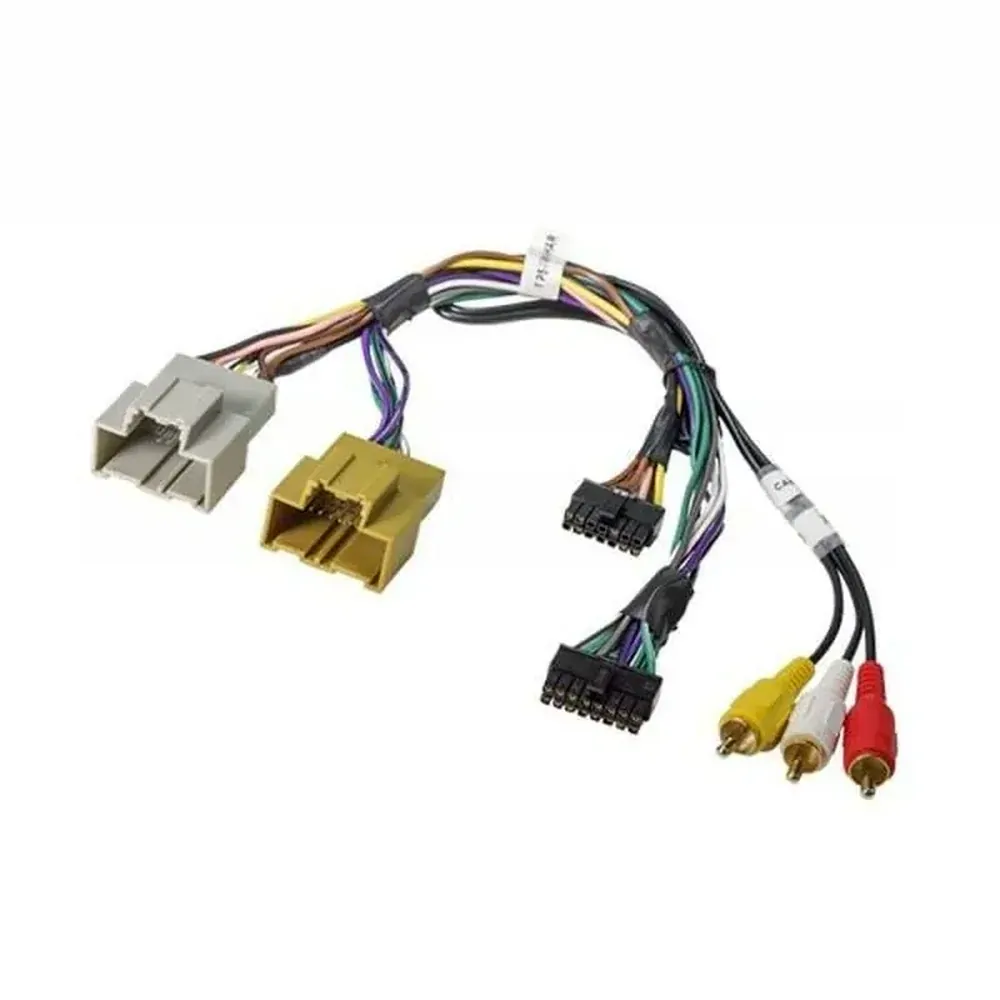

Stinger PACRP5GM52HAR PAC Audio RadioPRO Harness for 2016 & GM Vehicles with 7" Radio Display
SKU:PACRP5GM52HAR
$59.00
The PACRP5GM52HAR is an optional special harness designed for use with the PACRP5GM51 (sold separately) and replaces the included PACRP5GM51 harness when installing into a GM vehicle with a 7" OEM factory radio display.
The harness combined with PACRP5GM51 retains the vehicle's telematics, steering wheel controls, and more.
- Quick connect harness for select GM Trucks with 7-inch radio display
- Compatible with PACRP5GM51 (sold separately) to retain
- OnStar Telematics system
- Factory WiFi system
- Front and rear park assist
- All warning chimes (chime module included)
- OEM Auxiliary Input
- Data controlled outputs for connection to navigation radio; speed, reverse, and E-brake status output wires
- Original steering wheel control functions
- Data controlled RAP accessory output
- Vehicle data-bus intact for service
- Updatable using a PAC-UP USB adapter
Compatibility Notes
- This harness is only necessary when the vehicle has an 'IOA' or 'IOB' build code. The build codes can be found on a silver sticker in the glove compartment.
- Must be used in conjunction with the RP5-GM51
Specifications:
| Plug & Play | YES - FACTORY CONNECTOR TO BARE WIRES |
|---|---|
| Vehicle Plug Style | DUAL GM Style Connectors |
| Vehicle Notes | * 2016+ vehicles with build codes IOA or IOB must also use the RP5-GM52-HAR. Build codes can be found on a silver sticker either in the glove box or in the trunk near the spare tyre well.* 2015 + Colorado/Canyon must use Revision 1.1.4 or higher and Vehicle Settings revision 2.0.7 or higher* 2015 + Tahoe/Suburban/Yukon must use Revision 1.1.3 or higher and Vehicle Settings revision 2.0.6 or higher. You must use Interface Updater 2.0 to update an RP5-GM51.* Chevrolet Impala: Not compatible in vehicles with the IO3 RPO code. RPO codes can be found on a silver sticker in the trunk near the spare tire well.* Does not retain RSE system* 2014 Vehicles: Only compatible with 1500 series trucks. 2500 & 3500 series trucks equipped with non-navigation radios must use the RP5-GM31. 2500 & 3500 series trucks equipped with navigation radios must use the RP5-GM32* Does not retain Bose amplifier. Information on how to bypass the factory amp is included in the instructions |
Vehicle Fitment
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| Chevrolet | Silverado | 2015 - 2018 (Third Gen) |
| Gmc | Sierra | 2015 - 2018 (Third Gen) |
| Holden | Astra Sedan | 2017 - 2018 (Bl) |
| Holden | Trax | 2017 - 2018 (Tj) |
| SKU | PACRP5GM52HAR |
| Barcode # | 609098820899 |
| Brand | STINGER |
