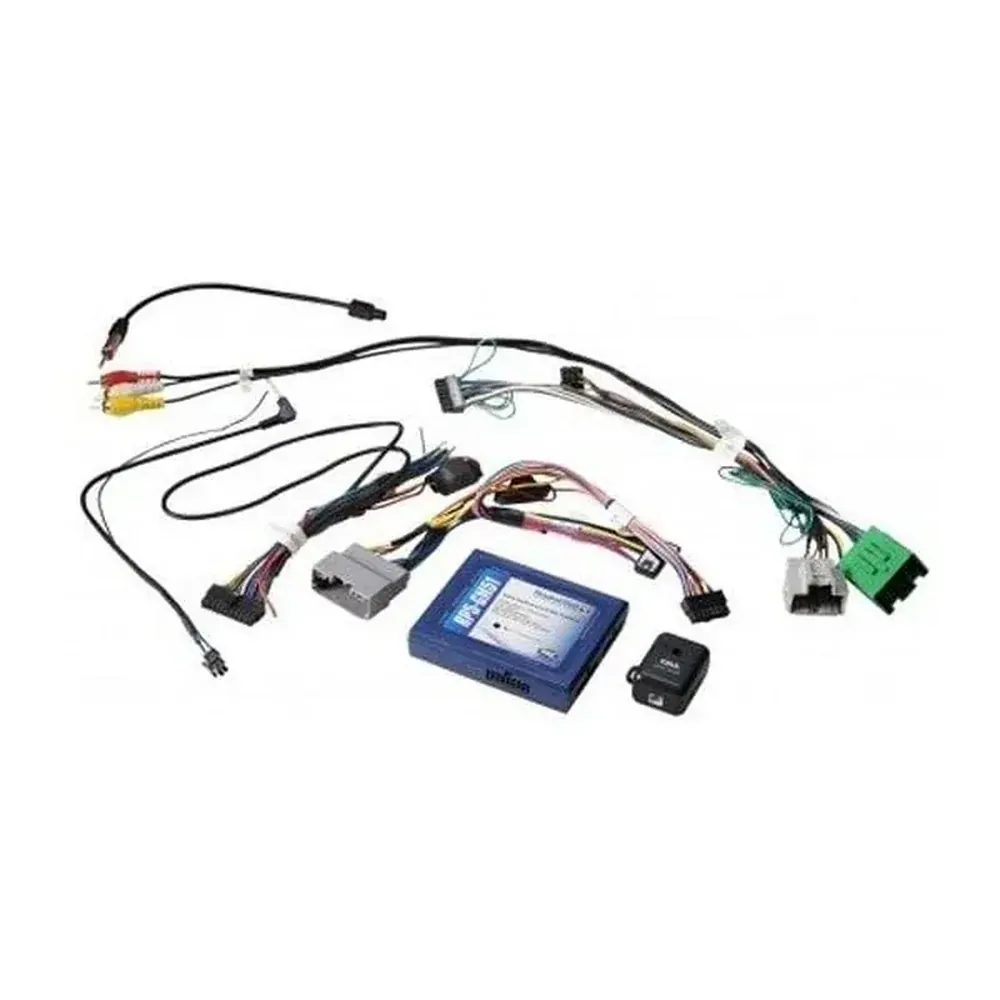

Stinger PACRP5GM51 14-Up GM RadioPro 5 Interface

An all-in-one radio replacement and SWC interface, the innovative new RadioPRO5 comes pre-loaded with OnStar retention, SWC software, navigation based output signals and other features that save time and money during installation.

• Retains OnStar Telematics system
• Retains original steering wheel control functions with the new radio with no additional interface or programming needed
• Retains factory WiFi system
• Retains front and rear park assist
• Retains all warning chimes (chime module included)
• Retains OEM Auxiliary Input
• Data controlled outputs for connection to your navigation radio; speed, reverse and parking brake status output wires
• Data controlled RAP accessory output
• Works right out of the box with most radio brands
• Keeps vehicle data bus intact for service
• Interface can be quickly updated if needed from the PAC website using a PAC-UP USB adapter

Please note, in 2016 vehicle's with build codes IOA or IOB, the below harness is also required for the install (sold separately)
Part # PACRP5GM52HAR
SKU # 609098820899

Specification:

• Plug & Play: YES - FACTORY CONNECTOR TO BARE WIRES
• Vehicle Plug Style: DUAL GM Style Connectors
• Does Kit Include AUX/USB Retention?: YES - AUX Only
• Dual Press Steering Wheel Control Function: YES - Customisable
• Manual Programming Feature: YES - SWC Button remapping via control button
• Will It Retain Parking Sensors?: YES - If parking sensors were part of the OEM Radio this is retained
• Will It Retain Factory Steering Wheel Controls?: YES - Will retain Steering Wheel Audio Controls with Select Aftermarket Radios
• Vehicle Notes: * 2016+ vehicles with build codes IOA or IOB must also use the RP5-GM52-HAR. Build codes can be found on a silver sticker either in the glove box or in the trunk near the spare tyre well.* 2015 + Colorado/Canyon must use Revision 1.1.4 or higher and Vehicle Settings revision 2.0.7 or higher* 2015 + Tahoe/Suburban/Yukon must use Revision 1.1.3 or higher and Vehicle Settings revision 2.0.6 or higher. You must use Interface Updater 2.0 to update an RP5-GM51.* Chevrolet Impala: Not compatible in vehicles with the IO3 RPO code. RPO codes can be found on a silver sticker in the trunk near the spare tire well.* Does not retain RSE system* 2014 Vehicles: Only compatible with 1500 series trucks. 2500 & 3500 series trucks equipped with non-navigation radios must use the RP5-GM31. 2500 & 3500 series trucks equipped with navigation radios must use the RP5-GM32* Does not retain Bose amplifier. Information on how to bypass the factory amp is included in the instructions

Vehicle Compatibility
