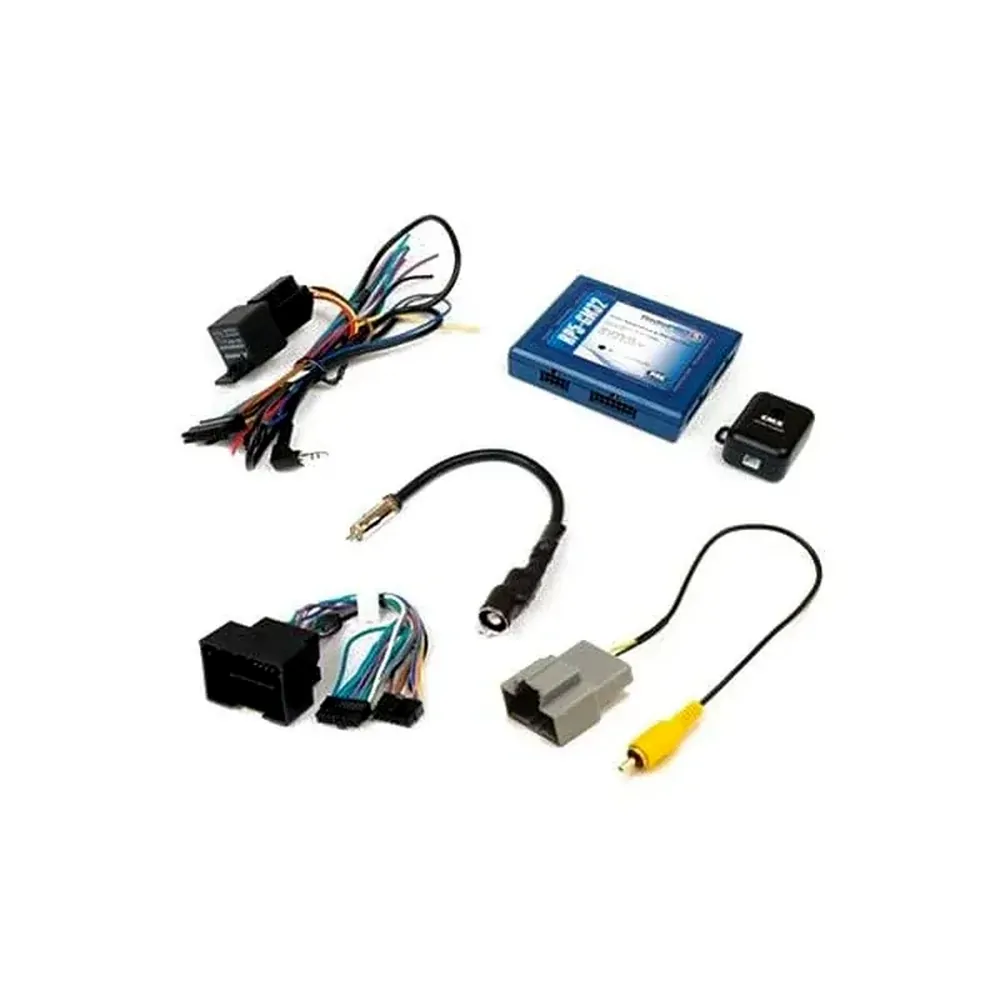

Stinger PACRP5GM32 Radio Pro5 - SWC & Amp Interface - GM Lan 29 Bit - With OE Navigation

An all in one radio replacement and SWC interface, the innovative new PAC Audio RadioPRO5 comes pre-loaded with OnStar retention, amplifier retention, SWC software, navigation based output signals and other features that save time and money during installation.

• Retains steering wheel controls (pre-programmed)
• Retains OnStar® when the factory radio is replaced
• Retains factory Bluetooth (2009 model vehicles)
• Retains rear seat audio controls
• Retains all warning chimes (chime module included)
• Retains back-up sensors/park assist
• Retains factory Bose audio systems
• Retains factory premium Bose audio (Y91 digital. does not support fading)
• Retains factory reverse camera
• Dual zone function
• Chime volume adjustment (factory buttons)
• Rear seat audio and video (GMRVD2) required
• OnStar volume adjust from steering wheel controls
• OnStar volume adjustment
• Retained accessory power output (RAP)
• Reverse wire output
• VSS (Vehicle Speed Sense) output
• Illumination output
• Parking brake output
• Includes antenna adaptor
• Retains lane departure warning system
• Retains OnStar Turn-by-Turn voice prompts

Specification:

• Vehicle Plug Style: 44PIN GM Style 'ClickLok' Connector
• Plug & Play: YES - FACTORY CONNECTOR TO BARE WIRES
• Dual Press Steering Wheel Control Function: YES - Customisable
• Manual Programming Feature: YES - SWC Button remapping via control button
• Will It Retain Factory Amplifier?: YES
• Will It Retain Factory Reverse Camera?: YES - Included With Interface
• Will It Retain Parking Sensors?: YES - If parking sensors were part of the OEM Radio this is retained
• Will It Retain Factory Steering Wheel Controls?: YES - Will retain Steering Wheel Audio Controls with Select Aftermarket Radios
• Vehicle Notes: * All 2012-2013 GM trucks and SUVs equipped with factory navigation radios
  * 2012+ 2500 & 3500 trucks equipped with factory navigation radios
  * 2012-2013 GM trucks & SUVs equipped with factory non-navigation radios must use the RP5-GM31
  * 2012+ 2500 & 3500 trucks equipped with factory non-navigation radios must use the RP5-GM31
  * 2014+ Silverado & Sierra 1500 series trucks must use the RP5-GM51
  * In Premium Amplified Systems there will be no fading capability of the aftermarket stereo

Vehicle Compatibility
