Stinger PACAP4-FD21 PAC RCA Out Kit fits Ford 13-17

AmpPRO simplifies the installation of upgraded amplifiers in data-bus controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radios fit, finish and features.

Compatibility Note:

• This product is compatible with data-bus controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm that the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system please contact an authorized Ford service centre for further clarification.
• 2018 Super duty trucks can have either Sony or B&O systems to be compatible.

Benefits

• Simplifies amplifier installation
• Prevents the need for summing and DSP devices
• Provides factory sound system upgrade solution

Features

• Can be used to upgrade the entire sound system or just part of it thanks to retention of original amplifier
• Enables the addition of a subwoofer system to the original sound system
• Variable volume, fade, balance, bass, mid and treble audio settings
• Front, rear, sub preamp outputs (5 volt RMS)
• Provides flat audio output for a solid audio foundation
• Customized OE bass, mid and treble centre frequency selection
• Retains Sync, Bluetooth audio and all warning chimes
• Plug & play installation
• Sublevel controller
• Optional TOSLINK optical output (APA-TOS1 sold separately)

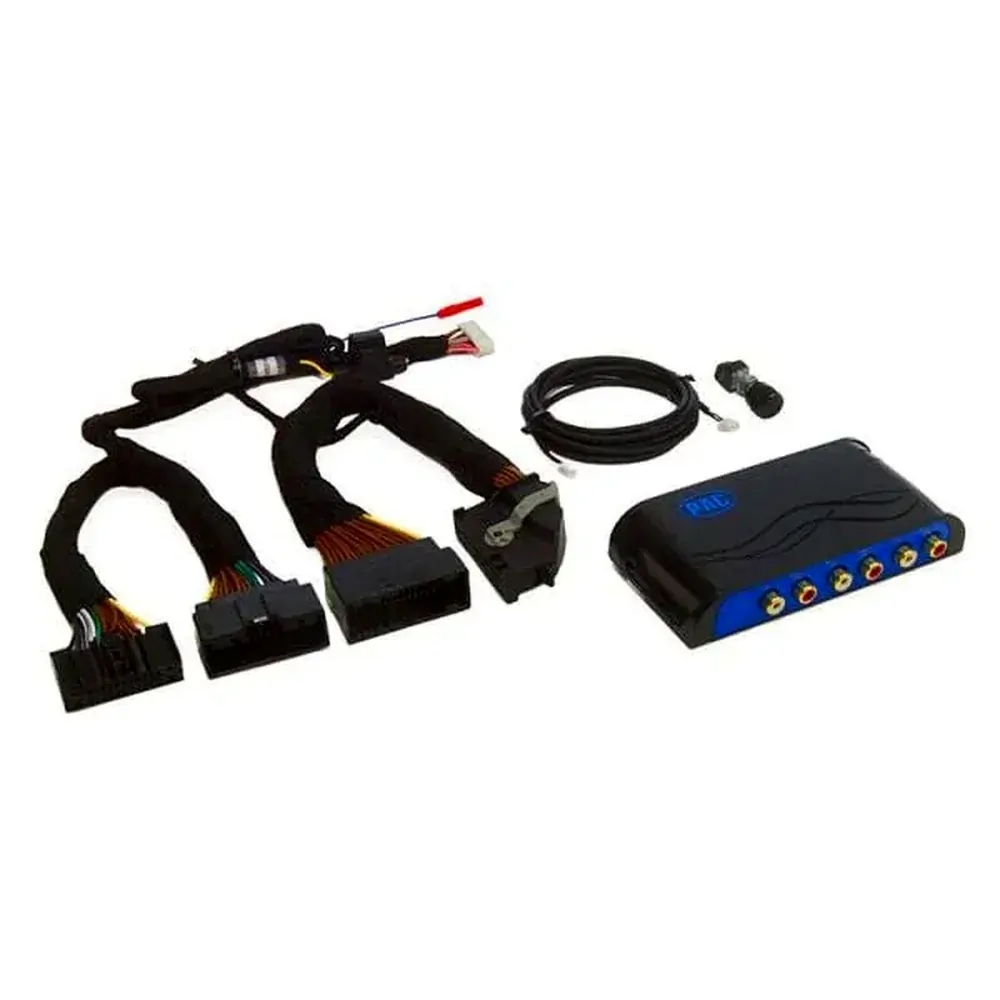

Includes

• AmpPRO module
• 24-pin and 54-pin harness (MS CAN) (Dual MS CAN)
• Bass knob
• Knob harness
• Manual

Specification:

• Plug & Play: YES
• Vehicle Plug Style: 24PIN & 52PIN FORD Style Connectors
• Product Notes: This product is compatible with data-bus controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm that the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system please contact an authorized Ford service centre for further clarification.

  "“ 2018+ Super duty trucks can have either Sony or B&O systems to be compatible.

• RCA Pre-Outs: 6 Channel Stereo
• Optical Audio Out: Requires Optional PACAPA-TOS1 for Optical Audio Output

Vehicle Compatibility
