What's Included
- Base Driving Light
2 x Type-X™ Pro Plus Non-DRL Module - Bezel
2 x Type-X™ Pro Plus Bezel Modern - Fascia
2 x Type-X™ Pro Plus Modern Rugged Ring Yellow - Covers
2 x Type-X™ Pro Plus Modern Rugged Non-DRL Cover STEDI - Shoulder Trim
2 x Type-X™ Pro Plus Shoulder Trim Rugged Yellow - High Beam Triggered Wiring Harness
1 x Dual Connector Plug & Play SMART Harness™ High Beam Driving Light Wiring - Pro Plus Packaging
1 x Pro Plus Custom Spec Box
1 x Pro Plus Custom Spec Shipping Carton

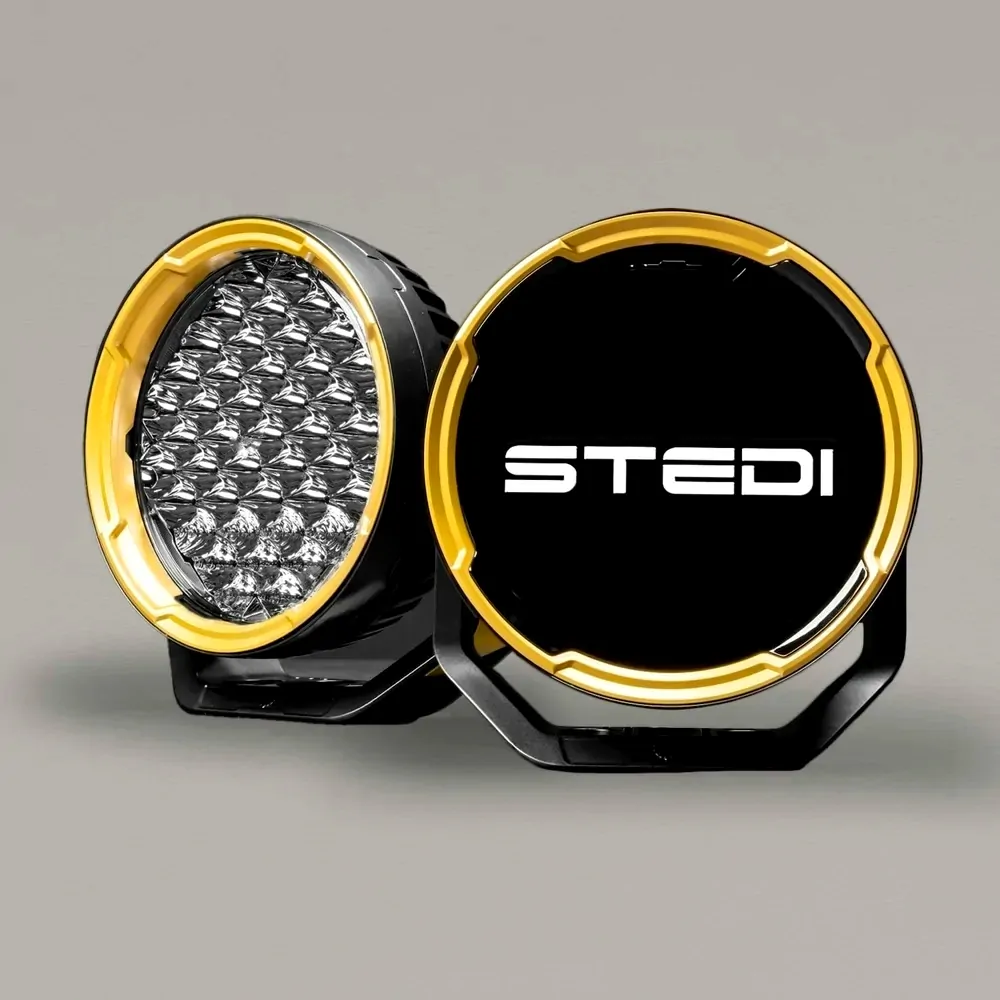

MINIMALISM REFINED.
The Type-X™ PRO PLUS Modern Classic option represents the pinnacle of sleek, minimalist design. Elevating the refined aesthetic of the Modern option, this configuration introduces a sophisticated cover for a streamlined, elegant appearance. Clean lines and timeless simplicity define the Modern Classic, delivering a contemporary look where minimalism takes centre stage.
CURATED SIMPLICITY.
The Type-X™ PRO PLUS Modern Classic configuration features the modern bezel, paired with a meticulously refined cover that enhances its slim profile. The array of modern fascia, available in 9 stunning colourways, along with optional shoulder trims, allows for subtle personalisation without compromising the understated design. Every detail has been carefully curated to deliver a polished aesthetic while maintaining the durability Type-X™ lights are known for.
PERFORMANCE WITHOUT COMPROMISE.
Type-X™ PRO PLUS (pair) will throw light over 1.6km down the road with precision, with 12 dedicated flood reflectors illuminating the critical zones of the road, resulting in an incredibly smooth driving beam. Rendering a beautiful 5000K colour temperature, you’ll experience the ideal balance between clarity and definition, allowing your eyes to process details like obstacles and terrain with ease.
Tech Specs
|
OPTICAL BEAM (NON-DRL) |
Combo Beam (36x Spot | 9x Flood) |
|
TESTED LUMENS (NON-DRL) |
30,9222lm (Pair) |
|
1 LUX @ (NON-DRL) |
1634 Metres (Pair) |
|
CANDELA (NON-DRL) |
1,952,000cd (Pair) |
|
AMP DRAW (NON-DRL) |
7.92A @ 24V |
|
INGRESS PROTECTION |
IP68 | Submersible up to 3m |
|
COLOUR TEMP (CCT) |
5000 Kelvin |
|
VOLTAGE COMPATIBILITY |
10 - 30V DC |
|
WEIGHT (EACH – NON-DRL) |
2.84kg (Each) |
|
OPERATING VOLTAGE |
-40°C to 60°C |
| SKU | PRP-MDRNRGD-NDRL-BND |
| Brand | STEDI |
