What's Included
- Base Driving Lights
2 x Type-X™ Pro Plus Non-DRL Module - Bezel
2 x Type-X™ Pro Plus Bezel Cage - Shoulder Trim
2 x Type-X™ Pro Plus Shoulder Trim Rugged Orange - High Beam Triggered Wiring Harness
1 x Dual Connector Plug & Play SMART Harness™ High Beam Driving Light Wiring - Pro Plus Packaging
1 x Pro Plus Custom Spec Box
1 x Pro Plus Custom Spec Shipping Carton
MILITARY-INSPIRED TOUGHNESS.
The Caged option in the Type-X™ PRO PLUS range draws inspiration from the rugged, no-nonsense design of military-spec vehicles. With its aggressive, industrial aesthetic, this configuration embodies strength, resilience, and purpose-built performance for those who demand a bold statement on and off the road.

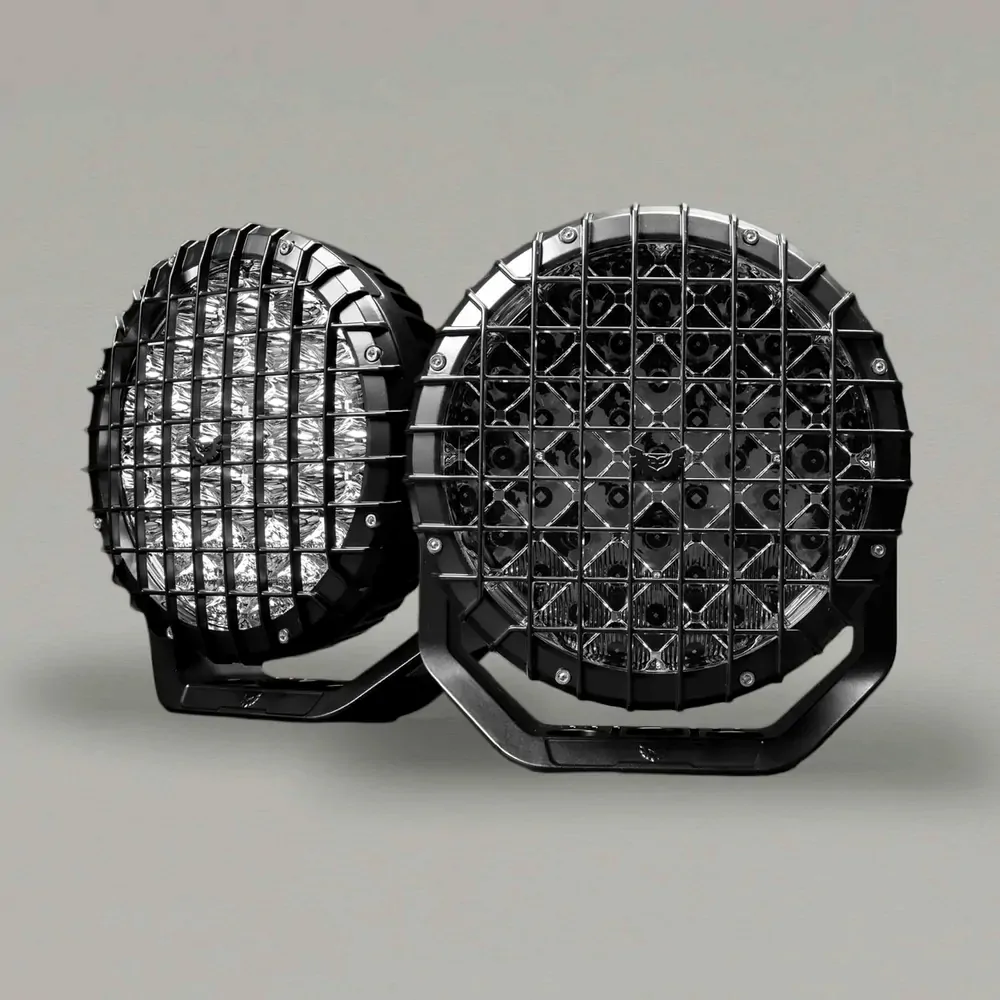

BUILT FOR EXTREMES.
At the core of the Type-X™ PRO PLUS Caged option is the powder-coated cast alloy caged bezel — engineered for maximum durability and designed to withstand even the harshest conditions. Complementing the tough bezel is a selection of shoulder trims, allowing for subtle personalisation while retaining its rugged, military-inspired appearance. Every detail is crafted to deliver both function and unmistakable style.
PERFORMANCE WITHOUT COMPROMISE.
Type-X™ PRO PLUS (pair) will throw light over 1.6km down the road with precision, with 12 dedicated flood reflectors illuminating the critical zones of the road, resulting in an incredibly smooth driving beam. Rendering a beautiful 5000K colour temperature, you’ll experience the ideal balance between clarity and definition, allowing your eyes to process details like obstacles and terrain with ease.
Tech Specs
|
OPTICAL BEAM (DRL) |
Combo Beam (36x Spot | 9x Flood | 4x DRL) |
|
TESTED LUMENS (DRL) |
29,664lm (Pair) |
|
1 LUX @ (DRL) |
1540 Metres (Pair) |
|
CANDELA (DRL) |
1,846,240cd (Pair) |
|
AMP DRAW (DRL) |
7.98A @ 24V |
|
INGRESS PROTECTION |
IP68 | Submersible up to 3m |
|
COLOUR TEMP (CCT) |
5000 Kelvin |
|
VOLTAGE COMPATIBILITY |
10 - 30V DC |
|
WEIGHT (EACH – DRL) |
3.65kg (Each) |
|
OPERATING VOLTAGE |
-40°C to 60°C |
| SKU | PRP-CAGE-NDRL-BND |
| Brand | STEDI |
