What's Included
- Base Driving Light
2 x Type-X™ Pro Plus DRL Module - Bezel
2 x Type-X™ Pro Plus Bezel Modern - Fascia
2 x Type-X™ Pro Plus Modern Ring Blue - Covers
2 x Type-X™ Pro Plus Modern DRL Cover STEDI - Shoulder Trim
2 x Type-X™ Pro Plus Shoulder Trim Modern Blue - High Beam Triggered Harness
1 x Dual Connector DT-4 Plug & Play SMART Harness™ High Beam Driving Light Wiring - Pro Plus Packaging
1 x Pro Plus Custom Spec Box
1 x Pro Plus Custom Spec Shipping Carton
SOPHISTICATED BY DESIGN.

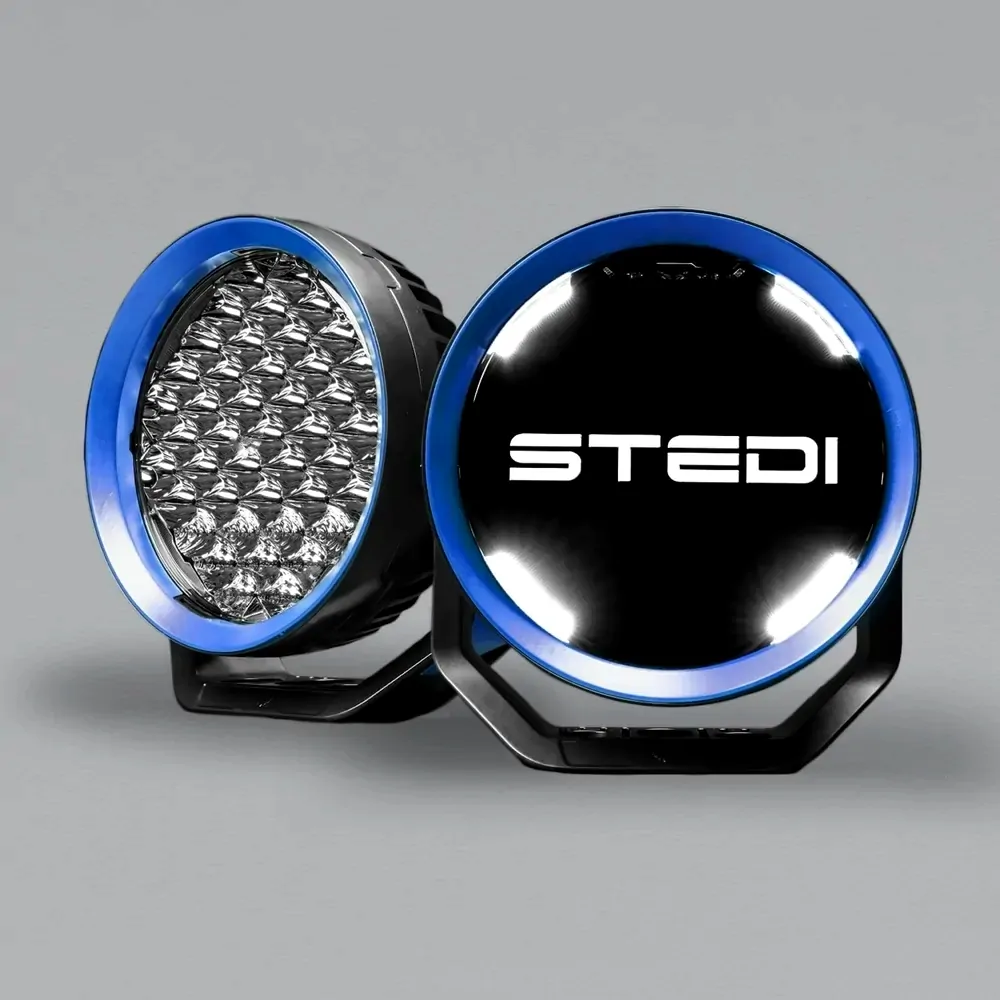

The Modern option in the Type-X™ PRO PLUS range offers a sleek, refined take on contemporary driving light design. Inspired by the smooth curves and accents of modern vehicles, it brings a sophisticated edge to your lighting setup while maintaining the exceptional performance the Type-X™ series is known for.
TAILORED FOR TODAY.
The Type-X™ PRO PLUS Modern configuration features the modern bezel, combined with a full range of modern fascia and covers, all available in 9 vibrant colourways. Optional shoulder trims offer further personalisation, allowing you to create a polished, unified look that complements the design language of newer vehicles without compromising durability.
CUTTING-EDGE PERFORMANCE.
Type-X™ PRO PLUS (pair) will throw light over 1.5km down the road with precision, with 12 dedicated flood reflectors illuminating the critical zones of the road, resulting in an incredibly smooth driving beam. Rendering a beautiful 5000K colour temperature, you’ll experience the ideal balance between clarity and definition, allowing your eyes to process details like obstacles and terrain with ease.
Tech Specs
|
OPTICAL BEAM (DRL) |
Combo Beam (36x Spot | 9x Flood | 4x DRL) |
|
TESTED LUMENS (DRL) |
29,664lm (Pair) |
|
1 LUX @ (DRL) |
1540 Metres (Pair) |
|
CANDELA (DRL) |
1,846,240cd (Pair) |
|
AMP DRAW (DRL) |
7.98A @ 24V |
|
INGRESS PROTECTION |
IP68 | Submersible up to 3m |
|
COLOUR TEMP (CCT) |
5000 Kelvin |
|
VOLTAGE COMPATIBILITY |
10 - 30V DC |
|
WEIGHT (EACH – DRL) |
3.65kg (Each) |
|
OPERATING VOLTAGE |
-40°C to 60°C |
| SKU | PRP-MODERN-DRL-BND |
| Brand | STEDI |
