What's Included
- Base Driving Lights
2 x Type-X™ Pro Plus DRL Module - Bezel
2 x Type-X™ Pro Plus Bezel Cage - Shoulder Trim
2 x Type-X™ Pro Plus Shoulder Trim Rugged Orange - High Beam Triggered Wiring Harness
1 x Dual Connector DT-4 Plug & Play SMART Harness™ High Beam Driving Light Wiring - Pro Plus Packaging
1 x Pro Plus Custom Spec Box
1 x Pro Plus Custom Spec Shipping Carton

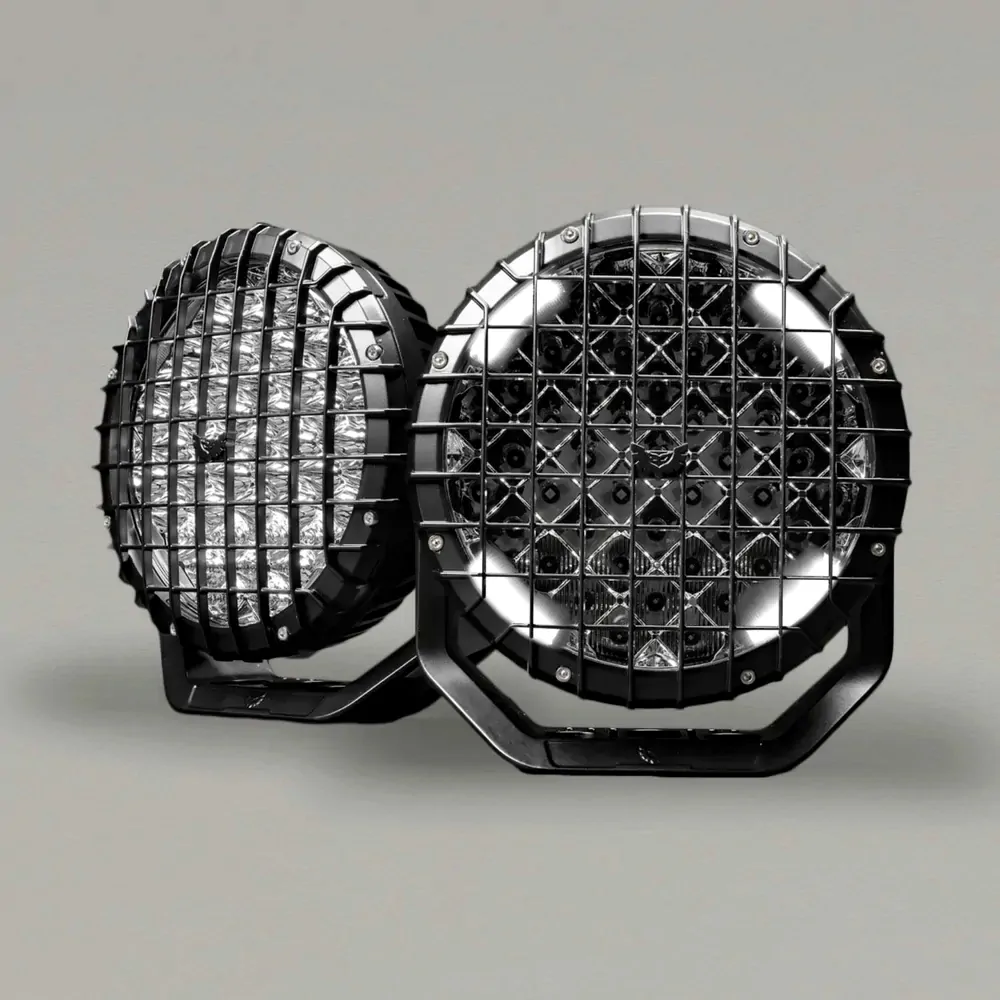

MILITARY-INSPIRED TOUGHNESS.
The Caged option in the Type-X™ PRO PLUS range draws inspiration from the rugged, no-nonsense design of military-spec vehicles. With its aggressive, industrial aesthetic, this configuration embodies strength, resilience, and purpose-built performance for those who demand a bold statement on and off the road.
BUILT FOR EXTREMES.
At the core of the Type-X™ PRO PLUS Caged option is the powder-coated cast alloy caged bezel — engineered for maximum durability and designed to withstand even the harshest conditions. Complementing the tough bezel is a selection of shoulder trims, allowing for subtle personalisation while retaining its rugged, military-inspired appearance. Every detail is crafted to deliver both function and unmistakable style.
PERFORMANCE WITHOUT COMPROMISE.
Type-X™ PRO PLUS (pair) will throw light at 1 LUX (raw) over 1.5km down the road with precision, with 12 dedicated flood reflectors illuminating the critical zones of the road, resulting in an incredibly smooth driving beam. Rendering a beautiful 5000K colour temperature, you’ll experience the ideal balance between clarity and definition, allowing your eyes to process details like obstacles and terrain with ease.
Tech Specs
|
OPTICAL BEAM (DRL) |
Combo Beam (36x Spot | 9x Flood | 4x DRL) |
|
TESTED LUMENS (DRL) |
29,664lm (Pair) |
|
1 LUX @ (DRL) |
1540 Metres (Pair) |
|
CANDELA (DRL) |
1,846,240cd (Pair) |
|
AMP DRAW (DRL) |
7.98A @ 24V |
|
INGRESS PROTECTION |
IP68 | Submersible up to 3m |
|
COLOUR TEMP (CCT) |
5000 Kelvin |
|
VOLTAGE COMPATIBILITY |
10 - 30V DC |
|
WEIGHT (EACH – DRL) |
3.65kg (Each) |
|
OPERATING VOLTAGE |
-40°C to 60°C |
| SKU | PRP-CAGE-DRL-BND |
| Brand | STEDI |
