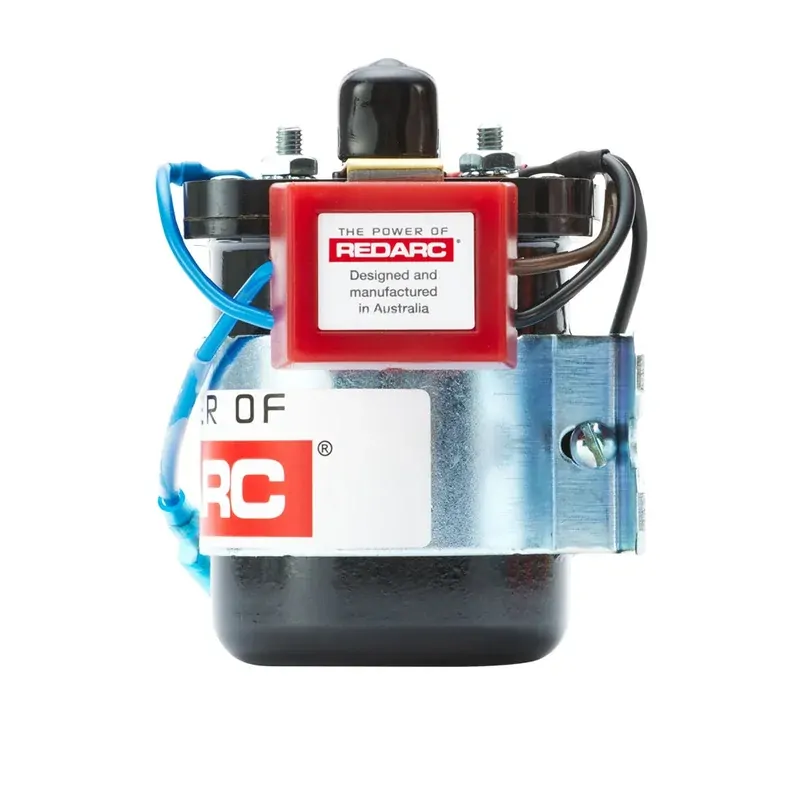

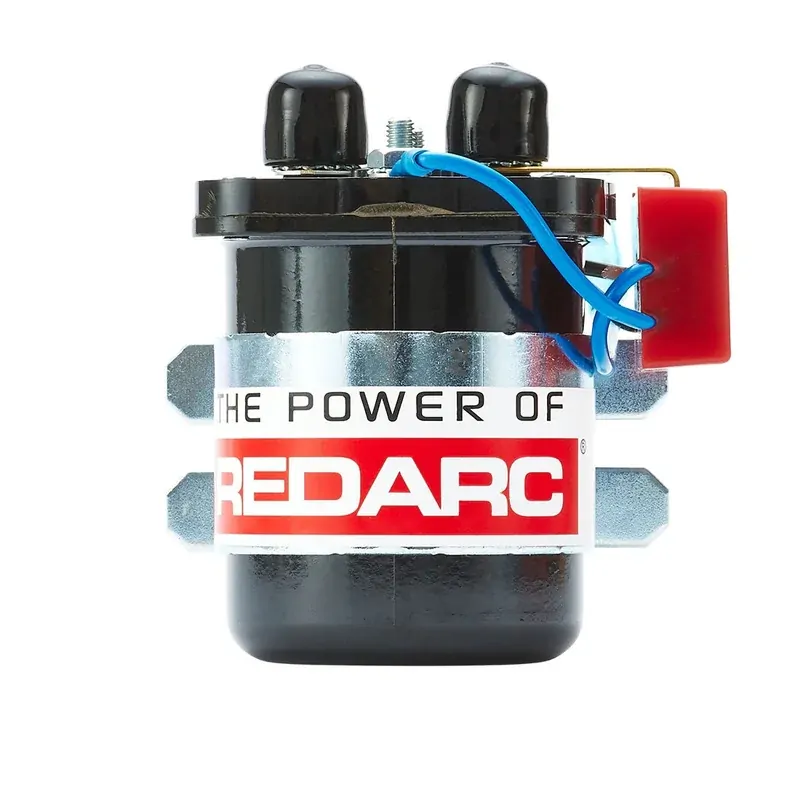

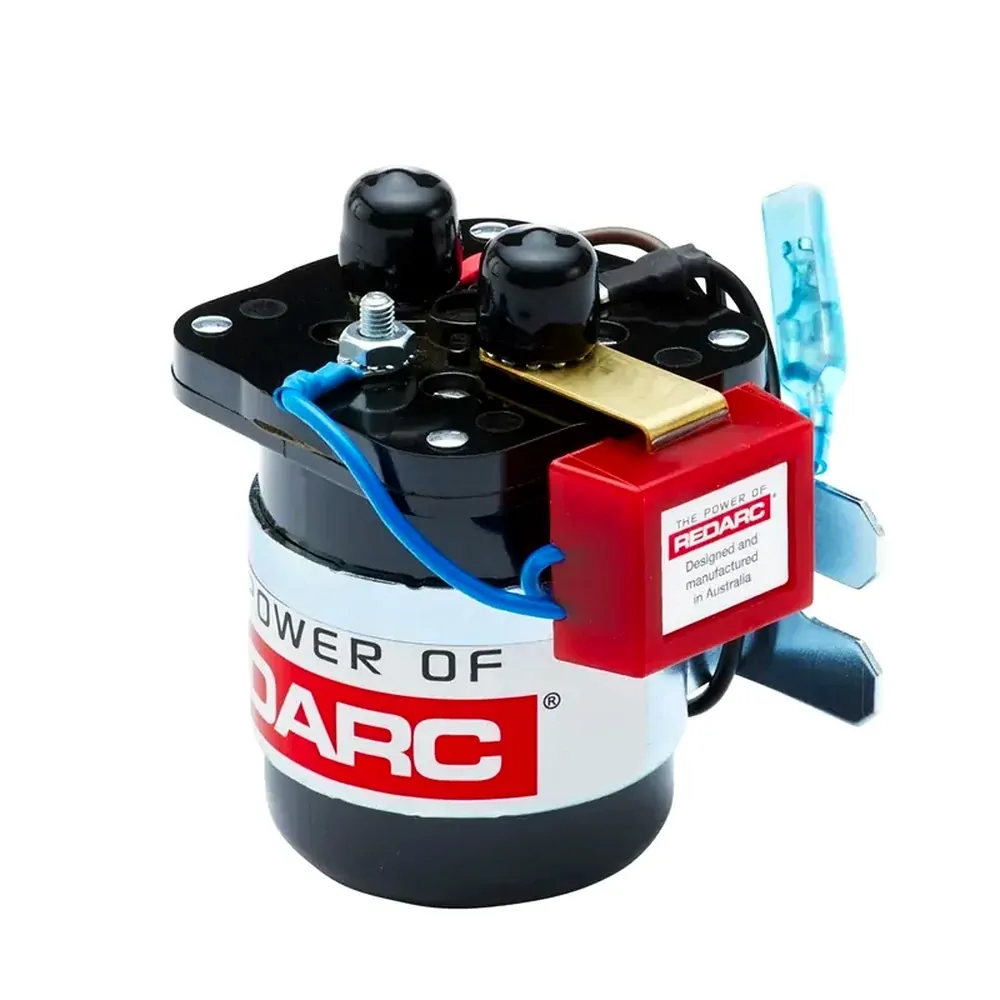

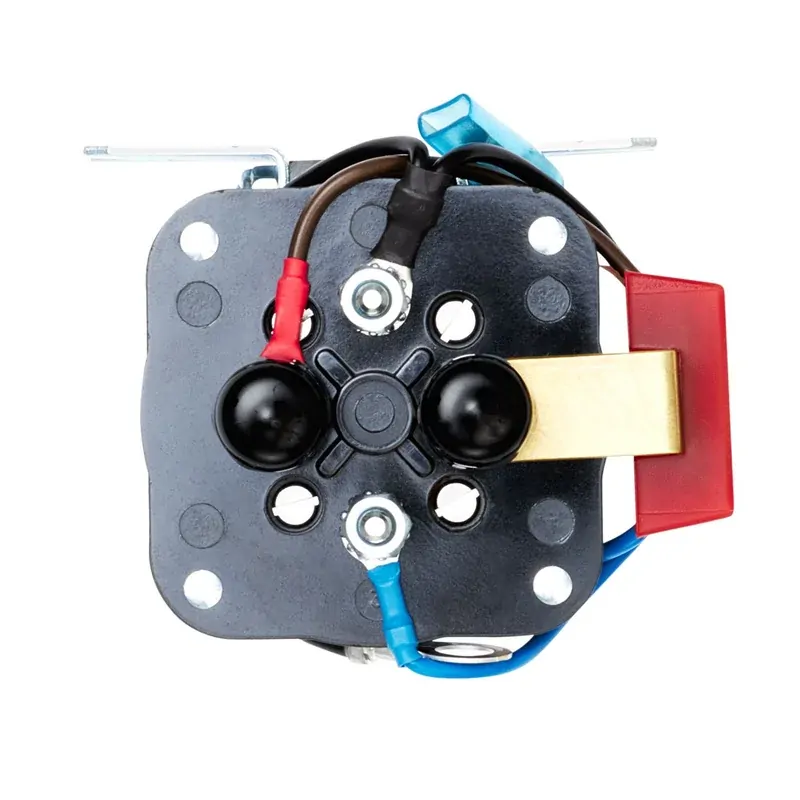

Redarc Smart Start SBI 12V 200A SBI212

SKU:SBI212

$470.00


Calculate Shipping

The REDARC Smart Start SBI212 is a battery isolator used as a solenoid priority system to protect that start battery from excessive discharge while the auxiliary battery is supplying non-essential loads.

The SBI212 provides 12 volt DC incorporating 200A of continuous ratings, the battery isolator is designed for extremely heavy-duty operations.

Power Saving TechnologyPrimarily used in commercial vehicle dual battery systems, it incorporates electronic components that will prevent the solenoid from generating high voltage transients.

It is better than a diode battery isolator due to the voltage drop associated with diode type isolation.

It features a low standby current draw and sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

The Smart Start SBI battery isolator is a safe way to charge dual battery system and should often be installed with a high quality fuse kit.

FeaturesOvermould designCompact in size and easy to installSilver contacts for longer life and suitable for marine applicationsPower saving technologyFault indicationFully surge protected

brandREDARC
Max. Inrush Current600A
Max. Continous Current200A
Turn On Voltage13.2V
Turn Off Voltage12.7V
Turn On Delay5 seconds
Turn Off Delay10 seconds
Standby Current<5mA
Weight600 g
height90 mm
width95 mm
depth | length100 mm
Warranty2 Years
System Voltage12V
Output Voltage12V DC
Input Fuse Rating200A
Output Fuse Rating200A
SKU SBI212
Barcode # 9338628000043
Brand REDARC
