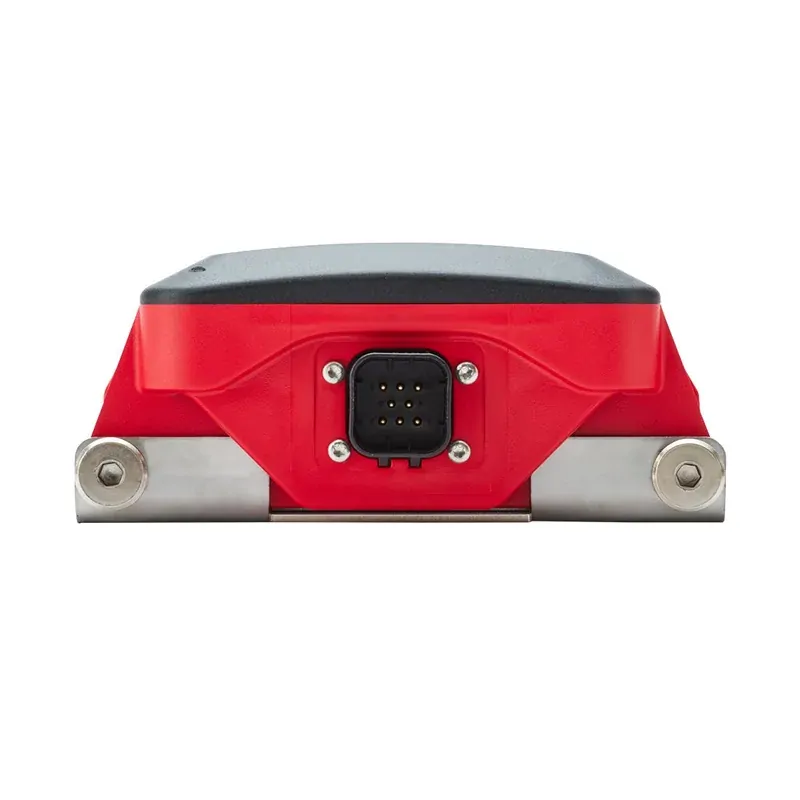

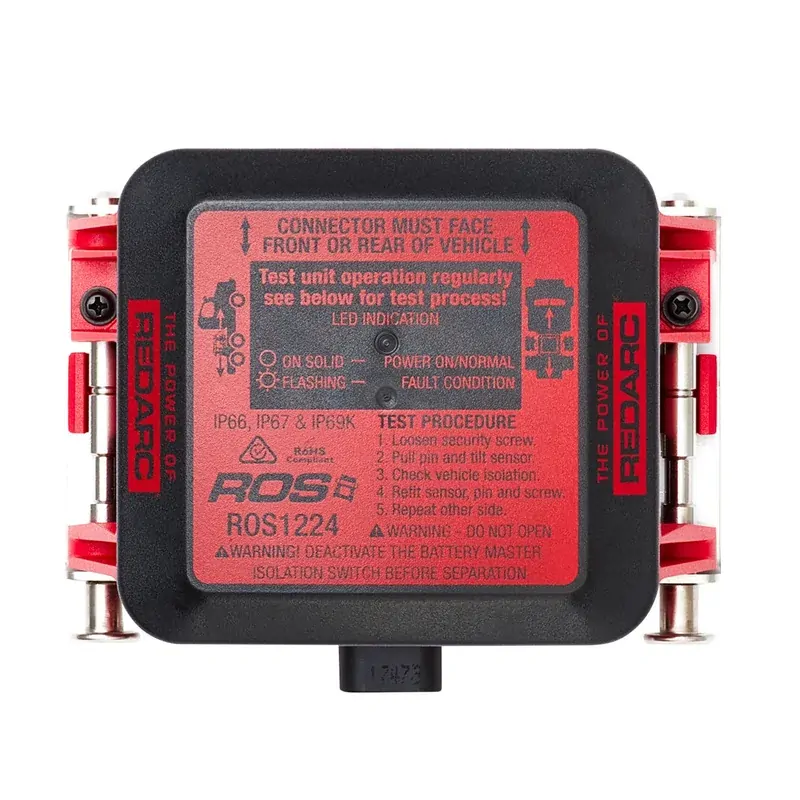

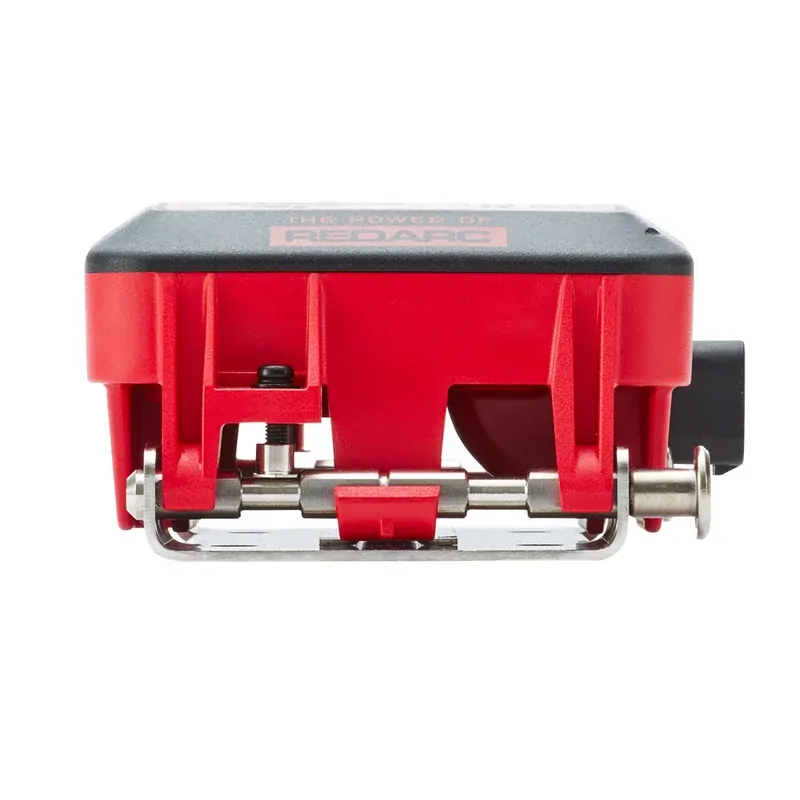

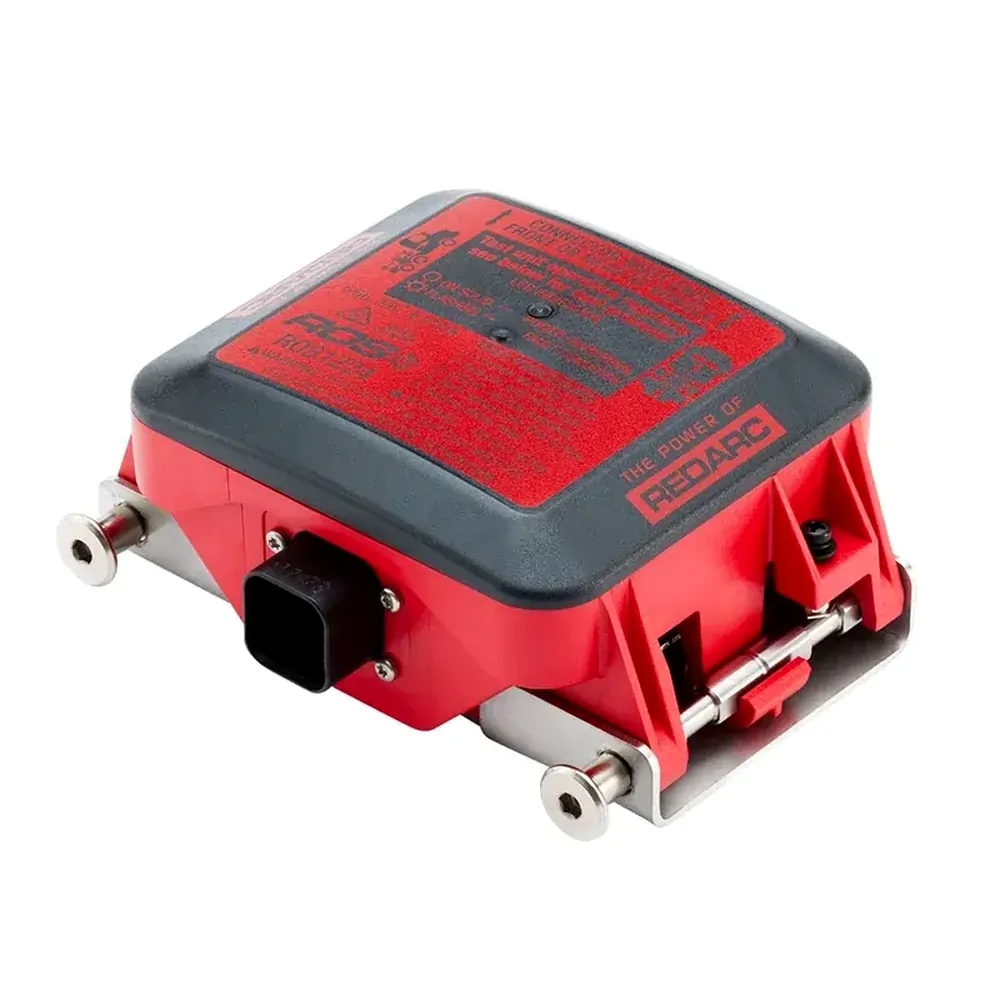

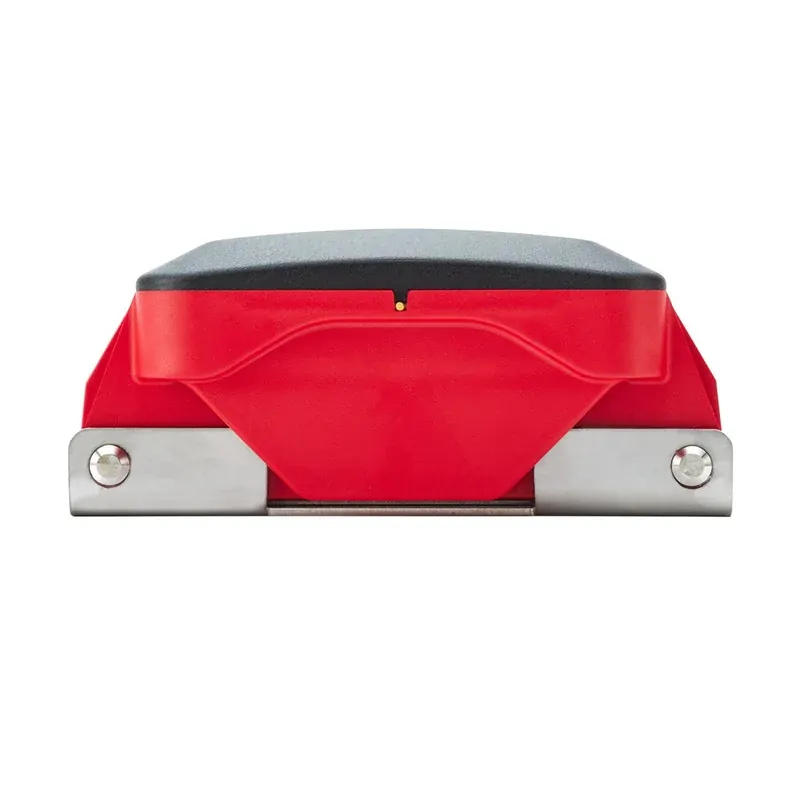

Redarc Roll Over Sensor ROS1224

SKU:ROS1224

$1,309.00


Calculate Shipping

The Roll Over Sensor (ROS) triggers a battery isolation in the event of a vehicle rollover by signalling the isolation switch to disconnect power to the trucks system.

It enables trucks to meet the legal requirement of roll-over sensing (AS2809:2008) and represents a significant improvement over existing rollover switches in the market.

The Roll Over Sensor has been designed for high reliability undergoing thorough environmental and lifetime testing.

It is compatible with most common battery master isolation switches and will provide enhanced safety when used with REDARCs Battery Master Isolation Switch (BMIS).

FeaturesEasy periodic test by pin-removal and tilt mechanismSuitable for 12V or 24V systemsUses dual accelerometers for automotive safety applications, giving high accuracy, reliability and ability to detect fault conditions Resilient to truck electrical environmentsImmune to vibration, bump, shock, turning or electrical transients Built for high reliability using automotive grade parts, and redundant sensors and controllersCustom industrial design housingFault detection and indication LED on the unit and via an optional dash-mounted lamp

brandREDARC
Weight700 g
height65 mm
width122 mm
depth | length150 mm
Warranty2 Years
operating voltage9V to 32V (12V or 24V systems)
Switching Point45 - 64 (55 typical)
SKU ROS1224
Barcode # 9338628004362
Brand REDARC
