Redarc Multi Function Timer TIM05

SKU:TIM05

$215.00


Calculate Shipping

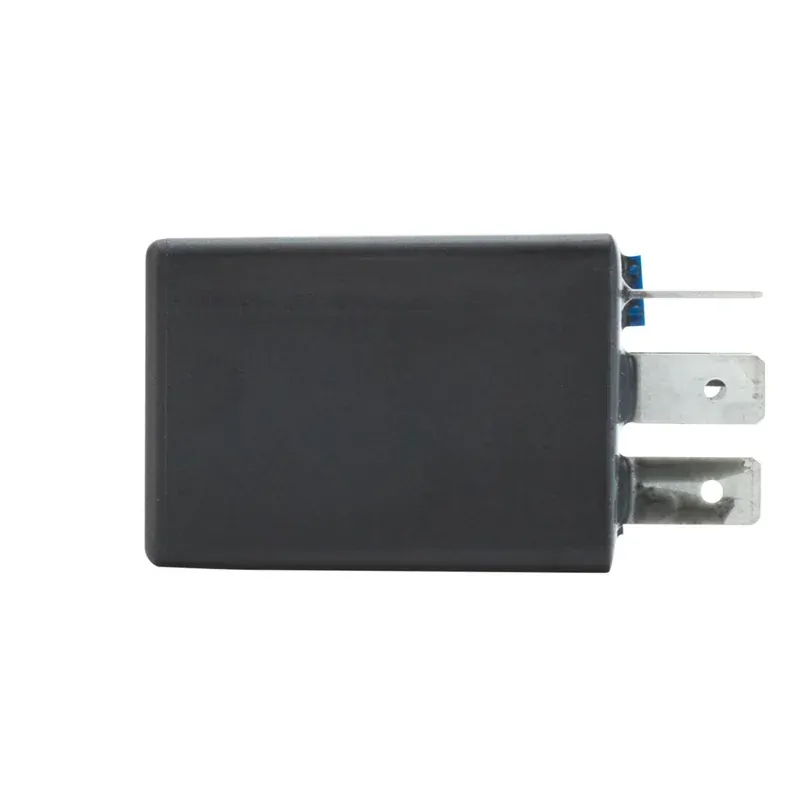

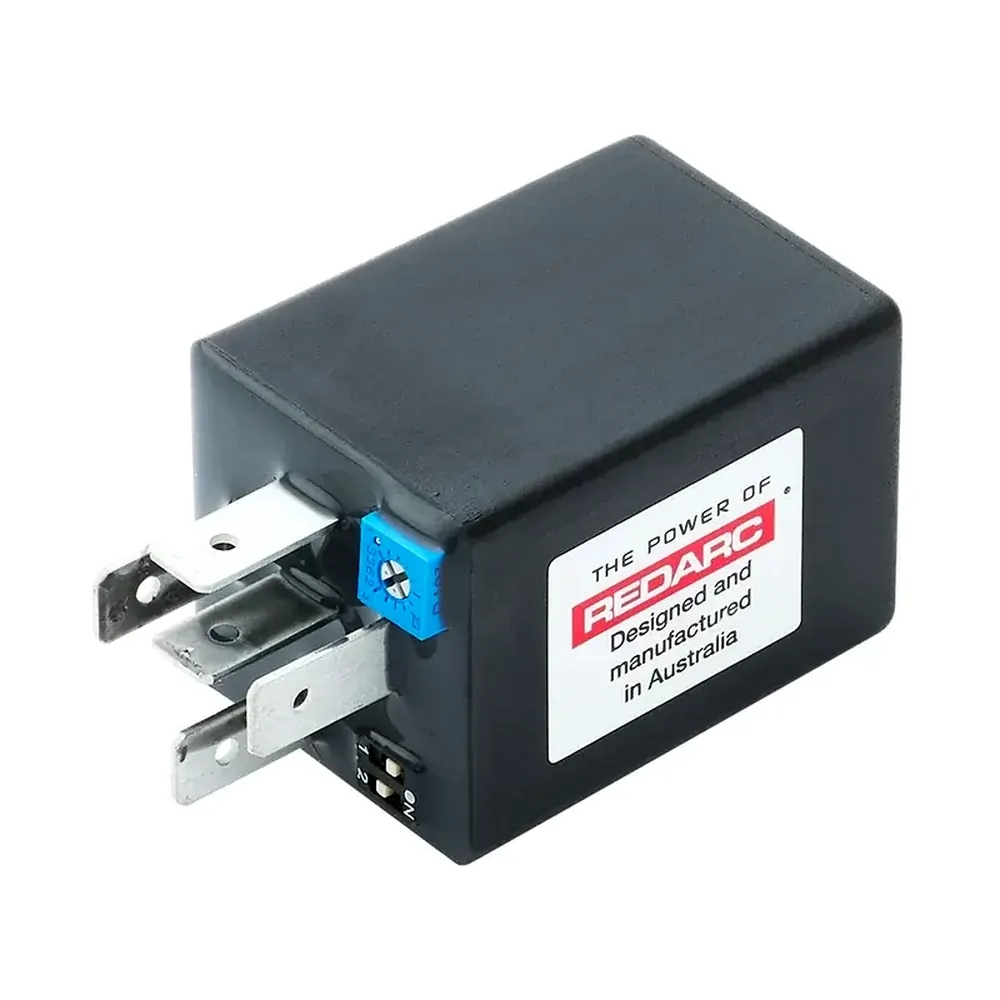

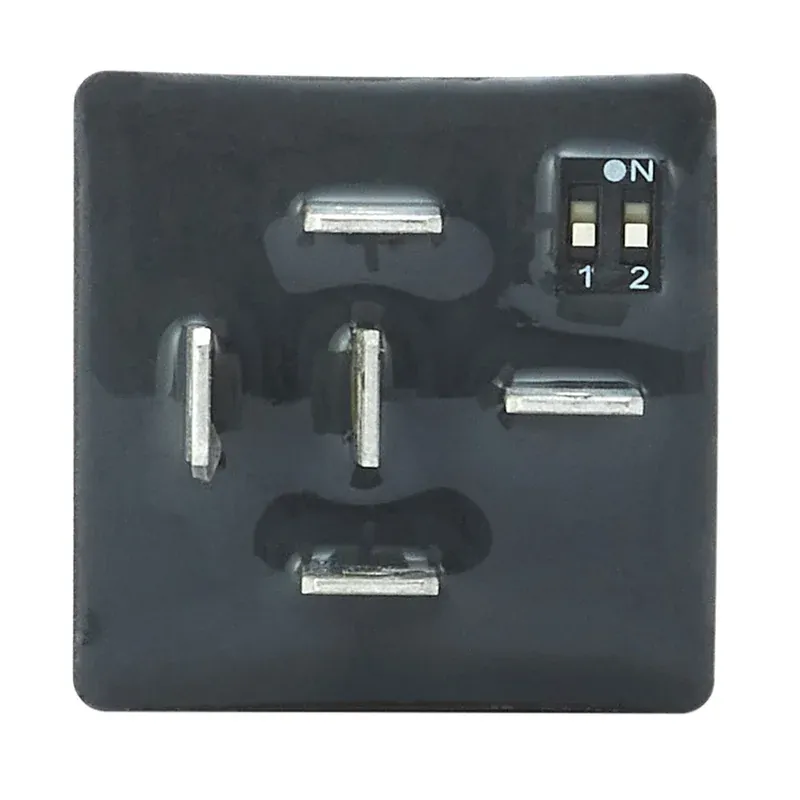

The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram).

Contacts operate in a similar way to a changeover relay.

The timer switches the internal relay to provide output on PIN 87.

(Positive output only) The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).

Use Switch 2 to select time range between SECONDS and MINUTES.

Use the potentiometer to adjust time (increasing in clockwise direction).

The TIM05 & TIM06 can supply a maximum current of 10 AMPS.

FeaturesUser adjustable 1- 60 seconds/minutesChange over type relayStandard automotive relay baseFully customisable upon request

brandREDARC
Weight70 g
height30 mm
width24 mm
depth | length75 mm
Warranty2 Years
Input Voltage12V / 24V
Max. Rated Output Current10A
SKU TIM05
Barcode # 9338628001682
Brand REDARC
