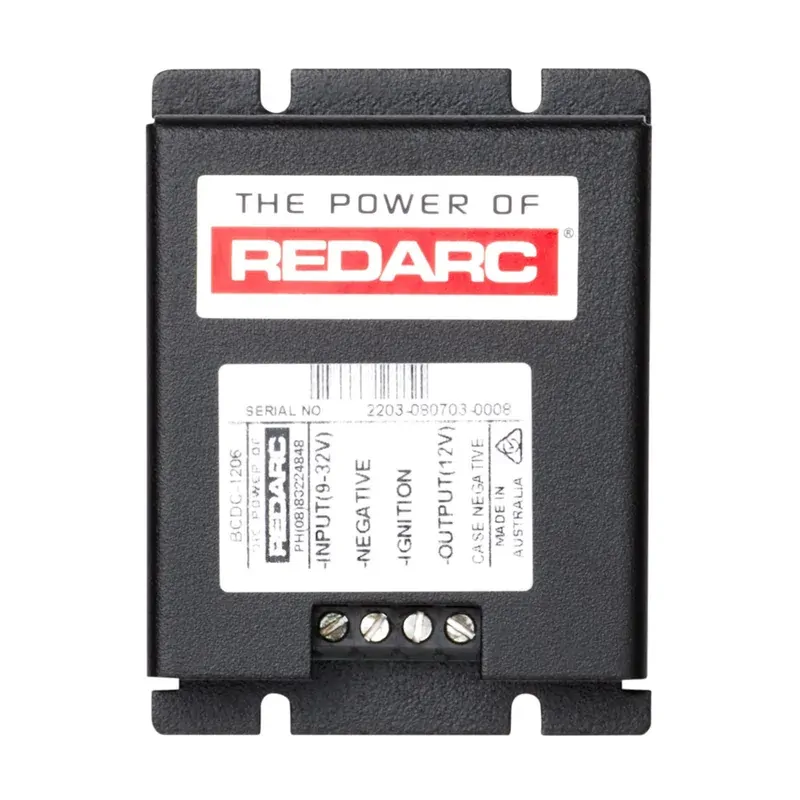

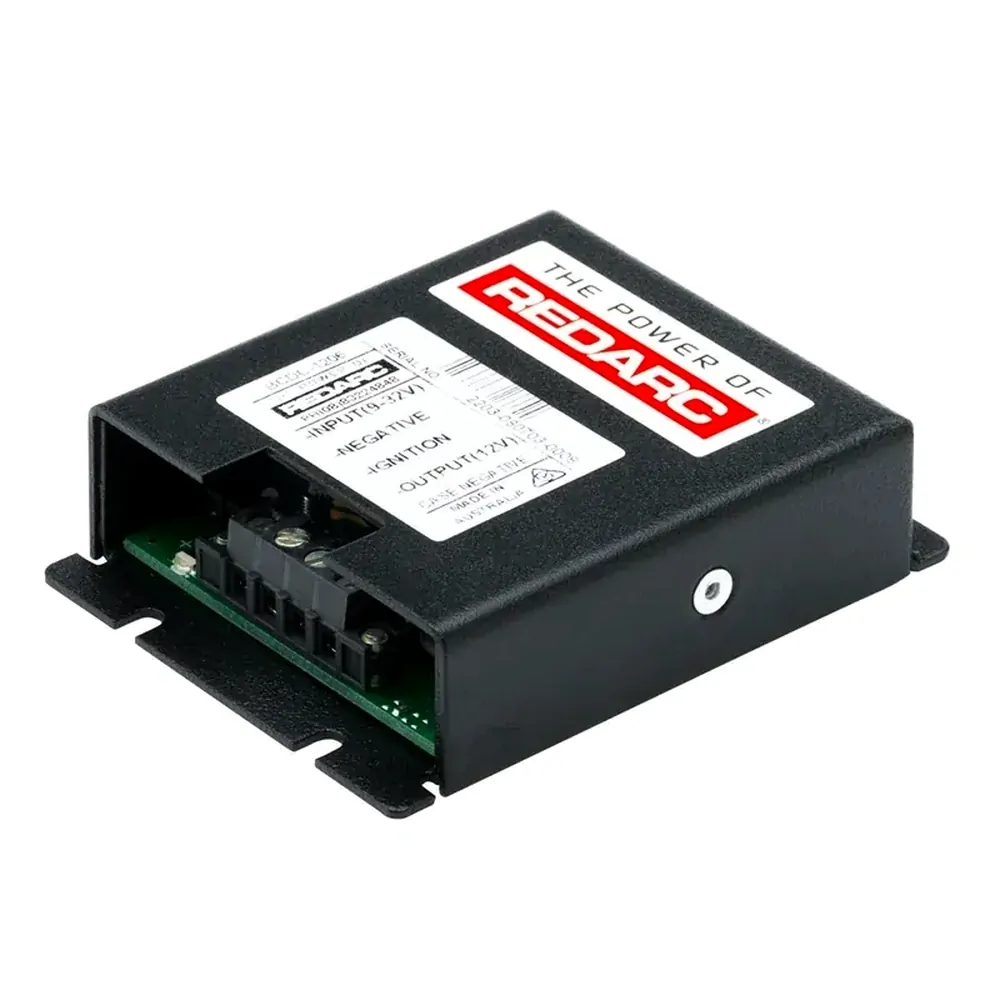

Redarc 6A DC to DC Battery Charger BCDC1206

SKU:BCDC1206

$429.00


Calculate Shipping

The BCDC1206 is a three stage 12 Volt 6 Amp DC to DC charger that operates with an input of between 9 and 32V.

The input voltage of the BCDC1206 can be above, below or equal to the output voltage making it ideal for charging an auxiliary 12V battery where the distance from the main battery may cause a significant voltage drop.

The wide operating voltage range provides a simple solution to charging trailer mounted batteries.

The BCDC1206 can deliver sufficient current to charge a battery that has a typical DC compressor fridge connected.

Approved for use in Australia and New Zealand only.

FeaturesCompact in sizeOver current and short circuit protectionHigh operating temperature range up to 70COver temperature protectionInput under voltage shutdownInput over voltage shutdownLed indication of output modeClick here to view the product flyer

brandREDARC
Battery ChemistryAGM, Gel, Standard Lead Acid, Calcium, Not suitable for Lithium (LiFePO4)
Protection TypeOver current, Short circuit
Standby Current<150uA
Weight200g
height20 mm
width60 mm
depth | length80 mm
Warranty2 Years
Input Voltage4 - 32V
Output Voltage12V DC
Max. Charging Voltage14.5V
Max. Rated Output Current6A
SKU BCDC1206
Barcode # 9338628000180
Brand REDARC
