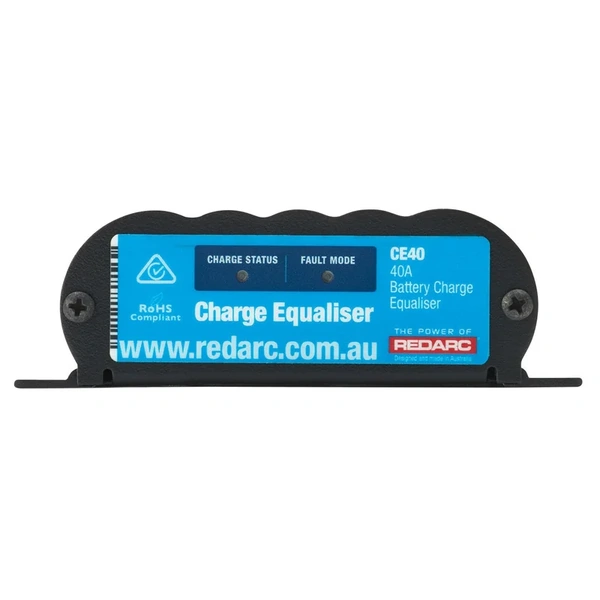

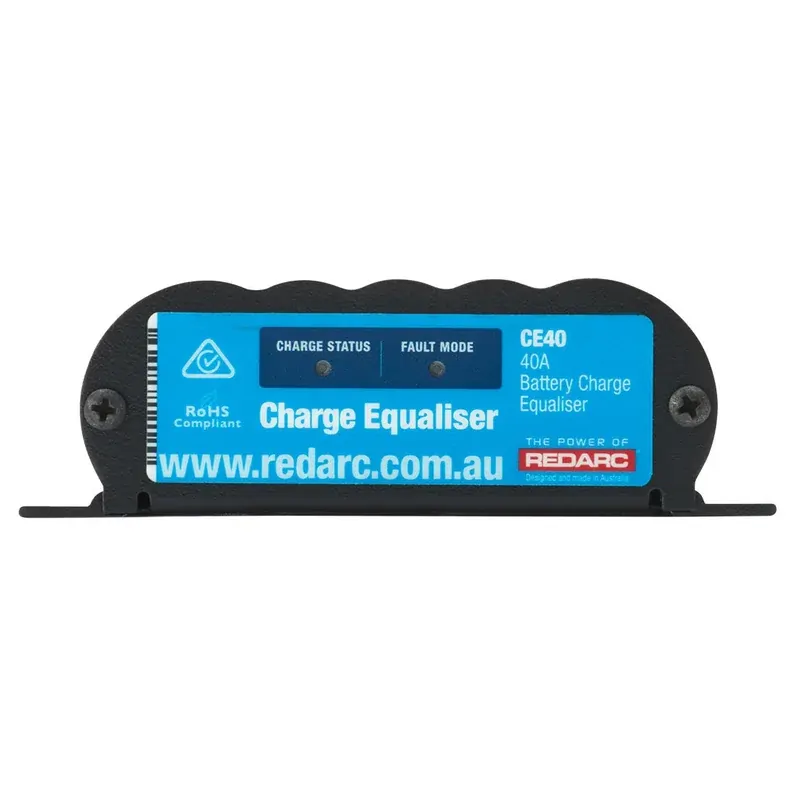

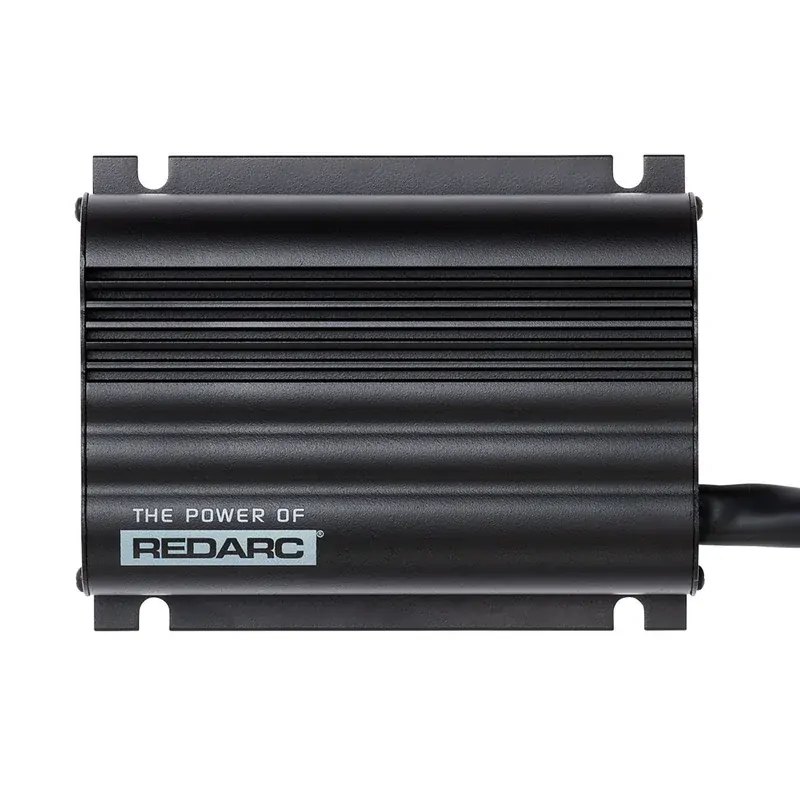

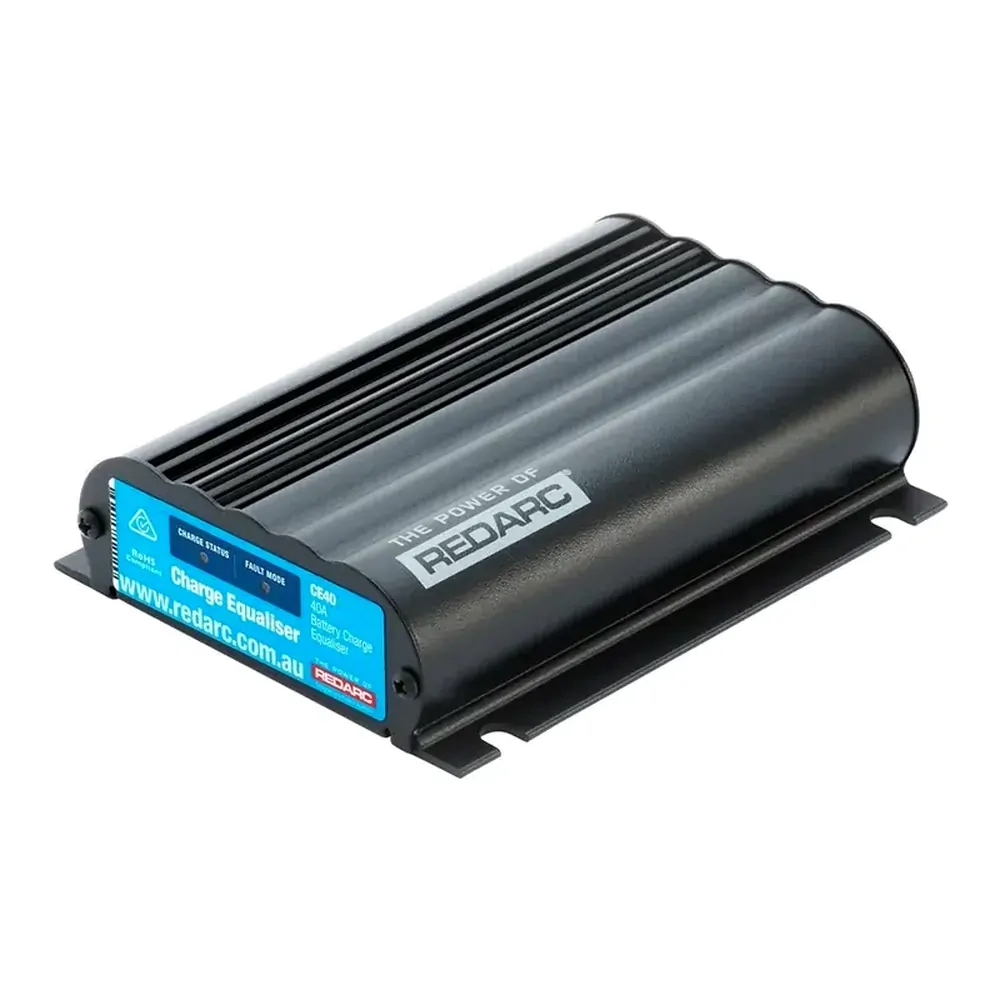

Redarc 40A Charge Equalizer CE40S2

The REDARC 40A Charge Equaliser allows 12 volts to be tapped from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.

This is particularly useful when space or cost prohibits the installation of a separate 12 volt battery.

REDARC have incorporated technology from the award-winning BCDC range into the new style CE40S2.

The CE40S2 has a maximum 40A output and offers improved functionality, reduced installation complexity and features input isolation, negating the need for an input relay or isolator.

The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.

It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer.

This allows for a much larger peak current draw.

BenefitsDesigned to keep your 24 volt batteries equally chargedReduce down time and running costs by extending battery lifePeak load currents are limited only by the batteryDesigned for Australia's Harsh ConditionsFeaturesBased on the award winning BCDC PlatformHigh peak current capabilityFast transient responseSealed and suited for commercial applications
