Redarc 12V or 24V 10A Chopper Relay - Latching CR1224L

SKU:CR1224L

$216.00


Calculate Shipping

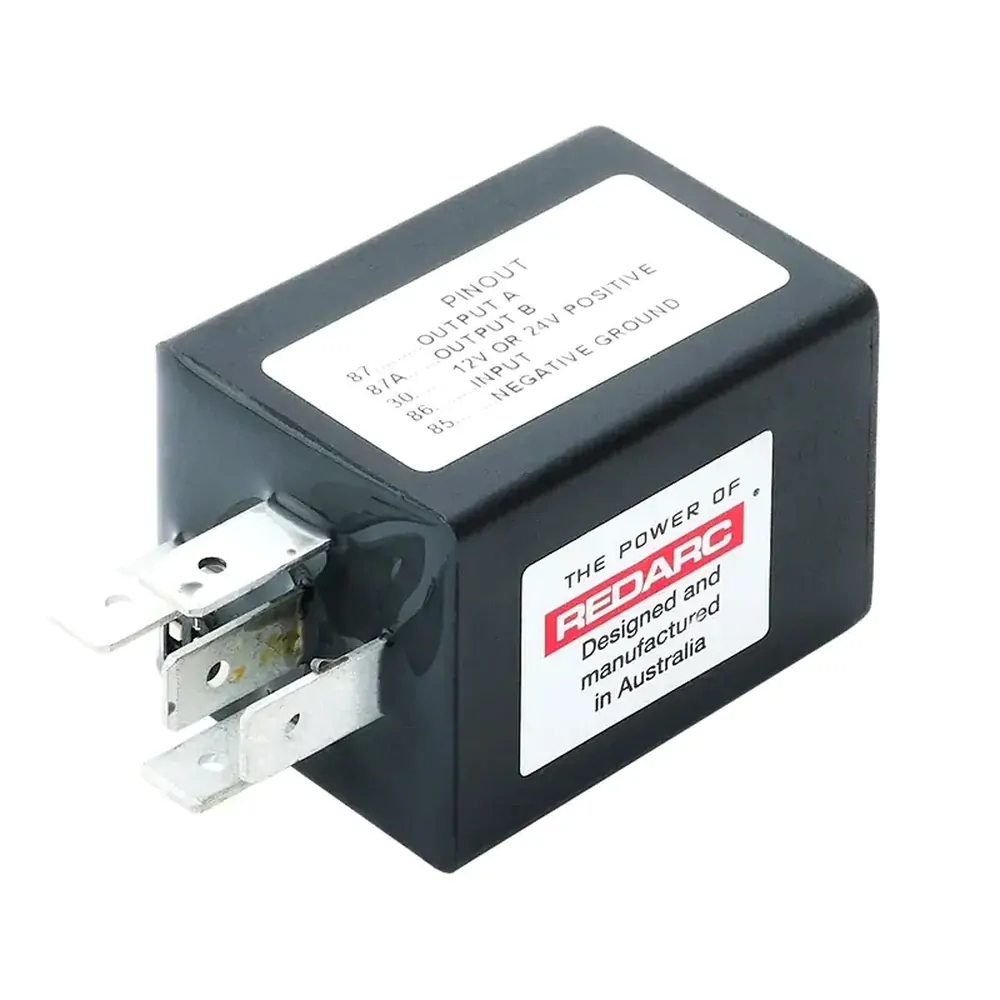

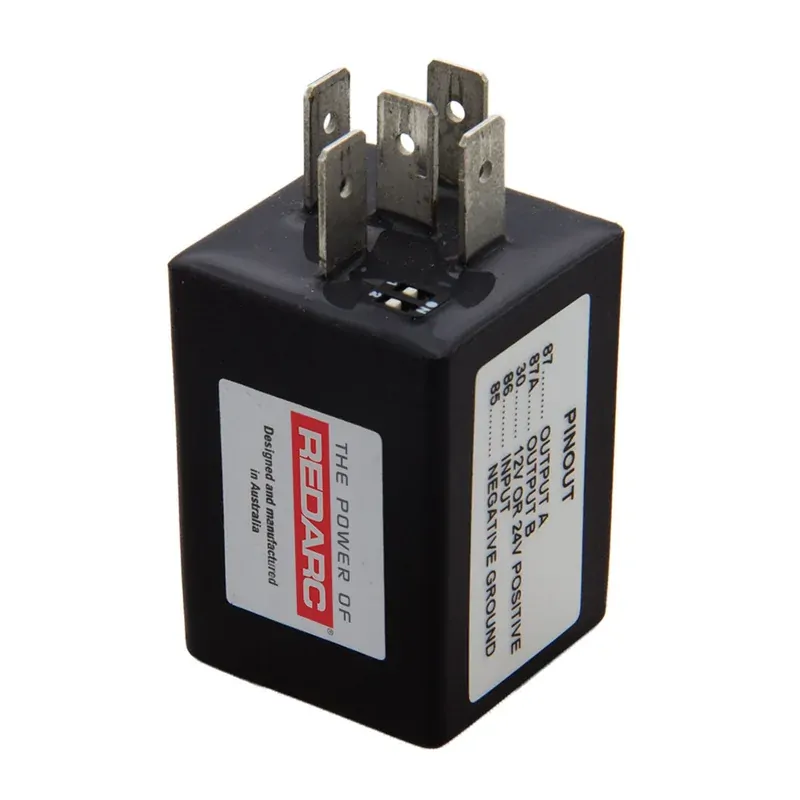

REDARC's Latching 'Chopper' Relay features 2 outputs which alternately Latch ON or OFF with the application of an input from a single, momentary action, push-button switch.

Each output remains ON or OFF) until the next input signal causes the outputs to swap.

The Latching Relay is ideal for fog light switches, rear demisters and any dash type switches that need to latch on from a momentary push.

They can also be used in conjunction with a Bi-Metallic switch to provide auto off directional motor control like electric windows.

Each output has a maximum rating of 10 amps.

The supply must be protected by a fuse of suitable rating.

Features12/24V operation10A maximum currentCompact designStandard relay base pinouts

brandREDARC
Weight90g
height30 mm
width31 mm
depth | length81 mm
Warranty2 Years
operating voltage12V / 24V
Max. Rated Output Current10A
SKU CR1224L
Barcode # 9338628000364
Brand REDARC
